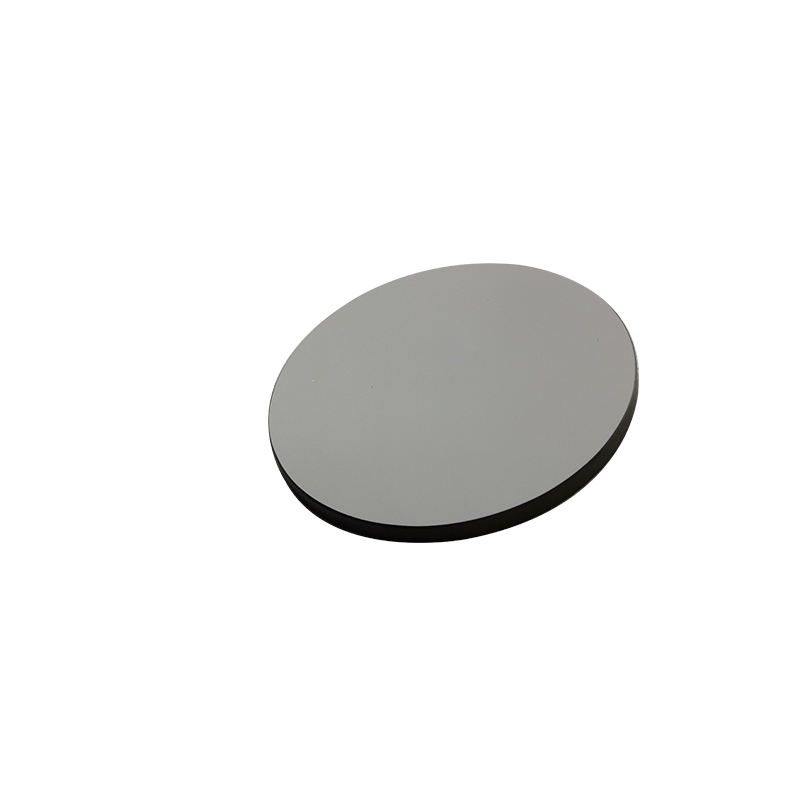

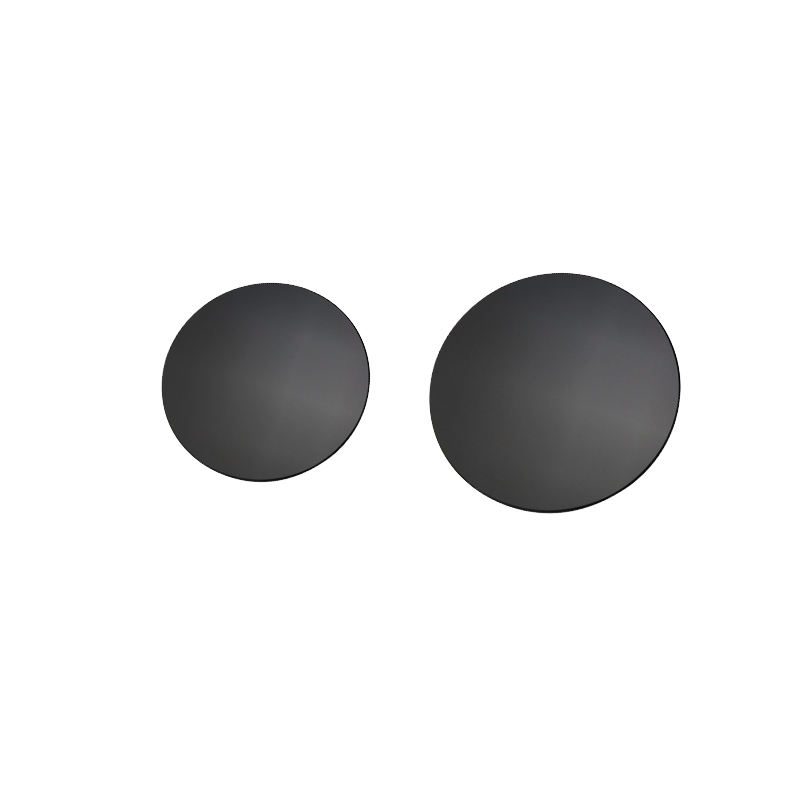

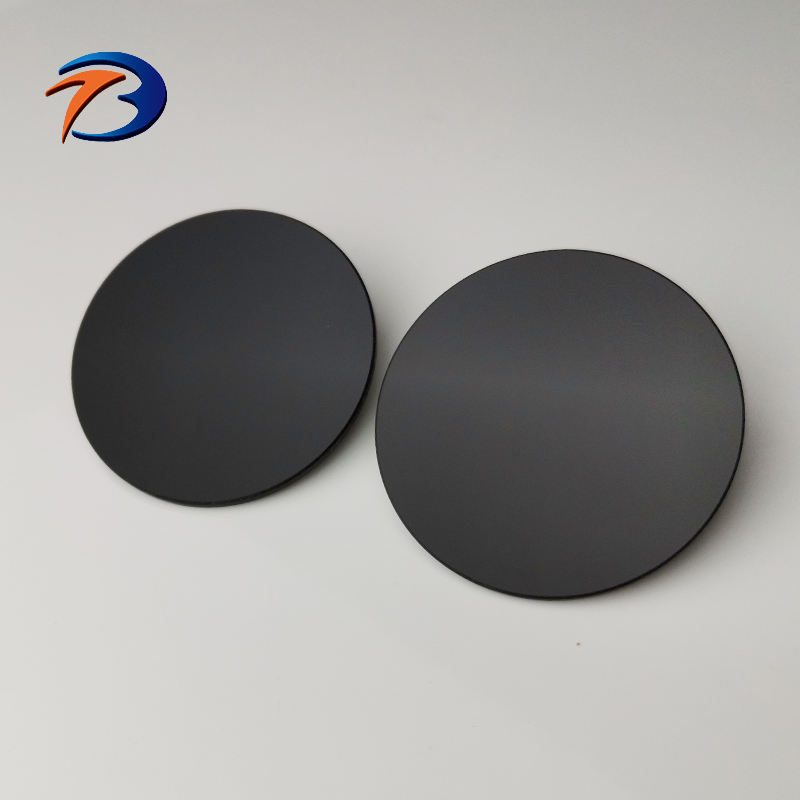

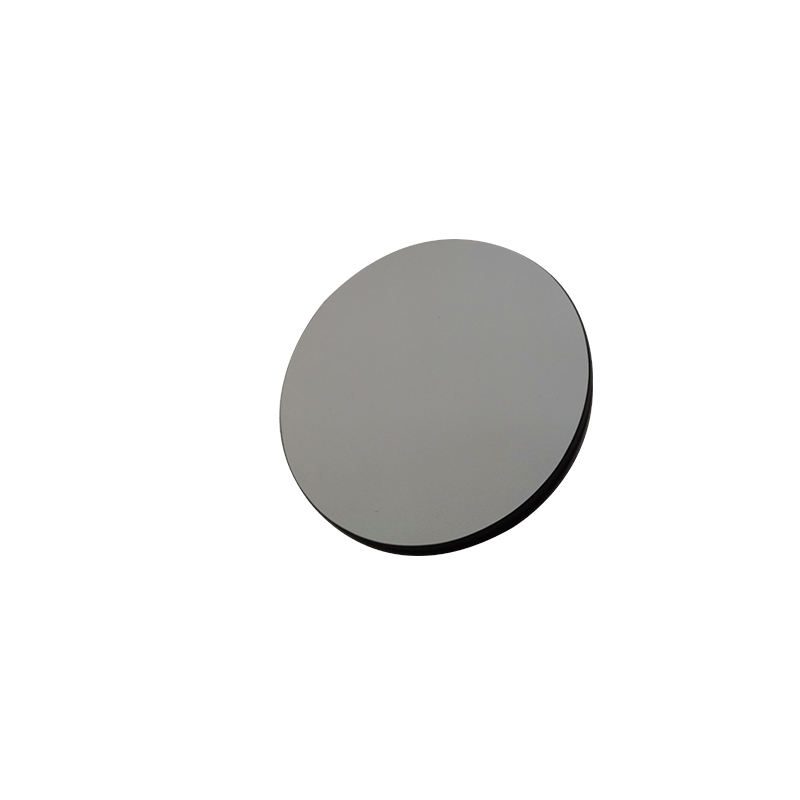

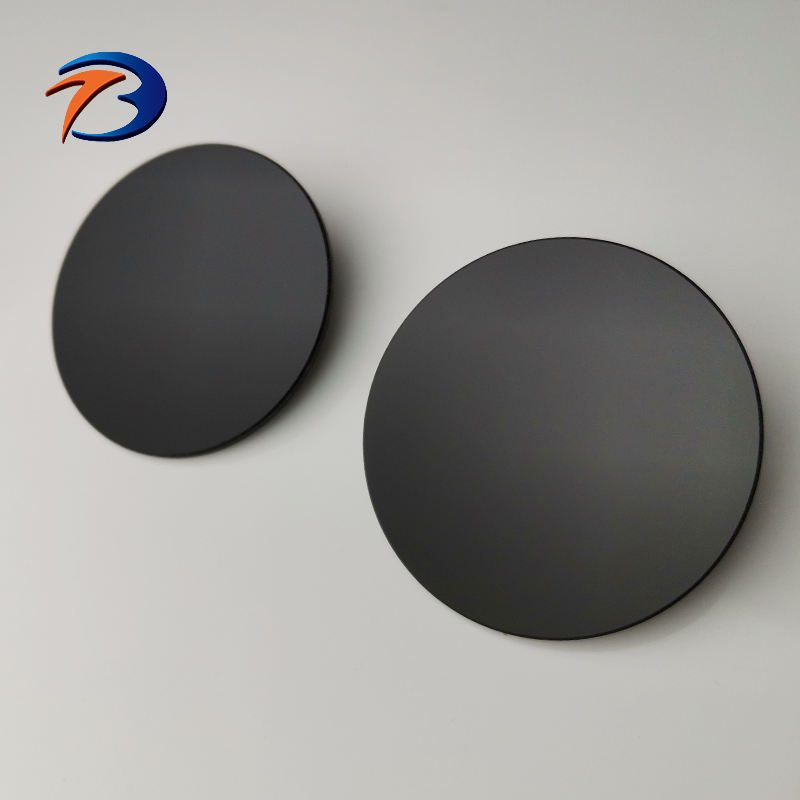

0.5x0.3 mm Silicon Round Optical Window, AR Coated

Product description

Silicon (Si) Windows are designed for applications in the 0.7-14 μm spectral range, making them ideal for infrared imaging, LIDAR, and medical devices. Their lightweight nature and cost-effectiveness cater to weight-sensitive applications, particularly in the 3-5 μm region. With a variety of customizable sizes and thicknesses, these windows meet diverse project requirements while ensuring high performance and reliability.

Key Features

Diameter options from 0.5 mm to 600 mm for versatile application fit.
Thickness range of 0.3 mm to 50 mm accommodates various design needs.
Dimension tolerance of +/-0.1 mm or +/-0.02 mm ensures precision.
Clear aperture exceeding 85% or 90% enhances optical performance.
Customizable support available for OEM projects.

Available Sizes

Diameter x Thickness (mm)
300.2 x 25.1

Specification Summary

Item	Value
Material	Silicon
Shape	Round
Diameter	0.5 mm
Thickness	0.3 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	3 Years
Customized Support	OEM
Dimension Tolerance	+/-0.1mm or +/-0.02mm
Clear Aperture	>85%, >90%
Parallelism	+/-3’,+/-30''
Bevel	0.1~0.3mm x 45 degree
Certification	iso9001

FAQ

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified.

Can I get custom sizes?

Yes, custom sizes are available, including variants like 300.2 mm diameter and 25.1 mm thickness.
