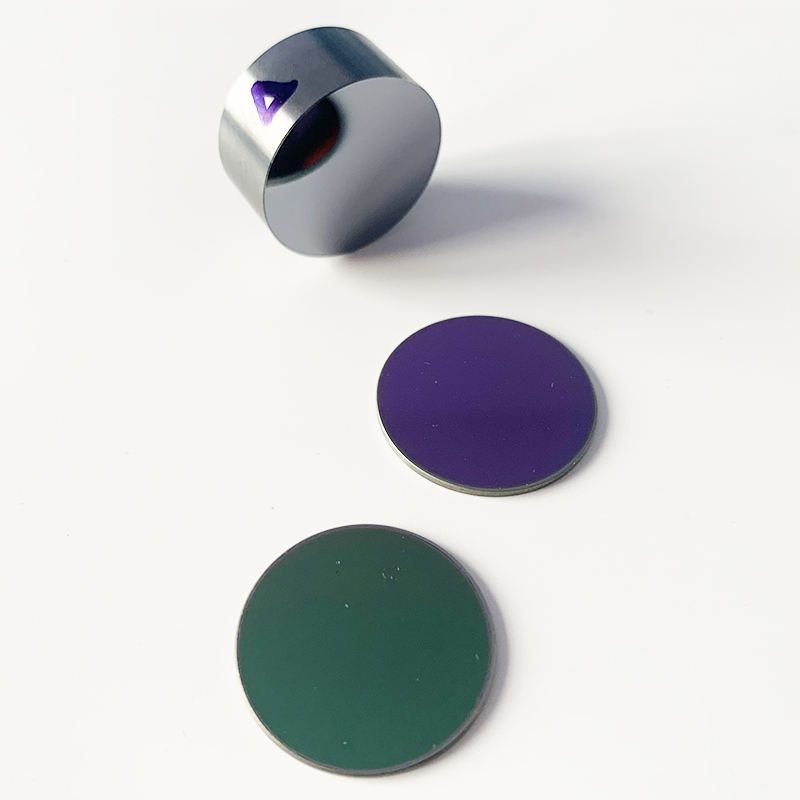

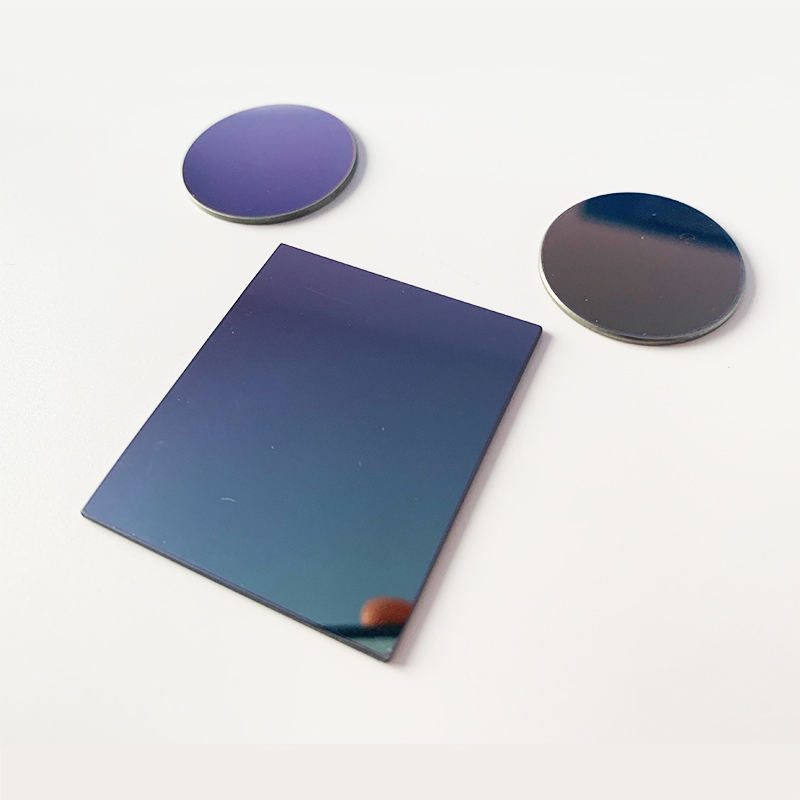

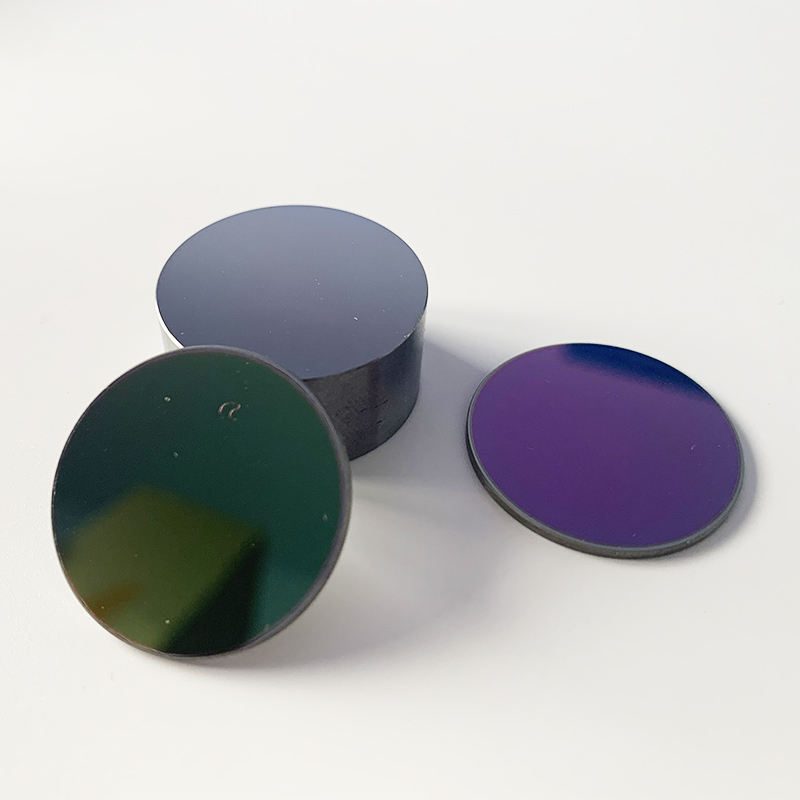

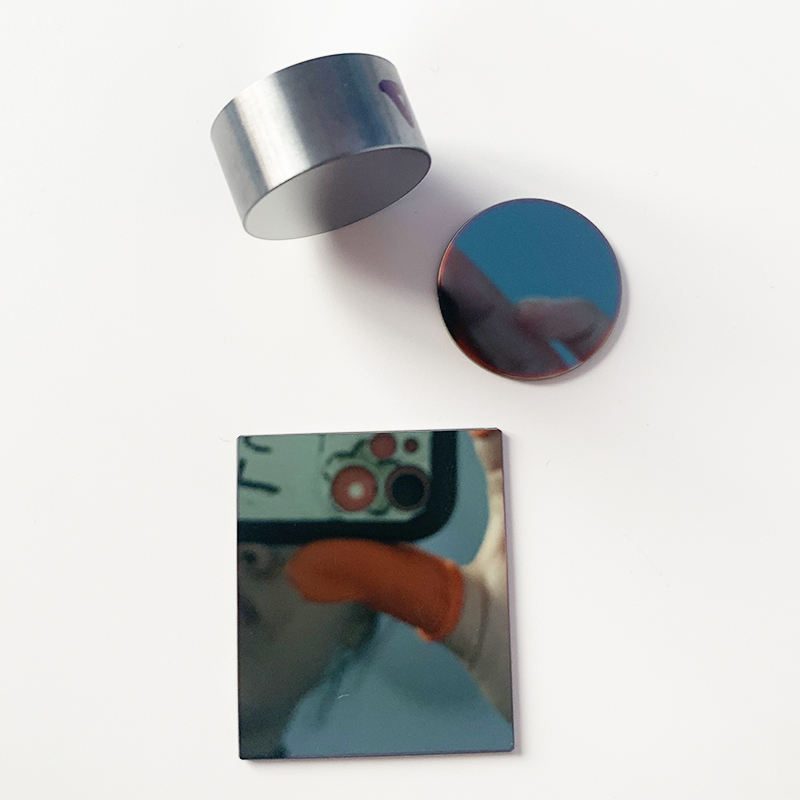

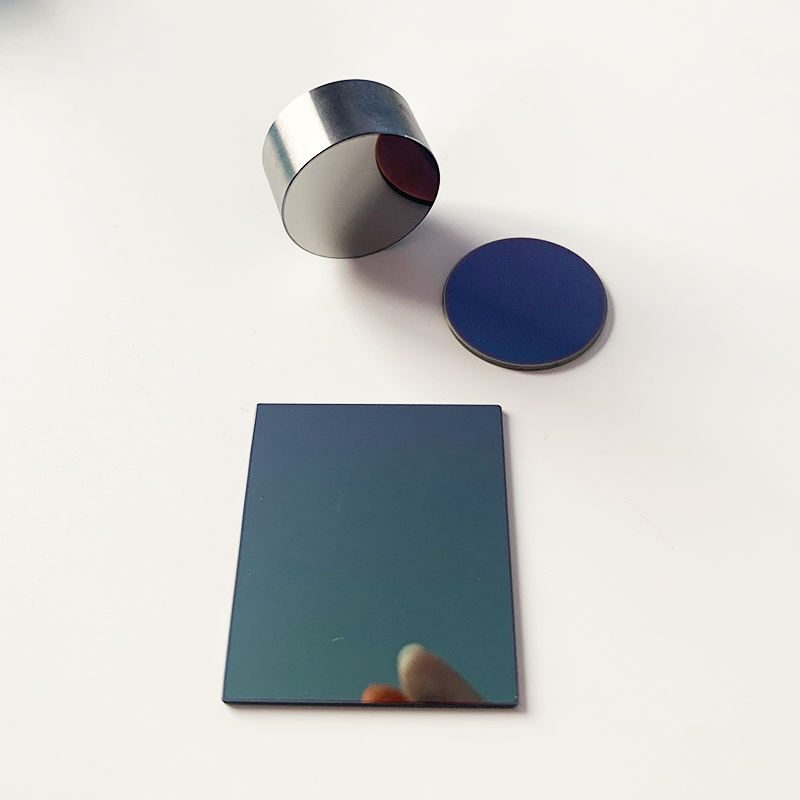

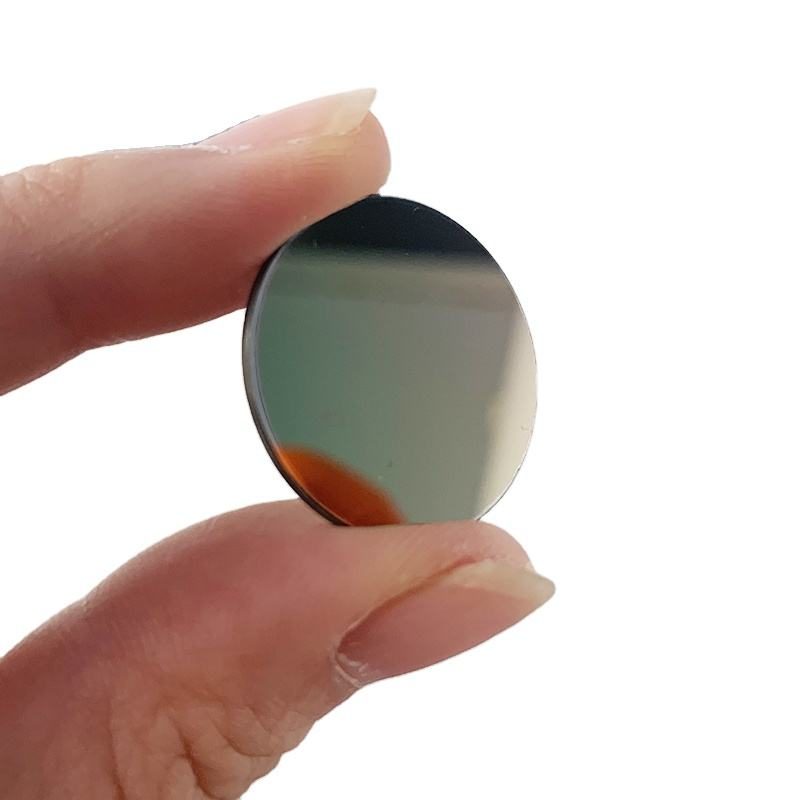

1 mm Silicon Round Optical Window, AR Coated

Product description

Silicon round IR windows are designed for optimal performance in the 3-5 μm and 8-14 μm infrared spectrums, making them ideal for applications in thermal imaging and medical systems. These optical windows feature anti-reflection coatings and a surface quality of 60/40, ensuring high transmittance and clarity. With customizable sizes and reliable performance, they meet the stringent demands of various infrared applications.

Key Features

Custom sizes available, allowing for tailored solutions to fit specific applications.
High clear aperture (>92%) ensures maximum light transmission for enhanced imaging.
Surface quality rated at 60/40, providing reliable optical performance.
Parallelism of 2 arc seconds for precise alignment in optical setups.
Centering tolerance of 30 arc minutes supports accurate positioning.

Applications

Thermal Imaging, Medical

Specification Summary

Item	Value
Material	Silicon
Shape	Round
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	3 months
Parallelism	2 arc seconds
Centering	30 arc min
Irregularity	L/4
Clear Aperture	>92%
Length	custom
Use	Optical
Structure	plate

FAQ

Can I get custom sizes for the IR windows?

Yes, custom sizes are available to meet specific application requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexibility in ordering.
