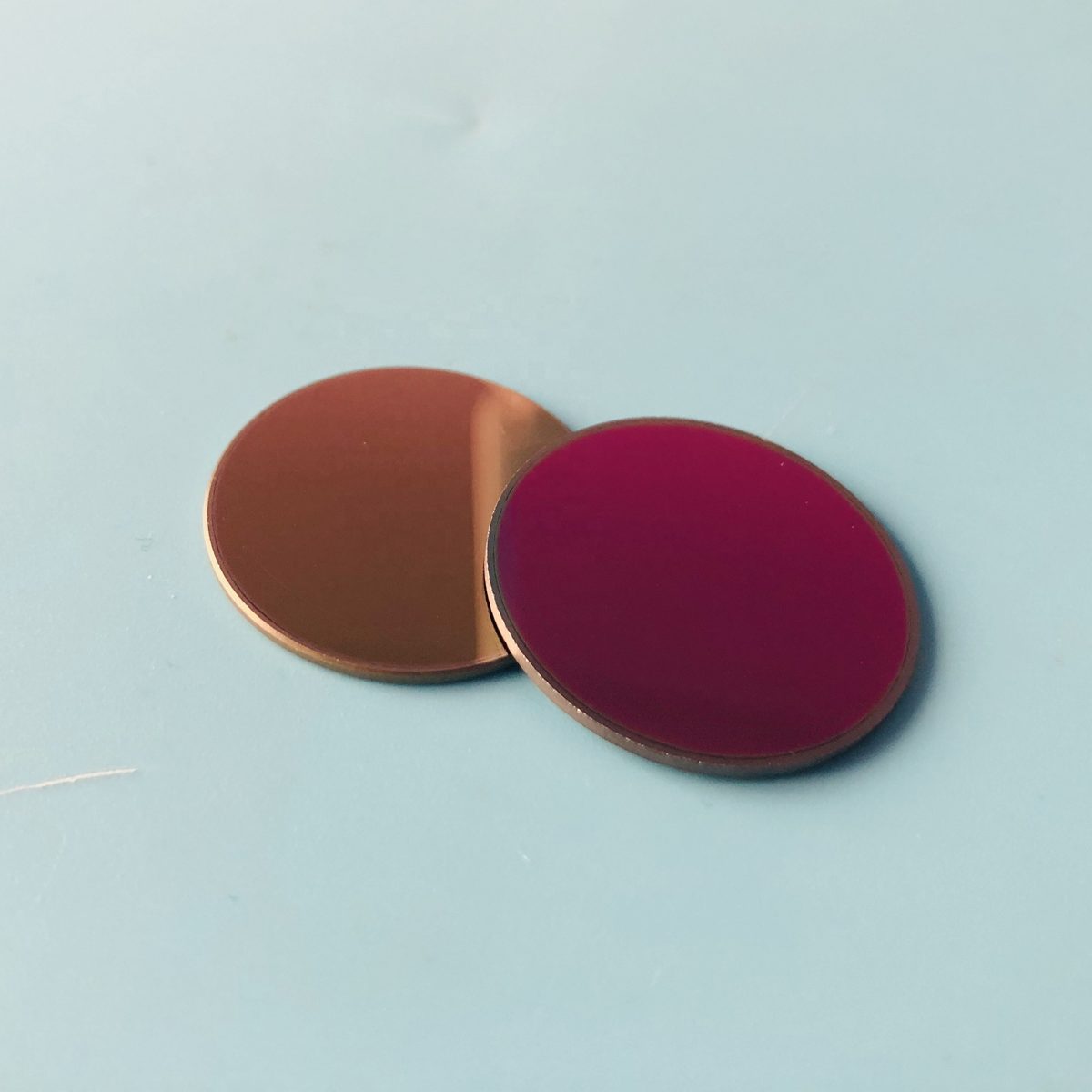

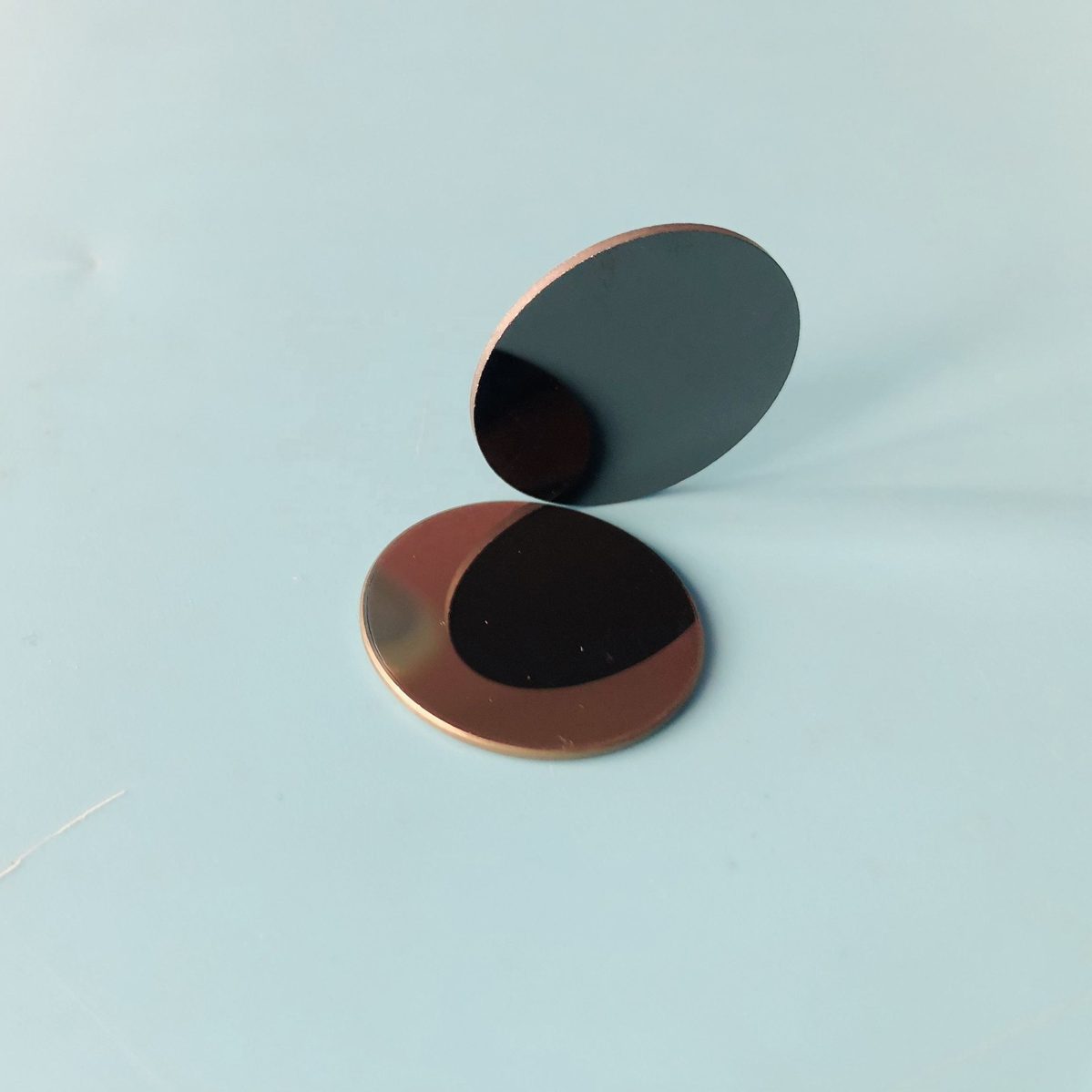

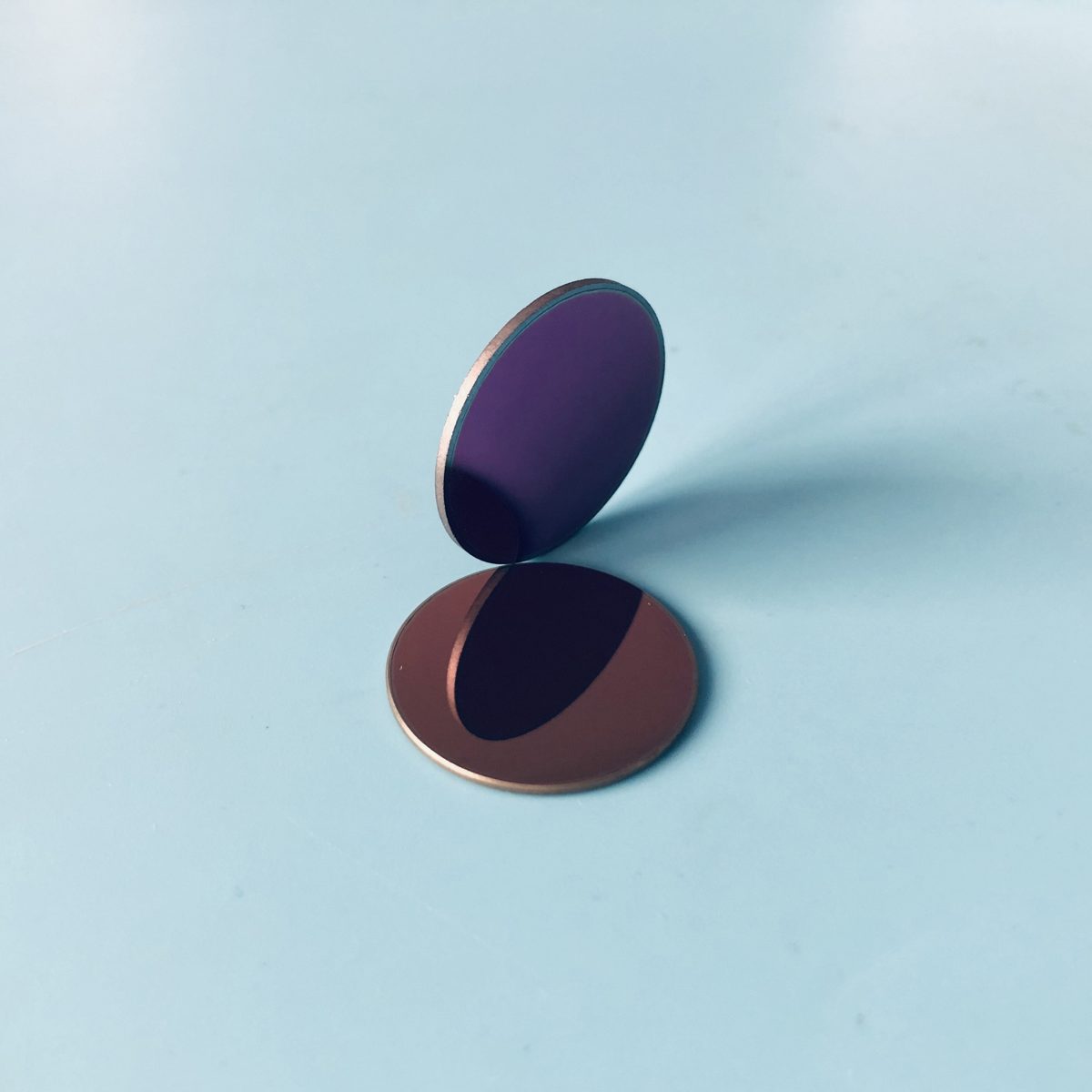

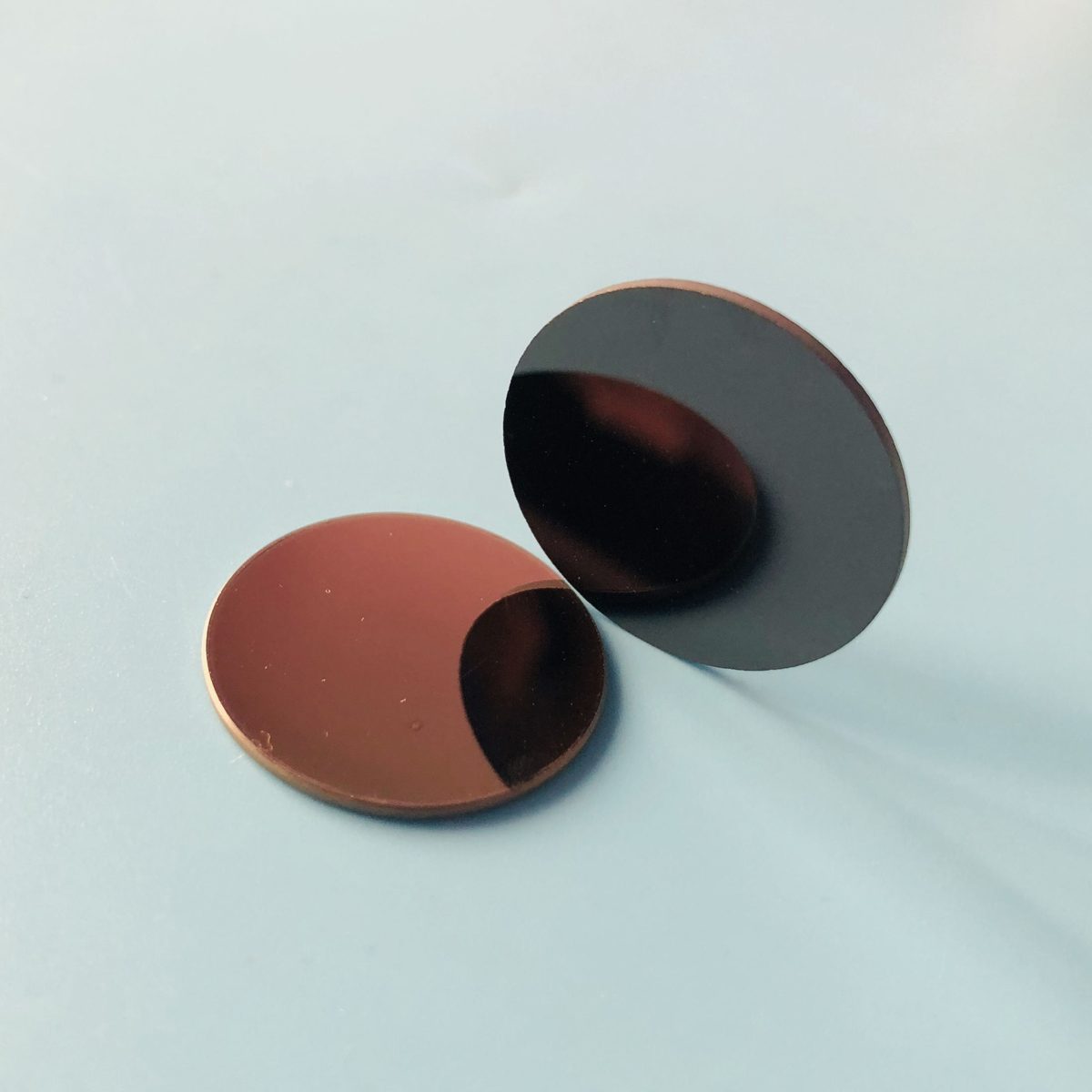

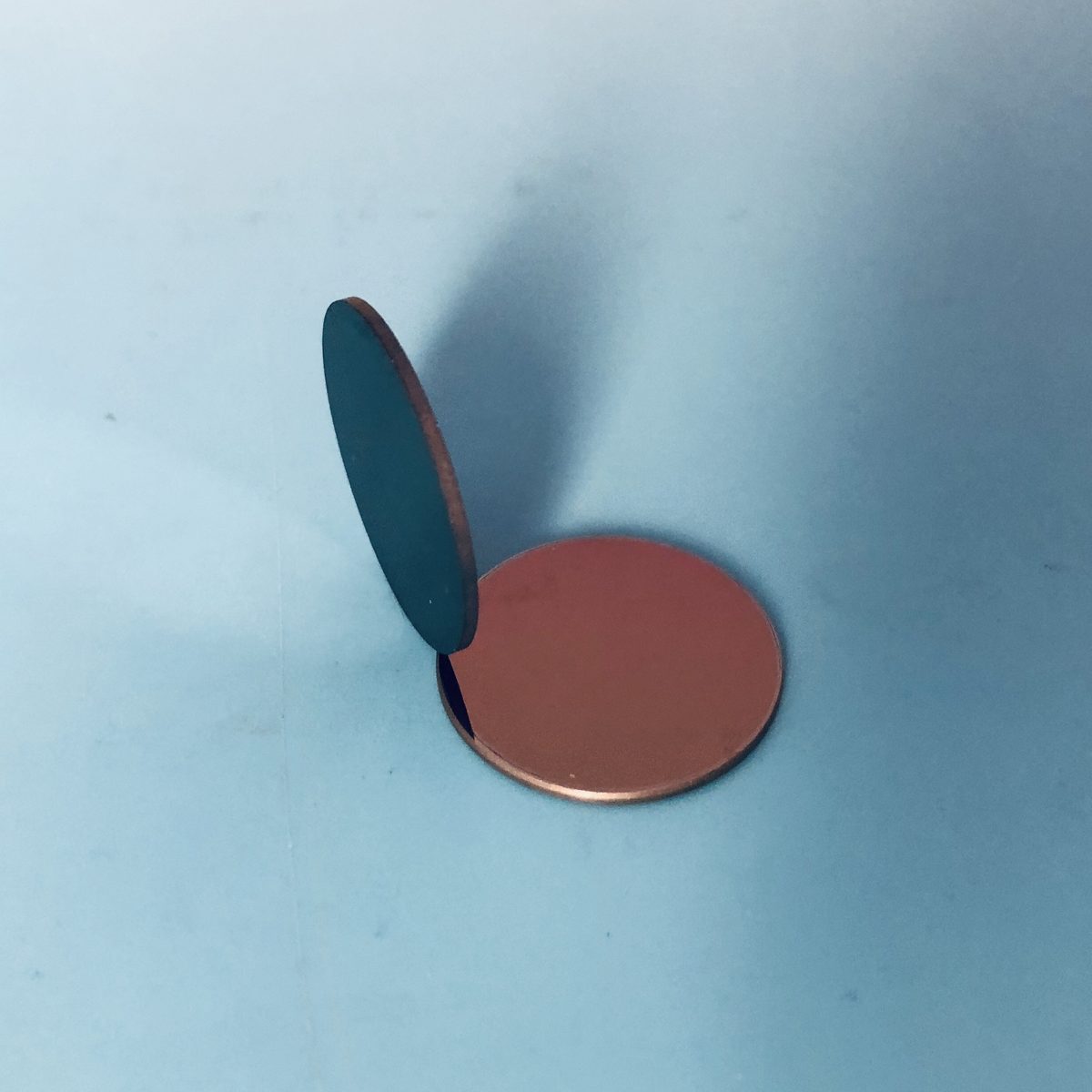

25 mm Silicon Round Optical Window, AR Coated
Discover high-quality Silicon windows for medical applications with custom sizing and excellent surface quality.
Core attributes
- Material
- Silicon
- Shape
- round
- Diameter range
- 25 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Silicon
- Shape
- round
- Diameter range
- 25 mm
- Coating
- ar
Product description
Silicon (Si) windows are essential for applications in the medical field, particularly in the infrared spectral region of 1.2 to 7 μm. These windows offer a combination of low density and high durability, making them ideal for weight-sensitive applications. With a diameter of 25 mm and a surface quality of 60/40, they ensure reliable performance in various optical systems. The AR coating enhances transmittance, optimizing performance for specific wavelengths.
Key Features
- Diameter of 25 mm with a tolerance of ±0.1 mm for precise fitting.
- Surface quality rated at 60/40 ensures minimal optical distortion.
- Clear aperture greater than 90% for maximum light transmission.
- Protective bevel available as needed to enhance durability.
- Custom OEM support available for tailored solutions.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Shape | Round |
| Diameter | 25 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Flat |
| Customized Support | OEM |
| Warranty | 3 months |
| Weight | 0.01kg(0.02lb) |
| Diameter Tolerance | ±0.1mm |
| Parallelism | <3 arc min |
| Clear Aperture | >90% |
| Bevel | Protective bevel as needed |
| Surface Figure | Lambda/4 @633nm |
FAQ
Can I get custom sizes?
Custom sizing is supported through OEM options.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible purchasing.
