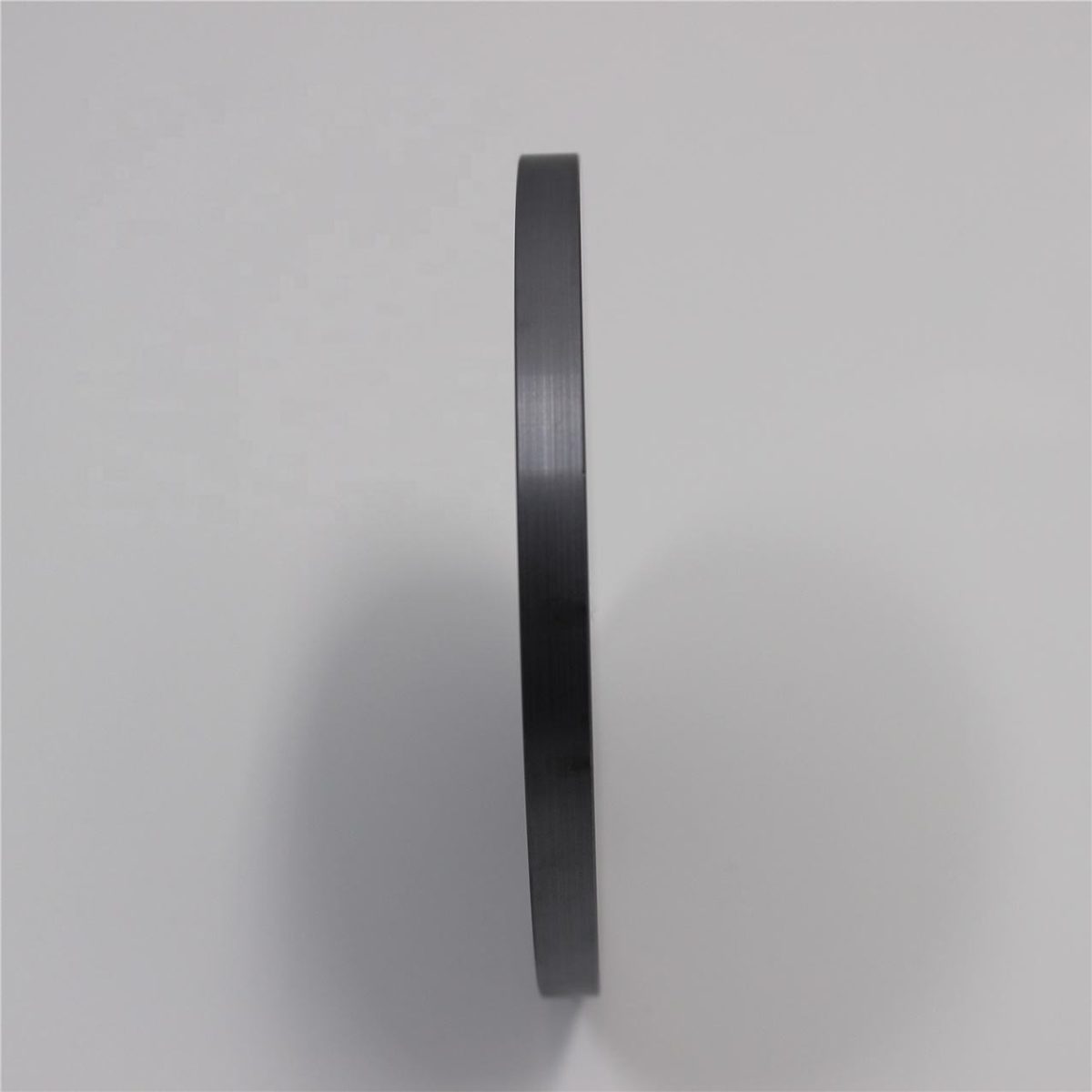

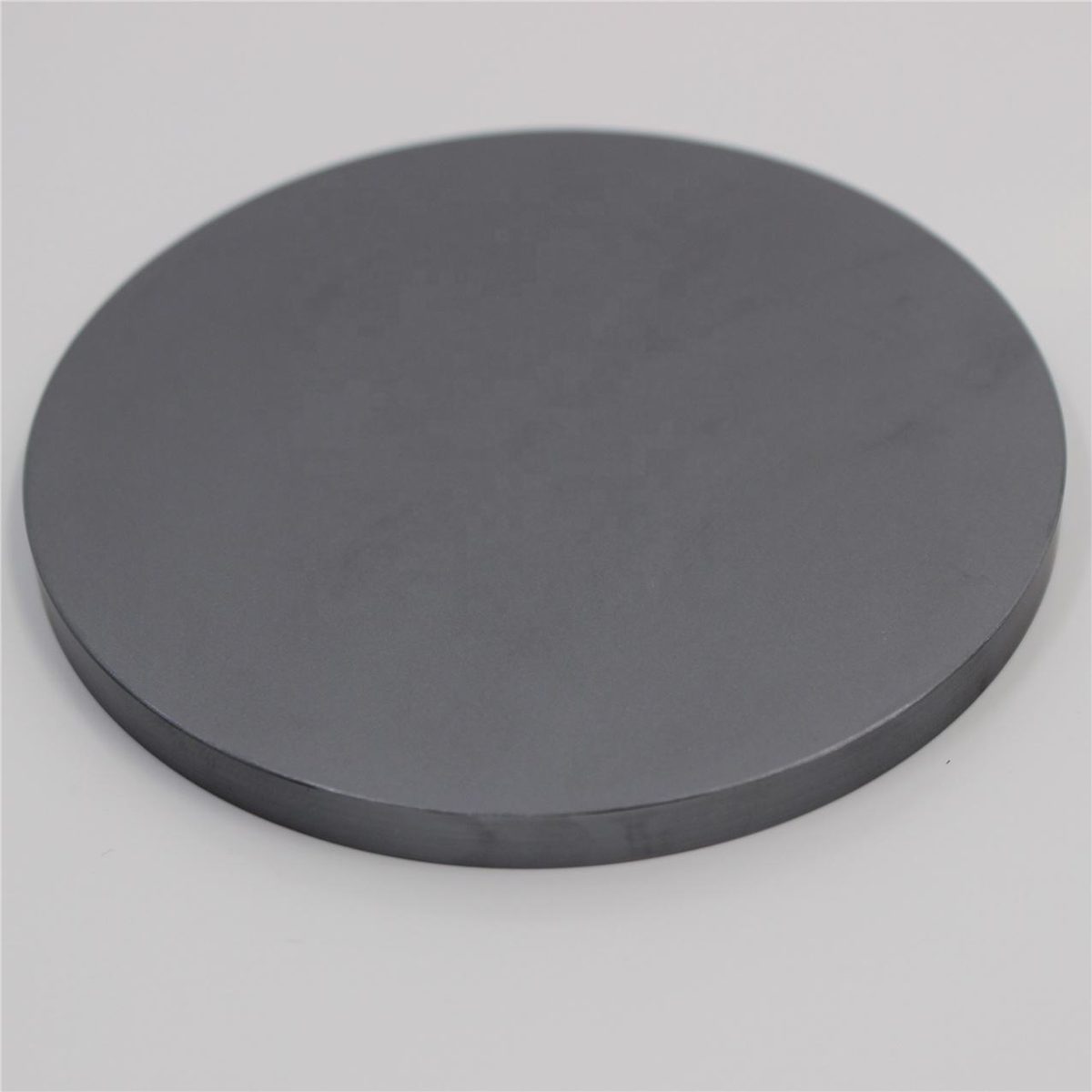

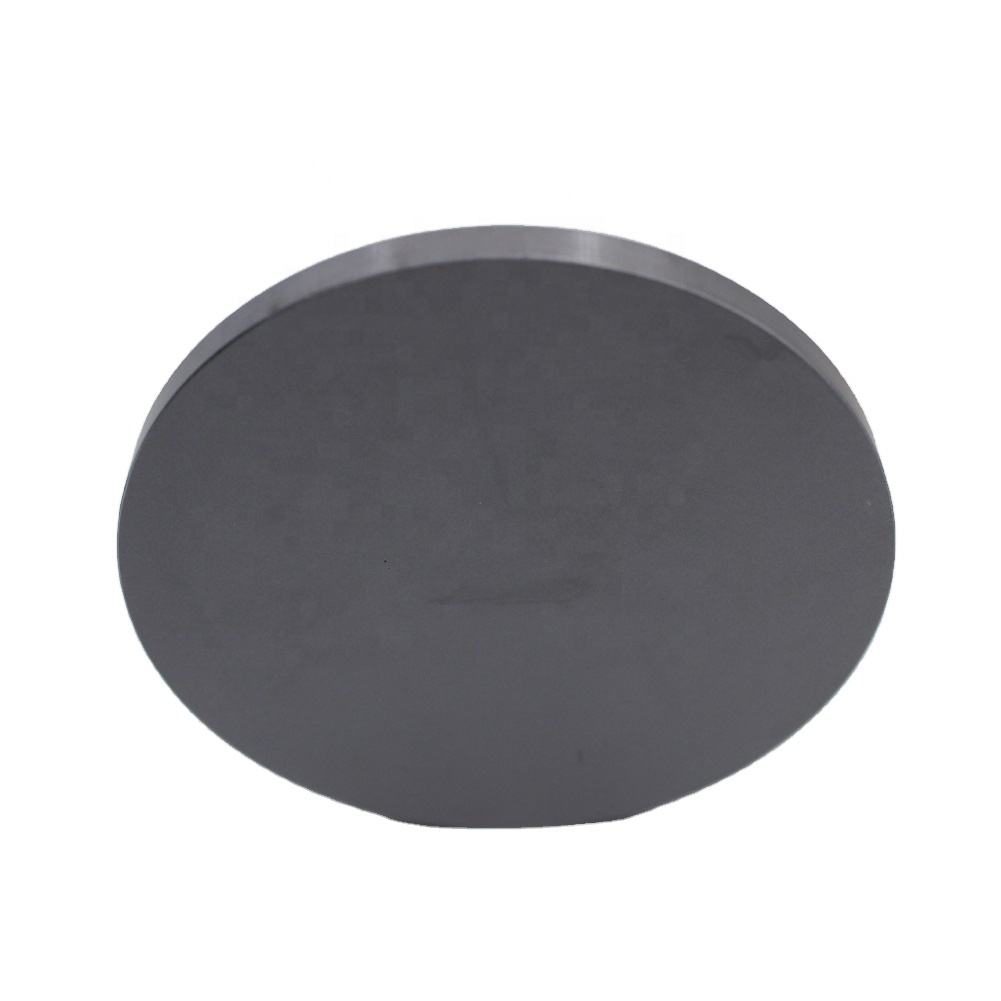

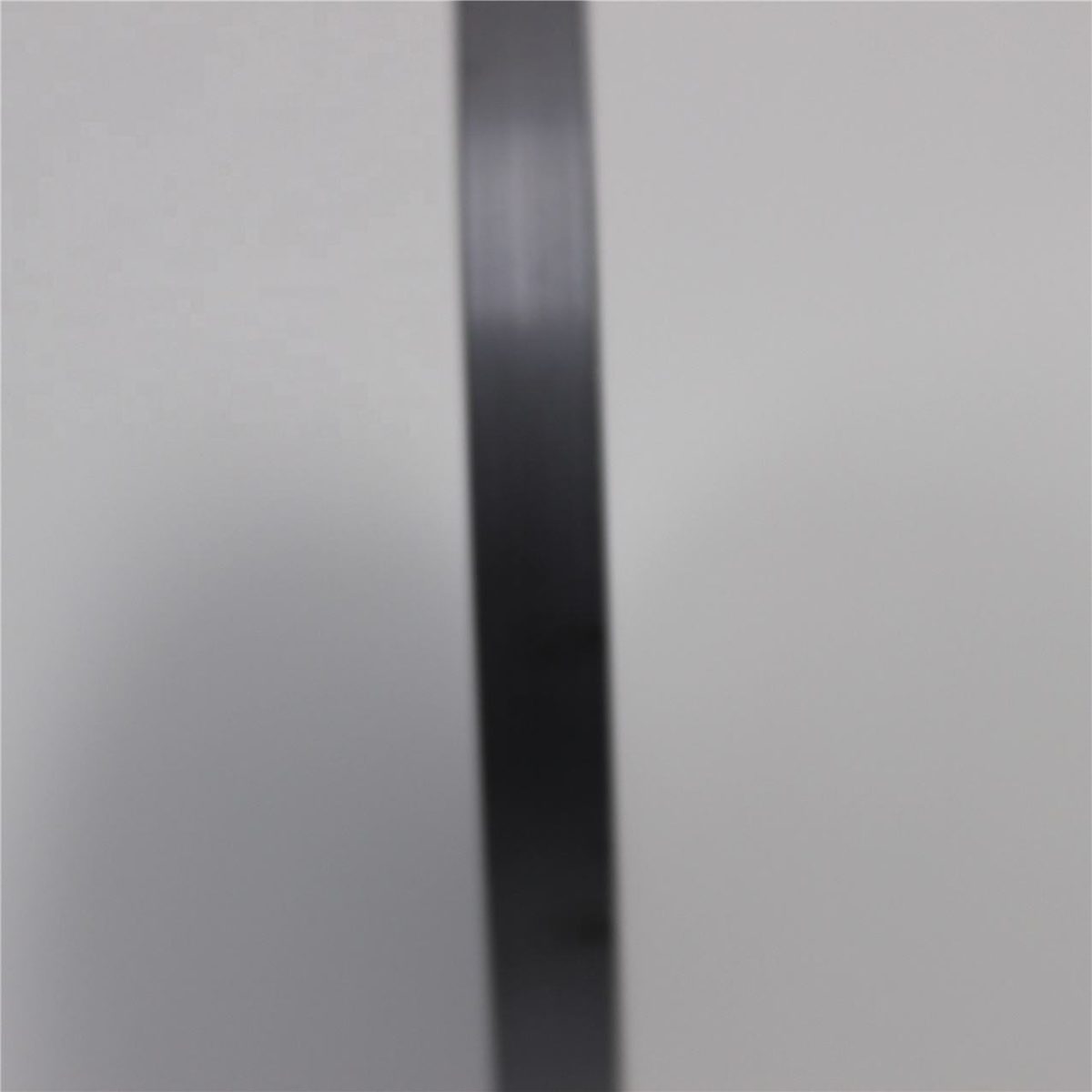

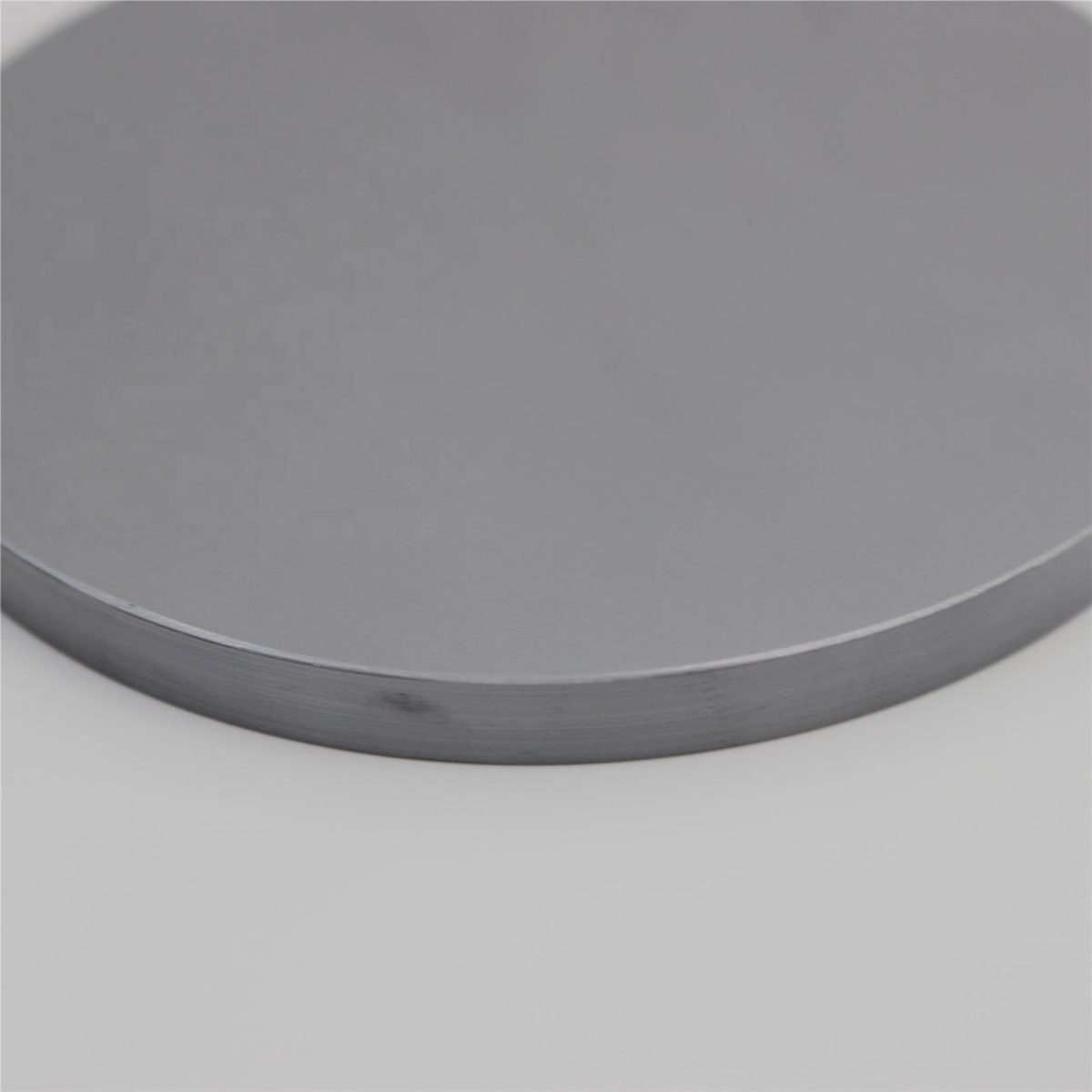

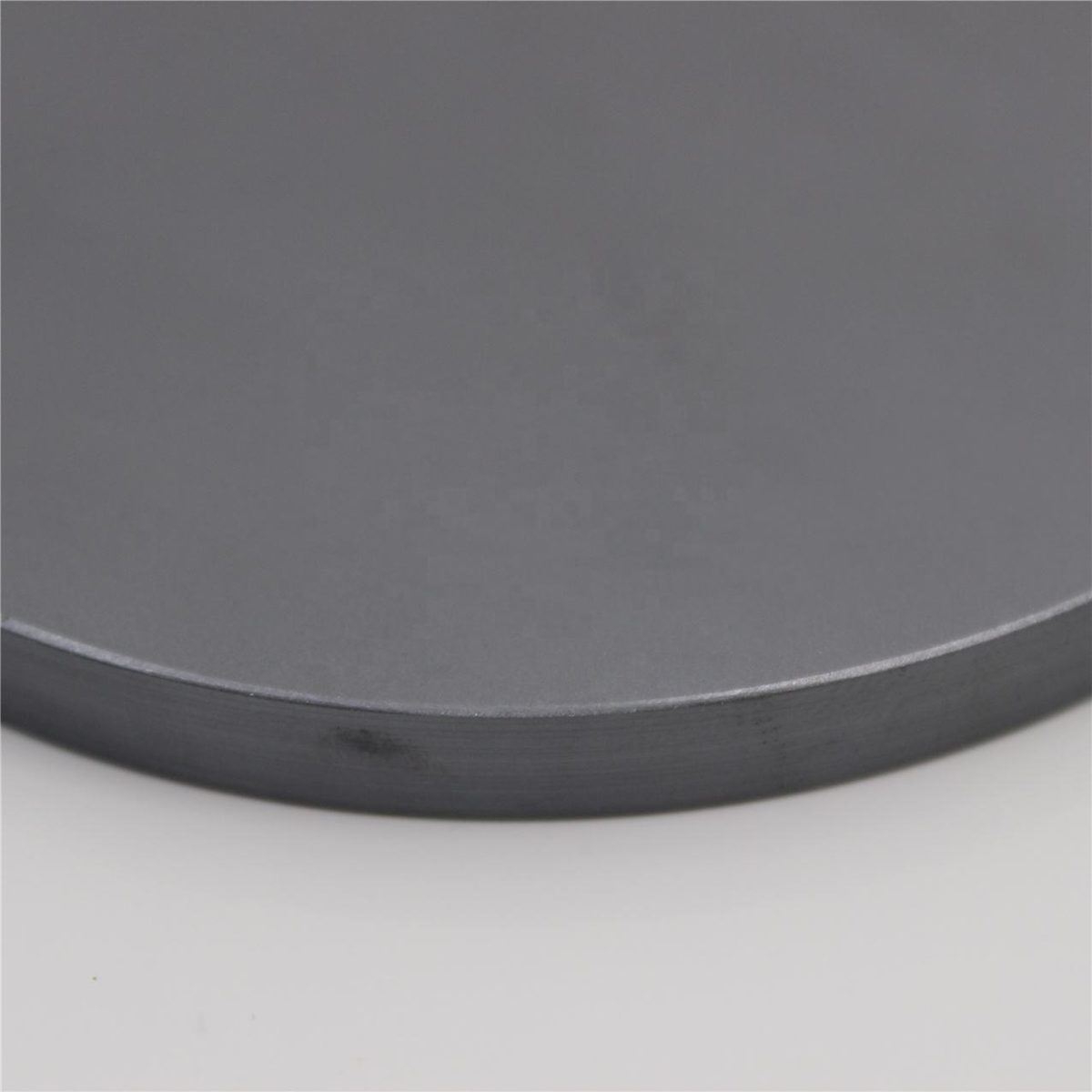

3 mm Silicon Round Optical Window, AR Coated

Product description

This round silicon lens is designed for security applications, providing an effective solution for isolating environments while allowing light transmission. With a diameter range of 3.0 mm to 460.0 mm, it offers versatility for various optical setups. The lens features a surface quality of 20/10 and a clear aperture greater than 90%, ensuring high performance in demanding conditions.

Key Features

Diameter range: 3.0 mm to 460.0 mm for versatile applications.
Surface quality of 20/10 ensures minimal distortion and high clarity.
Clear aperture greater than 90% maximizes light transmission.
Diameter tolerance of +/-0.01 mm for precise fitting.
Custom OEM support available for tailored solutions.

Applications

Security

Specification Summary

Item	Value
Material	Silicon
Shape	Round
Diameter	3 mm
Thickness	Custom
Surface Quality	20/10
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	lens; crystal wafer
Customized Support	OEM
Warranty	unavailable
Weight	0.2
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+0.01mm
Clear Aperture	>90%
Color	Black

FAQ

Is custom sizing available?

Yes, custom sizes can be requested for specific applications.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.01 mm, and thickness tolerance is +0.01 mm.
