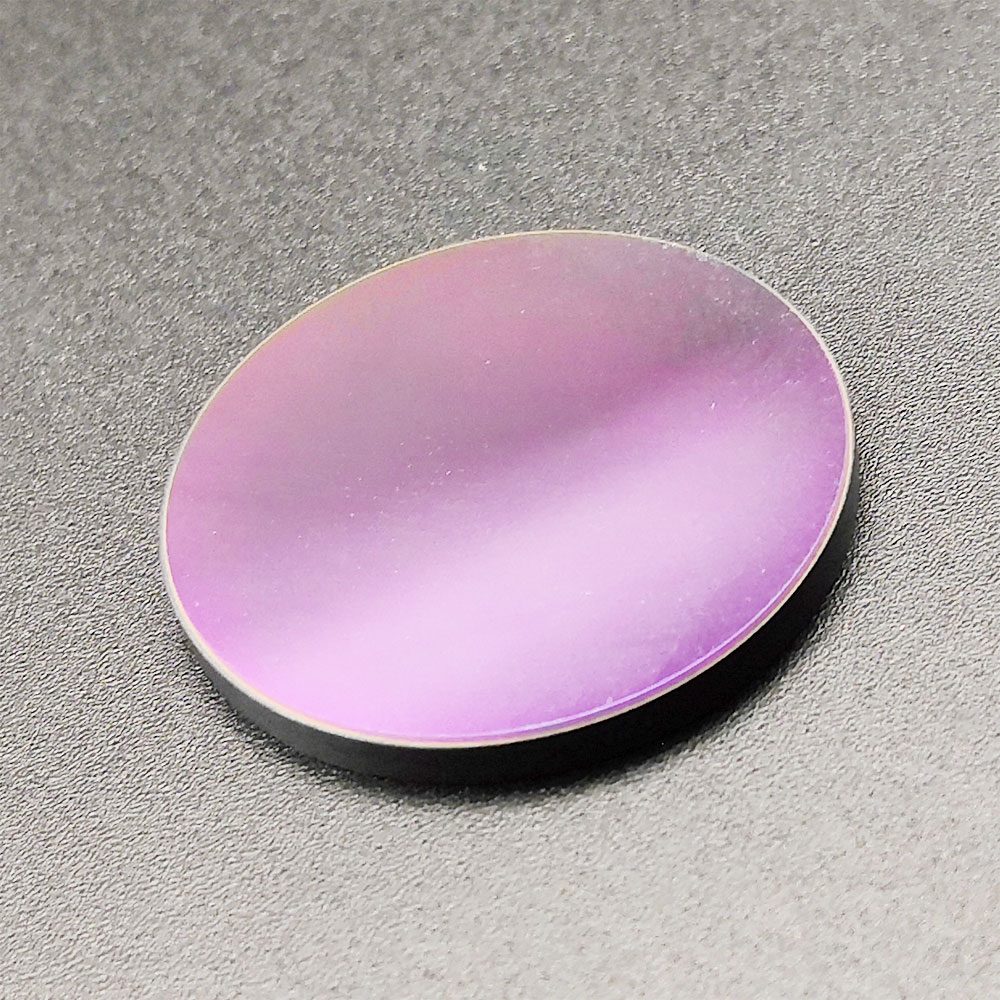

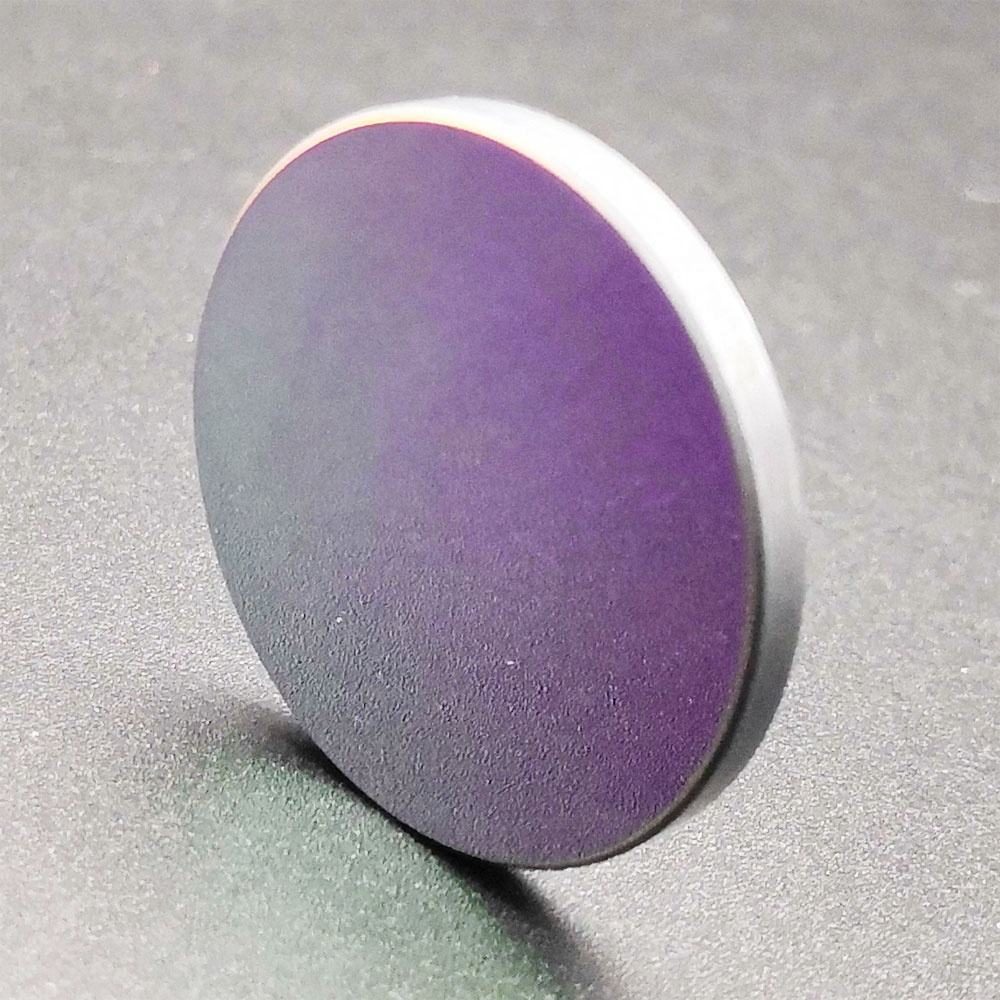

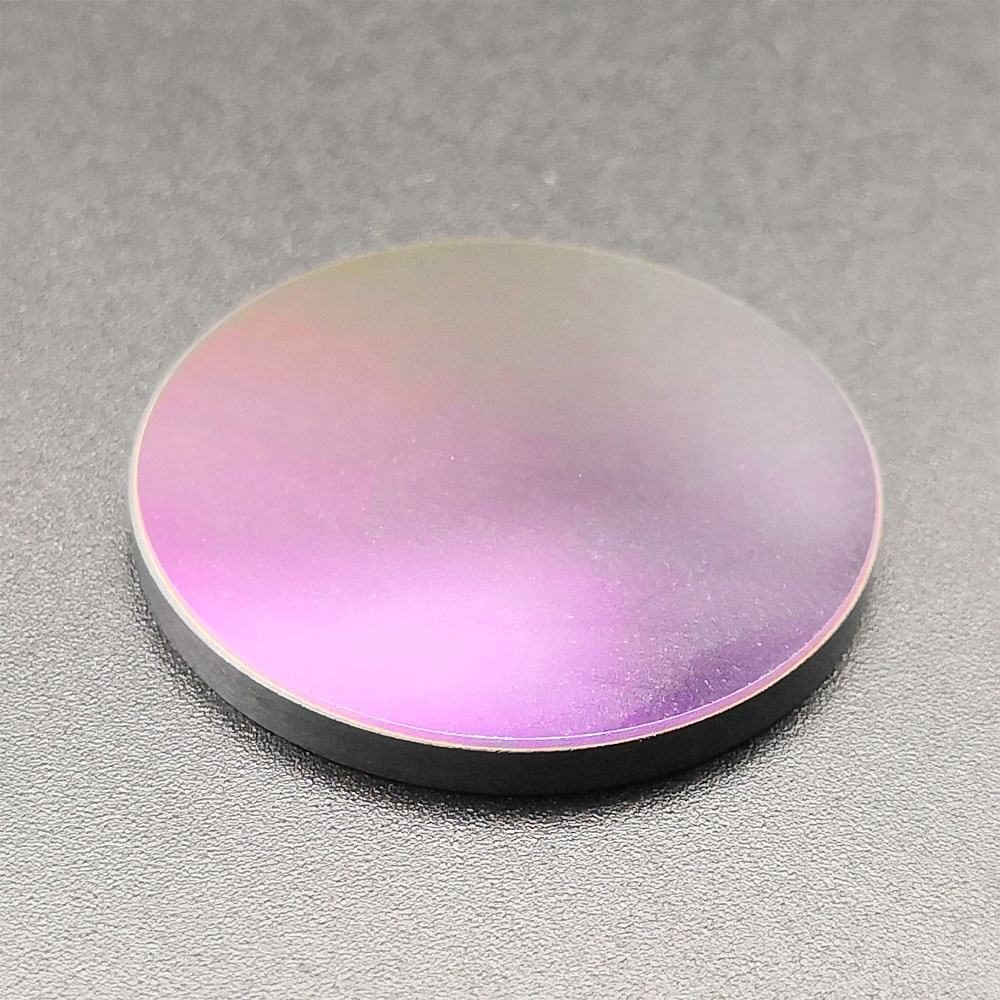

5x0.2 mm Silicon Round Optical Window, DLC Coated

Product description

Silicon protective windows are designed for thermal imaging applications, providing excellent durability and performance across multiple infrared bands (0.7-1.7 μm, 3-5 μm, 8-14 μm). With a combination of anti-reflection (AR) and Diamond-Like Carbon (DLC) coatings, these windows ensure high IR transmission while protecting against harsh environments. Their optical properties make them a reliable alternative to traditional materials like germanium.

Key Features

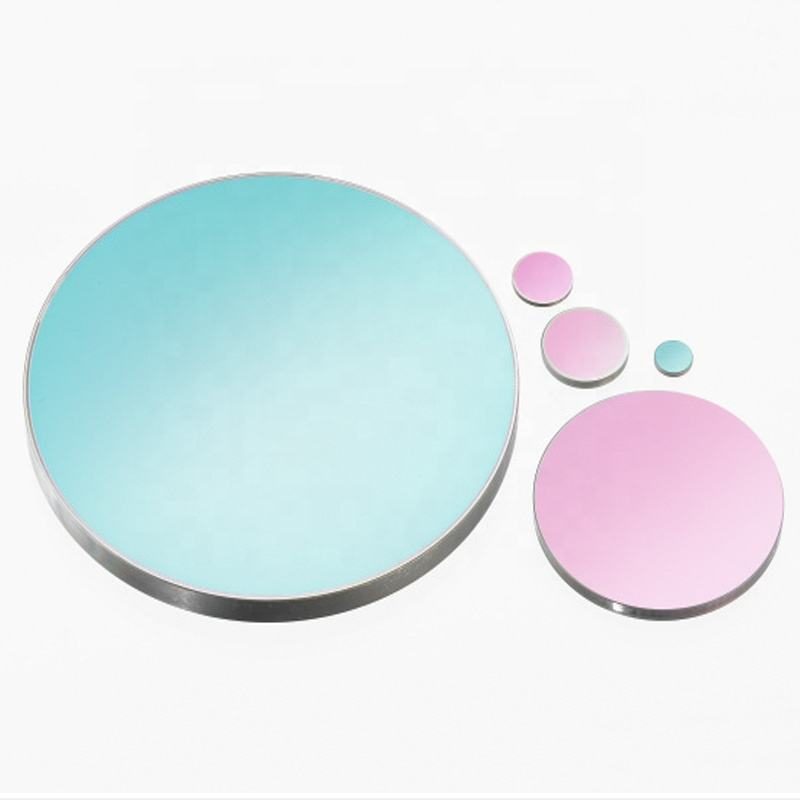

Wide diameter range: 5.0 mm to 300.0 mm for versatile applications.
Thickness options from 0.2 mm to 50.0 mm to meet specific design needs.
Surface quality of 60/40 ensures sufficient clarity for thermal imaging.
Flatness up to 1/2 lambda for superior optical performance.
Custom support available for OEM, ODM, and OBM projects.

Available Sizes

Diameter x Thickness (mm)
152.5 x 25.1
252.5 x 25.2

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Silicon
Shape	Round
Diameter	5 mm
Thickness	0.2 mm
Surface Quality	60/40
Coating	diamond-like carbon (DLC), anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Protective Windows
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.05
Dimension Tolerance	±0.1mm
Flatness	1/2lambda 1/4lambda or better
Parallelism	< 3 arcmin

FAQ

Can I get custom sizes?

Yes, variant sizes are available, including dimensions like 152.5 mm x 25.1 mm and 252.5 mm x 25.2 mm.

What are the tolerances for dimensions?

The dimension tolerance is ±0.1 mm, ensuring precision in manufacturing.
