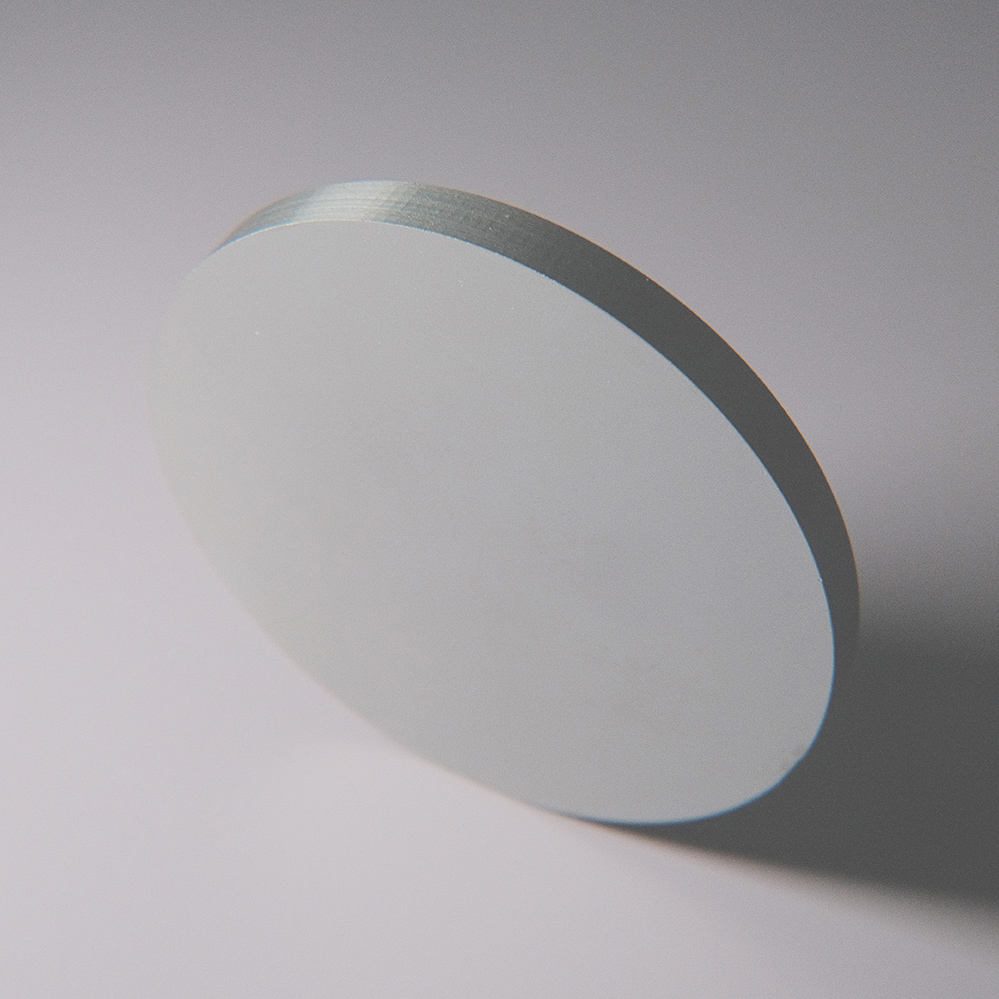

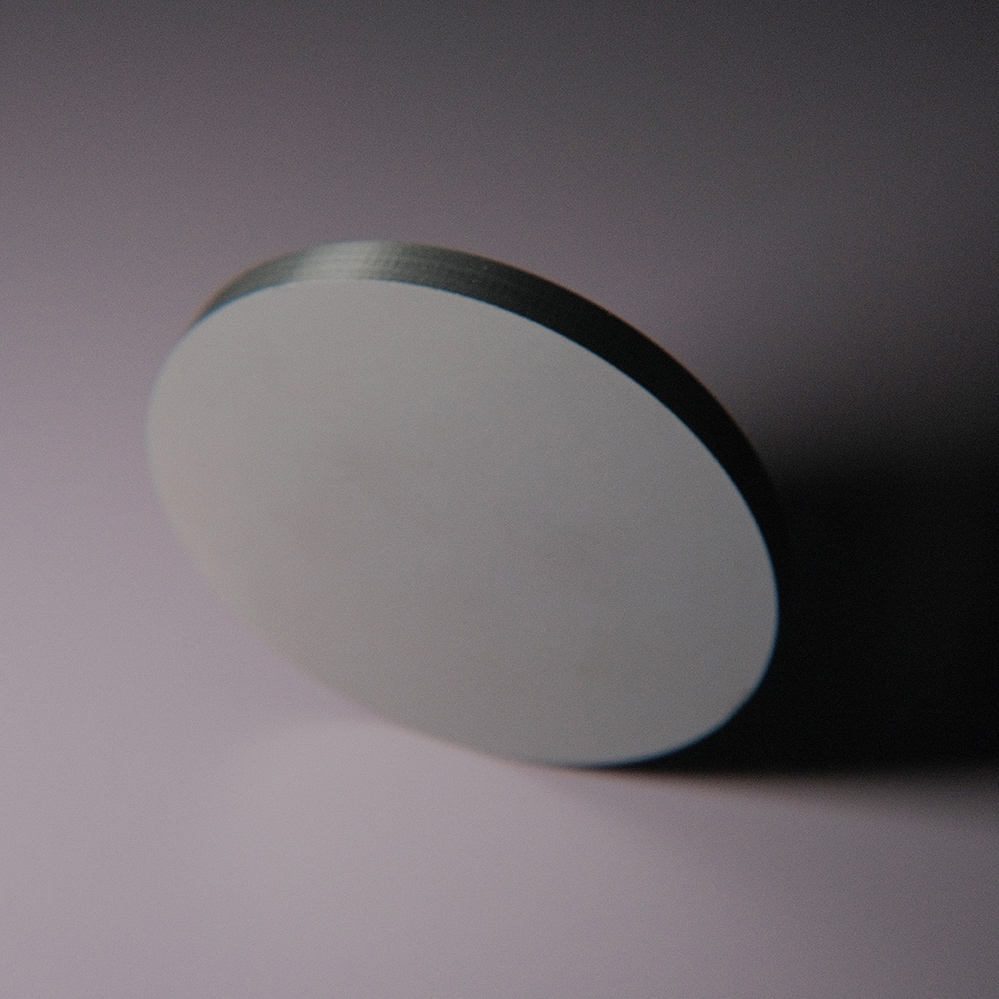

5x0.5 mm Silicon Round Optical Window, AR Coated

Product description

Zoolied’s round Silicon (Si) Windows are designed for applications in the medical field, particularly effective in the LWIR spectral region (8-14 μm, 3-5 μm, 1.7-3 μm, and 0.7-1.7 μm). These windows provide a lightweight solution, ideal for weight-sensitive applications, thanks to silicon’s low density. With a uniform thickness of 0.5 mm and a diameter range from 5 mm to 300 mm, these windows can be tailored to meet specific project requirements, ensuring optimal performance in critical applications.

Key Features

Diameter range: 5 mm to 300 mm for versatile application fit.
Uniform thickness of 0.5 mm ensures consistent performance.
Available coatings: AR and DLC for enhanced durability.
Low density (2.329 g/cm³) ideal for weight-sensitive applications.
Custom sizes available, including variants like 152.5 mm diameter.

Available Sizes

Diameter x Thickness (mm)
152.5 x 0.5

Applications

Medical

Specification Summary

Item	Value
Material	Silicon
Shape	Round
Diameter	5 mm
Thickness	0.5 mm
Coating	anti-reflective (AR), diamond-like carbon (DLC)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	Plano
Customized Support	OEM
Warranty	1 month
Weight	10-500g(0.35-17.64oz)
Dimension	5 mm - 300 mm
S/D	60/40 - 40/20
Flatness	L/2 - L/4
Parallelism	30secs
Wavelength	LWIR

FAQ

What are the available custom sizes?

Custom sizes range from 5 mm to 300 mm in diameter, with a standard thickness of 0.5 mm.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible procurement options.
