1 / 6Optical Windows

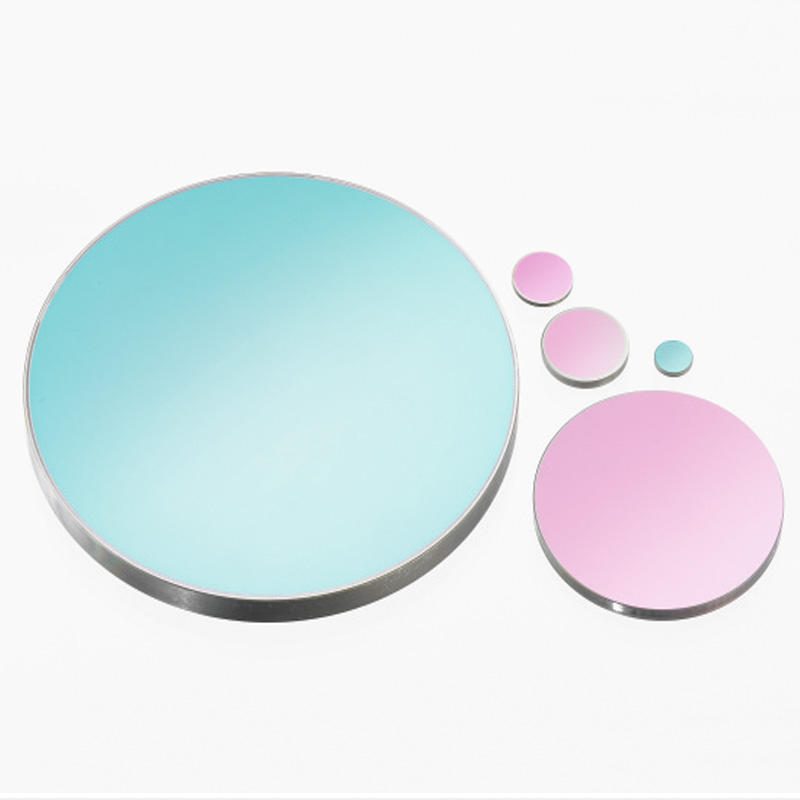

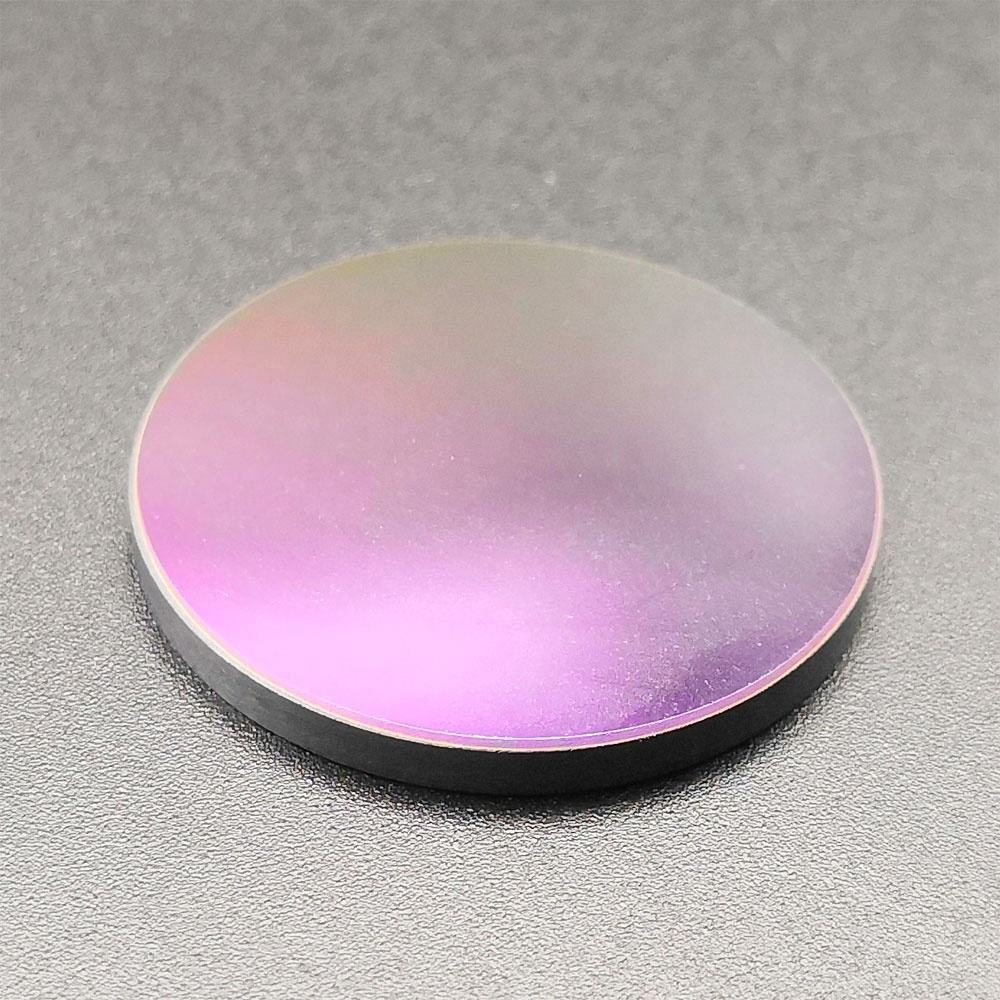

5x0.5 mm Silicon Round Optical Window, AR Coated
Explore high-performance Silicon windows for thermal imaging, customizable in size and thickness for optimal application fit.
Core attributes
- Material
- Silicon
- Shape
- round
- Diameter range
- 5–800 mm
- Thickness
- 0.5–50 mm
- Coating
- ar, uncoated, hr
Product facts
Key attributes
- Material
- Silicon
- Shape
- round
- Diameter range
- 5–800 mm
- Thickness
- 0.5–50 mm
- Coating
- ar, uncoated, hr
Product description
Silicon windows are essential for thermal imaging applications, particularly in the 1.7-14 μm wavelength range. These windows provide high thermal conductivity and low weight, making them ideal for IR and FTIR applications. With a diameter range of 5 to 800 mm and thickness options from 0.5 to 50 mm, they can be customized for specific needs. The flatness specification of 1 Lambda to Lambda/8 per inch ensures high performance in demanding environments.
Key Features
- Diameter range: 5-800 mm for versatile application fit.
- Thickness options: 0.5-50 mm to accommodate various design requirements.
- Flatness: 1 Lambda~Lambda/8 per inch for superior optical performance.
- Clear aperture: >90% ensures maximum light transmission.
- Customizable with OEM, ODM, and OBM support for tailored solutions.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 402.5 x 25.2 |
Applications
Thermal Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Shape | Round |
| Diameter | 5 mm |
| Thickness | 0.5 mm |
| Coating | anti-reflective (AR), uncoated, high-reflective (HR) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Flat Window |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 0.1 |
| Dimension | 5-800 mm |
| Flatness | 1 Lambda~Lambda/8 per inch |
| Parallelism | < 3 arcmin |
| Clear Aperture | >90% |
FAQ
Can I get custom sizes?
Yes, custom sizes are available, with diameters ranging from 5 mm to 800 mm.
What are the tolerances for dimensions?
Dimension tolerance is ±0.1 mm, with additional specifications of +0/-0.1 mm.
