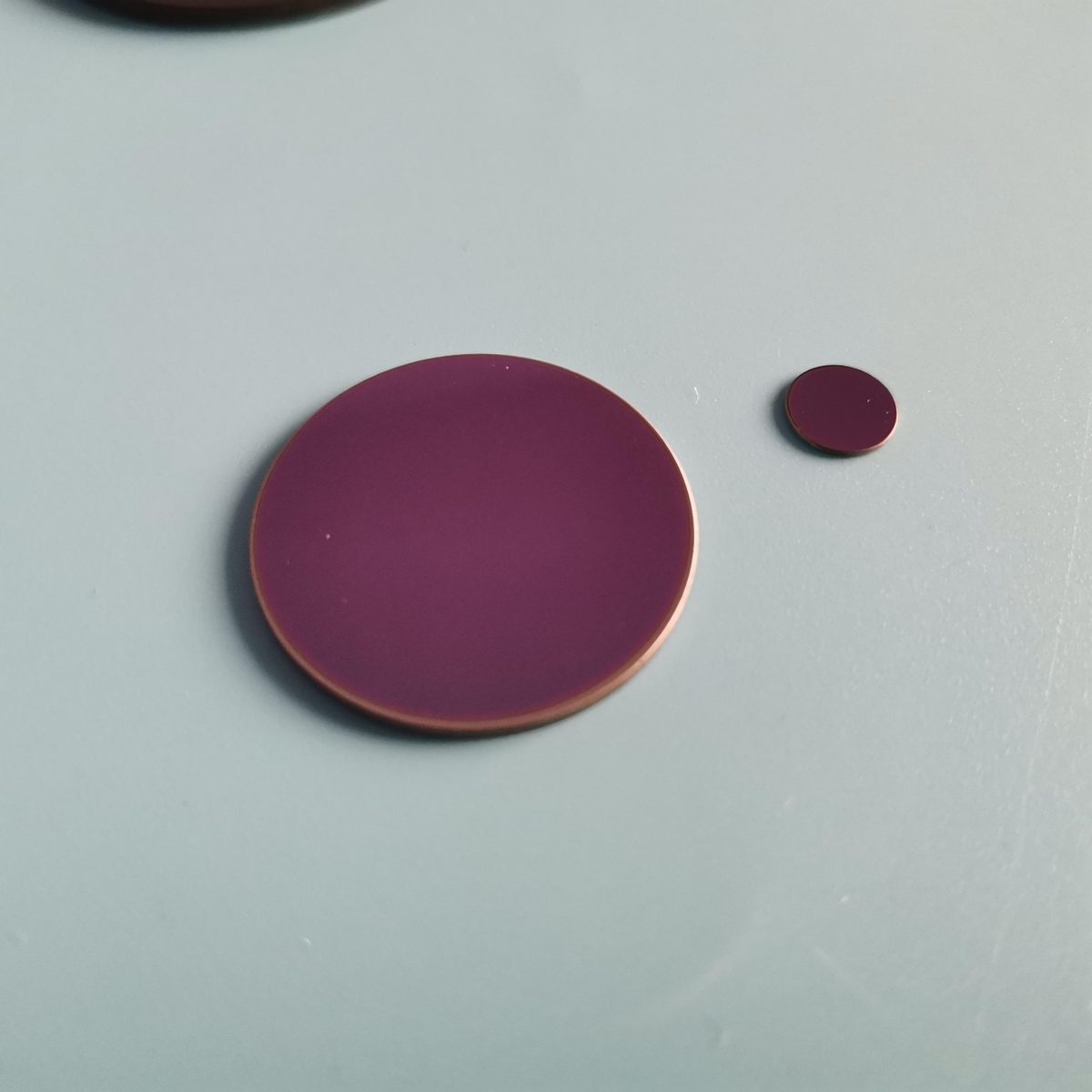

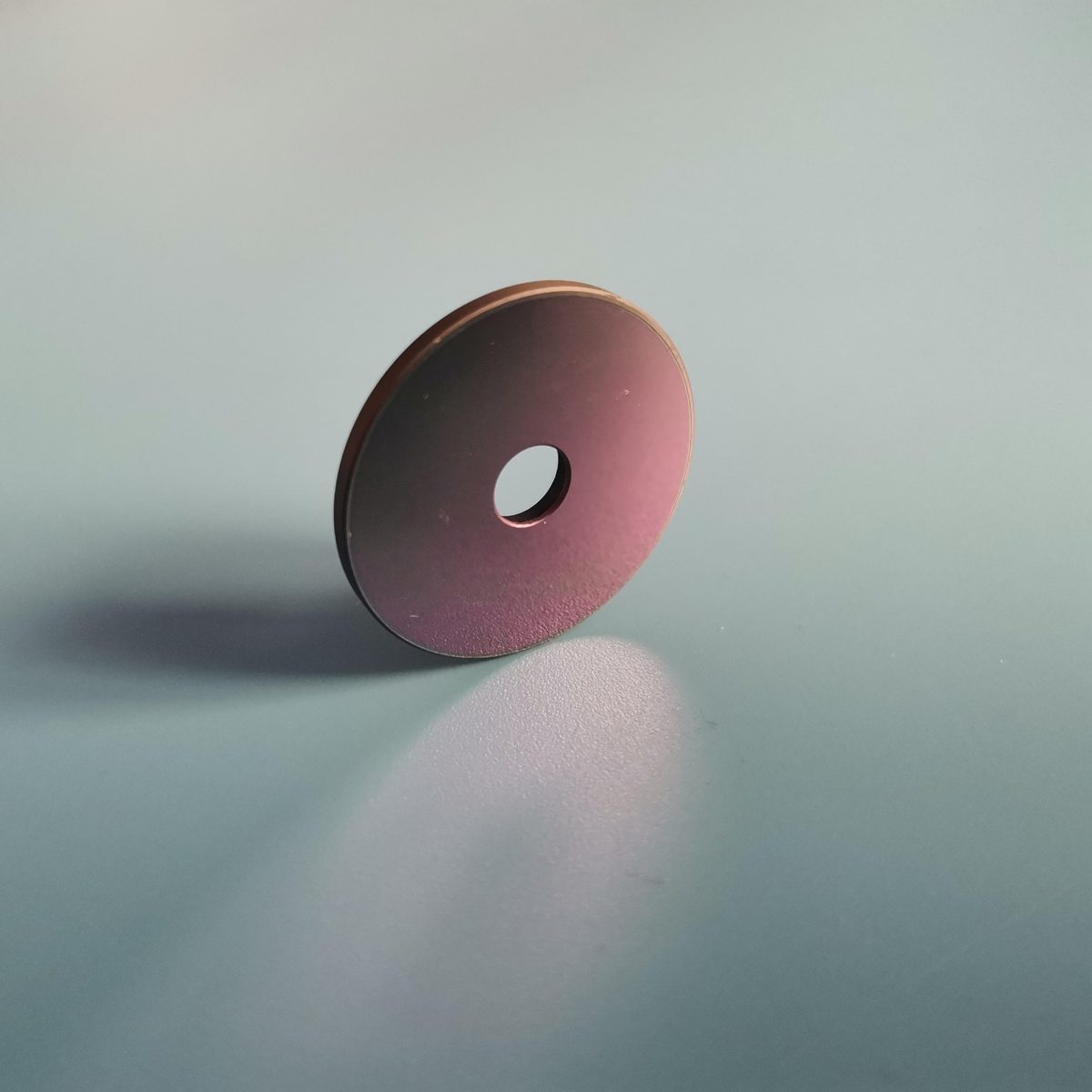

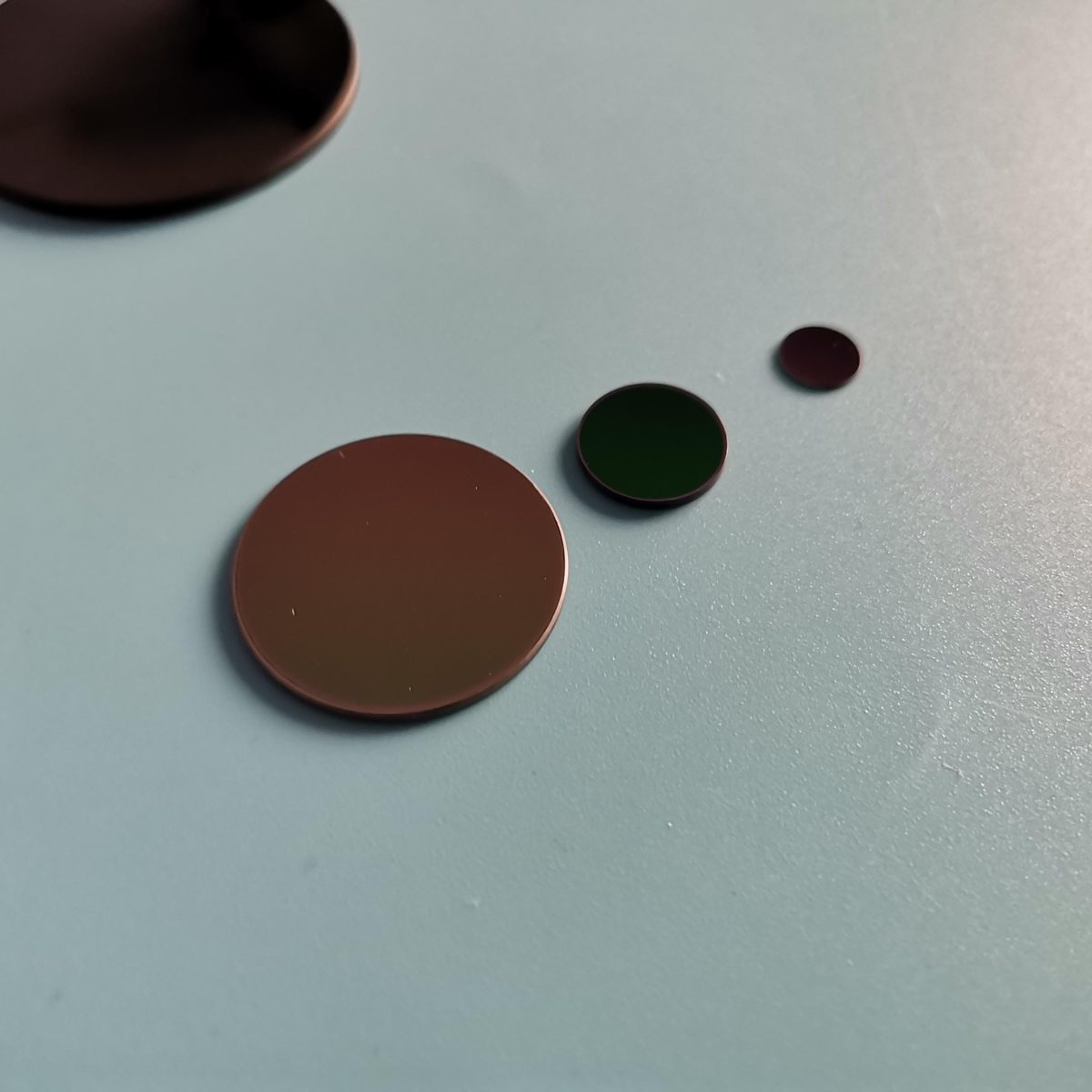

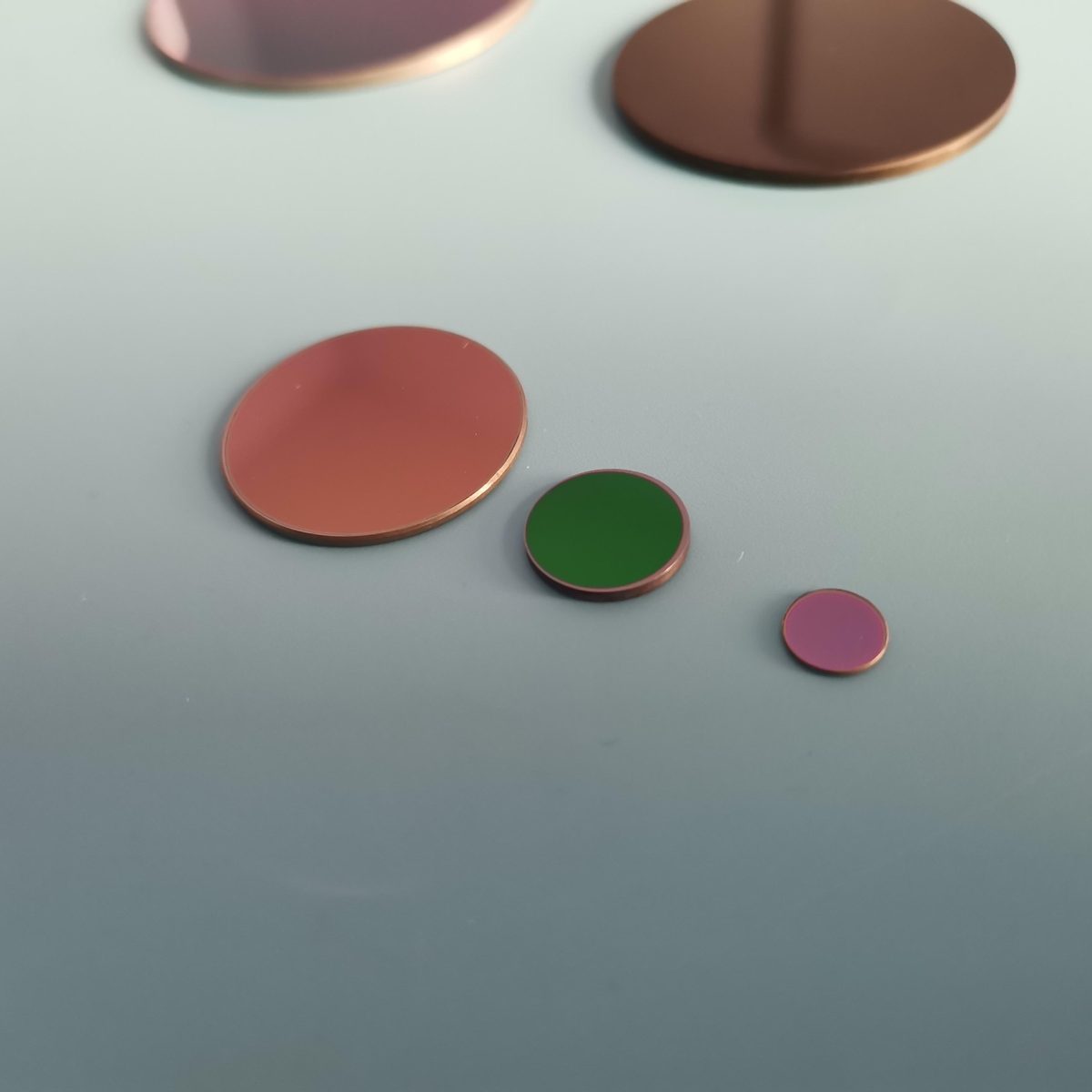

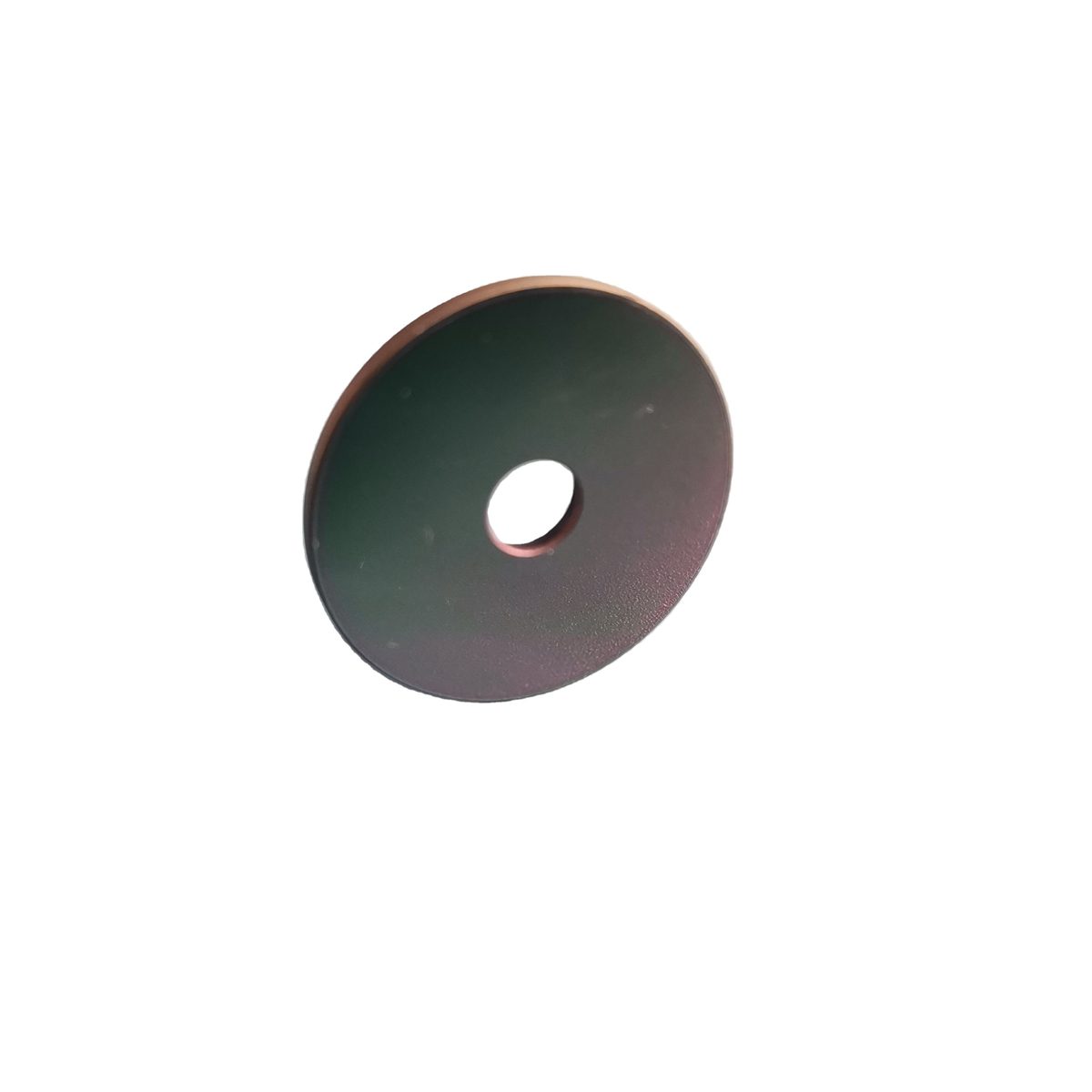

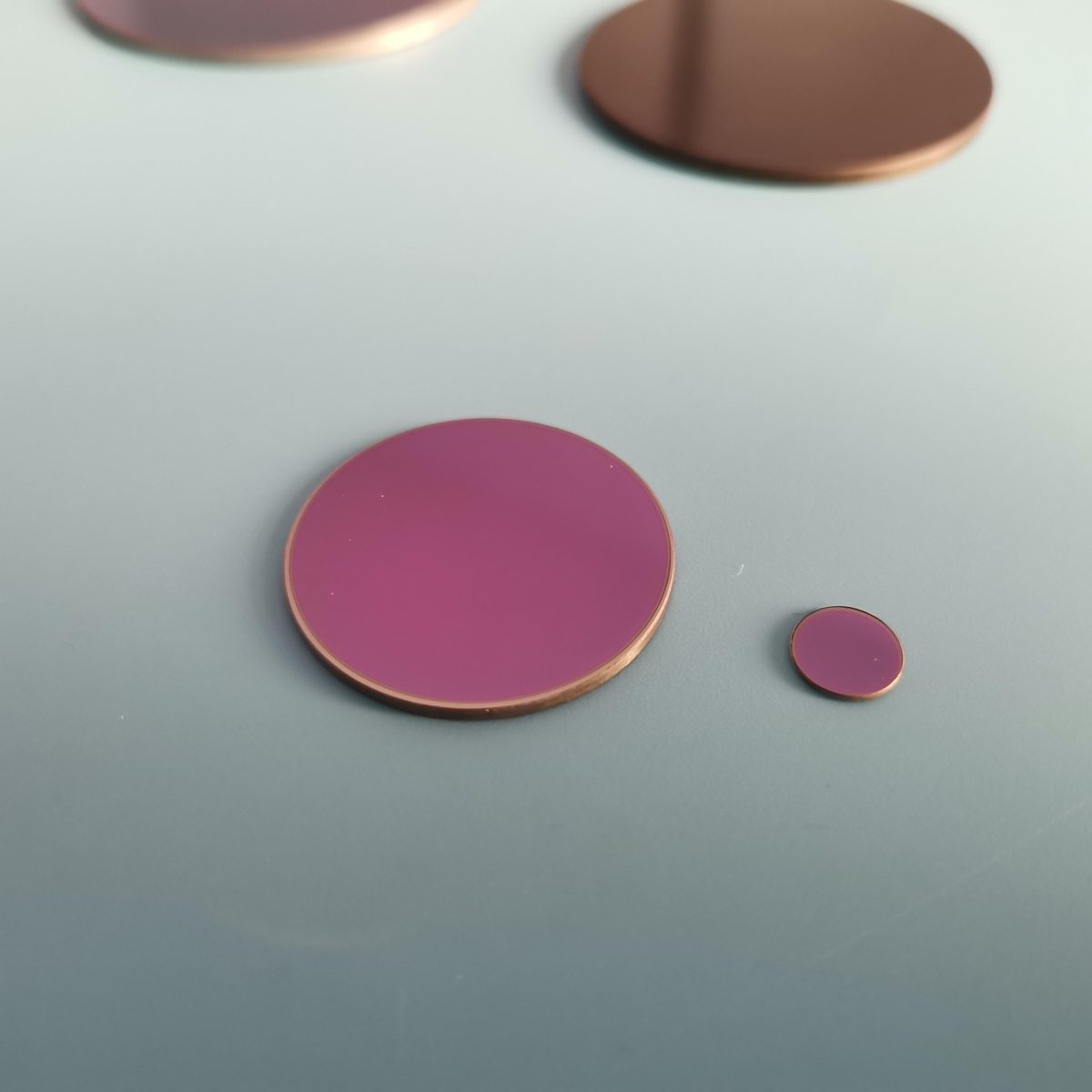

5x0.5 mm Silicon Round Optical Window, AR Coated

Product description

Zoolied’s Silicon plano convex lenses are designed for IR applications, particularly in the medical field, providing excellent transmittance across multiple bands including 3-5 μm and 8-14 μm. With diameters ranging from 5 mm to 300 mm and a uniform thickness of 0.5 mm, these lenses are ideal for weight-sensitive applications. The lenses feature advanced coatings such as AR and DLC, enhancing performance and durability. Custom sizes and prototypes are available to meet specific project requirements.

Key Features

Diameter options from 5 mm to 300 mm for versatile application fit.
Consistent thickness of 0.5 mm ensures uniform performance.
Coatings available include AR and DLC for enhanced transmittance.
Lightweight design with density of 2.329 g/cm3, ideal for portable devices.
Custom OEM support available for tailored solutions.

Available Sizes

Diameter x Thickness (mm)
152.5 x 0.5

Applications

Medical

Specification Summary

Item	Value
Material	Silicon
Shape	Round
Diameter	5 mm
Thickness	0.5 mm
Coating	anti-reflective (AR), diamond-like carbon (DLC)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), NIR (0.7-1.7 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM
Warranty	1 month
Weight	10-500g
Dimension	5 mm - 300 mm
S/D	60/40 - 40/20
Flatness	L/2 - L/4
Parallelism	30secs
Wavelength	LWIR

FAQ

What custom sizes are available?

Custom sizes can be provided, with standard diameters ranging from 5 mm to 300 mm.

What is the minimum order quantity?

The minimum order quantity is not specified; inquiries for specific needs are encouraged.
