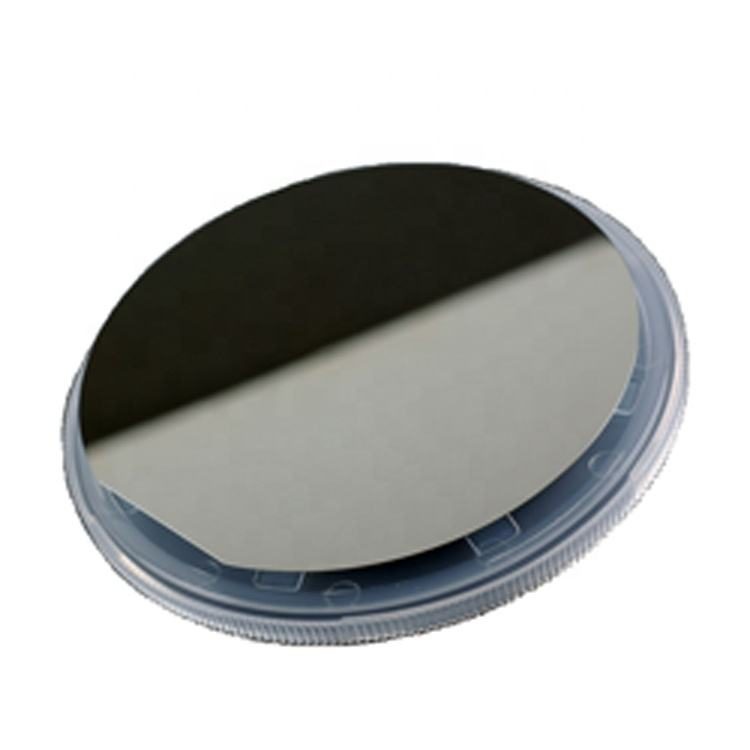

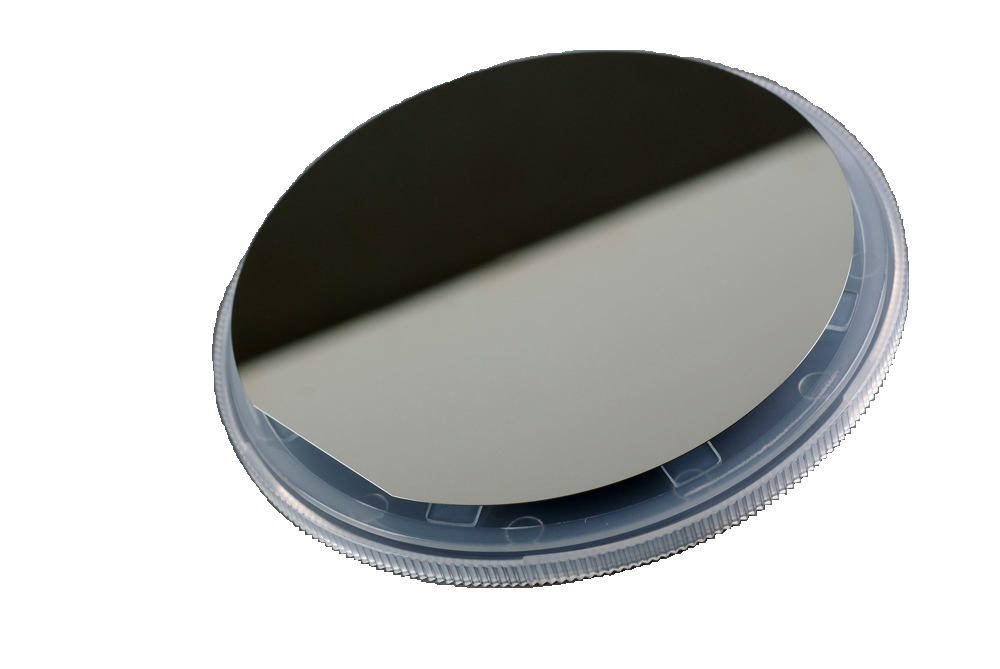

Custom Size Silicon Round Optical Window, AR Coated

Product description

This round silicon window is designed for thermal imaging applications, providing excellent transmittance in the infrared spectrum (3-5 μm and 8-14 μm). With a high transmittance of 90%, it effectively allows infrared light to pass through while blocking visible light. The window’s thickness ranges from 0.2 mm to 50 mm, making it suitable for various optical systems. Sourced from Jiangsu, this product meets the needs of R&D and procurement engineers seeking reliable performance in infrared optical materials.

Key Features

Transmittance of 90% ensures high efficiency in infrared applications.
Available in thicknesses from 0.2 mm to 50 mm for versatile use.
Customizable options available for OEM and ODM projects.
Surface quality rated at 60/40 for reliable optical performance.
Ideal for use in thermal imaging systems across various industries.

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Silicon
Shape	Round
Diameter	Custom
Thickness	0.2 mm
Surface Quality	60/40
Transmittance	90%
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Transmittance	90%; >98%
Customized Support	OEM, ODM
Warranty	None
Type	Customized
Color	Black

FAQ

What custom sizes are available for this silicon window?

Custom sizes can be provided, with options including Φ4in, 6in, and 8in, or cut into smaller pieces.

What is the minimum order quantity (MOQ) for this product?

The minimum order quantity (MOQ) is not specified, allowing flexibility for procurement.
