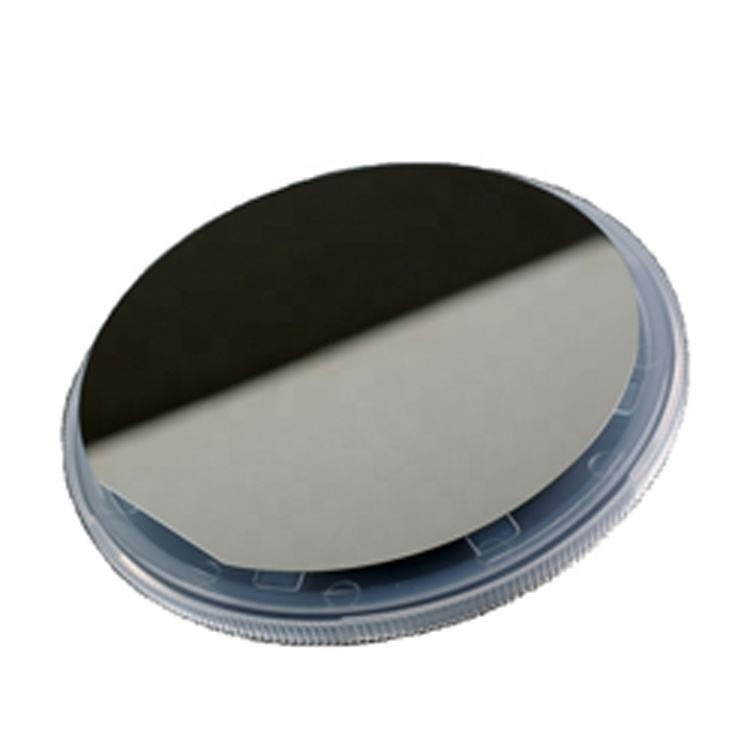

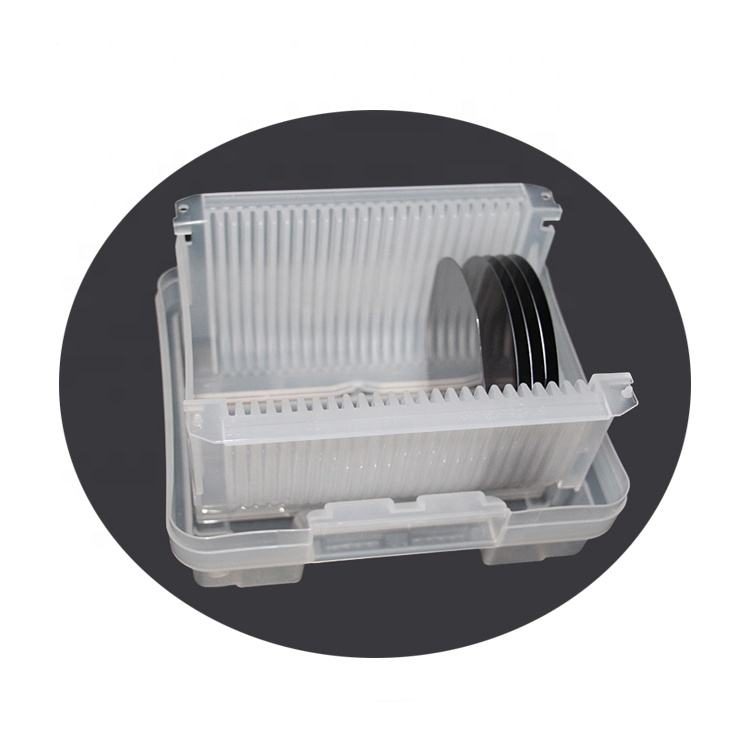

Custom Size Silicon Round Optical Window

Product description

This round silicon optical window is designed for applications in thermal imaging, particularly in the 3-5 μm and 8-14 μm bands. Its high transmittance in the infrared range makes it suitable for medium wave infrared detectors and thermal imagers. The silicon material offers a lightweight solution with good optical performance, essential for aerospace, aviation, and ground applications. With a thickness range of 0.2 to 50 mm, it can accommodate various system requirements.

Key Features

High transmittance in the infrared range (3-5 μm, 8-14 μm) for enhanced imaging performance.
Surface quality of 60/40 ensures adequate optical clarity for critical applications.
Available in various thicknesses (0.2 mm to 50 mm) to meet specific design needs.
Customizable options available for OEM and ODM projects to fit unique specifications.
Lightweight silicon material provides ease of integration into existing systems.

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Silicon
Shape	Round
Diameter	Custom
Thickness	0.2 mm
Surface Quality	60/40
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Transmittance	Requirements
Customized Support	OEM, ODM
Warranty	None
Type	Requirements
Color	Black

FAQ

What thickness options are available?

The silicon optical window is available in thicknesses ranging from 0.2 mm to 50 mm.

Can I get custom sizes?

Yes, customizable options are available for OEM and ODM projects to meet specific requirements.
