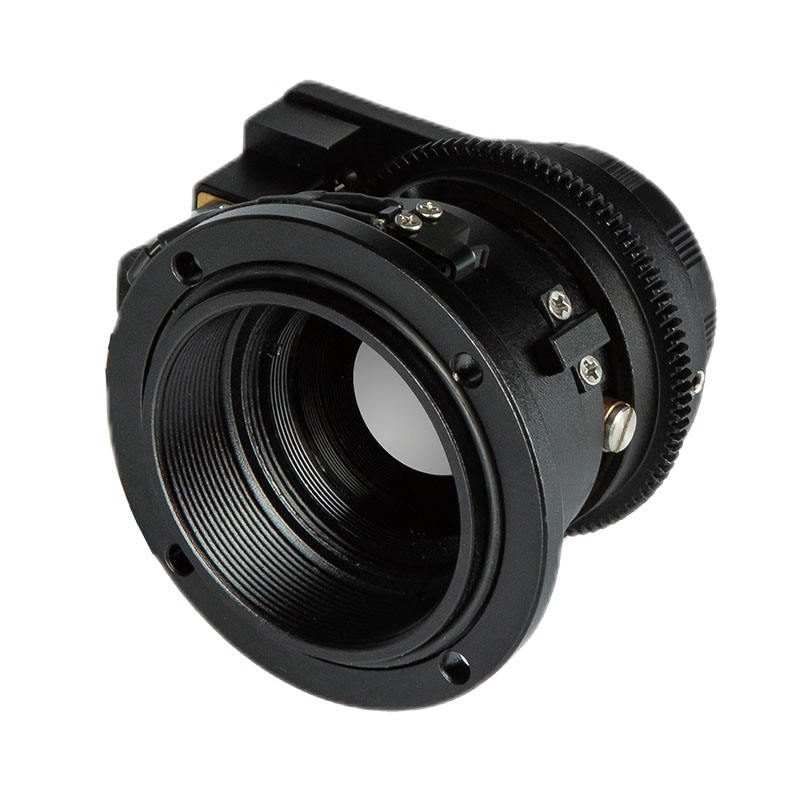

Custom Size Silicon Spherical Lens, AR Coated
Explore high-performance silicon aspherical lenses for thermal imaging and security applications with customizable options.
Core attributes
- Material
- Silicon
- Shape
- Spherical
- Focal Length
- 9 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Silicon
- Shape
- Spherical
- Focal Length
- 9 mm
- Coating
- anti-reflective (AR)
Product description
This aspherical lens made from high-quality silicon is ideal for applications in thermal imaging, security, and general imaging. With a focal length range of 9.0 to 300.0 mm and an average transmission greater than 86% in the 8-12 µm range, it ensures excellent performance in infrared applications. The lens features a fixed focus mechanism and is designed to operate within a temperature range of -40°C to +80°C, making it suitable for various demanding environments.
Key Features
- Focal length range: 9.0 to 300.0 mm for versatile application use.
- Average transmission >86% (8-12 µm) ensures high efficiency in thermal imaging.
- IP67 sealing (front lens only) provides protection against dust and water.
- Fixed focus mechanism simplifies integration into imaging systems.
- High Efficiency AR coating enhances light transmission and reduces reflections.
Applications
Thermal Imaging, Security, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Silicon |
| Shape | Spherical |
| Focal Length | 9 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspherical Lens |
| Customized Support | OEM |
| Warranty | 1 year |
| Weight | 100g(3.53oz) |
| Average Transmission(8~12Μm) | >86% |
| Focus Mechanism | Fixed focus |
| Back Focal Length | 24.88mm |
| Sealing | IP67-Front lens only |
| External Coating | High Efficiency AR |
| Operating Temperature | 40°C ~ +80°C |
| Storage Temperature | 50°C ~ +80°C |
| Mechanical Interface | M34 x 0.5 |
FAQ
Is custom sizing available?
Custom sizes can be supported through OEM services.
What is the minimum order quantity?
The minimum order quantity is not specified; please inquire for details.
