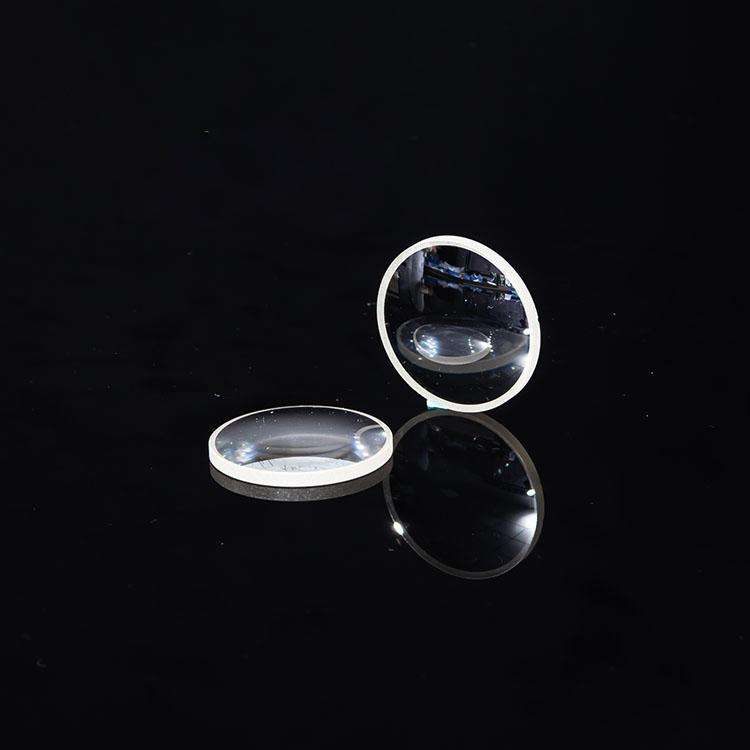

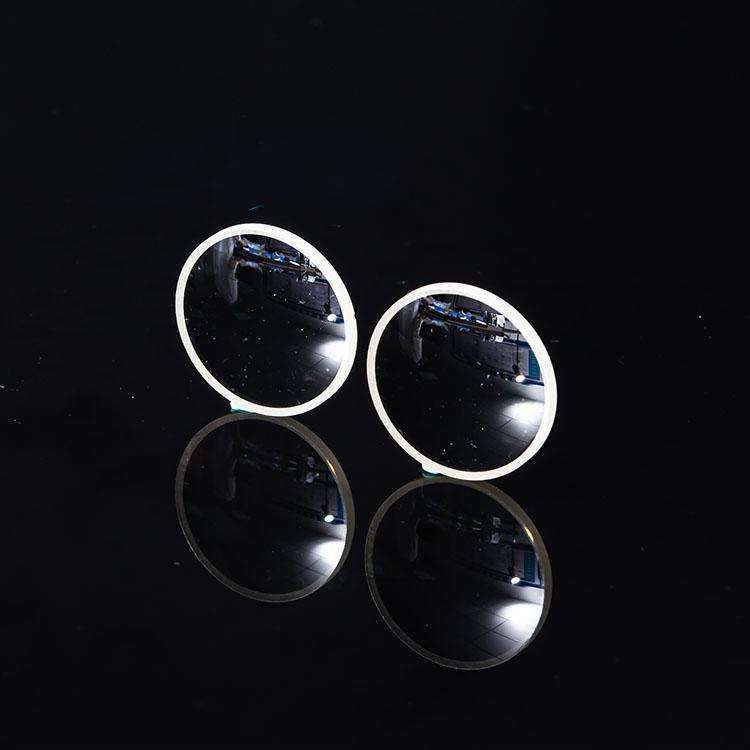

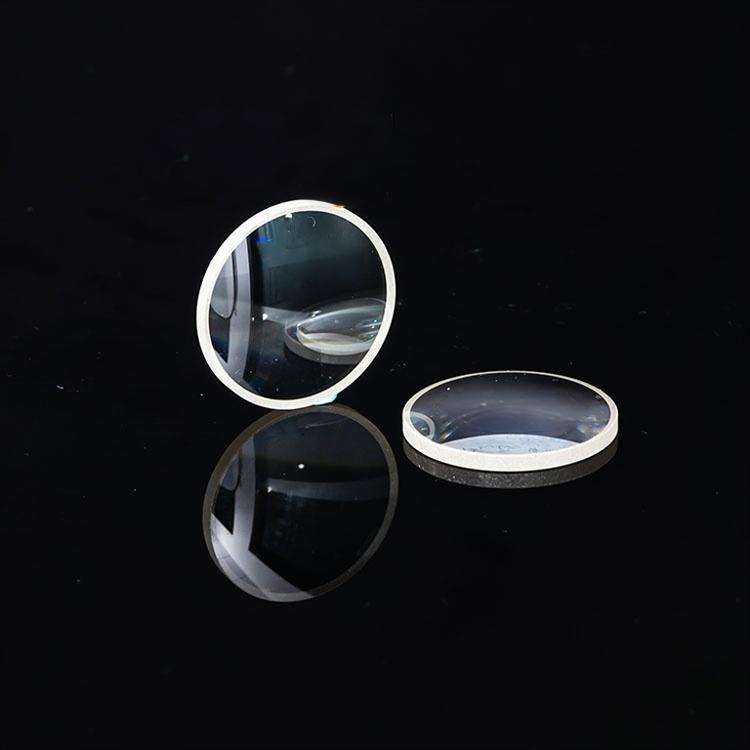

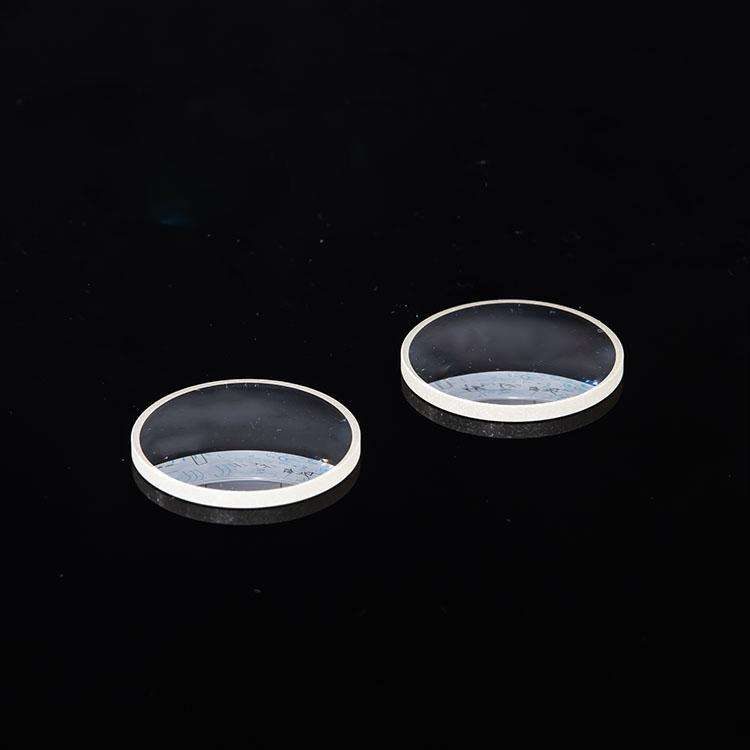

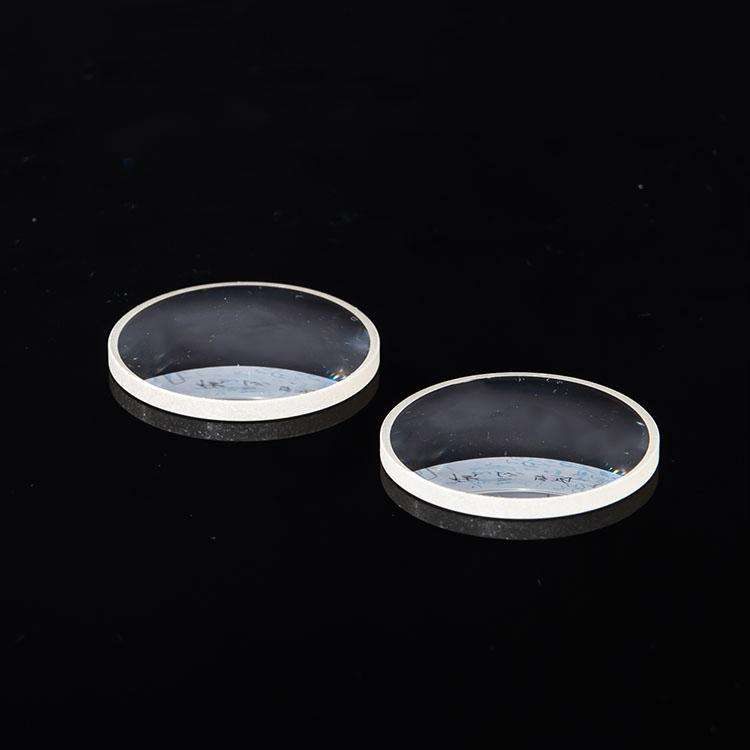

12.4x30 mm ZnS Meniscus Lens

Product description

The meniscus lens made from ZnS is specifically designed for LIDAR applications, operating effectively in the wavelength range of less than 400 nm. With a diameter of 12.4 mm and a focal length of 30 mm, this lens provides high-quality optical performance. It features options for anti-reflective (AR) coatings and is available in custom sizes, making it suitable for various project requirements. The lens ensures consistent performance with a surface quality rating of 60/40, ideal for precision applications.

Key Features

Diameter of 12.4 mm ensures compatibility with standard optical systems.
Focal length of 30 mm allows for precise imaging in LIDAR applications.
Surface quality of 60/40 guarantees reliable optical performance.
Customizable sizes available from 5 mm to 400 mm for specific project needs.
OEM and ODM support enables tailored solutions for unique applications.

Available Sizes

Diameter x Focal Length (mm)
12.4 x 30

Applications

Lidar

Specification Summary

Item	Value
Material	ZnS
Shape	Meniscus
Diameter	12.4 mm
Focal Length	30 mm
Thickness	1.5 mm
Surface Quality	60/40
Coating	uncoated, anti-reflective (AR)
Transmission bands	UV (<400 nm)

Full Specifications

Parameter	Value
Type	meniscus lens
Customized Support	OEM, ODM
Warranty	3months
Weight	0.5kg(1.10lb)
Name	meniscus
Diameter Tolerance	0.01mm

FAQ

Is custom sizing available?

Yes, custom sizes are available, ranging from 5 mm to 400 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing flexibility in procurement.
