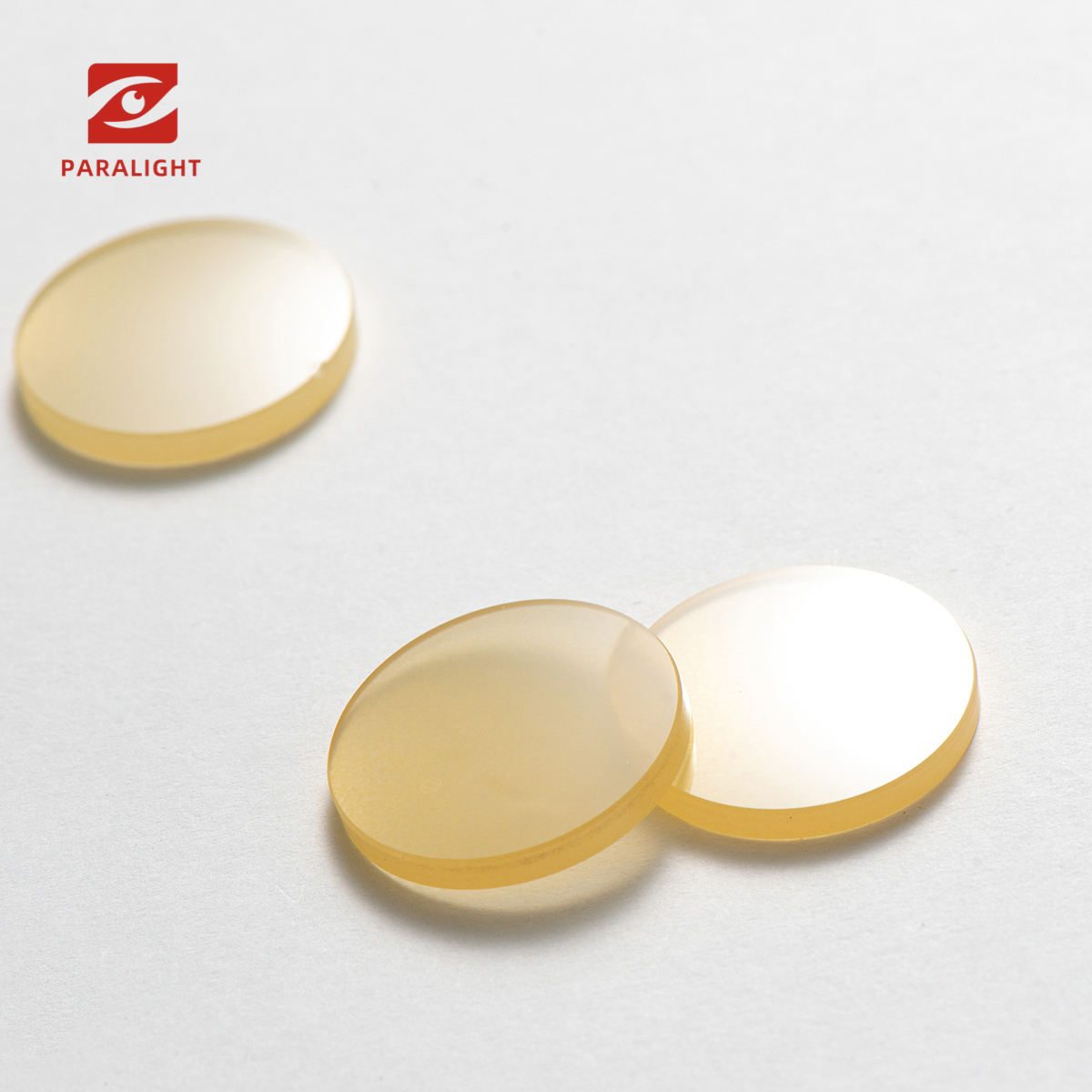

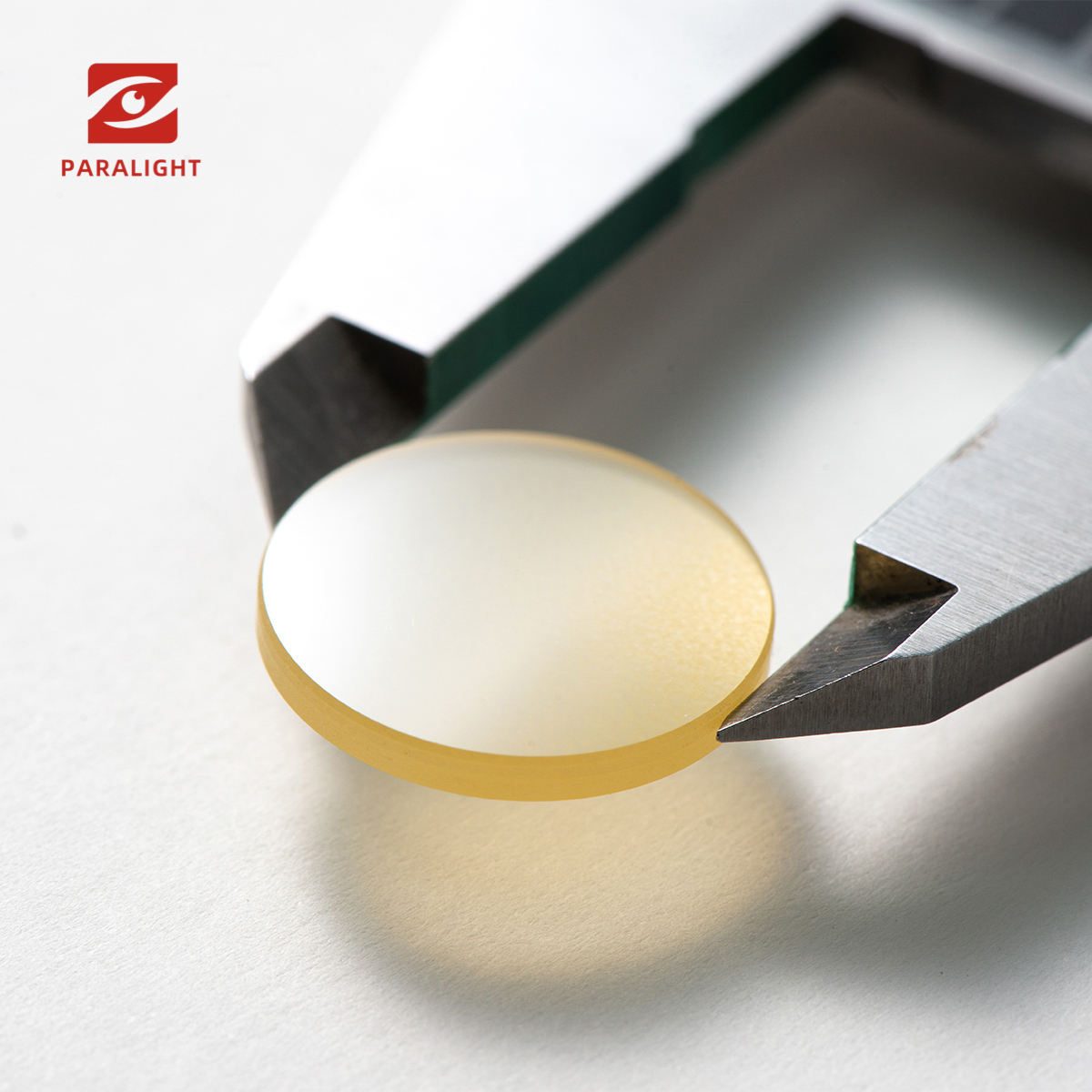

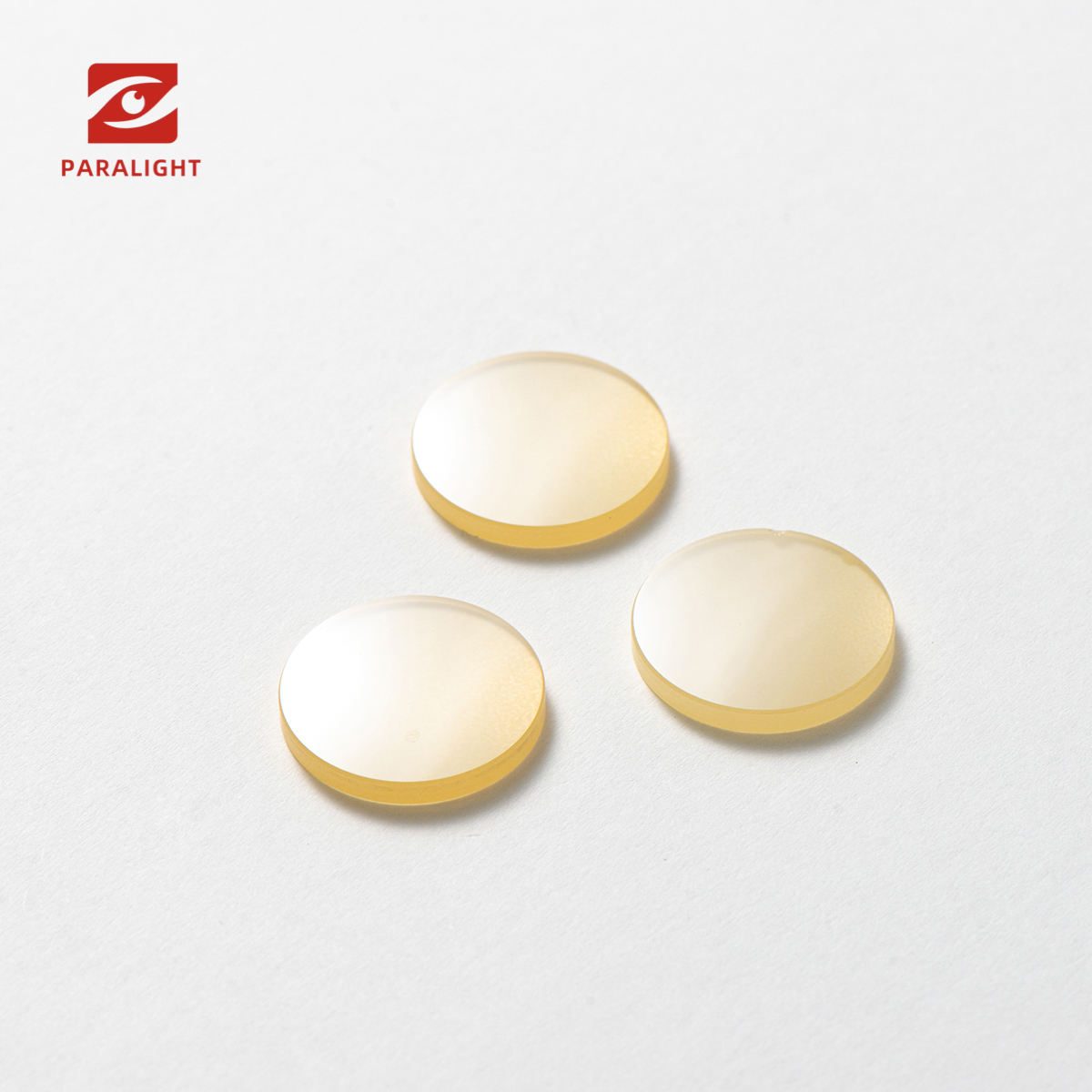

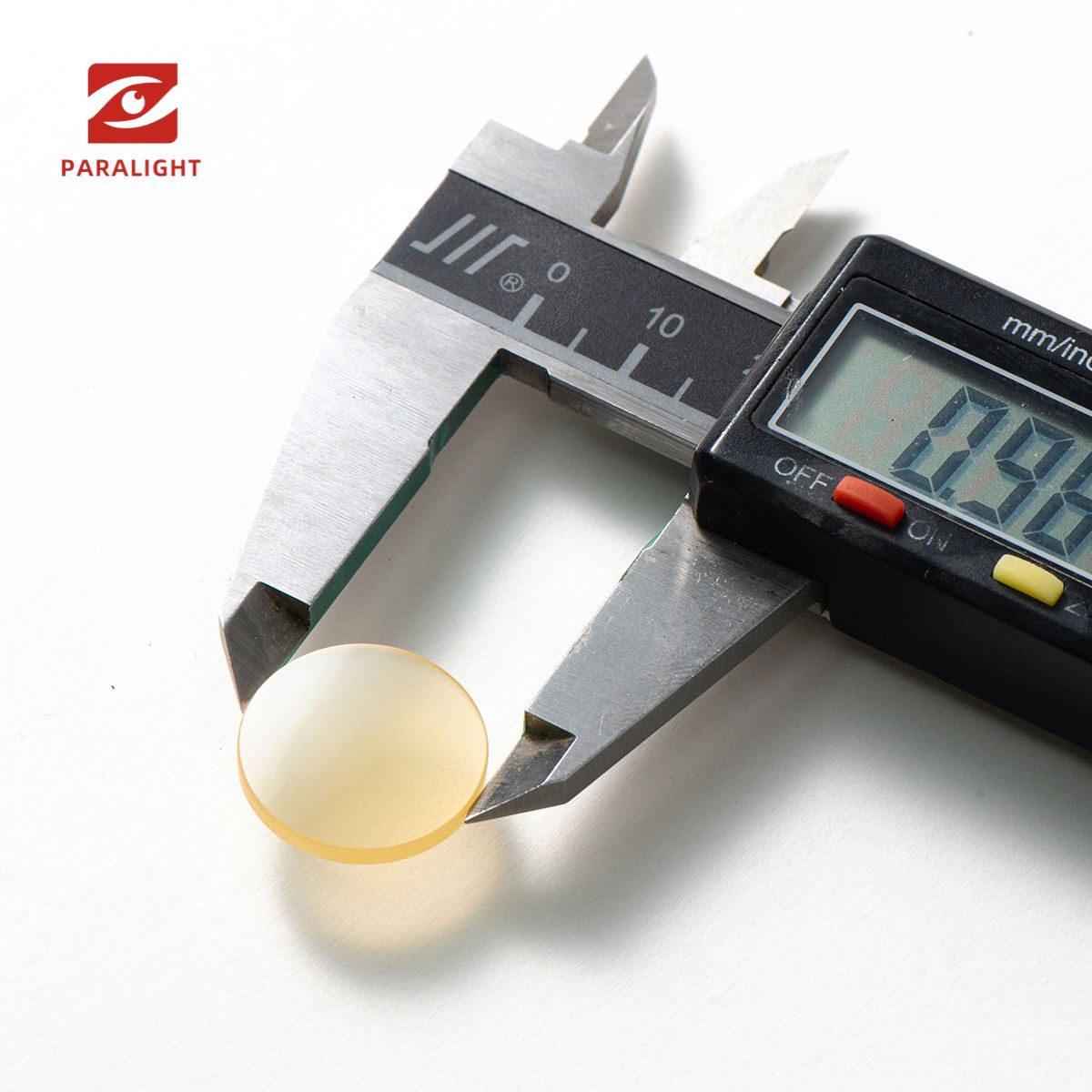

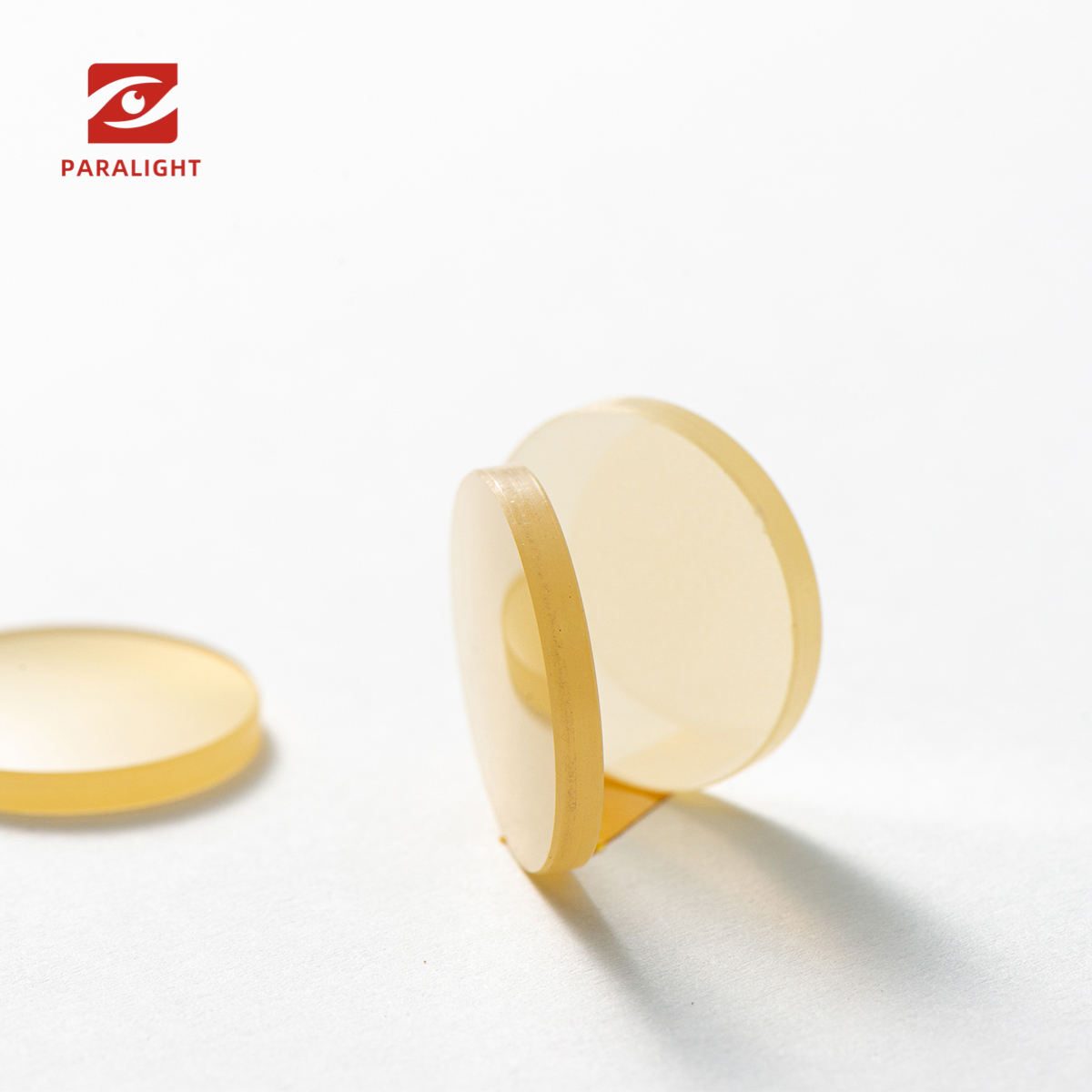

12.7x1 mm ZnS Optical Window, AR Coated

Product description

Zinc Sulfide (ZnS) optical windows are essential for applications in thermal imaging and medical devices, particularly in the 3-5 μm and 8-14 μm bands. With a diameter of 12.7 mm and thickness options ranging from 1.0 mm to 50.0 mm, these windows provide high transmittance and are compatible with various infrared systems. Their lightweight design and customizable features make them ideal for integration into advanced optical systems.

Key Features

Transmittance through 3-5 μm and 8-14 μm bands enhances thermal imaging capabilities.
Diameter of 12.7 mm ensures compatibility with standard optical setups.
Thickness options from 1.0 mm to 50.0 mm allow for versatile applications.
Dimension tolerance of ±0.1 mm ensures precision in optical alignment.
Customized support for OEM, ODM, and OBM enhances sourcing flexibility.

Available Sizes

Diameter x Thickness (mm)
12.7 x 25.5

Applications

Thermal Imaging, Medical

Specification Summary

Item	Value
Material	ZnS
Diameter	12.7 mm
Thickness	1 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	Infrared Optical Window
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	Lightweight Design
Dimension Tolerance	±0.1mm
Clear Aperture	>90%

FAQ

Can I get custom sizes?

Yes, variant sizes are available, including options like 12.7 mm and 25.5 mm.

What are the tolerances for dimensions?

The dimension tolerance is ±0.1 mm, ensuring high precision for your applications.
