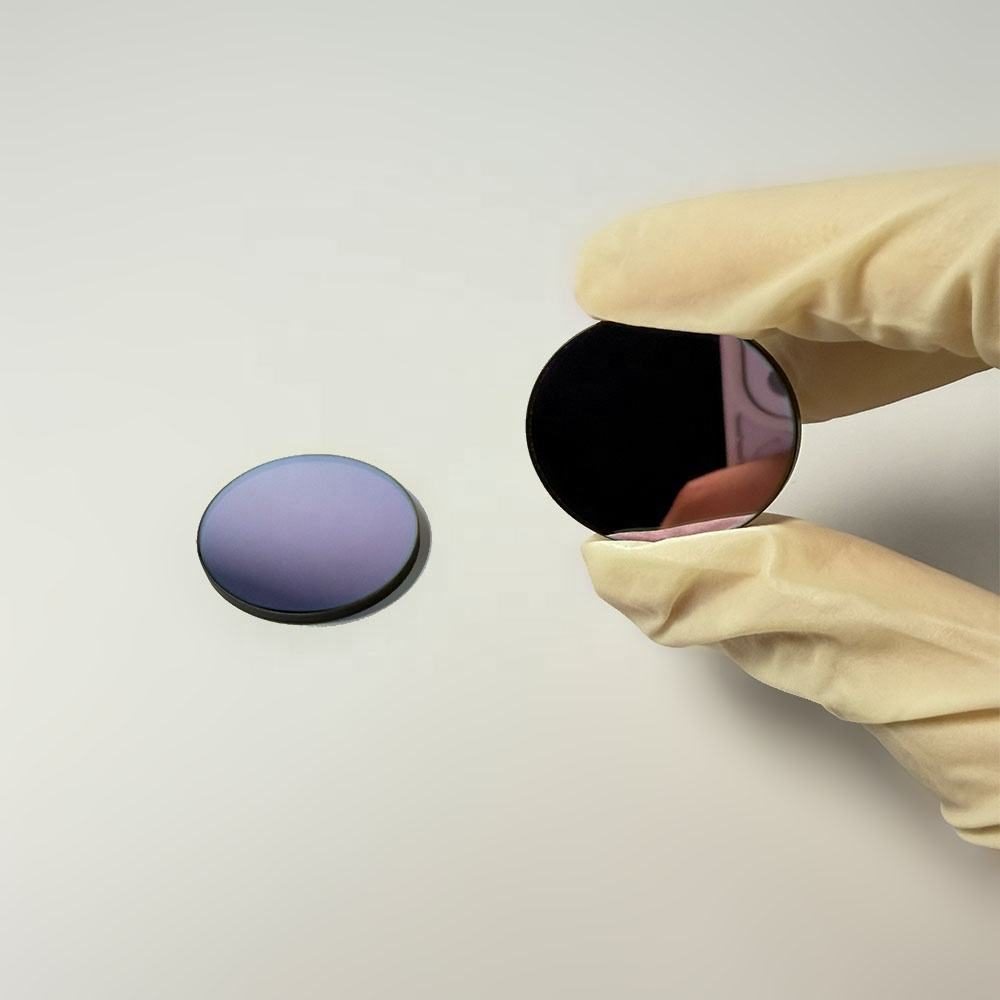

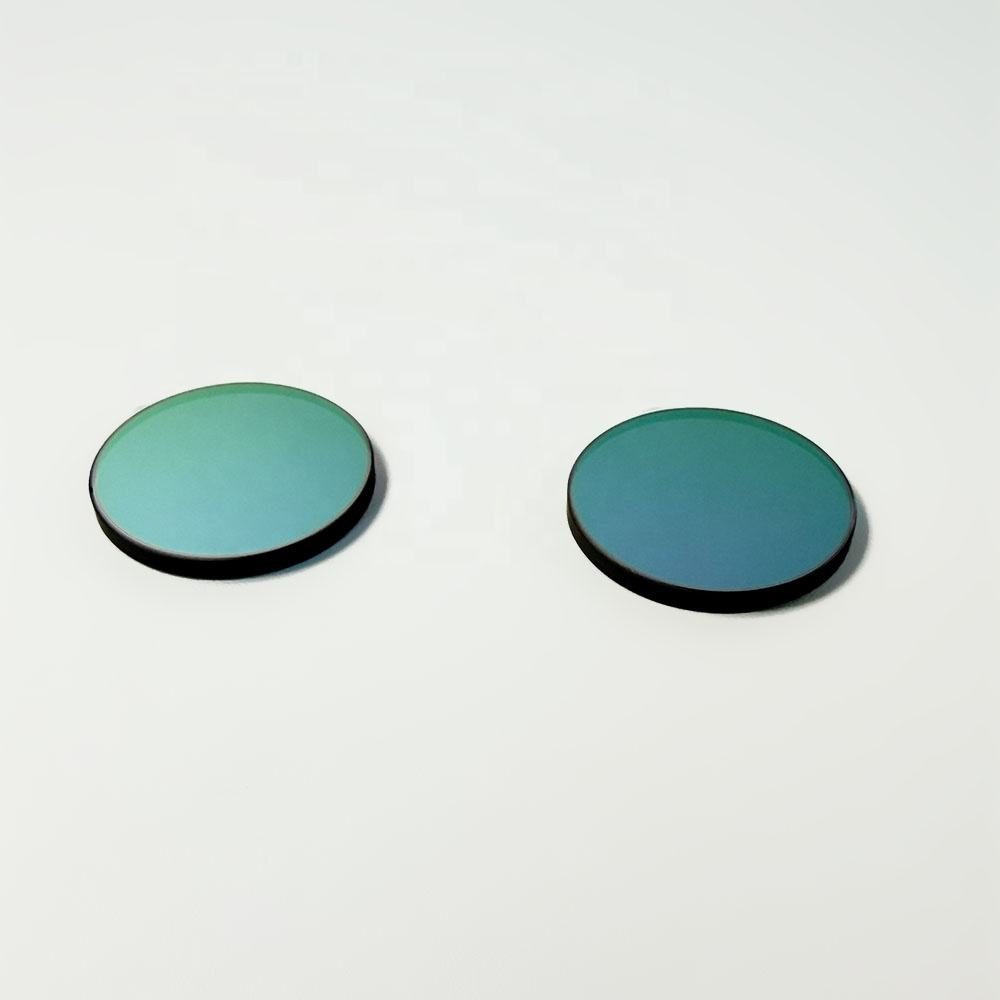

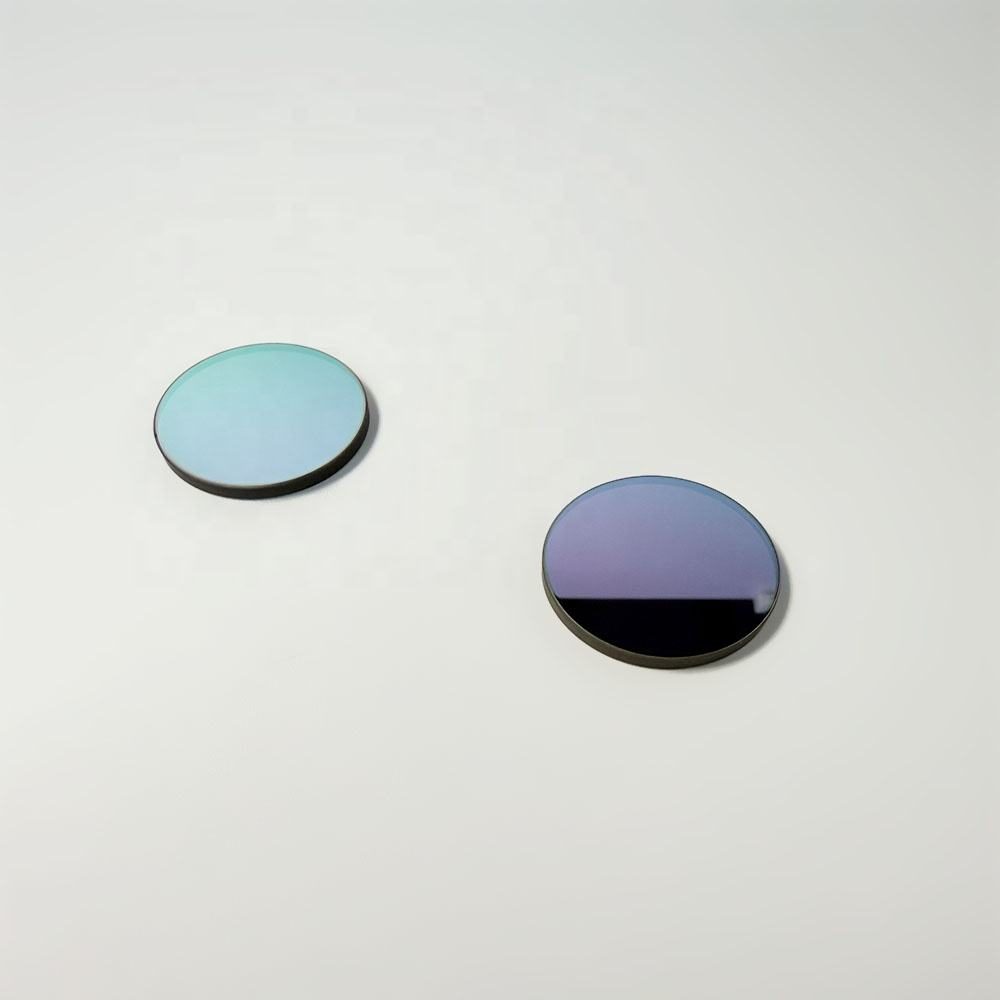

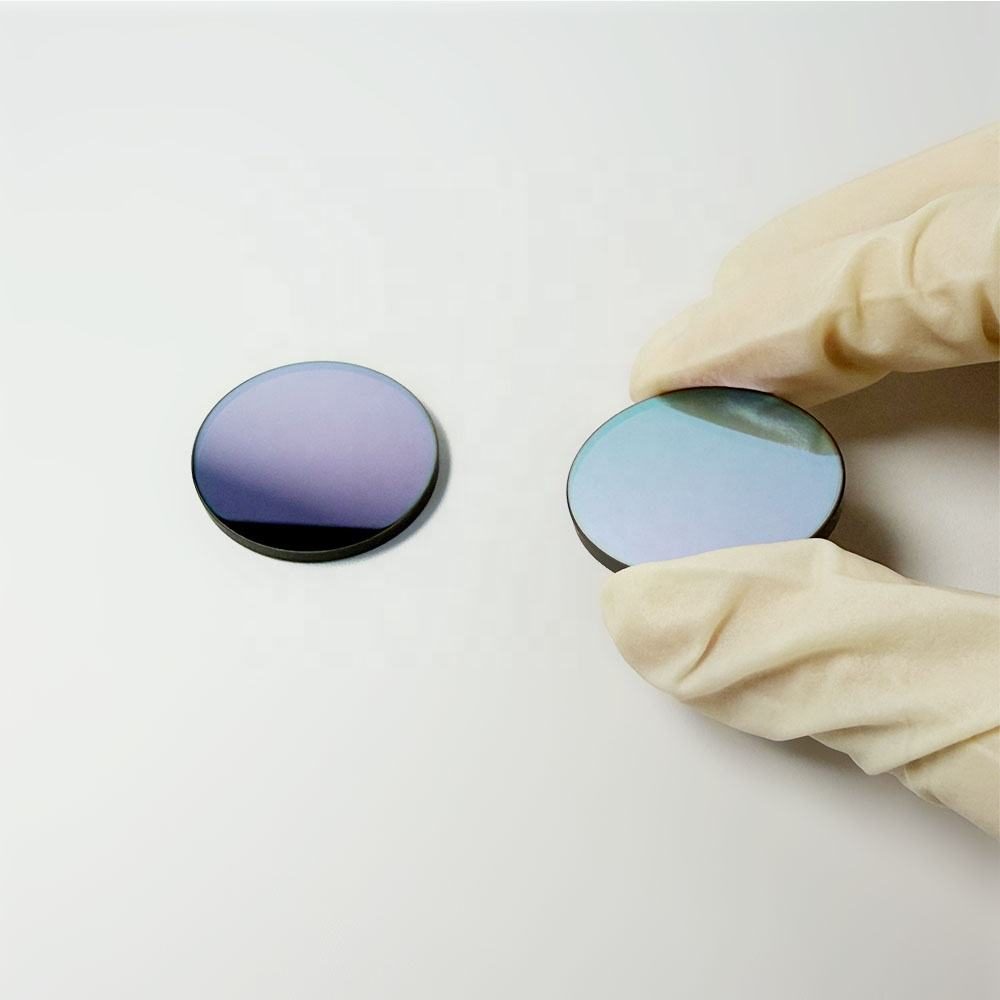

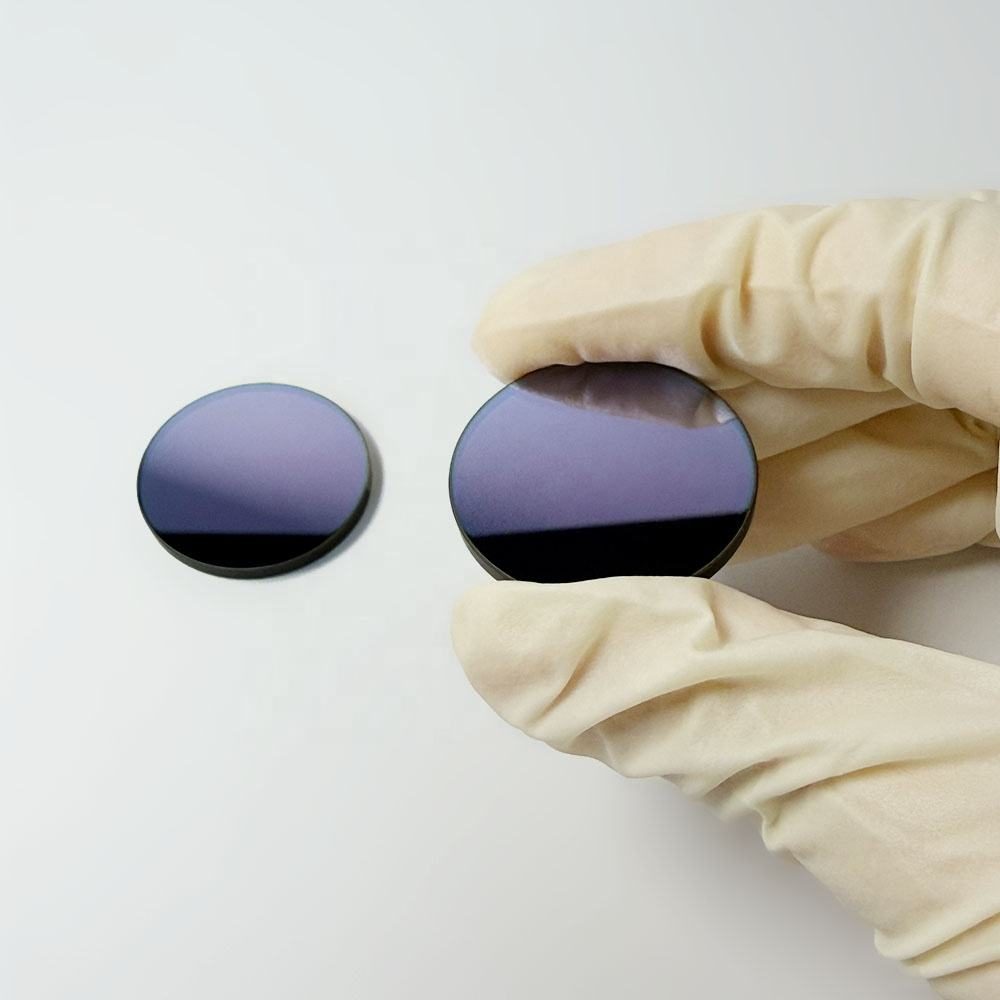

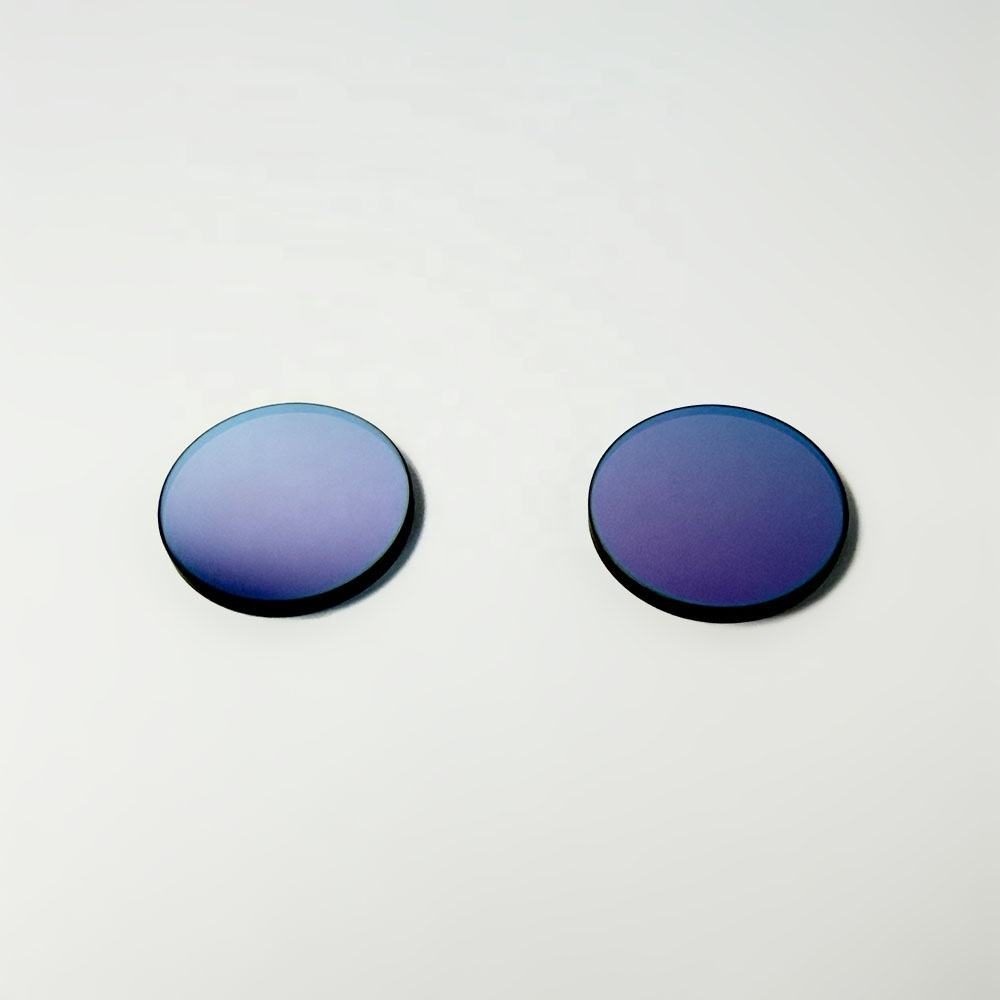

5x1 mm ZnS Optical Window, AR Coated

Product description

The ZnS window is designed for applications in the 8-14 μm wavelength range, making it ideal for IR imaging, LIDAR, and laser systems. With a diameter range from 5.0 mm to 500.0 mm and thickness from 1.0 mm to 50.0 mm, this window offers flexibility for various optical setups. It features anti-reflective and diamond-like carbon coatings, enhancing performance while ensuring durability. The clear aperture exceeds 90%, ensuring maximum light transmission for critical applications.

Key Features

Diameter range: 5.0 mm to 500.0 mm for versatile applications.
Thickness range: 1.0 mm to 50.0 mm allows for tailored solutions.
Parallelism within < 3 arcmin ensures high optical precision.
Weight range: 0.1-2 kg (0.22-4.41 lb) for easy integration.
Customized support available for OEM, ODM, and OBM needs.

Available Sizes

Diameter x Thickness (mm)
252.5 x 25.5

Specification Summary

Item	Value
Material	ZnS
Diameter	5 mm
Thickness	1 mm
Coating	anti-reflective (AR), diamond-like carbon (DLC)
Transmission bands	LWIR (8-14 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	ZnS window
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.1-2 kg(0.22-4.41lb)
Diameter Tolerance	±0.1mm
Parallelism	< 3 arcmin
Clear Aperture	>90%
Chamfer	protective chamfer

FAQ

What custom sizes are available?

Custom sizes can be provided, with a diameter range from 5.0 mm to 500.0 mm and thickness options from 1.0 mm to 50.0 mm.

What is the diameter tolerance?

The diameter tolerance for the ZnS window is ±0.1 mm, ensuring precise fit for your applications.
