1 / 6Optical Windows

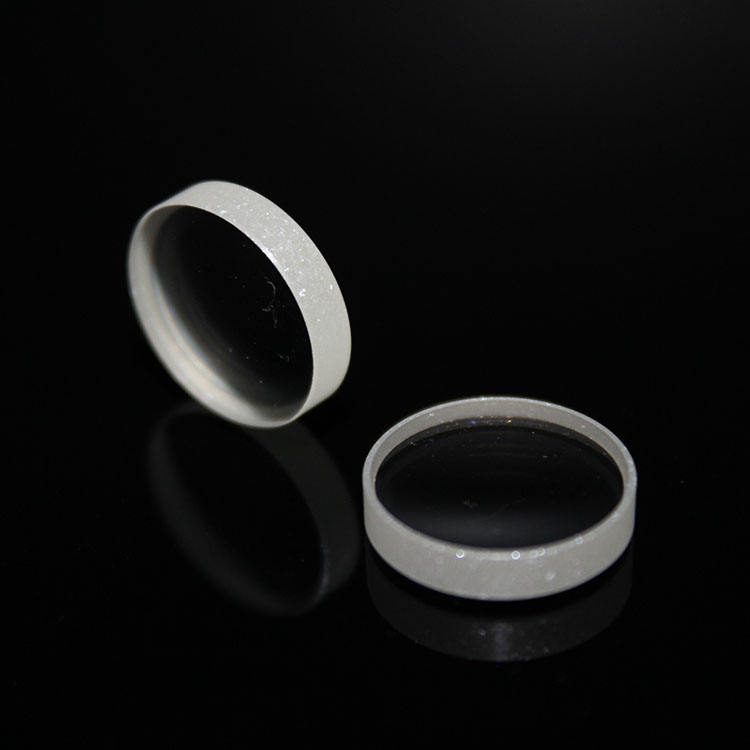

5 mm ZnS Optical Window, AR Coated
ZnS optical windows with 5-300 mm diameter, 60/40 surface quality, and custom sizing options for multispectral applications.
Core attributes
- Material
- ZnS
- Diameter range
- 5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnS
- Diameter range
- 5–300 mm
- Coating
- ar
Product description

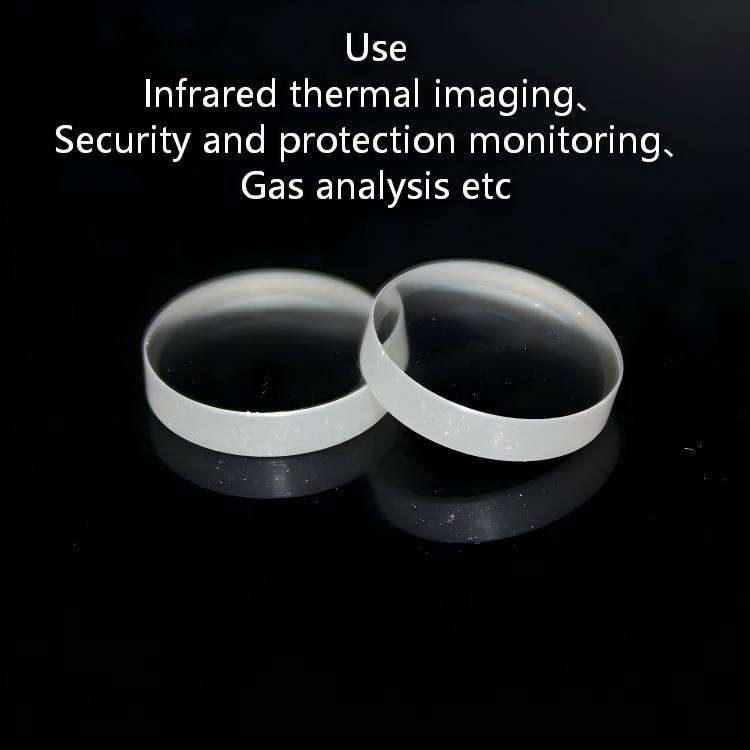

This optical window made from ZnS is designed for multispectral applications, offering high performance across various wavelengths. With a diameter range of 5 to 300 mm and a surface quality of 60/40, it ensures optimal light transmission and minimal distortion. Ideal for IR imaging, LIDAR, and laser applications, it meets stringent requirements for clarity and precision.
Key Features
- Diameter range: 5.0 mm to 300.0 mm for versatile application fit.
- Surface quality of 60/40 ensures minimal distortion for high clarity.
- Parallelism of 30 Arc Sec enhances optical performance.
- Clear aperture of 95% maximizes light transmission efficiency.
- Custom OEM/ODM support available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | ZnS |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg(1.10lb) |
| Diameter Tolerance | +/-0.01mm |
| Parallelism | 30 Arc Sec |
| Clear Aperture | 95% |
| Certificate | ISO9001 |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified in the data.
Can I get custom sizes for the optical windows?
Yes, custom sizes are supported, including diameters from 5 mm to 300 mm.
