1 / 6Optical Windows

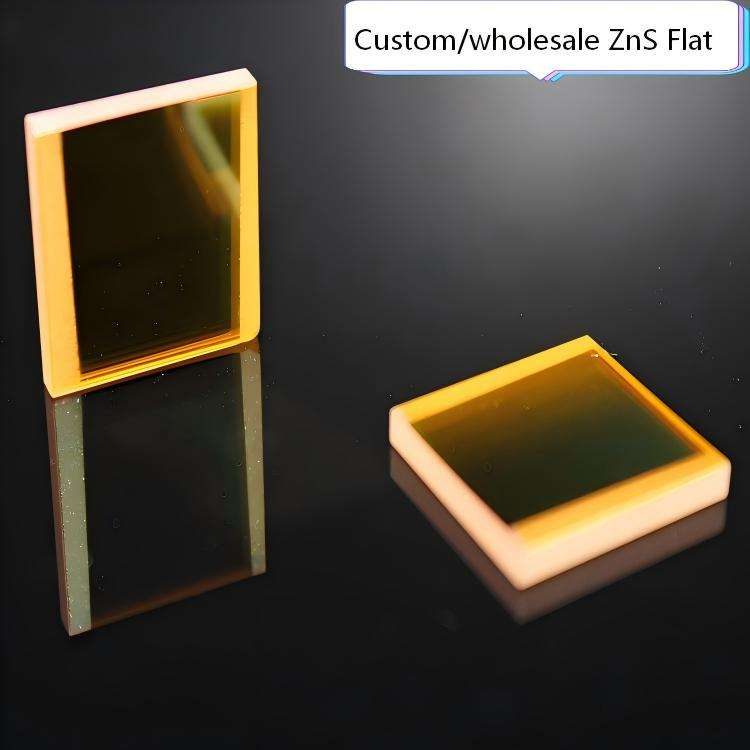

5 mm ZnS Optical Window, AR Coated
ZnS optical windows for 3-5 μm and 8-14 μm applications, customizable sizes, and high surface quality.
Core attributes
- Material
- ZnS
- Diameter range
- 5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnS
- Diameter range
- 5–300 mm
- Coating
- ar
Product description
These ZnS optical windows are designed for applications in the 3-5 μm and 8-14 μm spectral bands, making them ideal for IR imaging, LIDAR, and medical devices. With a diameter range of 5 to 300 mm and a surface quality of 60/40, these windows ensure reliable performance in demanding environments. Their AR coatings enhance transmittance, while customizable options cater to specific project requirements.
Key Features
- Diameter range: 5-300 mm for versatile application fit.
- Surface quality of 60/40 ensures high optical performance.
- AR coatings available to improve transmittance.
- Diameter tolerance of +/-0.01 mm for precise fitting.
- Custom OEM/ODM support for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | ZnS |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |

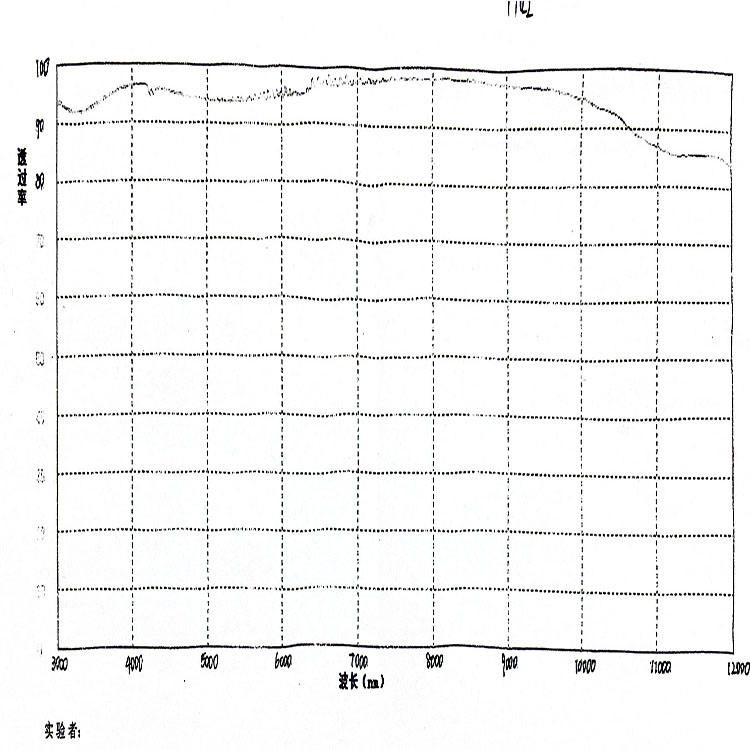

| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Diameter Tolerance | +/-0.01mm |
| Parallelism | 30 Arc Sec |
| Clear Aperture | 95% |
| Certificate | ISO9001 |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
Can I get custom sizes?
Yes, custom diameters from 5 mm to 300 mm are available.
