1 / 6Optical Windows

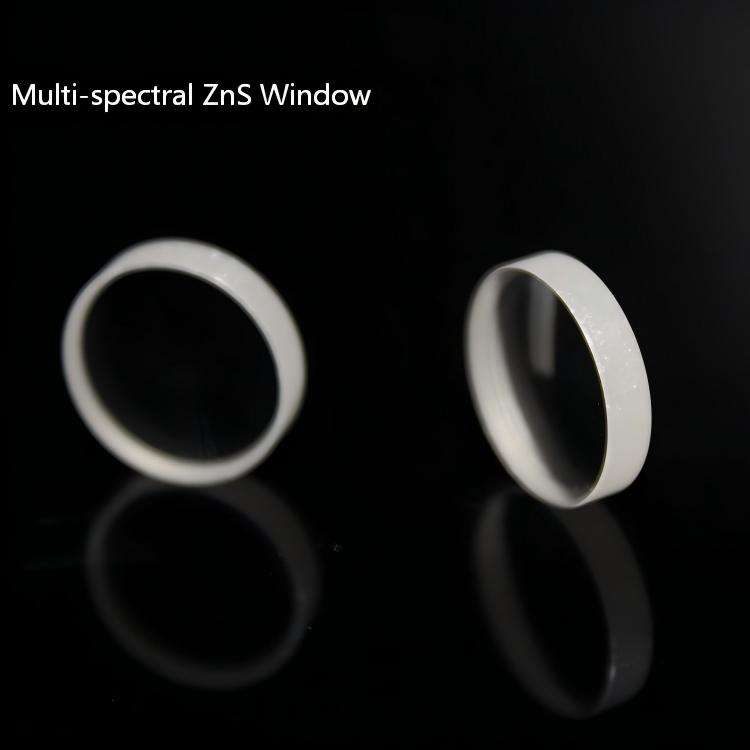

5 mm ZnS Optical Window, AR Coated
ZnS optical windows for 3-5 μm applications, customizable sizes, AR coating, and ISO9001 certified for quality.
Core attributes
- Material
- ZnS
- Diameter range
- 5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnS
- Diameter range
- 5–300 mm
- Coating
- ar
Product description
This ZnS optical window is designed for applications in the 3-5 μm wavelength range, making it ideal for IR imaging, LIDAR, and medical devices. With a diameter range of 5 to 300 mm and a surface quality of 60/40, it ensures reliable performance in demanding environments. The AR coating enhances transmittance, while the high clear aperture of 95% maximizes light throughput. Custom sizes and OEM/ODM support are available to meet specific project requirements.
Key Features
- Diameter range: 5-300 mm for versatile application fit.
- Surface quality of 60/40 ensures reliable optical performance.

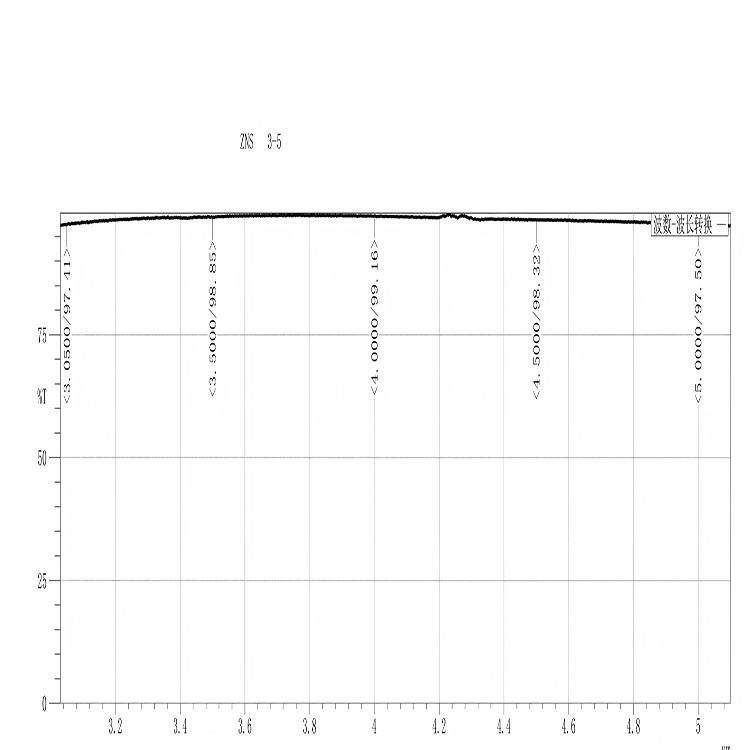

- AR coating enhances transmittance for improved efficiency.
- Customizable options available to meet specific needs.
- ISO9001 certified for consistent quality assurance.
Specification Summary
| Item | Value |
|---|---|
| Material | ZnS |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | MWIR (3-5 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Diameter Tolerance | +/-0.01mm |
| Parallelism | 30 Arc Sec |
| Clear Aperture | 95% |
| Certificate | ISO9001 |
FAQ
What are the available custom sizes?
Custom sizes are available within the diameter range of 5 to 300 mm.
What is the diameter tolerance?
The diameter tolerance is +/-0.01 mm.
