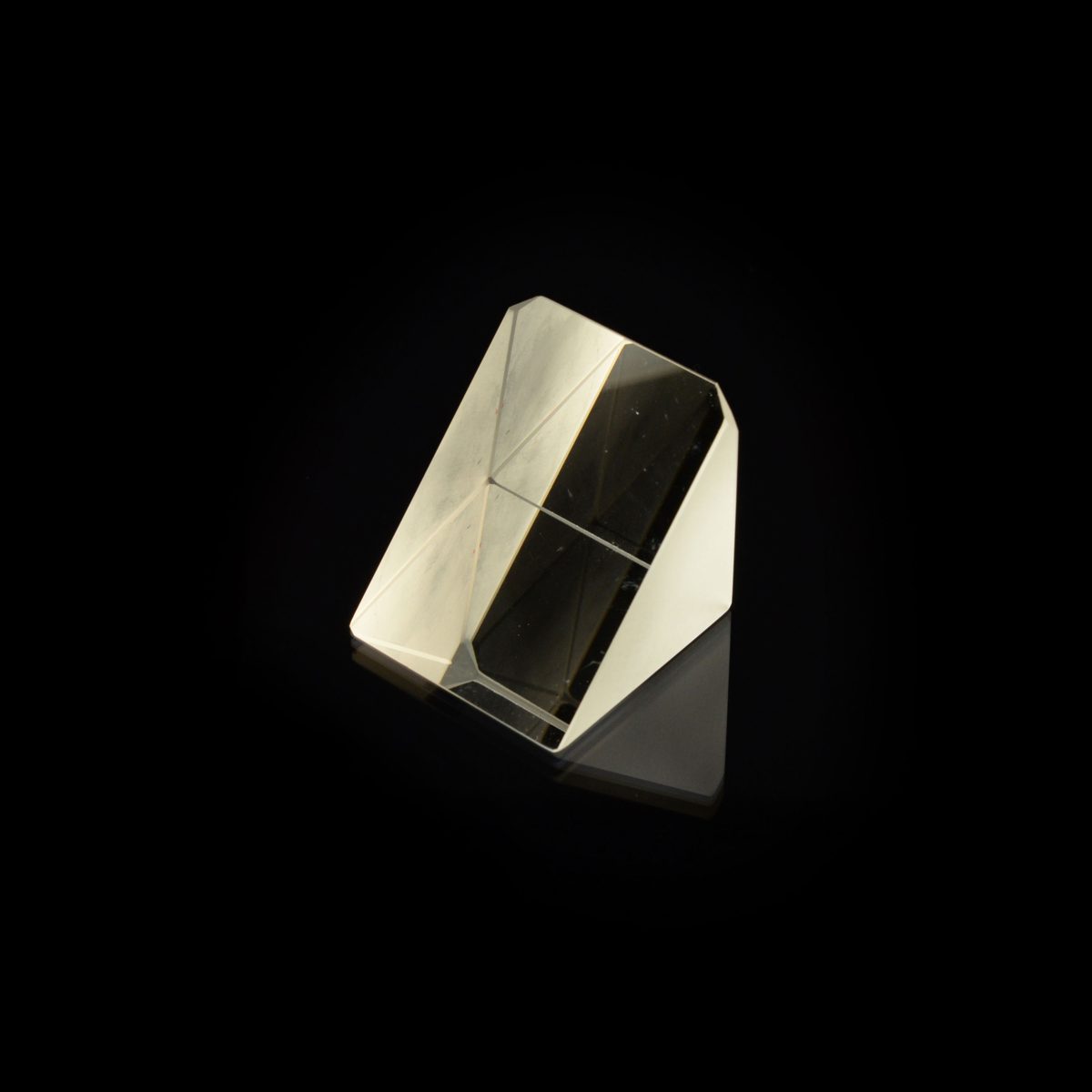

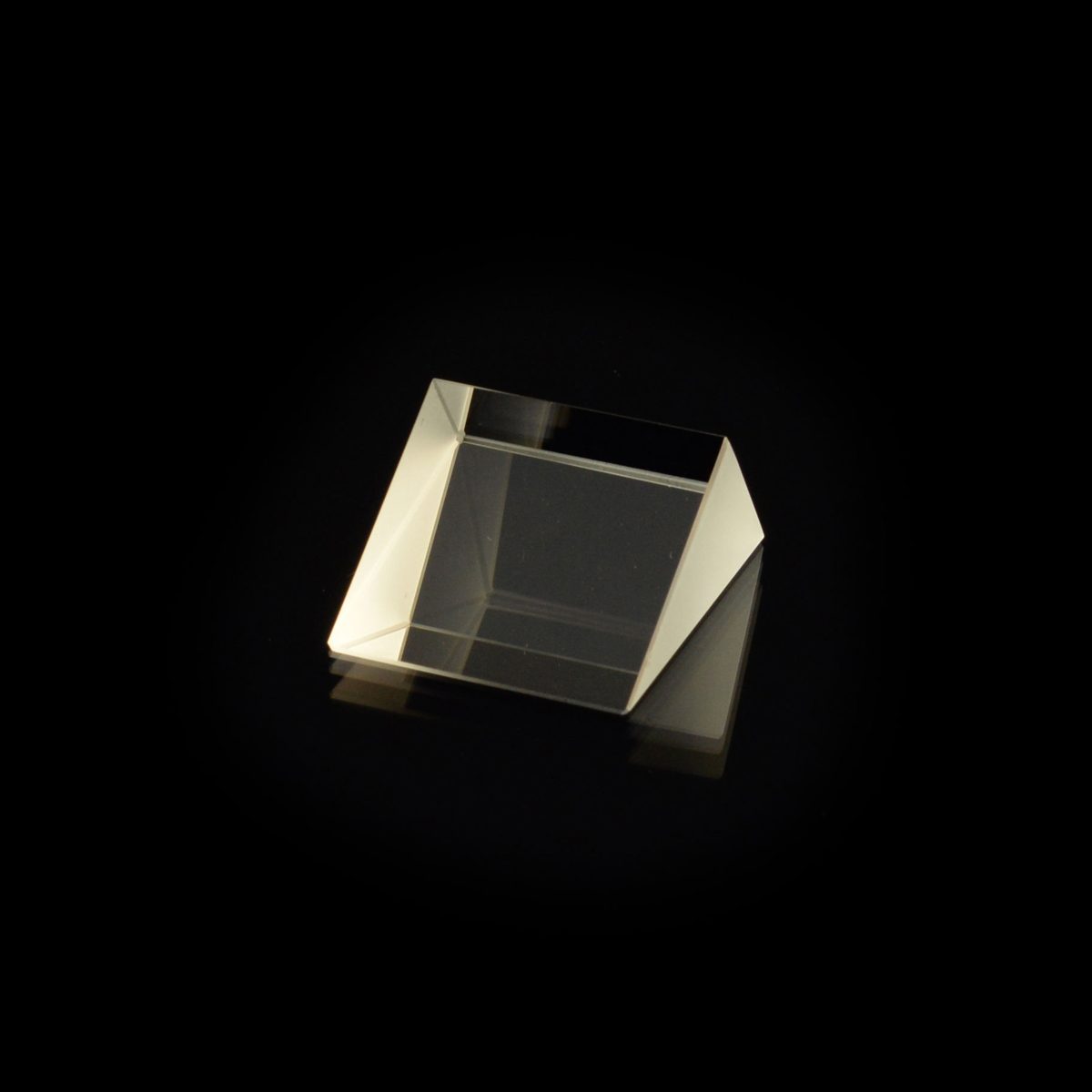

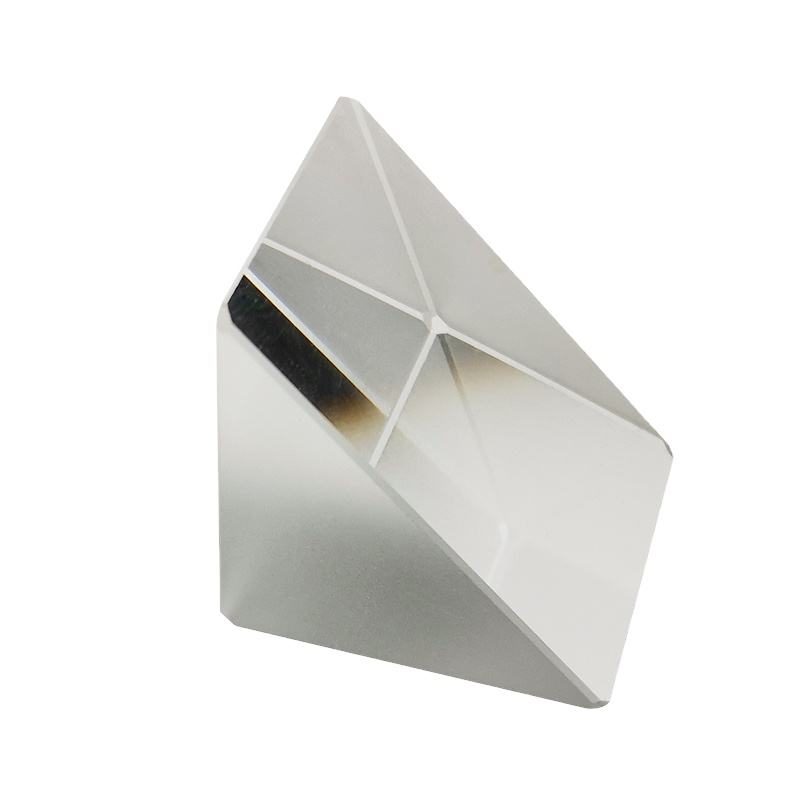

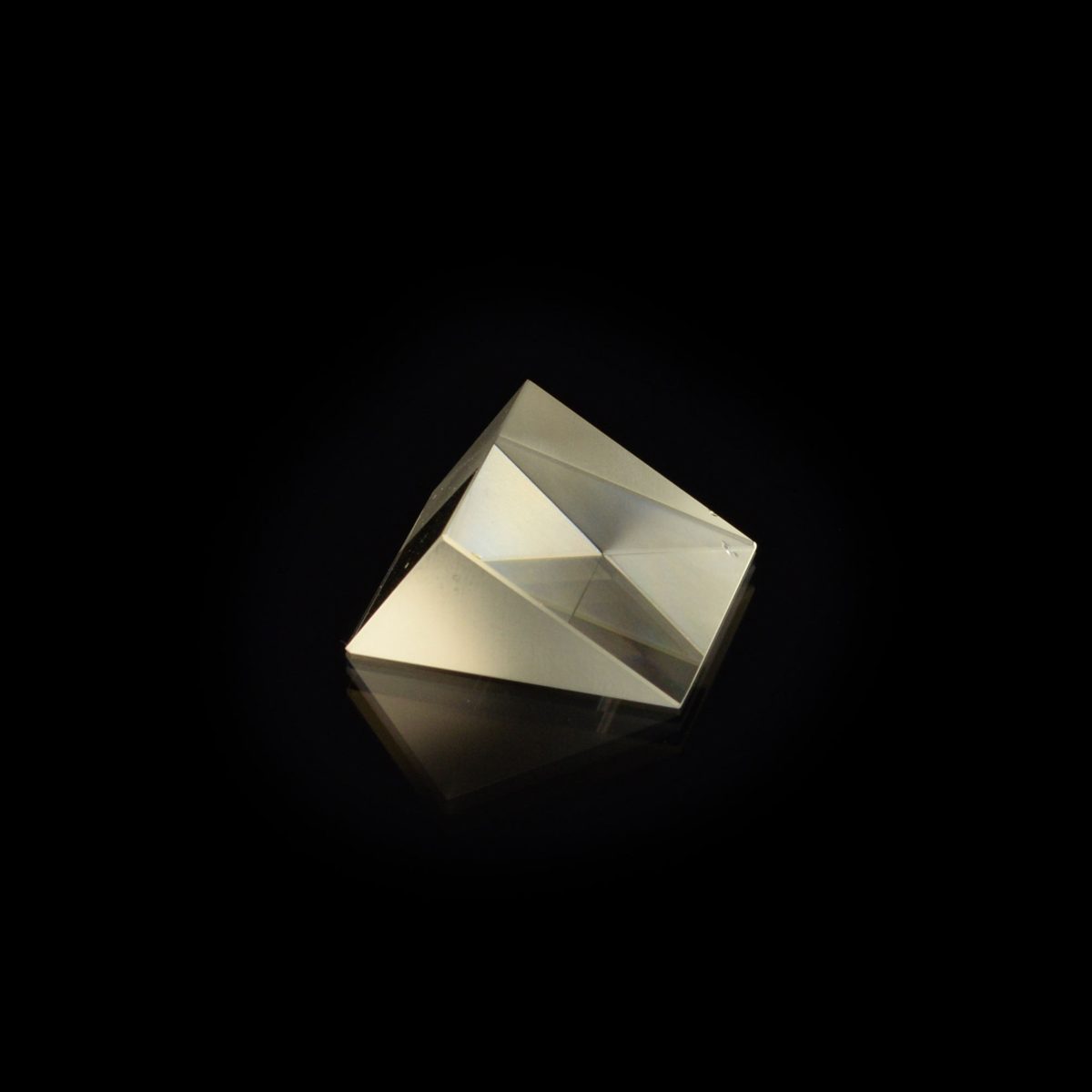

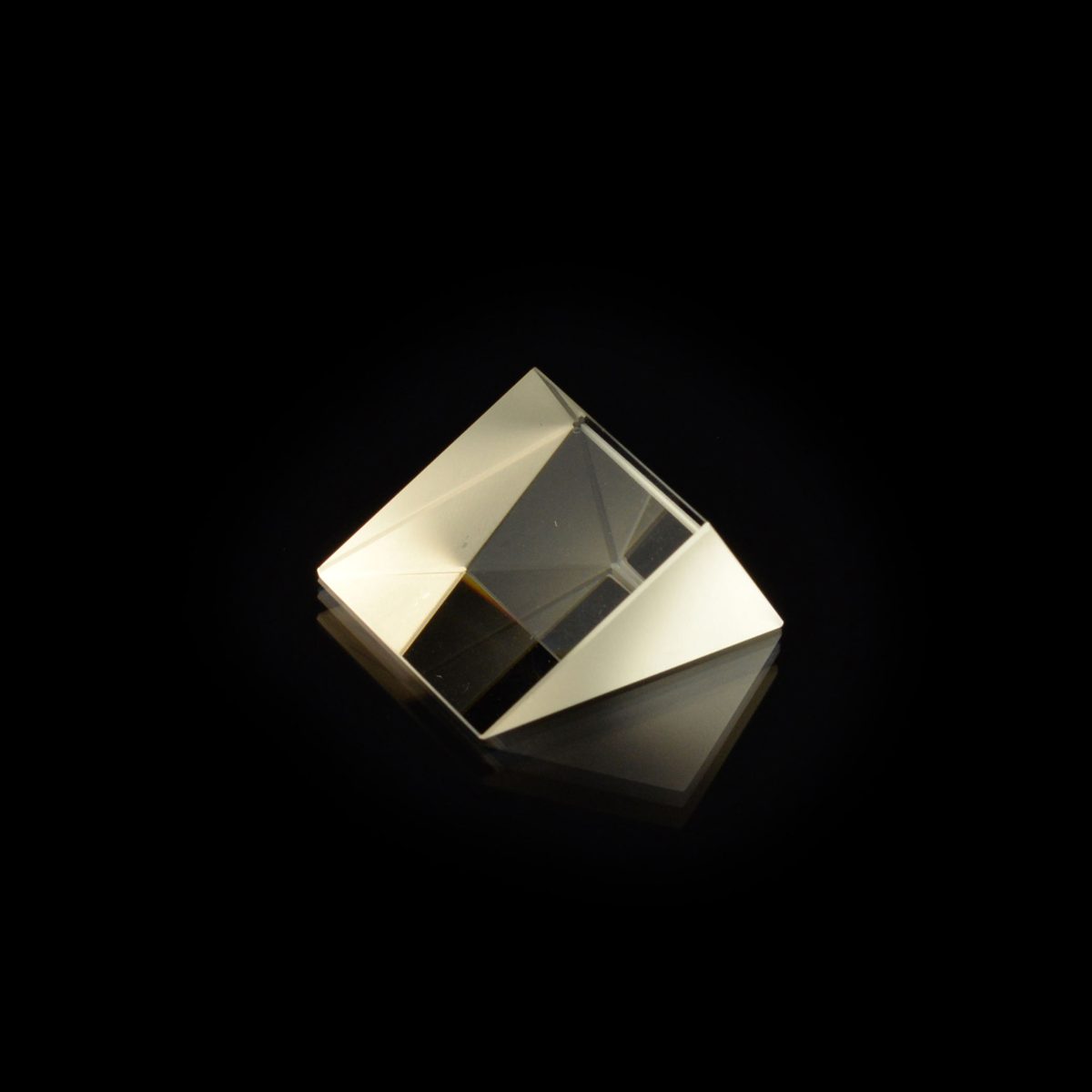

0.5 mm ZnS Right-angle Optical Prism

Product description

This right-angle prism made from ZnS is designed for precise optical applications requiring high accuracy. With a surface quality of 60/40 and an angle tolerance of ±2 arc seconds, it ensures minimal beam deviation and optimal performance in laser and imaging systems. Its protective bevel can be customized for enhanced durability, making it suitable for various environments.

Key Features

Surface quality of 60/40 ensures minimal optical distortion, enhancing image clarity.
Angle tolerance of ±2 arc seconds guarantees precise alignment in optical paths.
Protective bevel available to improve durability and reduce edge damage.
Customizable support for OEM and ODM projects to meet specific application needs.
Dimension tolerance of ±0.02mm for consistent batch performance.

Specification Summary

Item	Value
Material	ZnS
Shape	Right-angle
Size	0.5 mm
Thickness	Custom
Surface Quality	60/40

Full Specifications

Parameter	Value
Customized Support	OEM, ODM
Warranty	1Y
Type	Optical prisms
Bevel	Protective bevel as needed
Materail	ZnS
Dimension Tolerance	±0.02mm
Angle Tolerance	±2 Arc Seconds
Flatness	1/4 Lambda or 1/8Lambda

FAQ

Can this prism be customized to specific sizes?

Yes, customization options are available for OEM and ODM projects.

What is the angle tolerance for this prism?

The angle tolerance is ±2 arc seconds, ensuring high precision.
