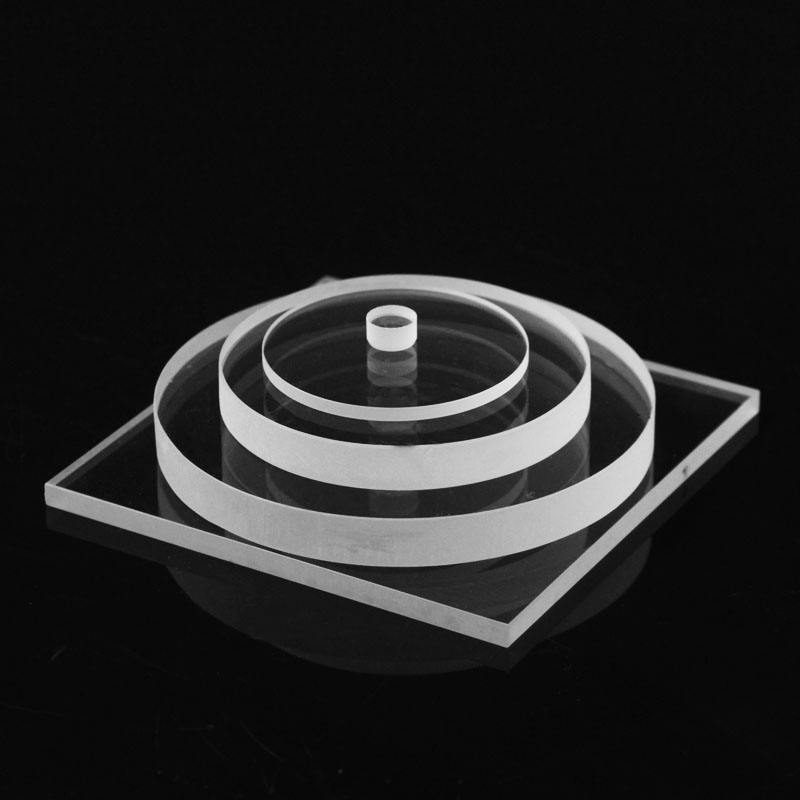

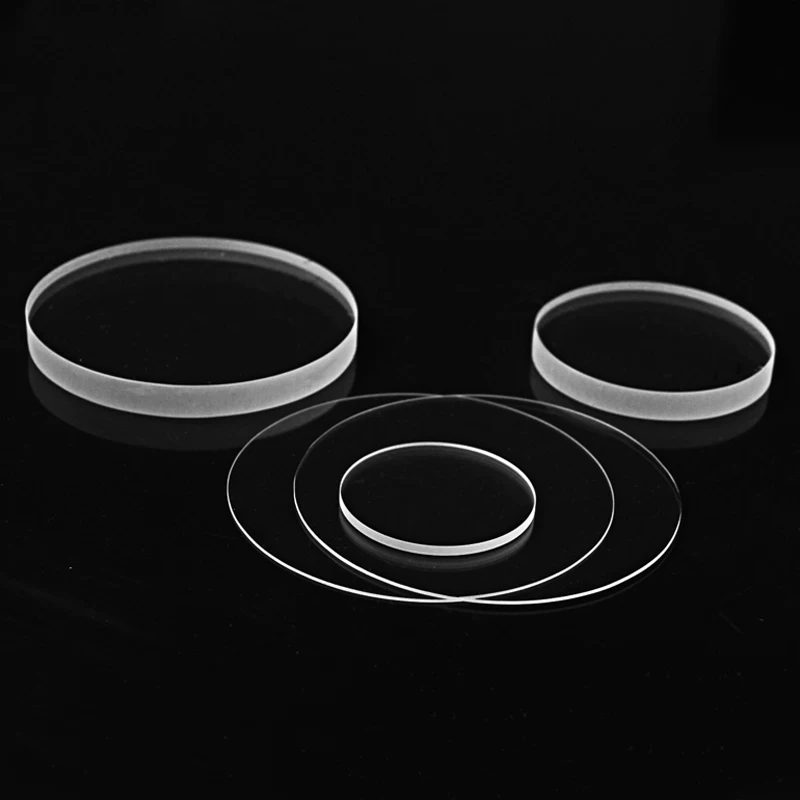

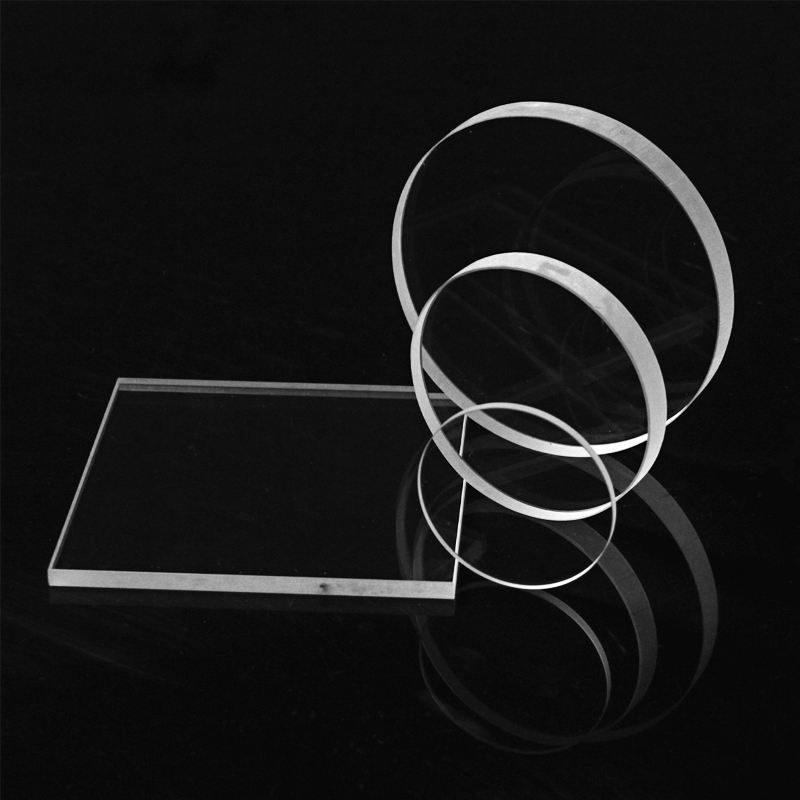

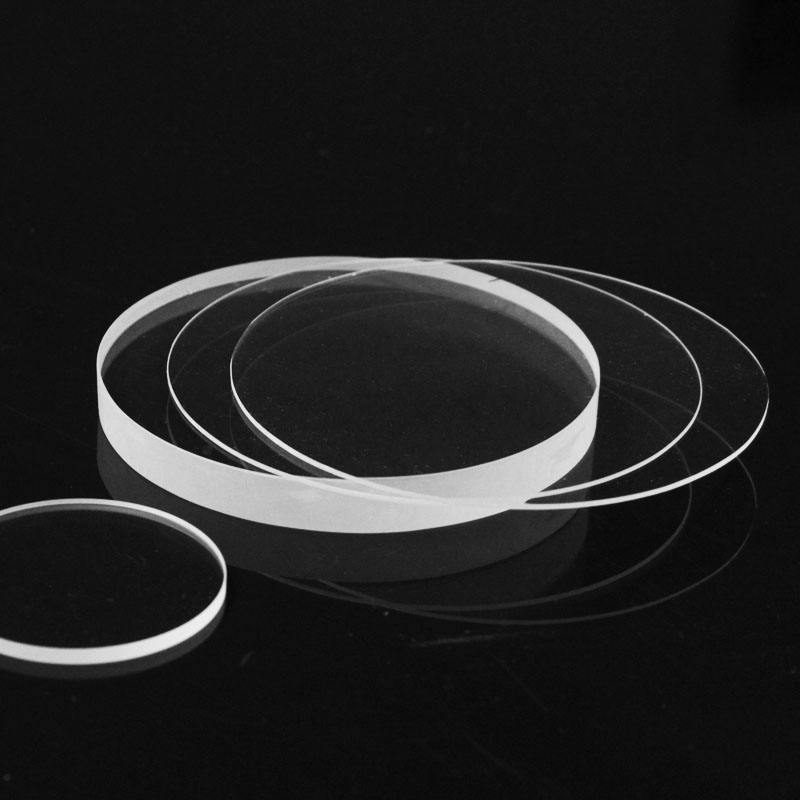

1x9 mm ZnS Round Optical Window

Product description

Zinc Sulfide (ZnS) round windows are ideal for applications in the 8-14 μm wavelength range, particularly in semiconductor manufacturing. With excellent high-temperature resistance and high optical transparency, these windows ensure reliable performance in demanding environments. Available in various diameters and thicknesses, they can be tailored to specific project requirements, making them suitable for diverse optical components.

Key Features

Diameter range: 1.0 mm to 100.0 mm for versatile application fit.
Consistent thickness of 9.0 mm ensures uniform performance across batches.
High optical transparency enhances image transmission in mid-infrared applications.
Excellent high-temperature resistance suitable for harsh environments.
Custom shapes and coatings available to meet specific project needs.

Available Sizes

Diameter x Thickness (mm)
50.5 x 5
50.5 x 6
50.5 x 7
50.5 x 9

Applications

Semiconductor

Specification Summary

Item	Value
Material	ZnS
Shape	Round
Diameter	1 mm
Thickness	9 mm
Transmission bands	LWIR (8-14 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	ZnS
Composition	ZnS
Grade	Optical Grade Synthetic Sapphire
Surface Finish	Polished / Fine Polished / Optical Polished
Transparency	High Optical Transparency
Temperature Resistance	Excellent High Temperature Resistance

FAQ

Are custom sizes available?

Yes, custom sizes can be accommodated, with diameter options ranging from 1.0 mm to 100.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified, allowing for flexible procurement.
