1 / 6Optical Windows

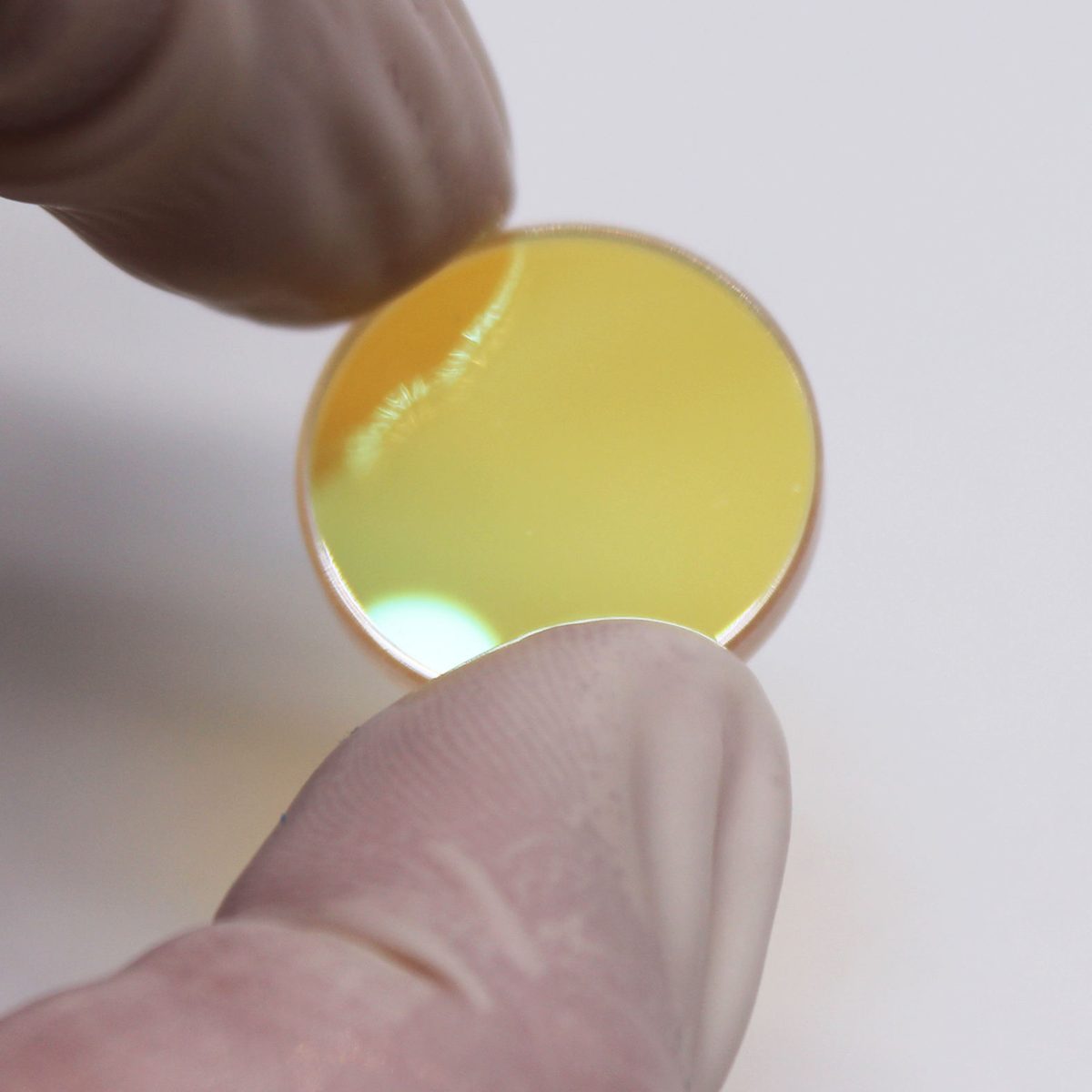

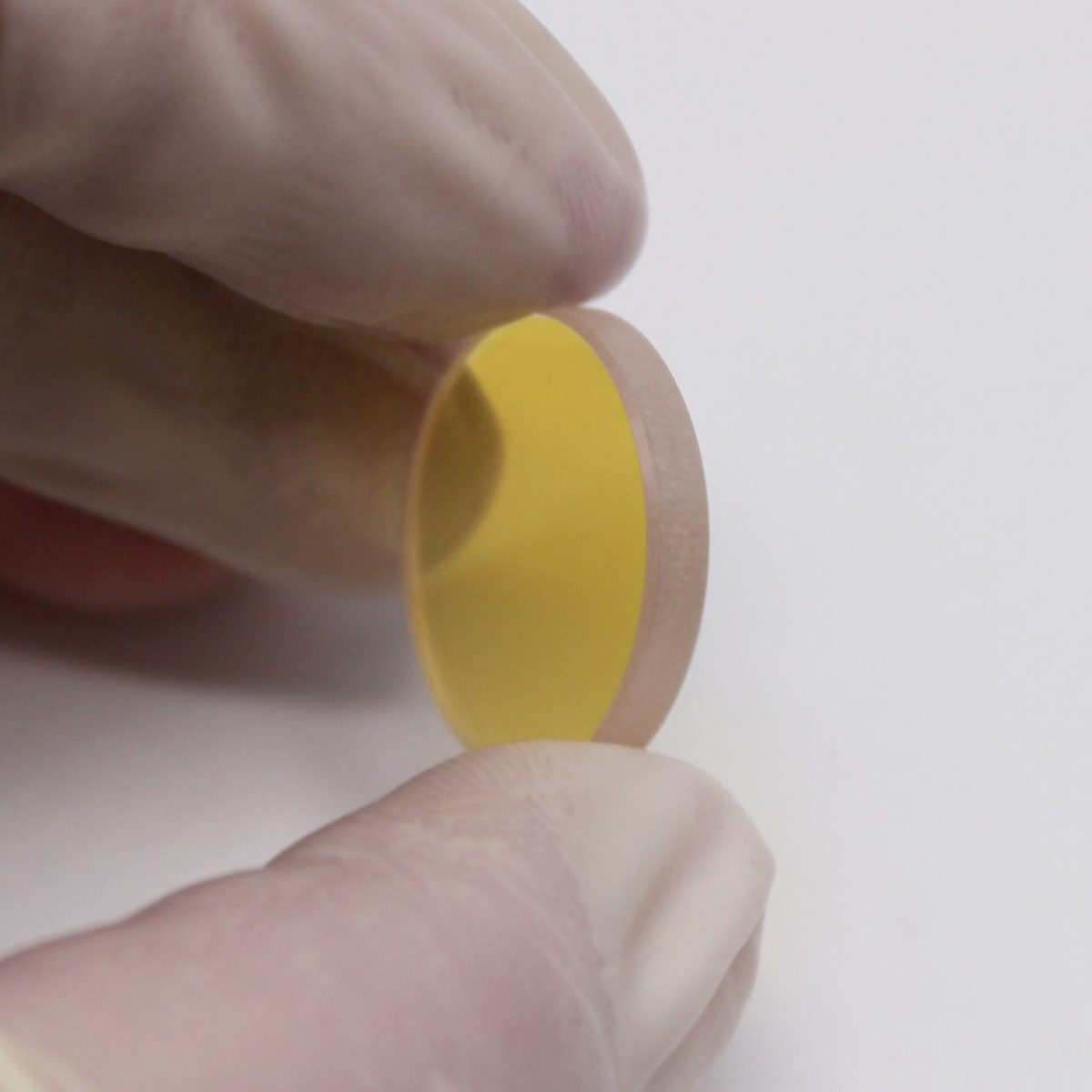

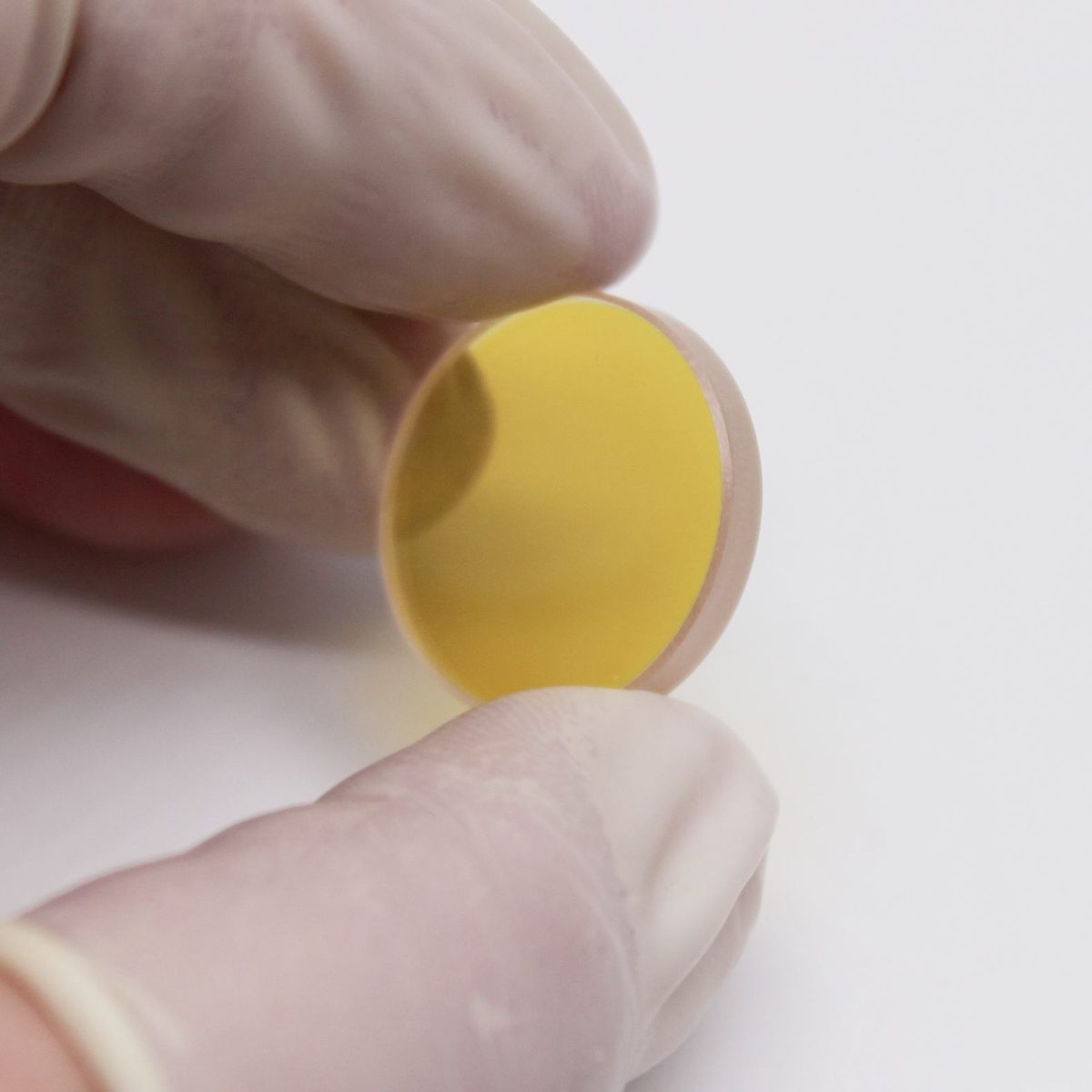

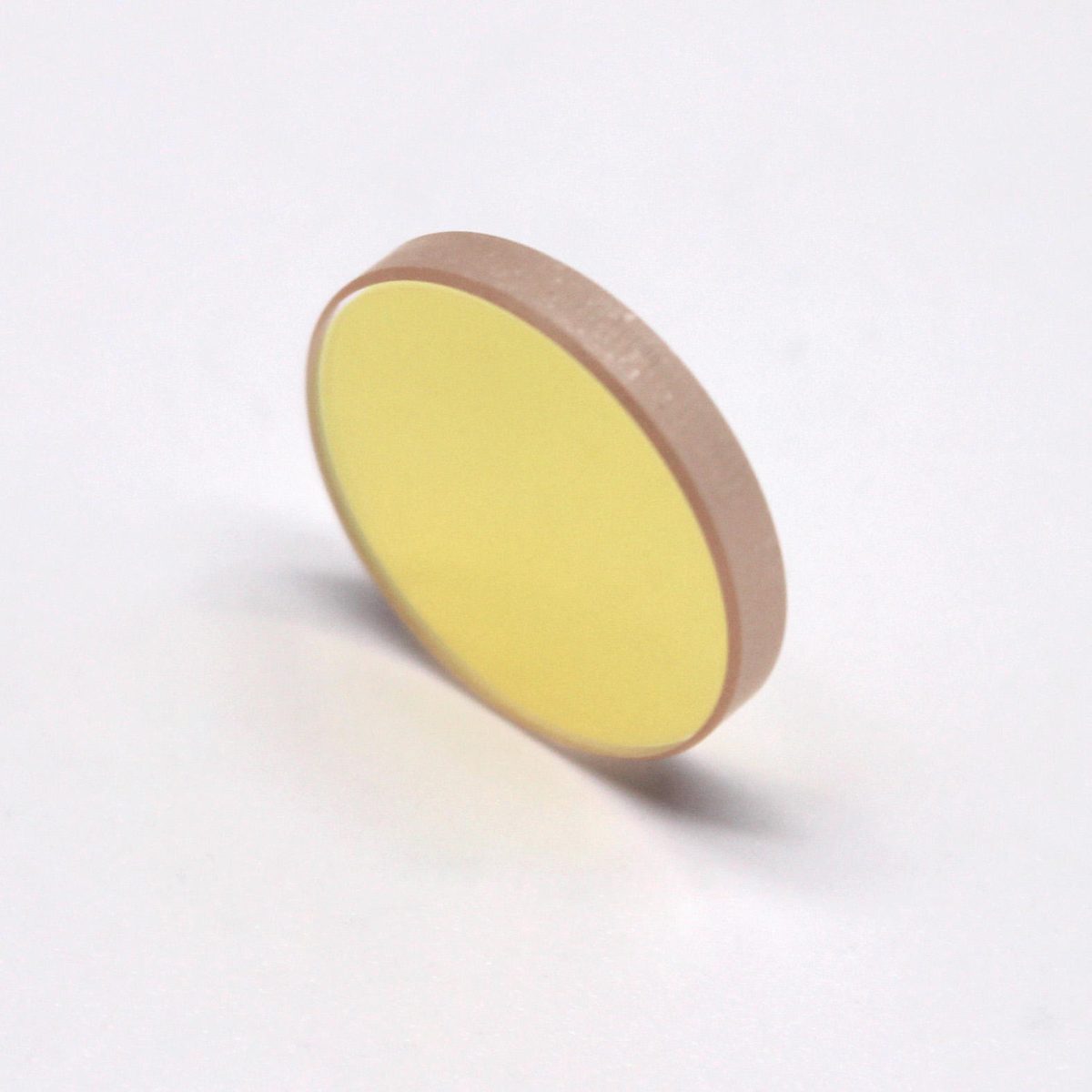

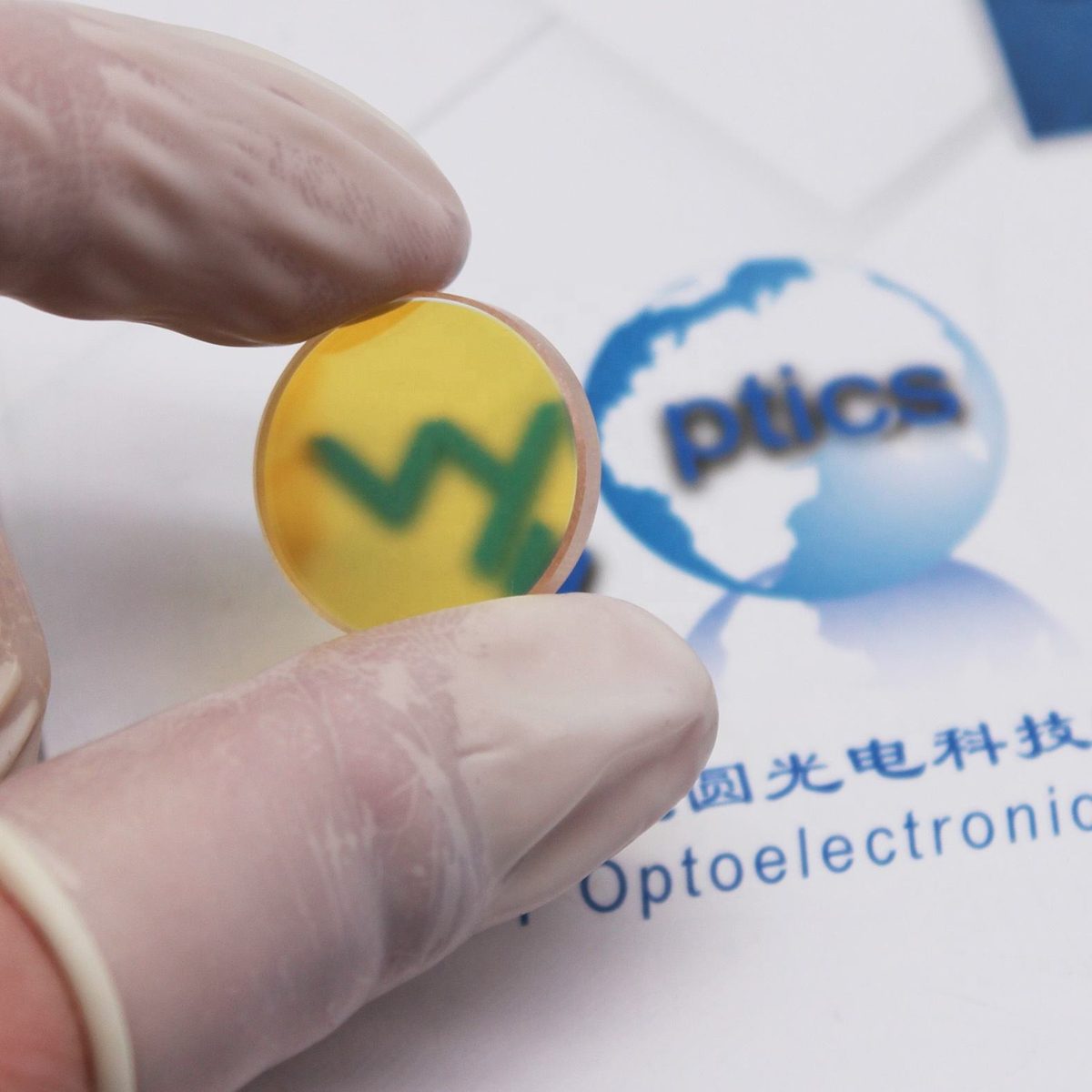

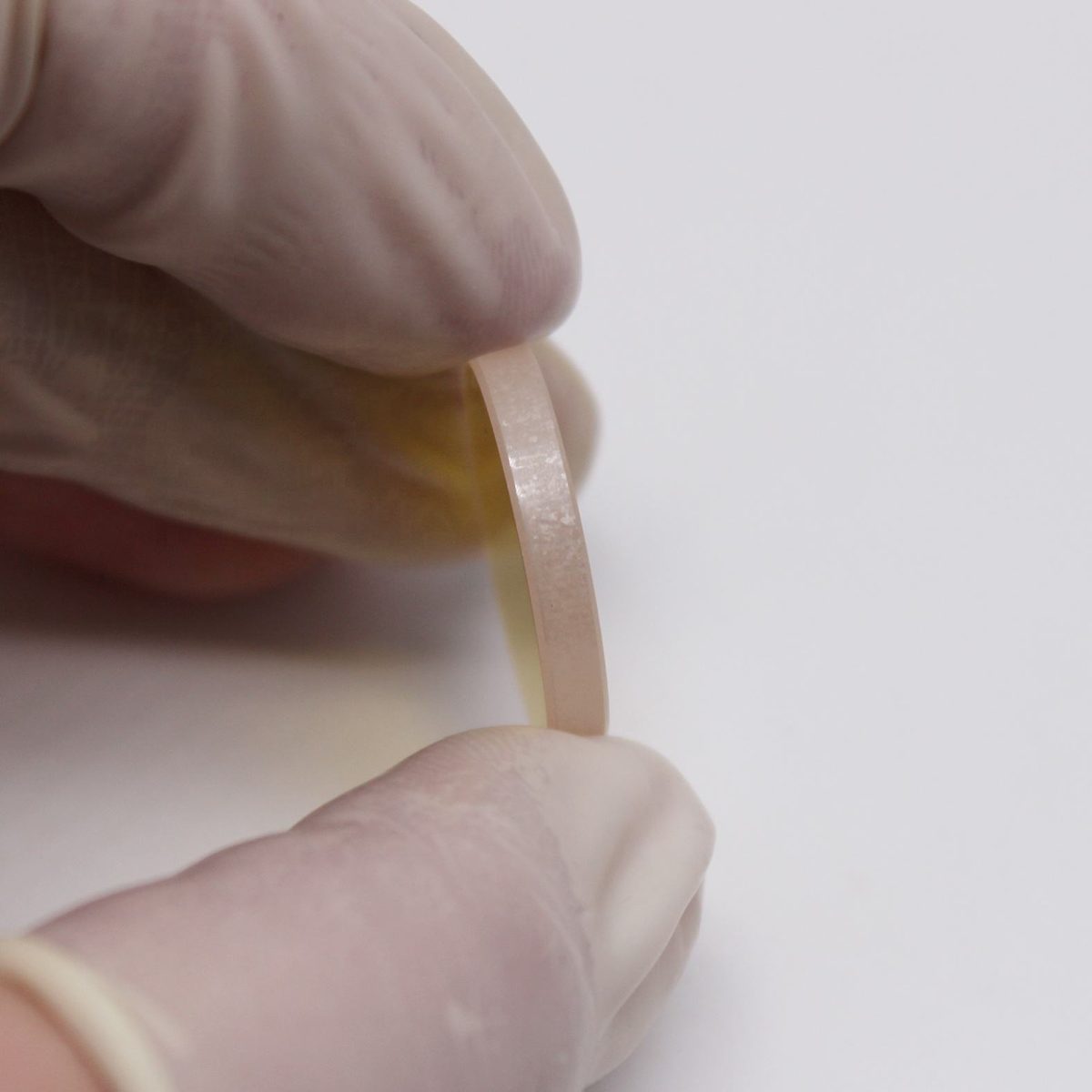

20 mm ZnS Round Optical Window, AR Coated
ZnS optical window for security and medical applications, customizable with high surface quality and precise tolerances.
Core attributes
- Material
- ZnS
- Shape
- round
- Diameter range
- 20 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnS
- Shape
- round
- Diameter range
- 20 mm
- Coating
- ar
Product description
The ZnS window is designed for applications in security and medical fields, providing an effective solution for isolating environments while allowing infrared light to pass through. With a diameter of 20 mm and a surface quality of 20/10, this optical component ensures high performance in demanding conditions. The anti-reflective coating enhances transmittance, making it ideal for IR research and imaging applications.
Key Features
- Diameter of 20 mm with a tolerance of +/- 0.01 mm for precise fitting.
- Surface quality rated at 20/10, ensuring minimal distortion and high clarity.
- Lightweight design at 0.2 kg, facilitating easy integration into various systems.
- Customizable options available through OEM and ODM support for tailored solutions.
- Sample availability allows for testing before full-scale procurement.
Applications
Security, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | ZnS |
| Shape | Round |
| Diameter | 20 mm |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | window; wafer |
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Weight | 0.2 |
| Use | Optical |
| Diameter Tolerance | +/- 0.01mm |
| Description | ZnS Wafer for lR Research |
| Sample | Yes |
FAQ
Can I get custom sizes?
Yes, special sizes and materials are available upon request.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible purchasing options.
