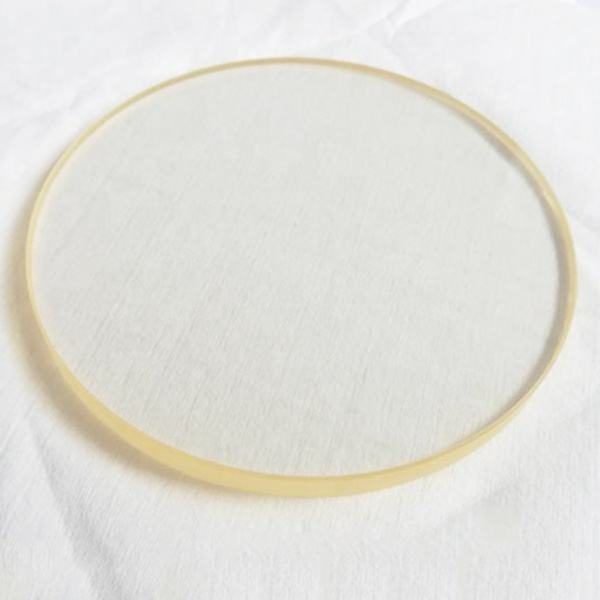

5x1 mm ZnS Round Optical Window, AR Coated

Product description

Zinc Sulfide (ZnS) optical windows are ideal for thermal imaging applications, particularly in the 8 to 12 microns wavelength range. With a wide diameter range from 5 mm to 500 mm and thickness options from 1 mm to 50 mm, these windows provide flexibility for various designs. The high fracture strength and hardness of ZnS make it suitable for harsh environments, ensuring durability and reliability in demanding applications.

Key Features

Diameter range: 5 mm to 500 mm, accommodating diverse project requirements.
Thickness options from 1 mm to 50 mm, providing versatility in design.
Surface quality of 60/40, ensuring adequate optical performance.
Clear aperture greater than 90%, maximizing light transmission.
Customizable with OEM, ODM, and OBM support for tailored solutions.

Available Sizes

Diameter x Thickness (mm)
252.5 x 25.5

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	ZnS
Shape	Round
Diameter	5 mm
Thickness	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Plates
Customized Support	OEM, ODM, OBM
Warranty	1 month
Weight	0.1-2 kg
Dimension Tolerance	+0/-0.1mm
Parallelism	< 3 arcmin or < 10 arcsec
Clear Aperture	>90%
Chamfer	protective chamfer

FAQ

What are the available custom sizes?

Custom sizes range from 5 mm to 500 mm in diameter, with thickness options from 1 mm to 50 mm.

What are the tolerances for dimensions?

Dimension tolerance is ±0.1 mm, ensuring precision in manufacturing.
