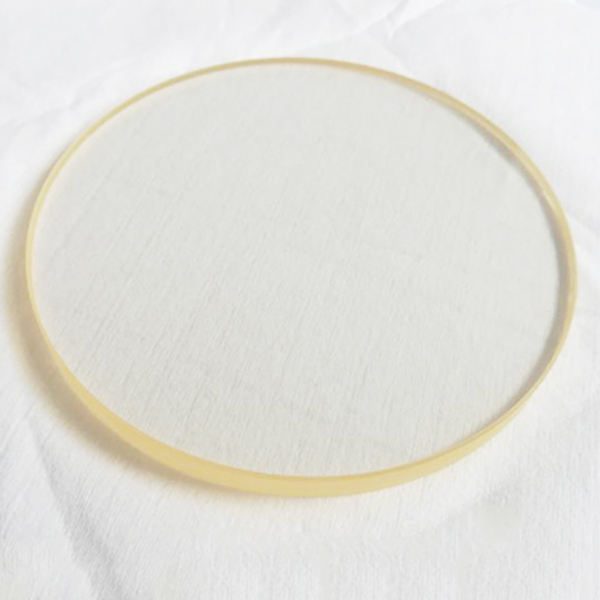

5x1 mm ZnS Round Optical Window

Product description

Zinc Sulfide (ZnS) optical components are ideal for harsh environments, particularly in the 8 to 12 microns IR region. With a diameter range of 5mm to 500mm and thickness from 1mm to 20mm, these components are suitable for various applications requiring durability and strength. The exceptional fracture strength and hardness of ZnS make it a reliable choice for demanding optical applications. Custom sizes and specifications can be accommodated, ensuring a perfect fit for your project needs.

Key Features

Diameter range: 5mm to 500mm for versatile application fit.
Thickness options: 1mm to 20mm, customizable for specific requirements.
Surface quality of 60/40 ensures adequate performance in demanding environments.
Clear aperture greater than 90% allows for optimal light transmission.
Dimension tolerance of +0/-0.1mm for precise fitting.

Available Sizes

Diameter x Thickness (mm)
252.5 x 10.5

Specification Summary

Item	Value
Material	ZnS
Shape	Round
Diameter	5 mm
Thickness	1 mm
Surface Quality	60/40
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	1 month
Weight	customized
Dimension Tolerance	+0/-0.1mm
Parallelism	< 3 arcmin
Clear Aperture	>90%
Chamfer	protective chamfer

FAQ

Can I get custom sizes?

Yes, custom sizes are available within the diameter range of 5mm to 500mm.

What is the tolerance for dimensions?

The dimension tolerance is +0/-0.1mm, ensuring a precise fit for your applications.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement options.
