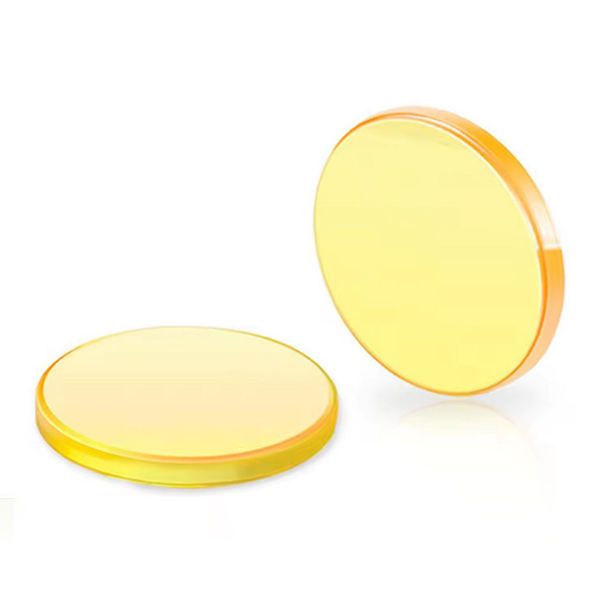

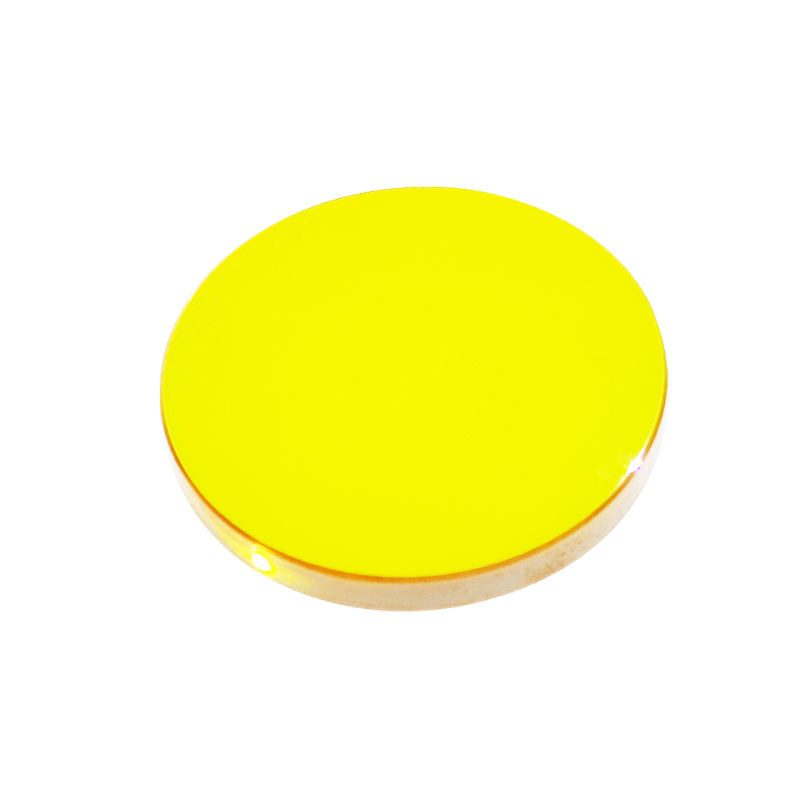

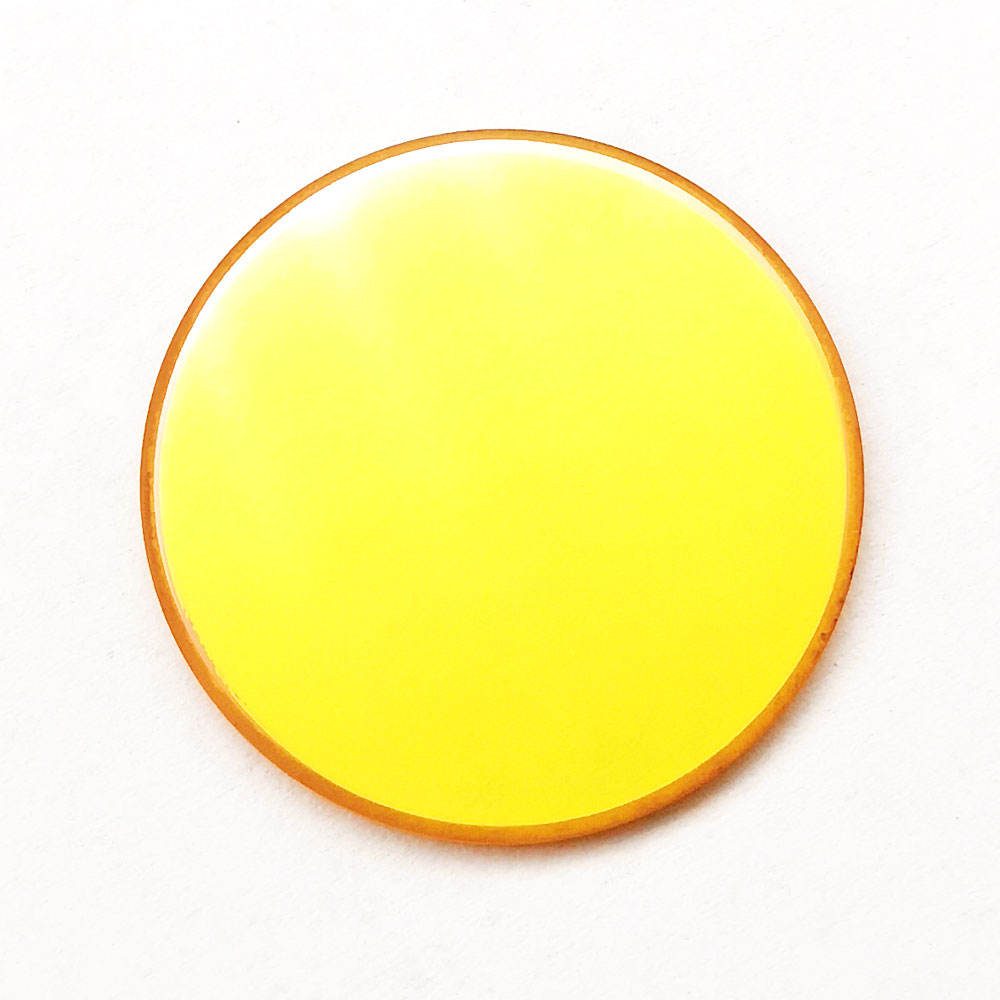

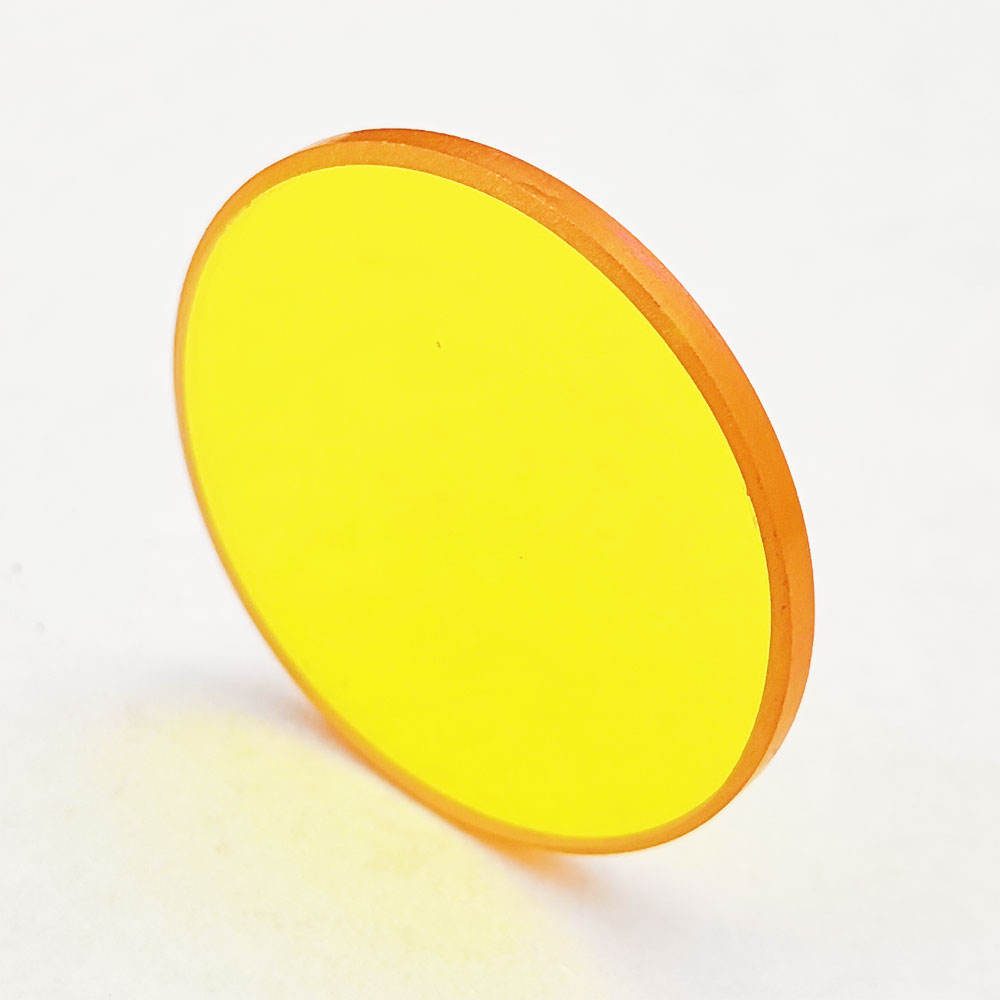

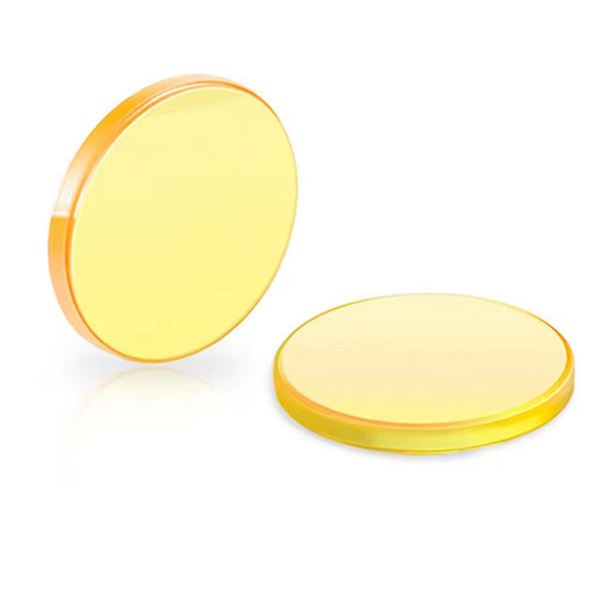

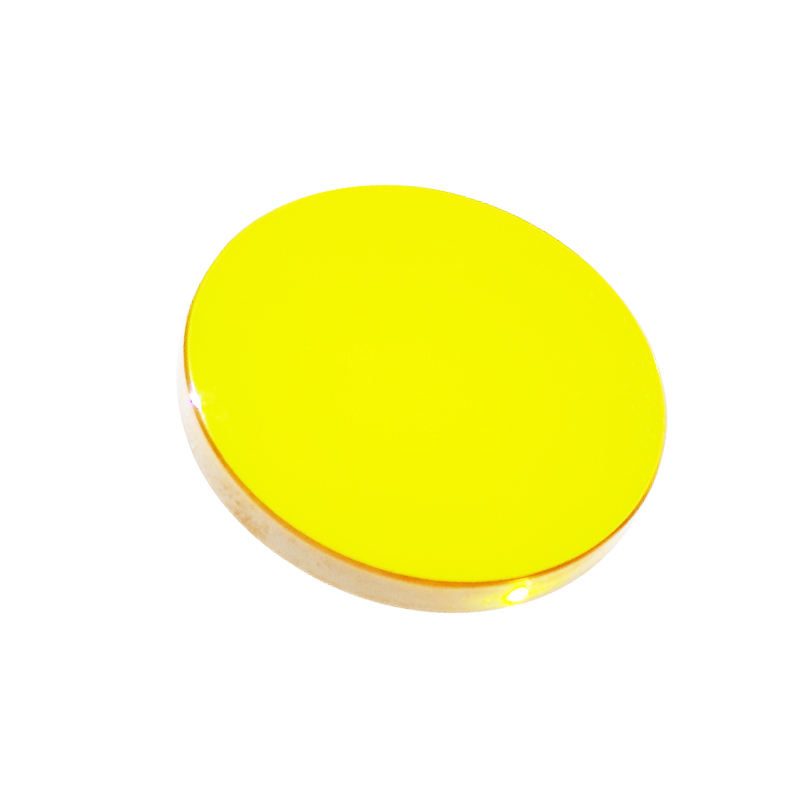

5x1 mm ZnS Step Optical Window, AR Coated
High-precision ZnS windows with customizable sizes, anti-reflective coatings, and durable material for IR and LIDAR applications.
Core attributes
- Material
- ZnS
- Shape
- step
- Diameter range
- 5–500 mm
- Thickness
- 1–50 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnS
- Shape
- step
- Diameter range
- 5–500 mm
- Thickness
- 1–50 mm
- Coating
- ar
Product description
The ZnS window is designed for high-precision applications, particularly in IR imaging and LIDAR systems. With a diameter range of 5.0 mm to 500.0 mm and thickness options from 1.0 mm to 50.0 mm, it accommodates various optical requirements. The anti-reflective coating enhances performance by reducing glare, making it suitable for demanding environments. This window is customizable, ensuring it meets specific application needs while maintaining high quality and durability.
Key Features
- Diameter range: 5.0 mm to 500.0 mm for versatile applications.
- Thickness options: 1.0 mm to 50.0 mm for tailored solutions.
- High clear aperture (>90%) ensures optimal light transmission.
- Parallelism tolerance of < 3 arcmin or < 10 arcsec for precision alignment.
- Custom sizes available through OEM, ODM, and OBM support.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 252.5 x 25.5 |
Specification Summary
| Item | Value |
|---|---|
| Material | ZnS |
| Shape | Step |
| Diameter | 5 mm |
| Thickness | 1 mm |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | ZnS window |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 0.1-2 kg(0.22-4.41lb) |
| Diameter Tolerance | ±0.1mm |
| Parallelism | < 3 arcmin or < 10 arcsec |
| Clear Aperture | >90% |
| Chamfer | protective chamfer |
FAQ
What are the available custom sizes?
Custom sizes include a variant of 252.5 mm diameter and 25.5 mm thickness.
What is the diameter tolerance?
The diameter tolerance is ±0.1 mm, ensuring precise fit.
