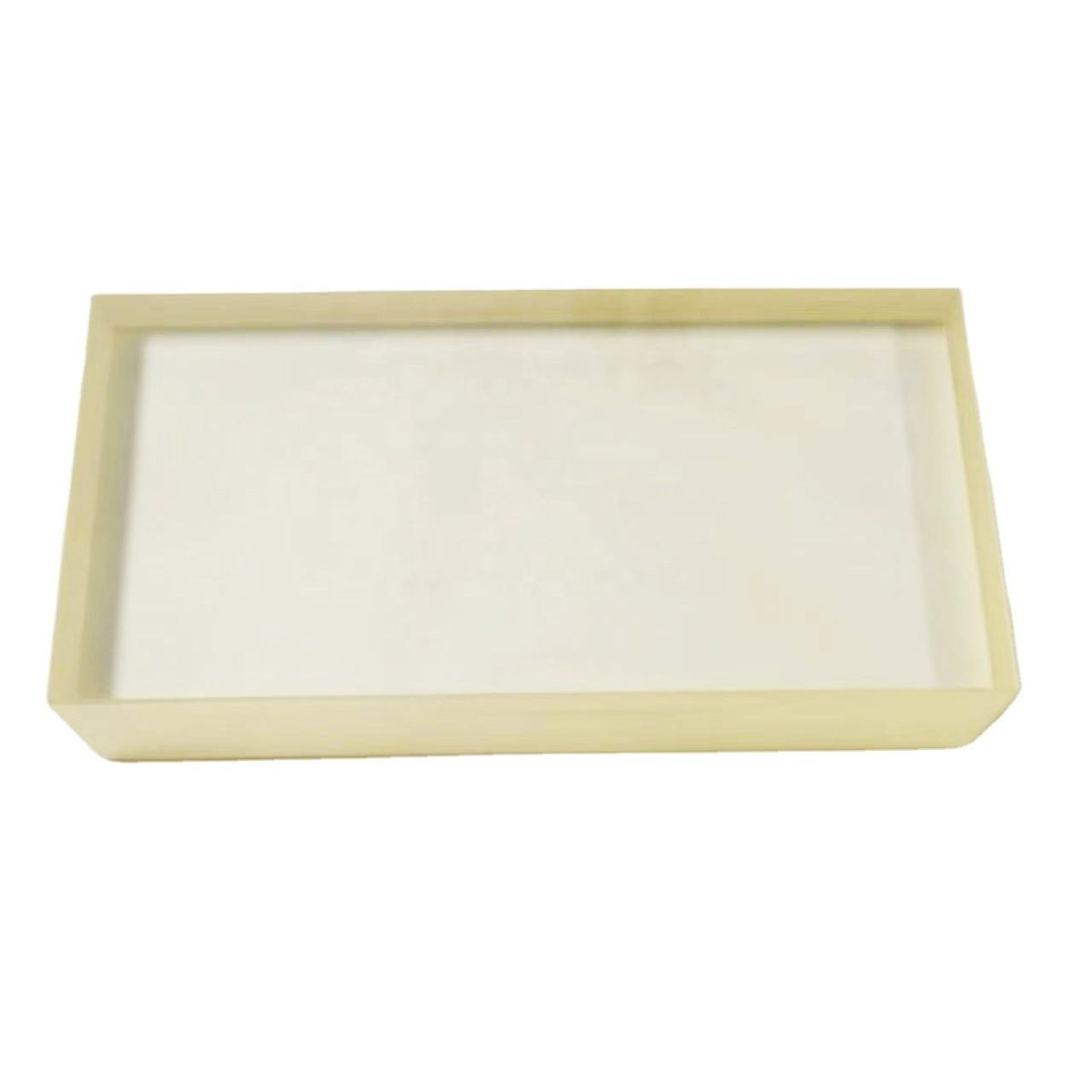

5x1 mm ZnS Step Optical Window, AR Coated

Product description

The ZnS step window is ideal for thermal imaging applications, particularly in the 8 to 12 microns range. With exceptional fracture strength and hardness, this window is designed to withstand harsh environments while providing reliable IR transmission. Sourced from Hubei, these windows can be customized in size and specifications to meet specific project requirements, ensuring optimal performance in demanding applications.

Key Features

Diameter range: 5.0 mm to 500.0 mm for versatile application fit.
Thickness options: 1.0 mm to 50.0 mm to accommodate various designs.
Surface quality: 80/50 ensures minimal distortion for accurate imaging.
Dimension tolerance: +/-0.1 mm for precise fitting in assemblies.
Clear aperture: > 90% for maximum light transmission.

Available Sizes

Diameter x Thickness (mm)
252.5 x 25.5

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	ZnS
Shape	Step
Diameter	5 mm
Thickness	1 mm
Surface Quality	80/50
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Plano
Customized Support	OEM, ODM, OBM
Warranty	1 month
Weight	custom-made
Dimension Tolerance	+/-0.1 mm
Parallelism	< 3 arcmin
Clear Aperture	> 90%
Chamfer	protective chamfer

FAQ

Can I get custom sizes for the ZnS windows?

Yes, custom sizes are available, including a variant size of 252.5 mm diameter and 25.5 mm thickness.

What are the tolerances for the ZnS windows?

The dimension tolerance is +/-0.1 mm, and parallelism is < 3 arcmin.
