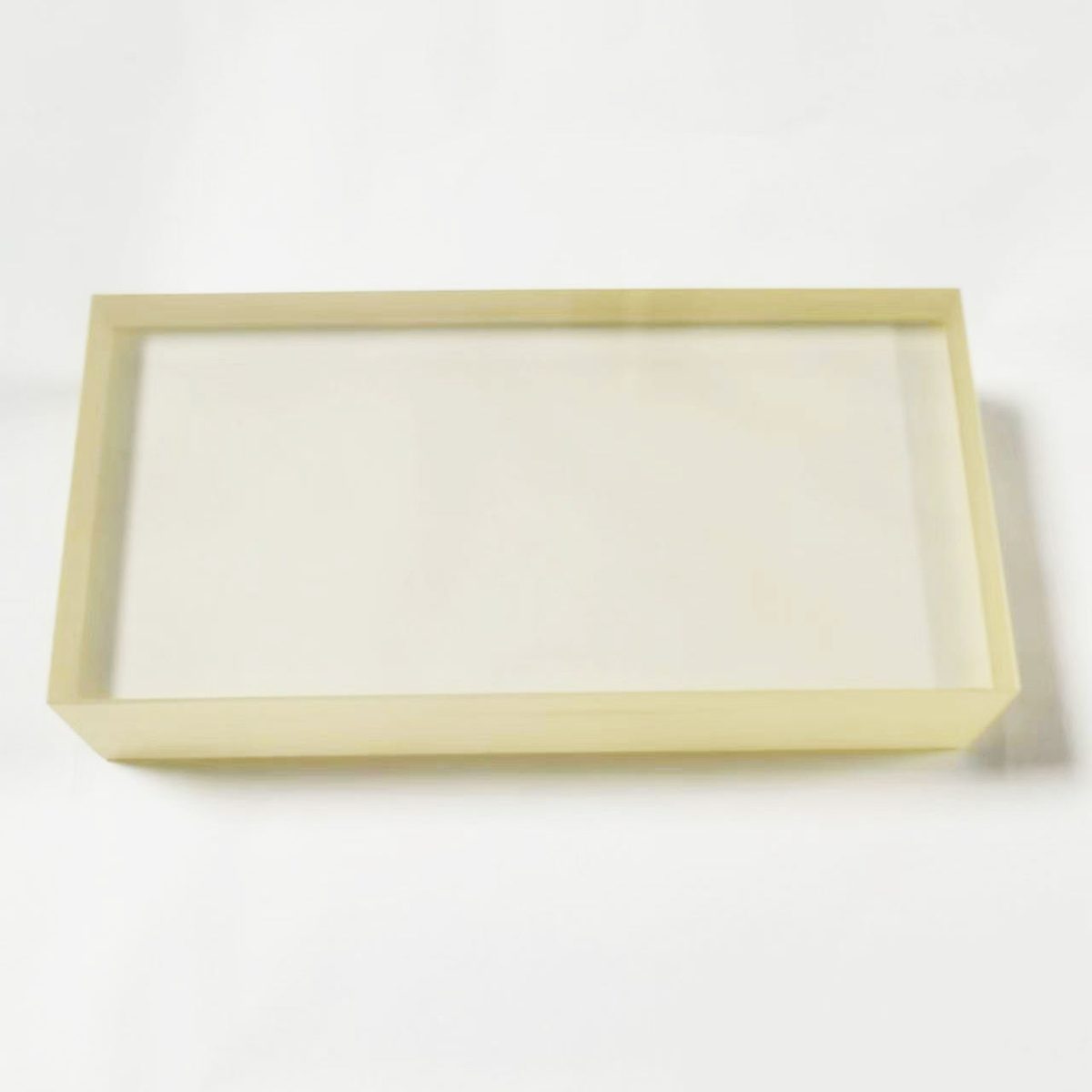

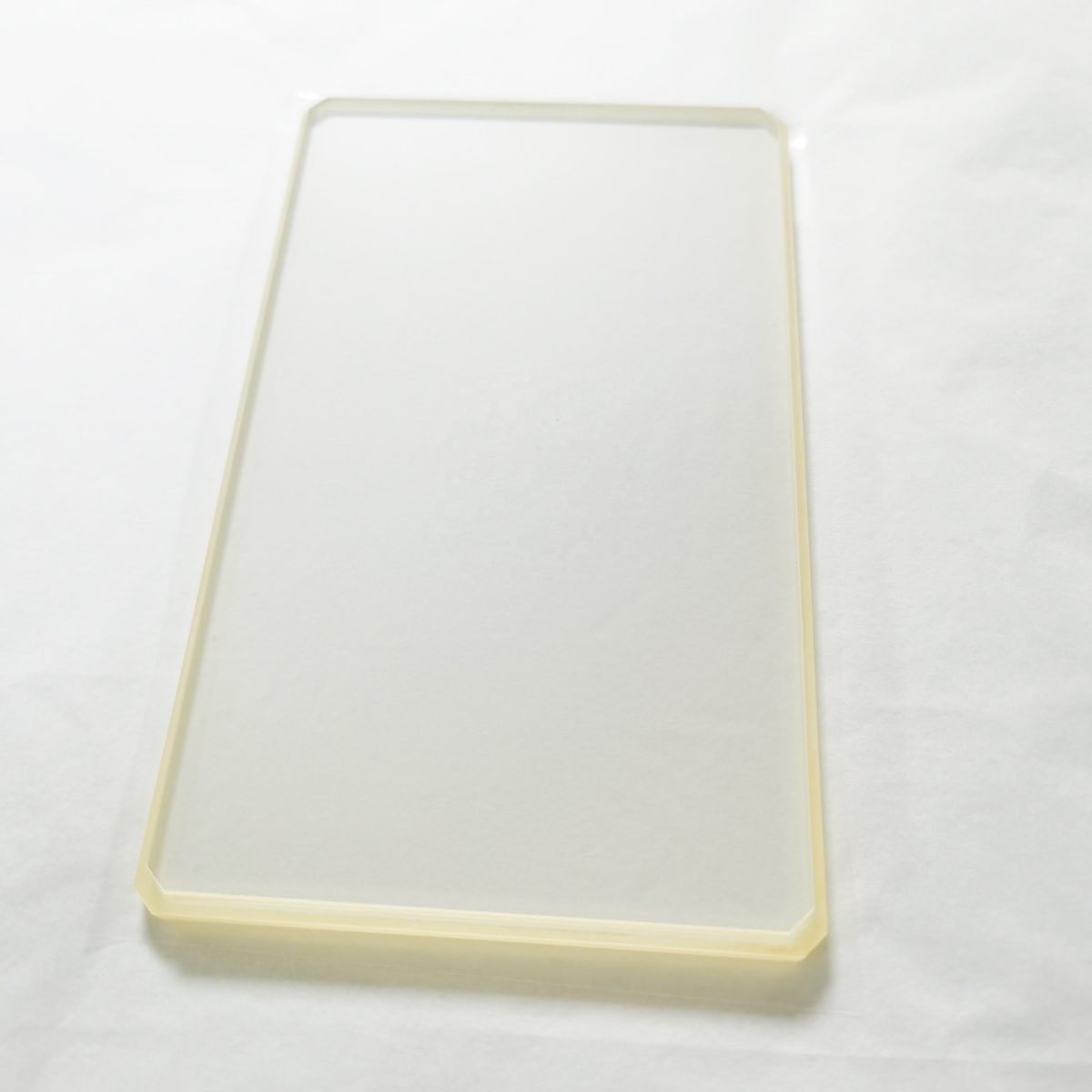

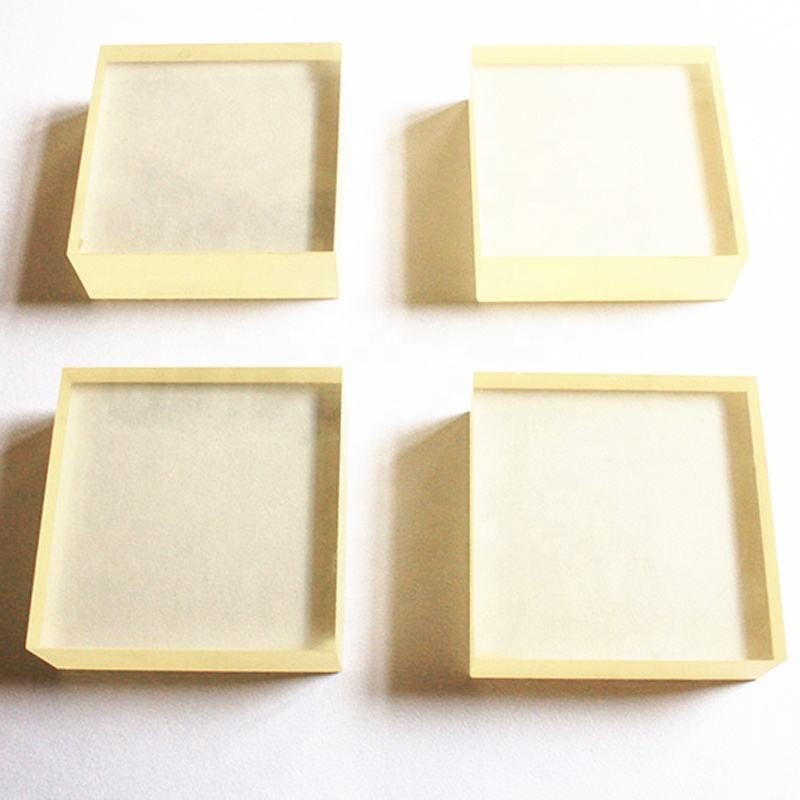

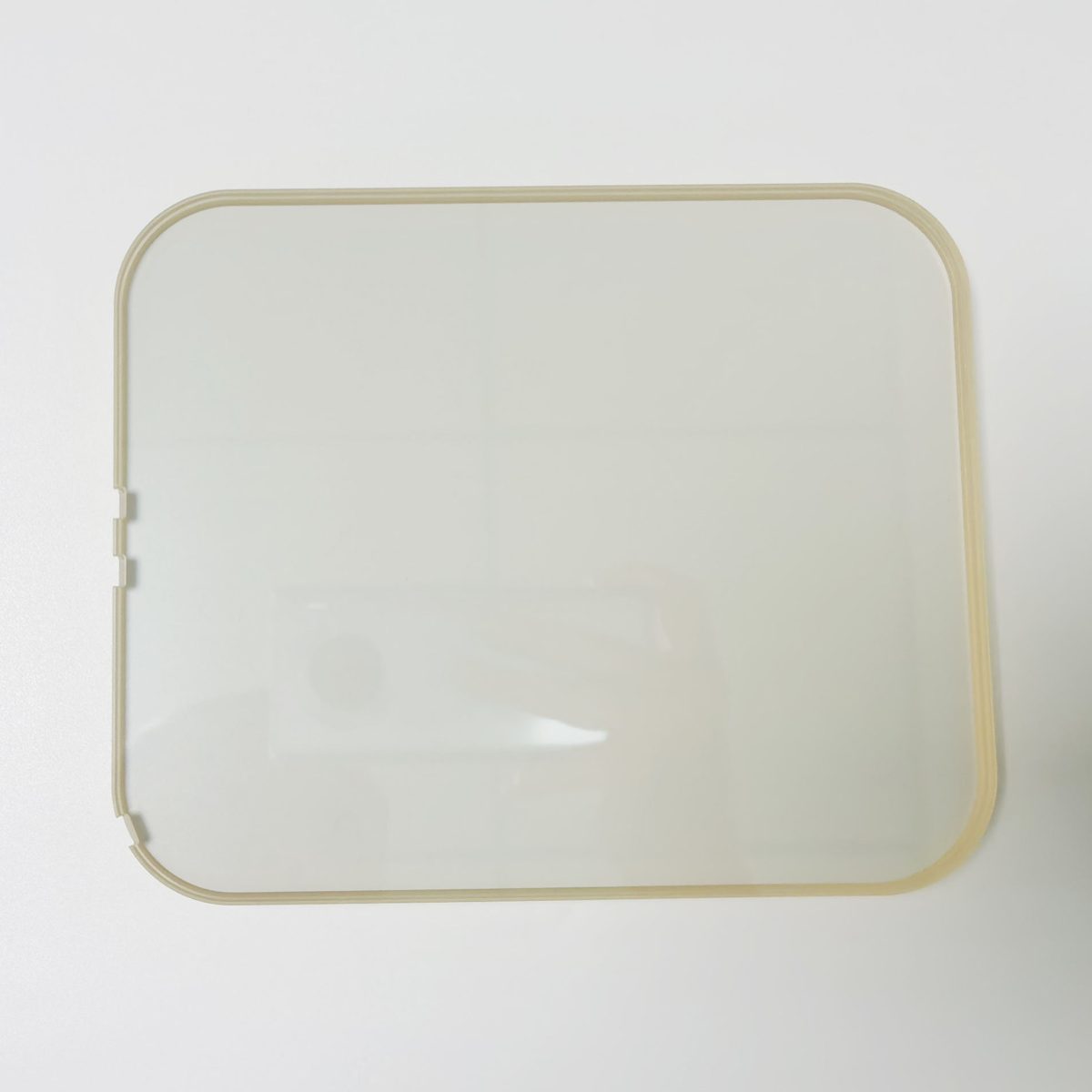

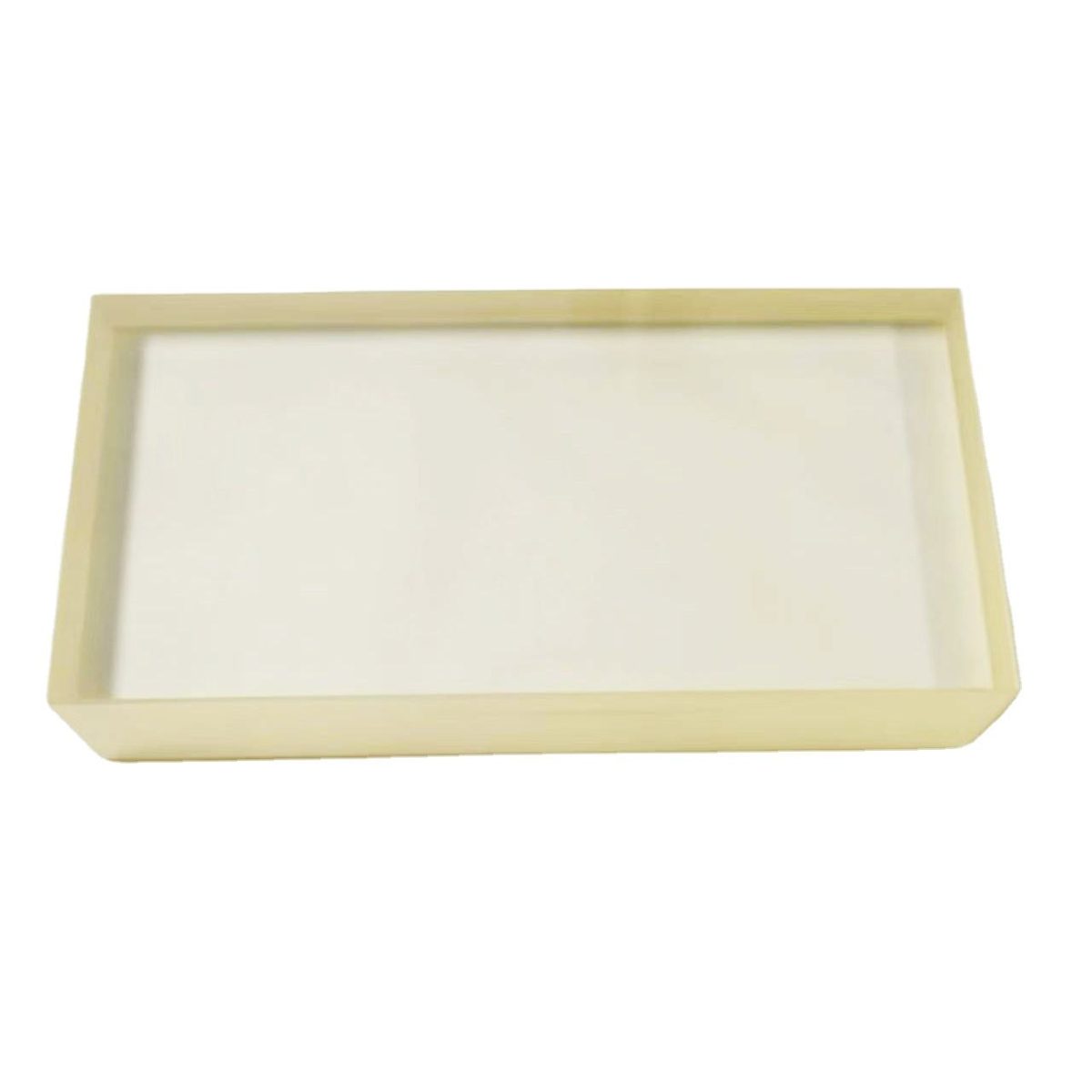

5x1 mm ZnS Step Optical Window, AR Coated

Product description

The ZnS window offers a versatile solution for applications in the 400-700 nm wavelength range, making it ideal for IR imaging, LIDAR, and medical devices. With a broad diameter range from 5 mm to 500 mm and thickness options from 1 mm to 50 mm, this window can be tailored to fit specific project requirements. Enhanced by anti-reflective coatings, it ensures optimal transmittance and performance in demanding environments.

Key Features

Diameter range: 5 mm to 500 mm for diverse application needs.
Thickness options: 1 mm to 50 mm for customizable fit.
Diameter tolerance: ±0.1 mm ensures precision in manufacturing.
Parallelism: < 3 arcmin or < 10 arcsec for high accuracy.
Clear aperture: >90% for maximum light transmission.

Available Sizes

Diameter x Thickness (mm)
252.5 x 25.5

Specification Summary

Item	Value
Material	ZnS
Shape	Step
Diameter	5 mm
Thickness	1 mm
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	ZnS window
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.1-2 kg(0.22-4.41lb)
Diameter Tolerance	±0.1mm
Parallelism	< 3 arcmin or < 10 arcsec
Clear Aperture	>90%
Chamfer	protective chamfer

FAQ

Is custom sizing available?

Yes, the ZnS window can be customized in size to meet specific requirements.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing flexibility in ordering.
