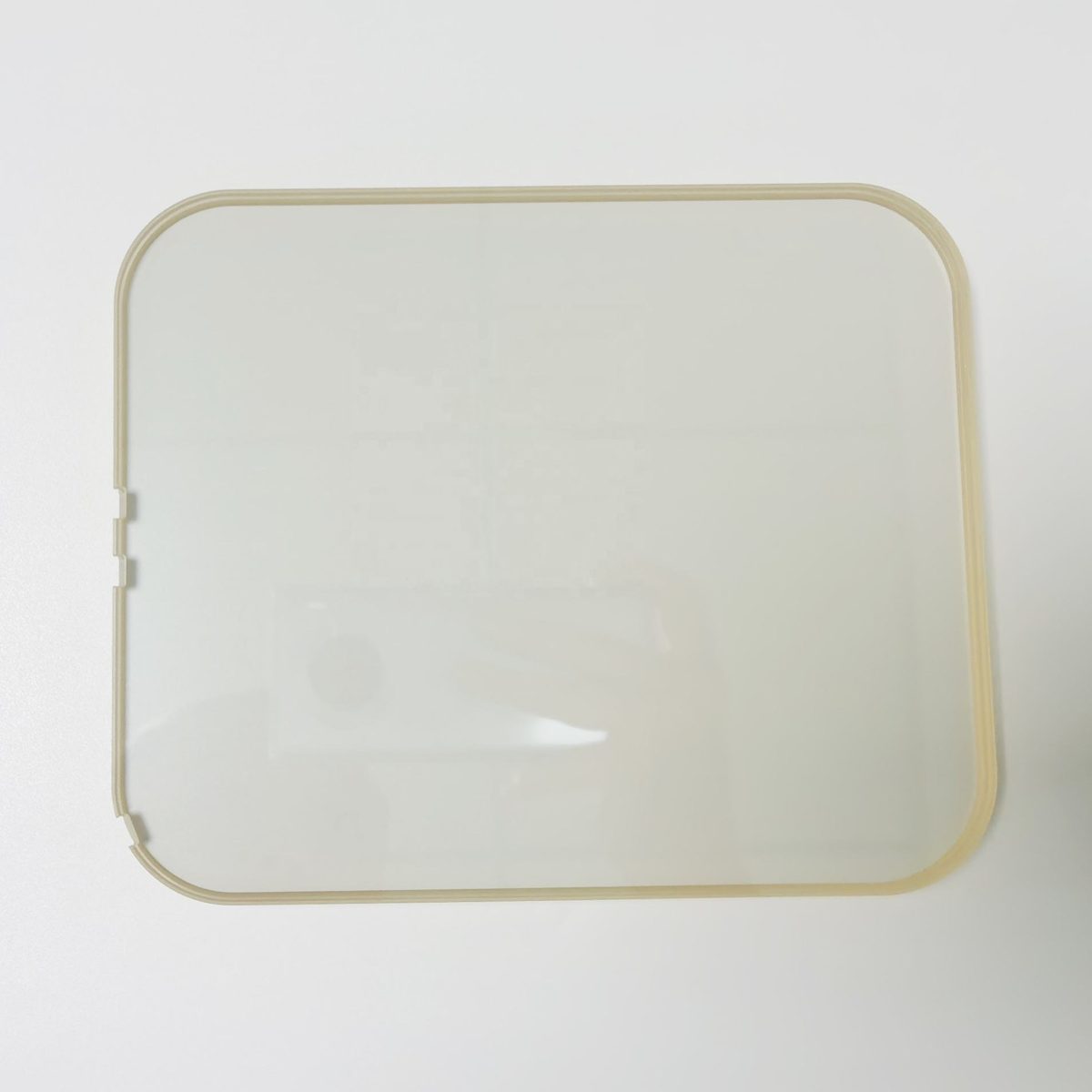

5x1 mm ZnS Step Optical Window, AR Coated

Product description

Zinc Sulfide (ZnS) optical windows are ideal for thermal imaging applications, particularly in the 8 to 12 micron wavelength range. These durable components, available in diameters from 5mm to 500mm and thicknesses from 1mm to 50mm, are designed to withstand harsh environments while maintaining high performance. With a surface quality of 60/40 and a clear aperture greater than 90%, these windows provide reliable optical transmission and robustness for demanding applications.

Key Features

Diameter range: 5mm to 500mm for versatile application fit.
Thickness options: 1mm to 50mm to meet specific design requirements.
Surface quality: 60/40 ensures reliable optical performance.
High clear aperture (>90%) for optimal light transmission.
Custom sizes and OEM/ODM support available for tailored solutions.

Available Sizes

Diameter x Thickness (mm)
252.5 x 25.5

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	ZnS
Shape	Step
Diameter	5 mm
Thickness	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Plates
Customized Support	OEM, ODM, OBM
Warranty	1 month
Weight	0.1-2 kg(0.22-4.41lb)
Dimension Tolerance	+0/-0.1mm
Parallelism	< 3 arcmin or < 10 arcsec
Clear Aperture	>90%
Chamfer	protective chamfer

FAQ

What custom sizes are available?

Standard sizes range from 5mm to 500mm in diameter, with thicknesses from 1mm to 50mm. Custom sizes can be accommodated.

What is the dimension tolerance?

The dimension tolerance is +0/-0.1mm, ensuring precision in manufacturing.
