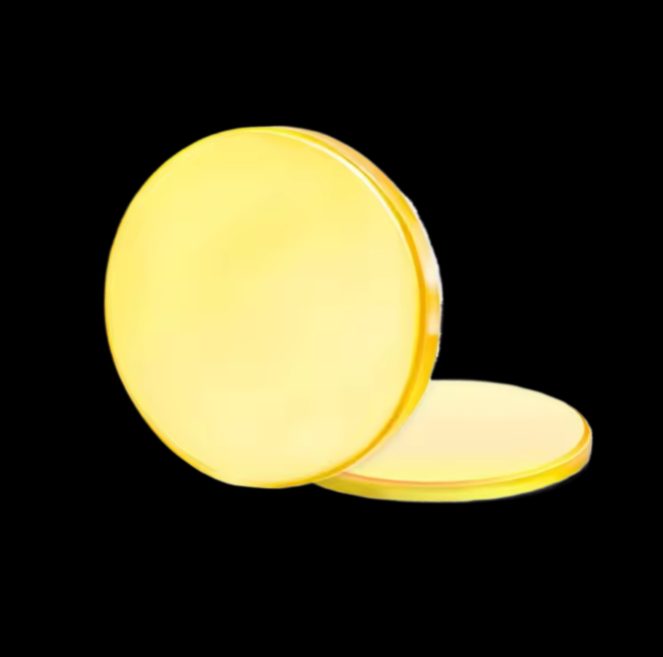

20x101.6 mm ZnSe Convex Lens, AR Coated

Product description

This convex lens made from high-quality ZnSe material is designed for precision applications in the 8-14 μm and 0.7-1.7 μm bands. Ideal for use in CO2 laser focusing, it offers excellent durability and performance for R&D and manufacturing processes. With a diameter of 20.0 mm and a focal length of 101.6 mm, this lens is suitable for various applications requiring high transmittance and surface quality. Custom sizes are available to fit specific project needs.

Key Features

Diameter of 20.0 mm for compatibility with standard optical setups.
Focal length of 101.6 mm, optimizing focus for CO2 laser applications.
AR coatings enhance transmittance across specified wavelengths.
Customizable dimensions available for tailored solutions.
Lightweight design at 0.05 kg for easy integration into systems.

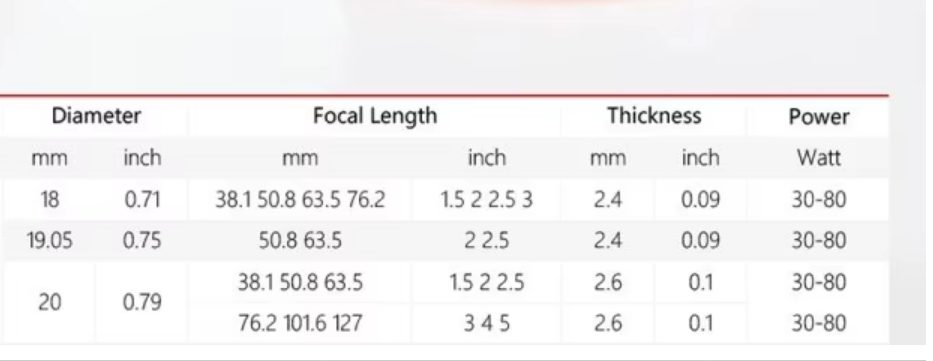

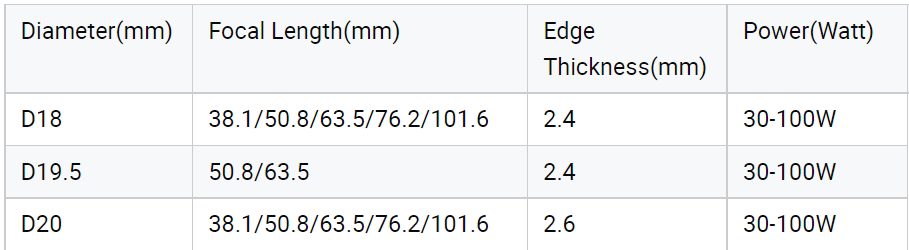

Available Sizes

Diameter x Focal Length (mm)
20 x 101.6

Specification Summary

Item	Value
Material	ZnSe
Shape	Convex
Diameter	20 mm
Focal Length	101.6 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM, ODM; OEM
Warranty	1 Year
Weight	0.05
Wavelength	1064 nm, 10600 nm
Keywords	Co2 Laser Focusing Lense

FAQ

What custom sizes are available?

Custom sizes can be tailored to meet specific project requirements.

What is the minimum order quantity?

Minimum order quantity details are not specified; please inquire for specifics.
