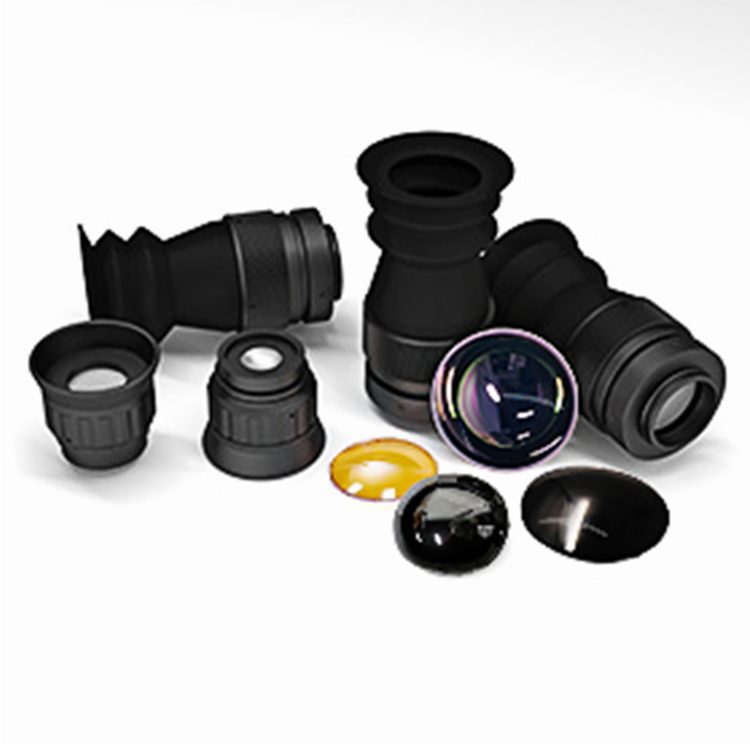

Custom Size ZnSe Convex Lens, AR Coated
Athermal Infrared Lens for 8-14 μm applications with 100 mm focal length, high transmission, and customizable options.
Core attributes
- Material
- ZnSe
- Shape
- Convex
- Focal Length
- 100 mm
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm)
Product facts
Key attributes
- Material
- ZnSe
- Shape
- Convex
- Focal Length
- 100 mm
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
- Transmission bands
- LWIR (8-14 μm)
Product description
The Athermal Infrared Lens is designed for applications in the 8-14 μm wavelength range, making it ideal for IR imaging, LIDAR, and medical devices. With a fixed focal length of 100 mm and an F# of 1.2, this lens provides high-quality imaging for detectors such as the 640x512-17um. The lens features AR and DLC coatings, ensuring over 90% average transmission for optimal performance in demanding environments.
Key Features
- Wavelength range: 8-14 μm - suitable for IR imaging and LIDAR applications.
- Fixed focal length of 100 mm - delivers consistent imaging performance.
- High average transmission of >90% - enhances image clarity and detail.
- Robust design with operating temperature from -20℃ to +60℃ - reliable in various conditions.
- Customizable options available - supports OEM, ODM, and OBM for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Shape | Convex |
| Focal Length | 100 mm |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | /; 623g |
| Name | Infrared lens, Athermal lens |
| Focus Length | 100mm |
| Wavelength | 8um-12um |
| External Coating | AR/DLC coating available |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
Can I get custom sizes?
Yes, customizable options are available, including OEM and ODM support.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
