1 / 6Lenses

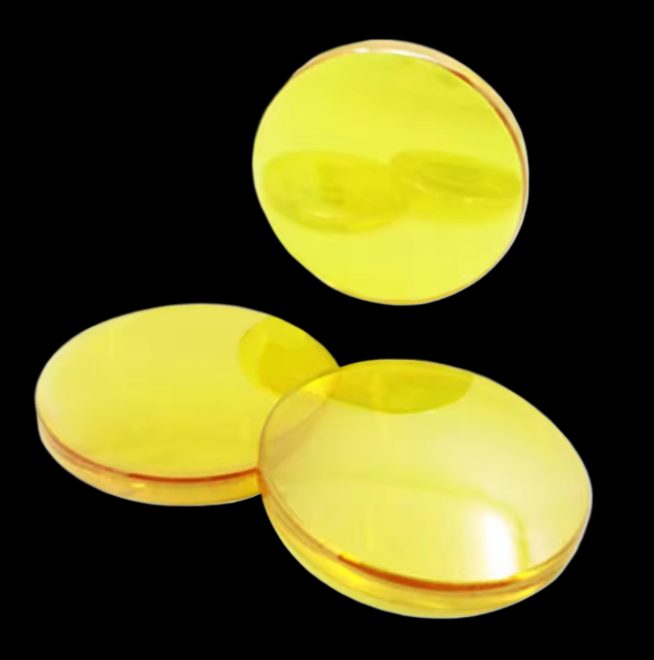

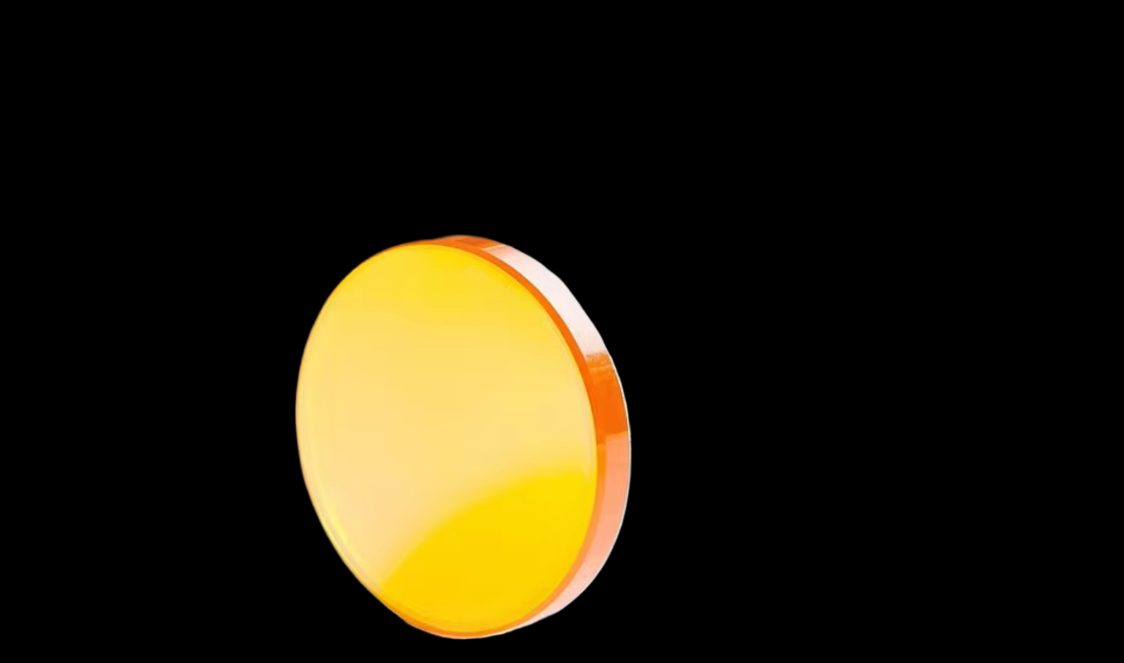

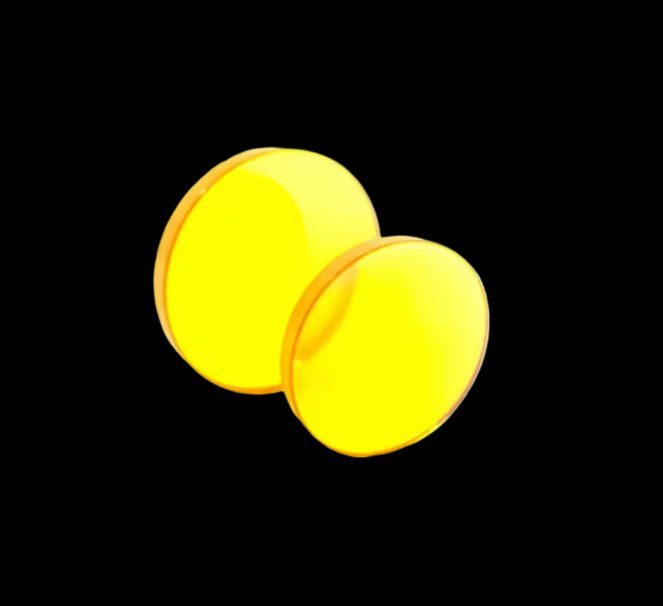

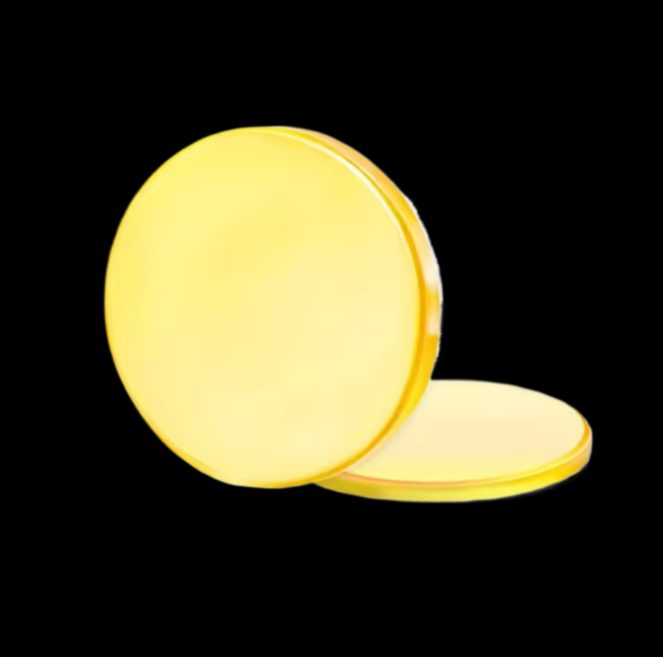

Custom Size ZnSe Convex Lens, AR Coated
Convex ZnSe lens with customizable dimensions for CO2 laser applications, featuring a focal length of 101.6 mm.
Core attributes
- Material
- ZnSe
- Shape
- Convex
- Focal Length
- 101.6 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm), NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- ZnSe
- Shape
- Convex
- Focal Length
- 101.6 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm), NIR (0.7-1.7 μm)
Product description
This convex ZnSe lens is designed for high-performance applications in the 8-14 μm and 0.7-1.7 μm bands, making it ideal for CO2 laser focusing. With a focal length of 101.6 mm, it provides precision for cutting and engraving tasks. Its durable construction ensures reliability in demanding environments, while customizable dimensions allow for tailored solutions to meet specific project requirements.
Key Features
- Material: ZnSe for high durability and precision.
- Focal length of 101.6 mm for versatile applications.
- Coating: Anti-reflective (AR) for enhanced transmittance.
- Customizable dimensions available to fit specific needs.
- Lightweight at 0.05 kg for easy integration.
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Shape | Convex |
| Focal Length | 101.6 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM; OEM |
| Warranty | 1 Year |
| Weight | 0.05 |
| Wavelength | 1064 nm, 10600 nm |
| Keywords | Co2 Laser Focusing Lense |
FAQ
Can I get custom sizes?
Yes, the lens is customizable to meet specific dimensional requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
