1 / 6Optical Mirrors

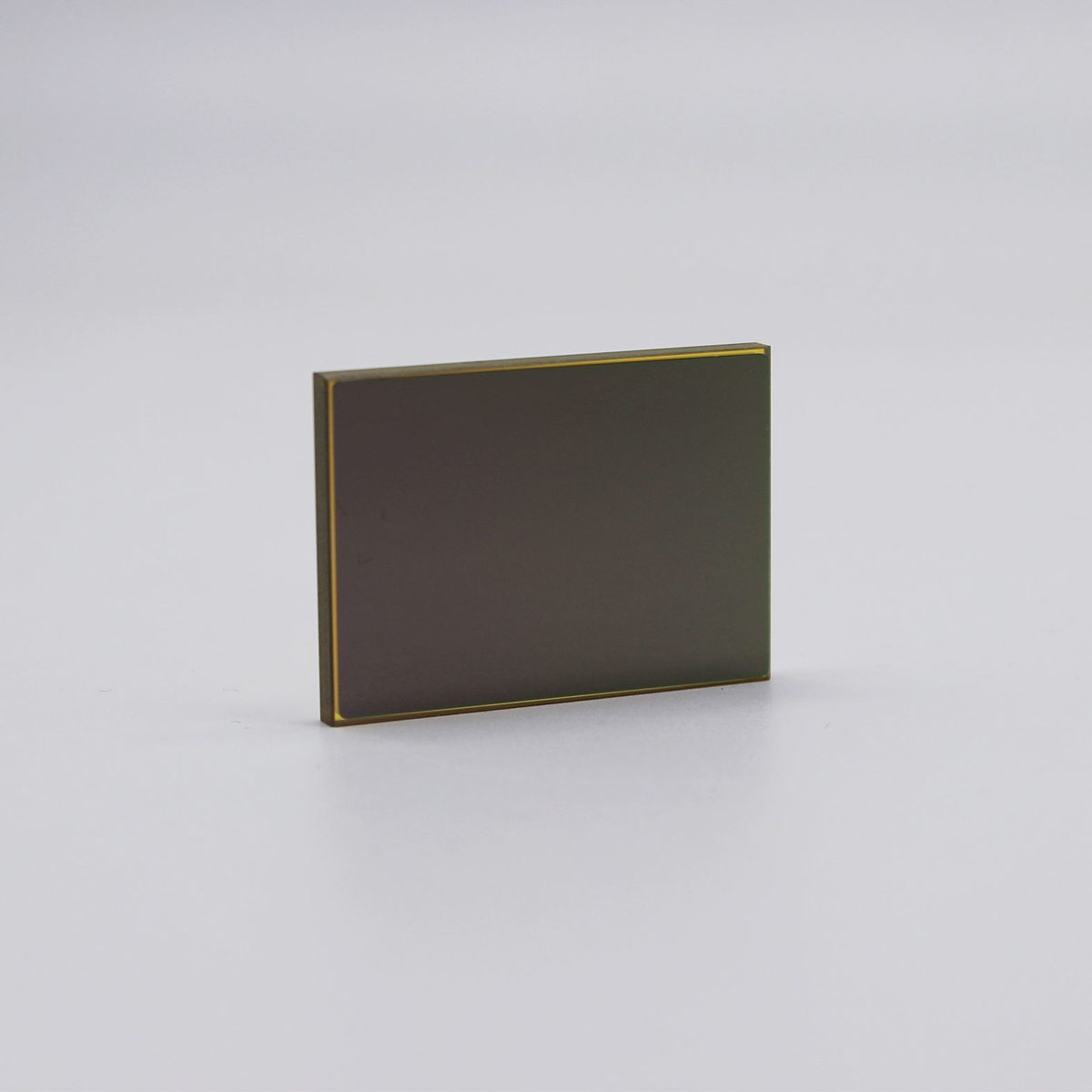

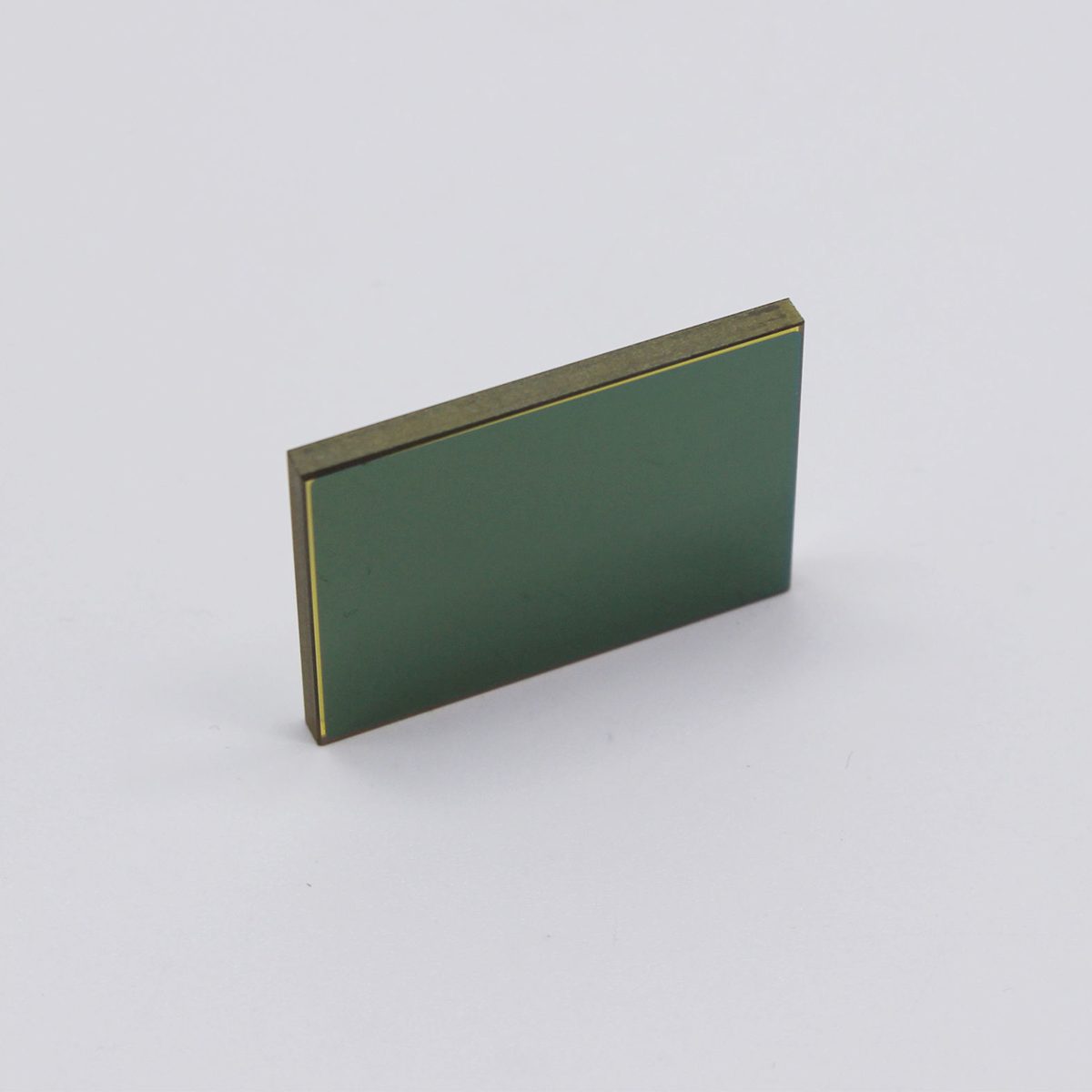

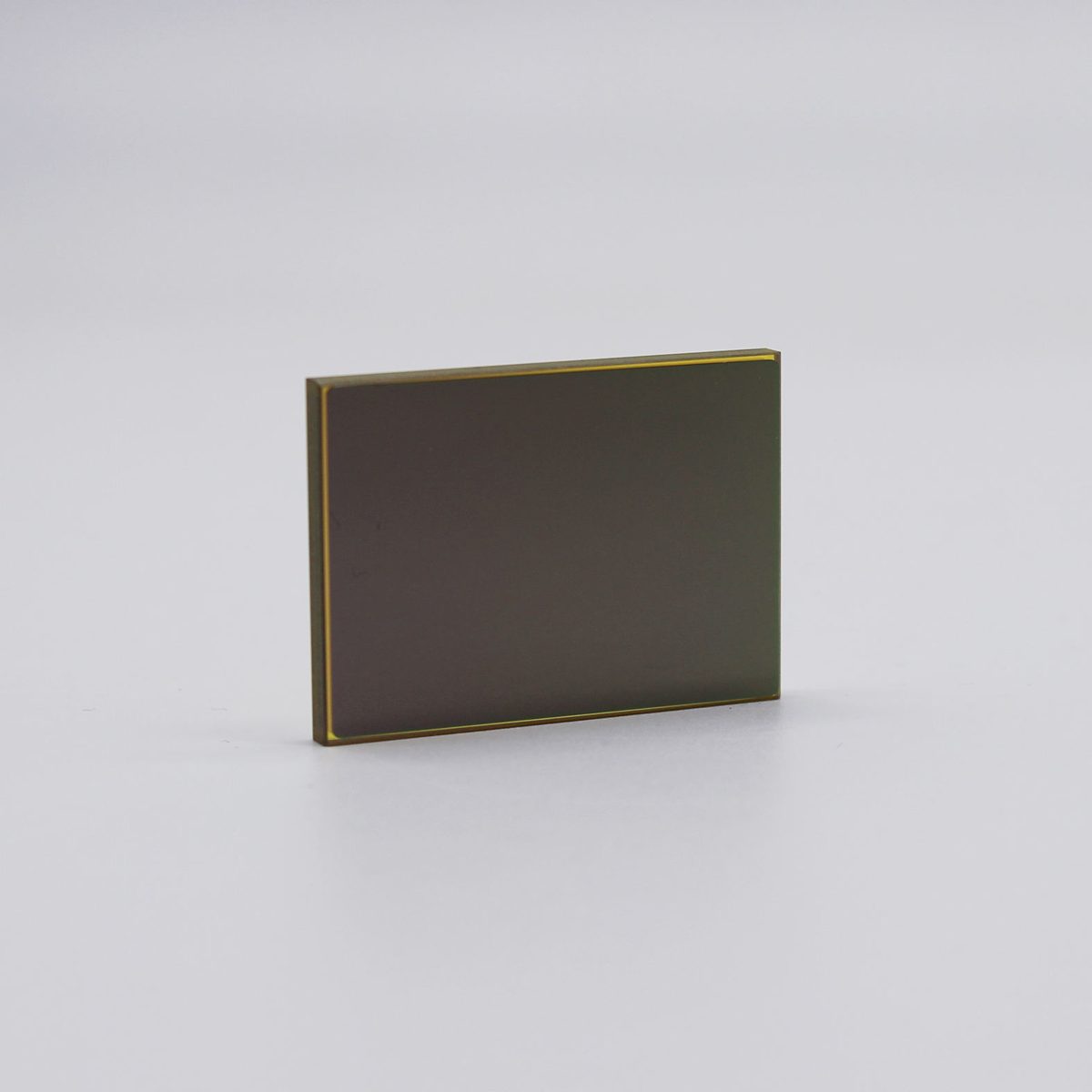

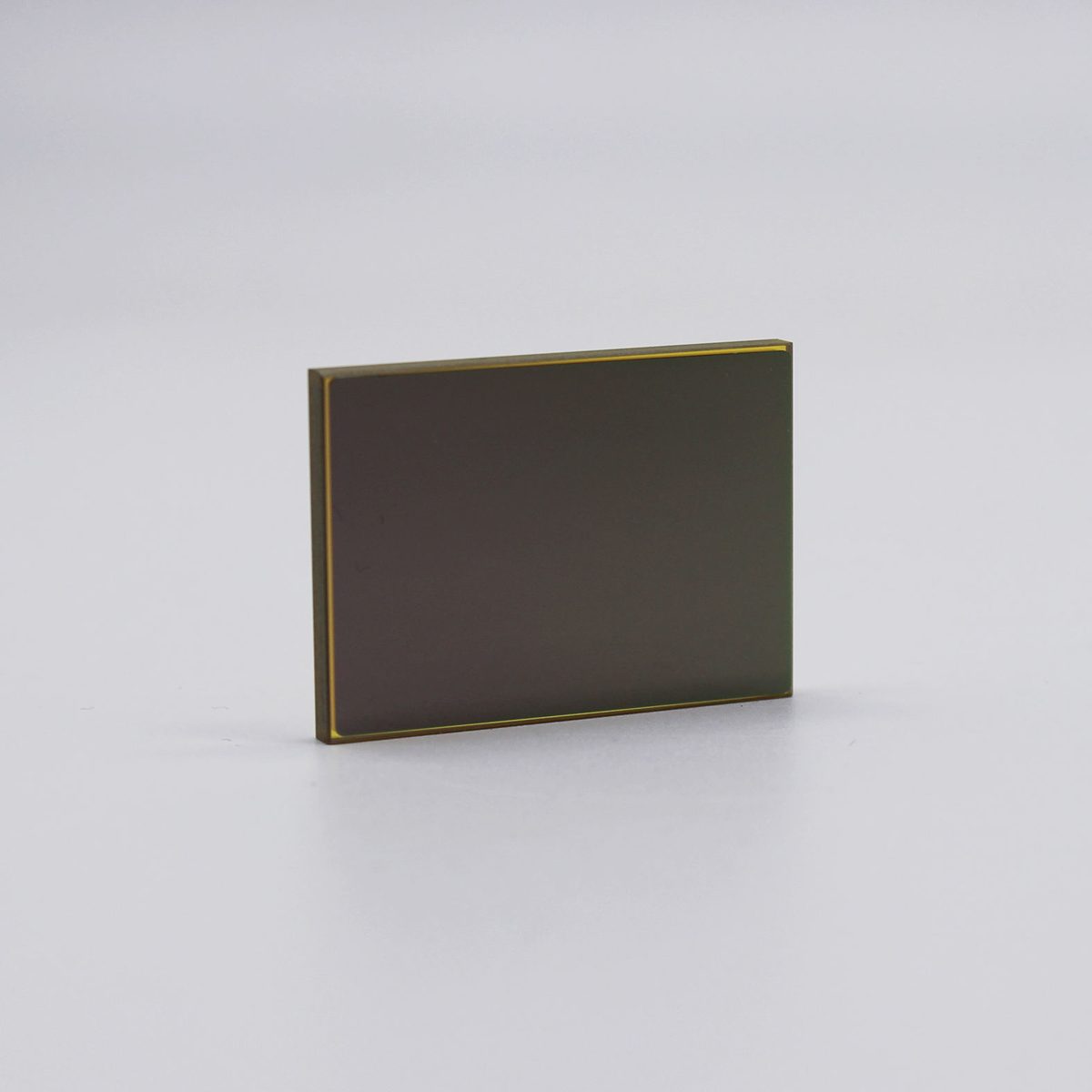

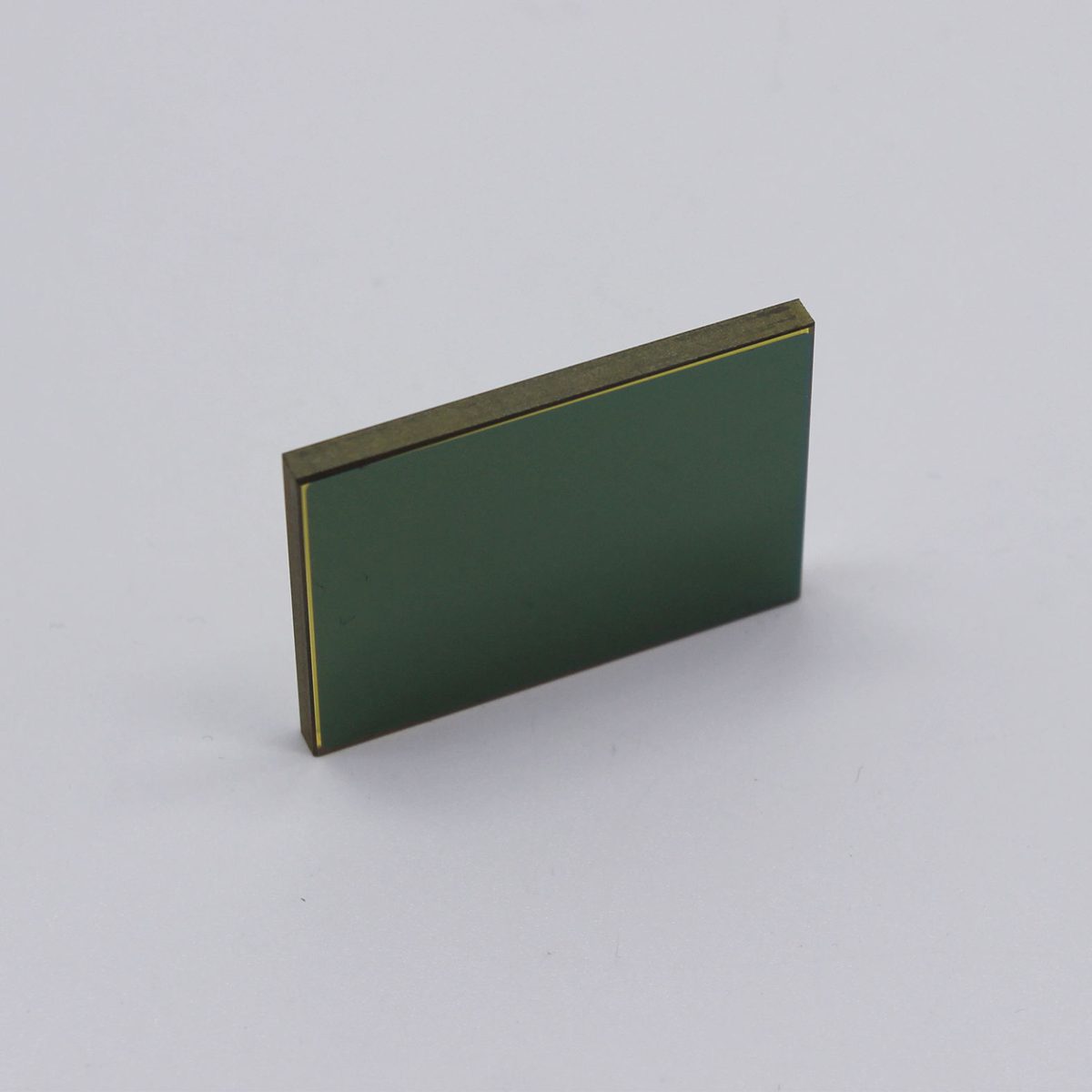

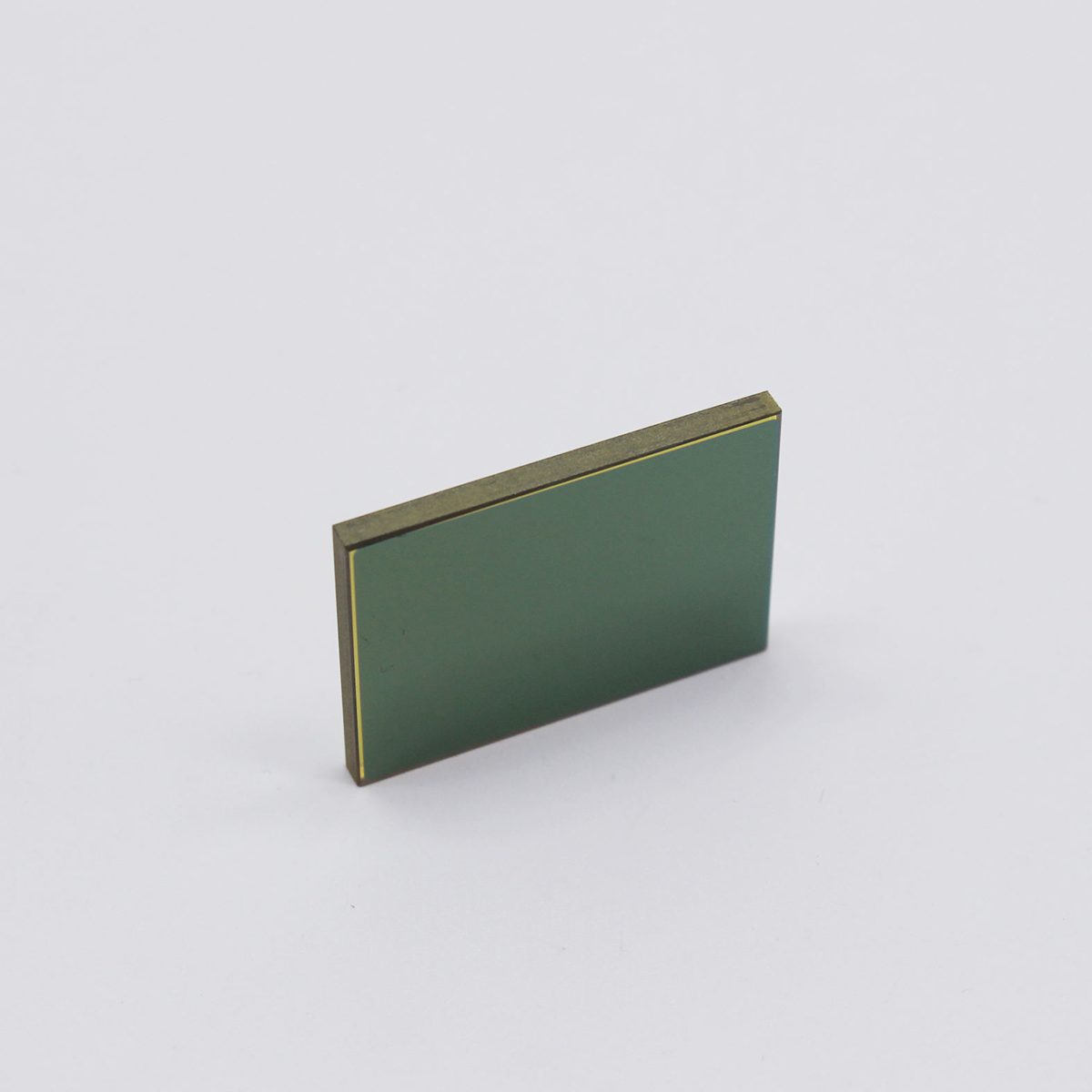

3 mm ZnSe Optical Mirror, AR Coated
Flat ZnSe mirror for laser applications with high surface quality and customizable sizes from 3 mm to 400 mm.
Core attributes
- Material
- ZnSe
- Size
- 3 mm
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- ZnSe
- Size
- 3 mm
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product description
This flat ZnSe mirror is designed for laser applications, providing high transmittance and minimal distortion. With a surface quality of 20/10, it ensures excellent performance in precision optical systems. The mirror is available in sizes ranging from 3 mm to 400 mm, making it suitable for various configurations. Its anti-reflective coating enhances performance, ensuring optimal light transmission.
Key Features
- Surface quality of 20/10 for minimal distortion and high precision.
- Available in sizes from 3 mm to 400 mm for versatile applications.
- Anti-reflective coating to enhance light transmission.
- Clear aperture greater than 90% for effective light utilization.
- Customization options available for OEM and ODM projects.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Size | 3 mm |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | flat; ZnSe mirror |
| Customized Support | OEM, ODM |
| Warranty | None |
| Weight | 0.2 |
| Diameter Tolerance | +/-0.01mm |
| Clear Aperture | >90% |
FAQ
What are the available sizes for this mirror?
The mirror is available in sizes ranging from 3 mm to 400 mm.
What is the diameter tolerance for this mirror?
The diameter tolerance is +/-0.01 mm.
