1 / 6Optical Windows

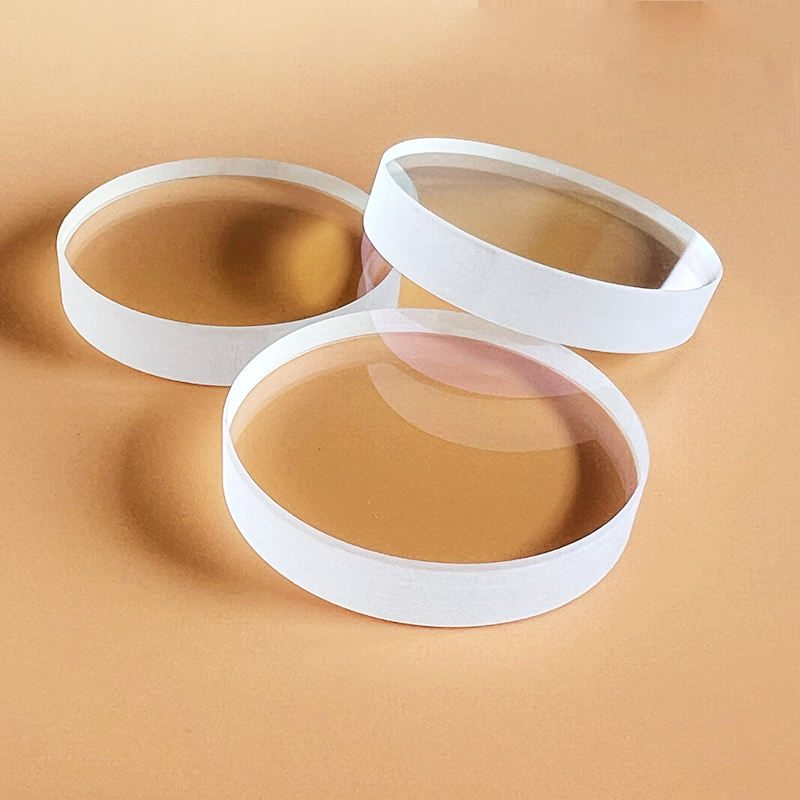

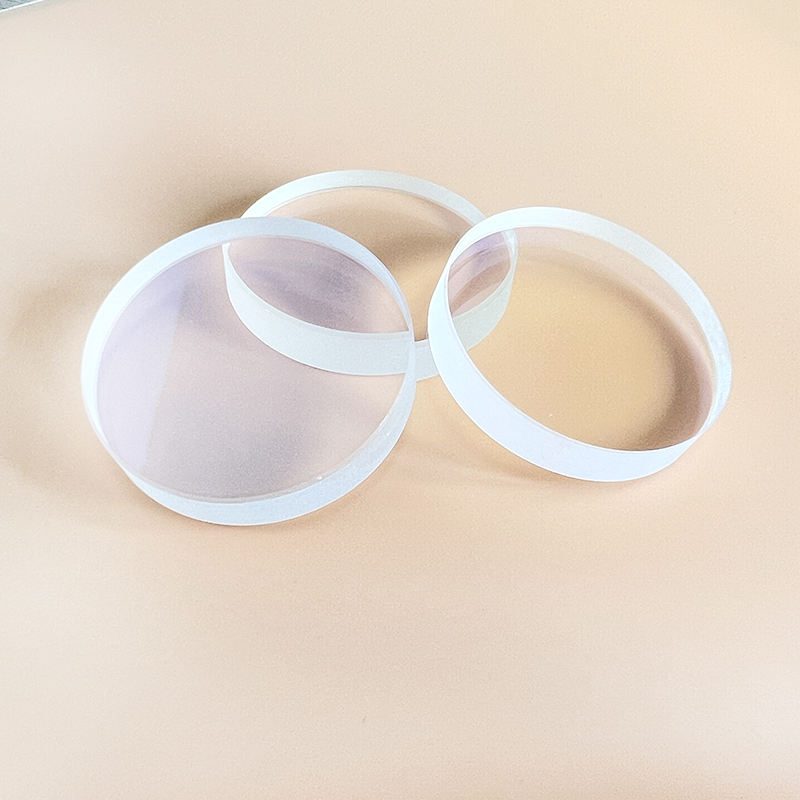

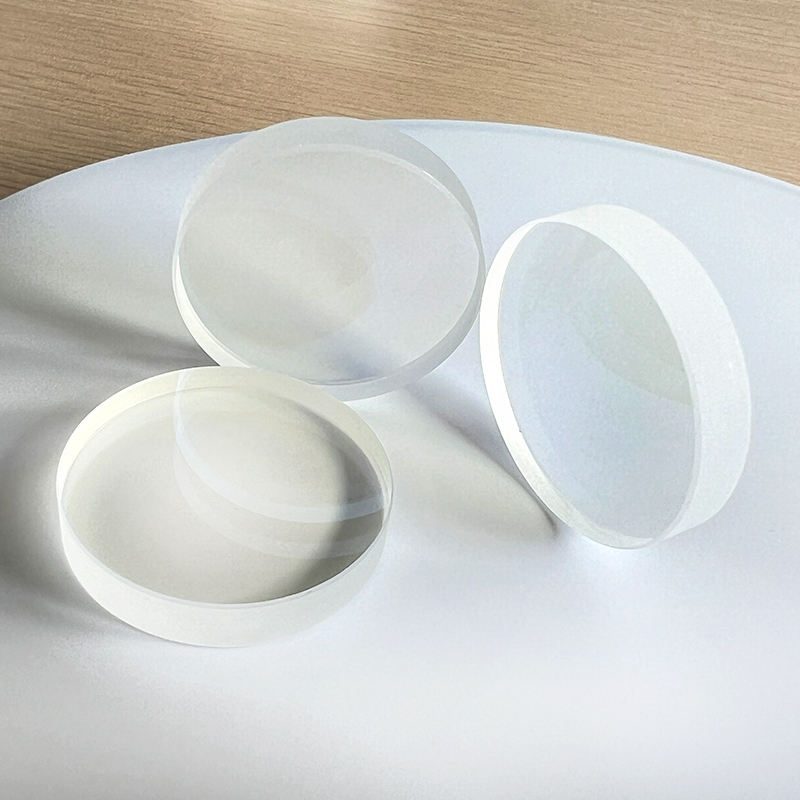

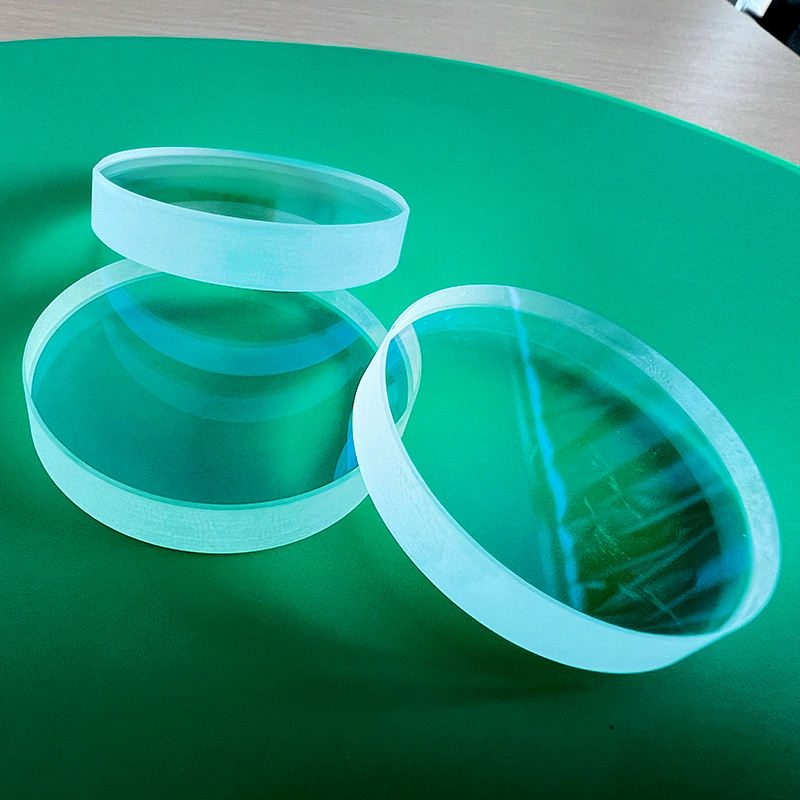

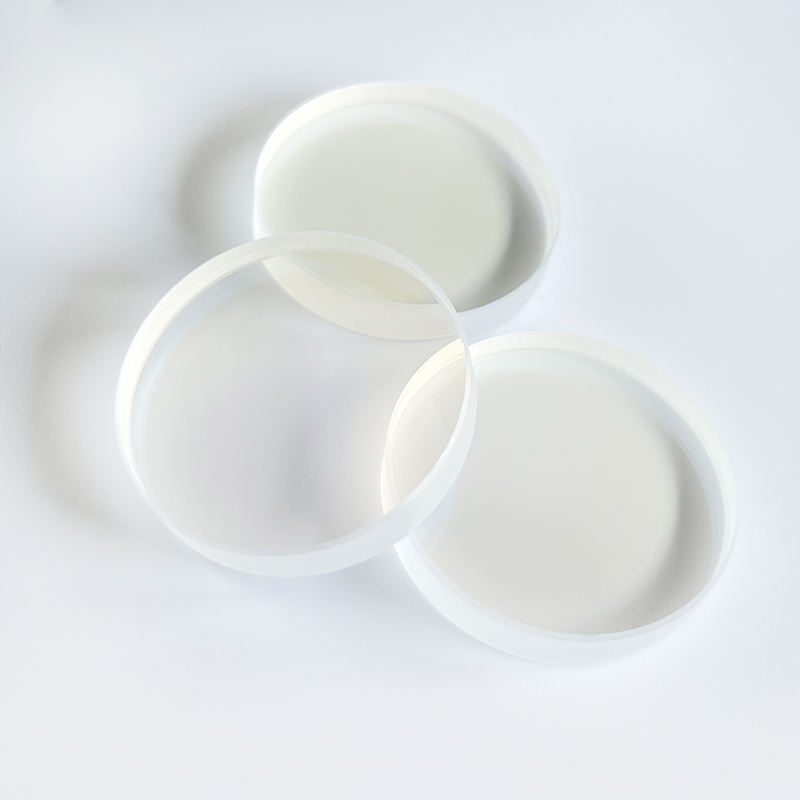

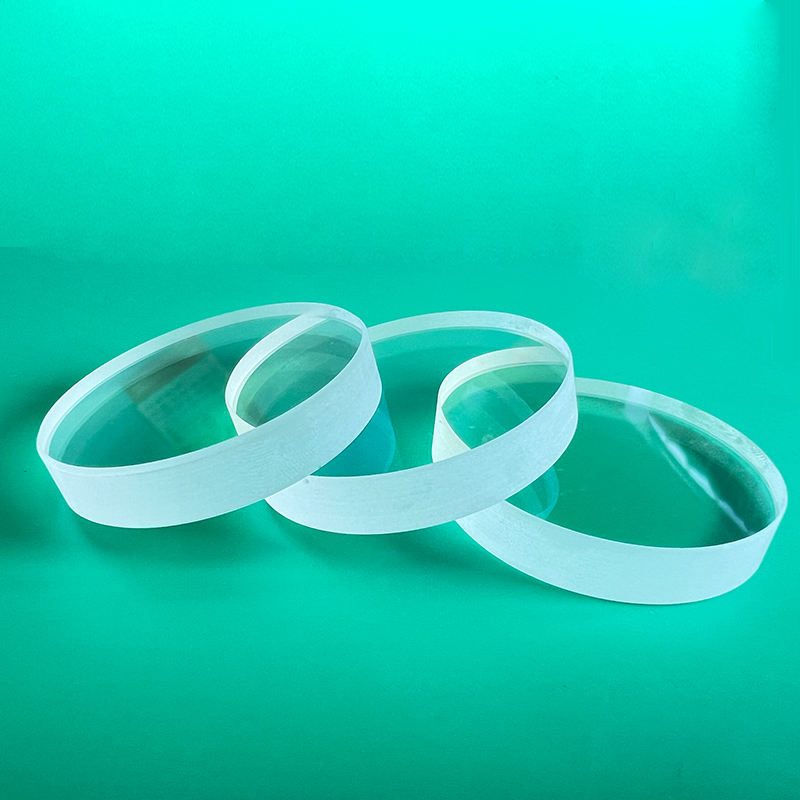

1.5 mm ZnSe Optical Window, AR Coated
ZnSe plano lens for medical applications, 1.5-300 mm diameter, 200-2500 nm wavelength, custom sizes available.
Core attributes
- Material
- ZnSe
- Diameter range
- 1.5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 1.5–300 mm
- Coating
- ar
Product description
This ZnSe plano lens is designed for a wide range of applications, particularly in the medical field, operating effectively across multiple spectral bands from 0.4 to 3 μm. With a diameter range of 1.5 to 300 mm and a surface quality rating of 10/5, it ensures high performance and reliability. The lens features anti-reflective coatings for enhanced light transmission, making it suitable for critical imaging and laser applications.
Key Features
- Wavelength range: 200-2500 nm for versatile application in imaging and laser systems.
- Diameter options from 1.5 mm to 300 mm to fit various device requirements.
- Surface quality of 10/5 ensures minimal distortion for high-precision applications.
- 99.8% light transmittance enhances efficiency in optical systems.
- Custom OEM and ODM support available for tailored solutions.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 1.5 mm |
| Thickness | Custom |
| Surface Quality | 10/5 |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | plano-lens |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.1kg |
| Materials | BK7, Quartz, Infrared, Sapphire, Ge, Si, ZnSe, CaF2, etc |
| Wavelength | 200-2500nm |
FAQ
What are the available custom sizes for this lens?
The lens is available in diameters ranging from 1.5 mm to 300 mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing flexibility in procurement.
