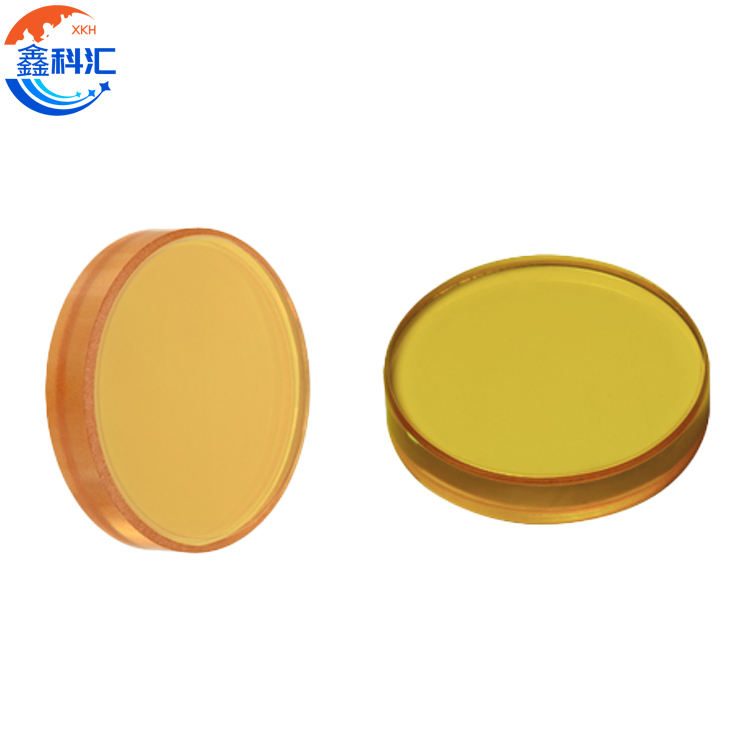

100x3 mm ZnSe Optical Window

Product description

ZnSe optical windows are essential for applications in thermal imaging and medical devices, particularly in the 8-14 μm wavelength range. These windows offer low infrared radiation absorption and good thermal shock resistance, making them suitable for high-power CO2 laser systems. With a diameter of 100 mm and a thickness of 3 mm, they can be customized to meet specific application needs, ensuring reliable performance in demanding environments.

Key Features

Wavelength range: 8-14 μm for optimal thermal imaging and medical applications.
Diameter: 100 mm with a thickness of 3 mm, providing a robust solution for various systems.
Customizable sizes available to fit specific application requirements.
AR coating options enhance transmittance for improved optical performance.
Non-hygroscopic material ensures stability in varying environmental conditions.

Available Sizes

Diameter x Thickness (mm)
100 x 3

Applications

Thermal Imaging, Medical

Specification Summary

Item	Value
Material	ZnSe
Diameter	100 mm
Thickness	3 mm
Coating	uncoated, anti-reflective (AR)
Transmission bands	LWIR (8-14 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	flat windows
Diameter Tolerance	+0.0 / -0.2 mm

FAQ

Can I get custom sizes for these windows?

Yes, ZnSe optical windows can be customized to fit specific application requirements.

What is the diameter tolerance for these windows?

The diameter tolerance is +0.0 / -0.2 mm.
