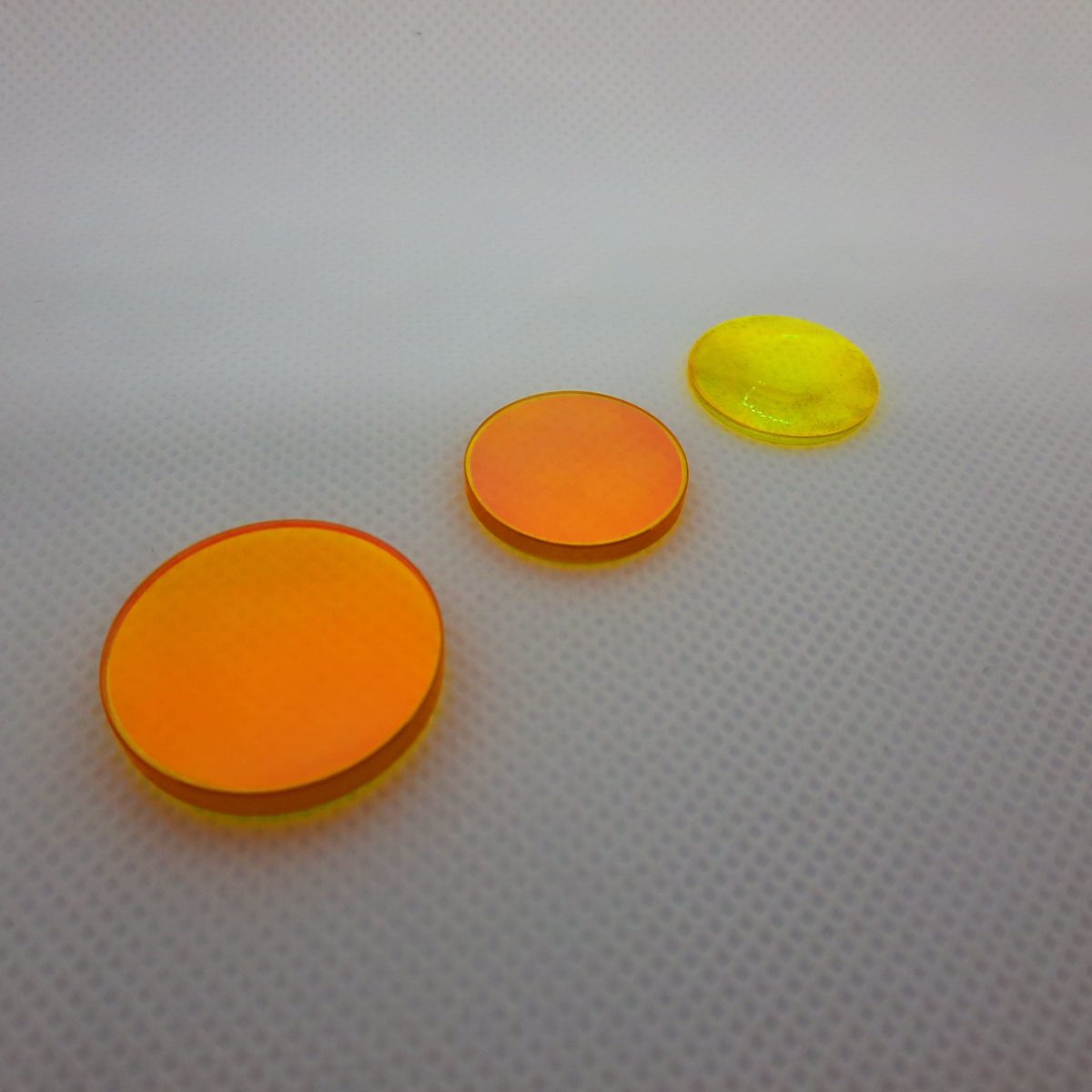

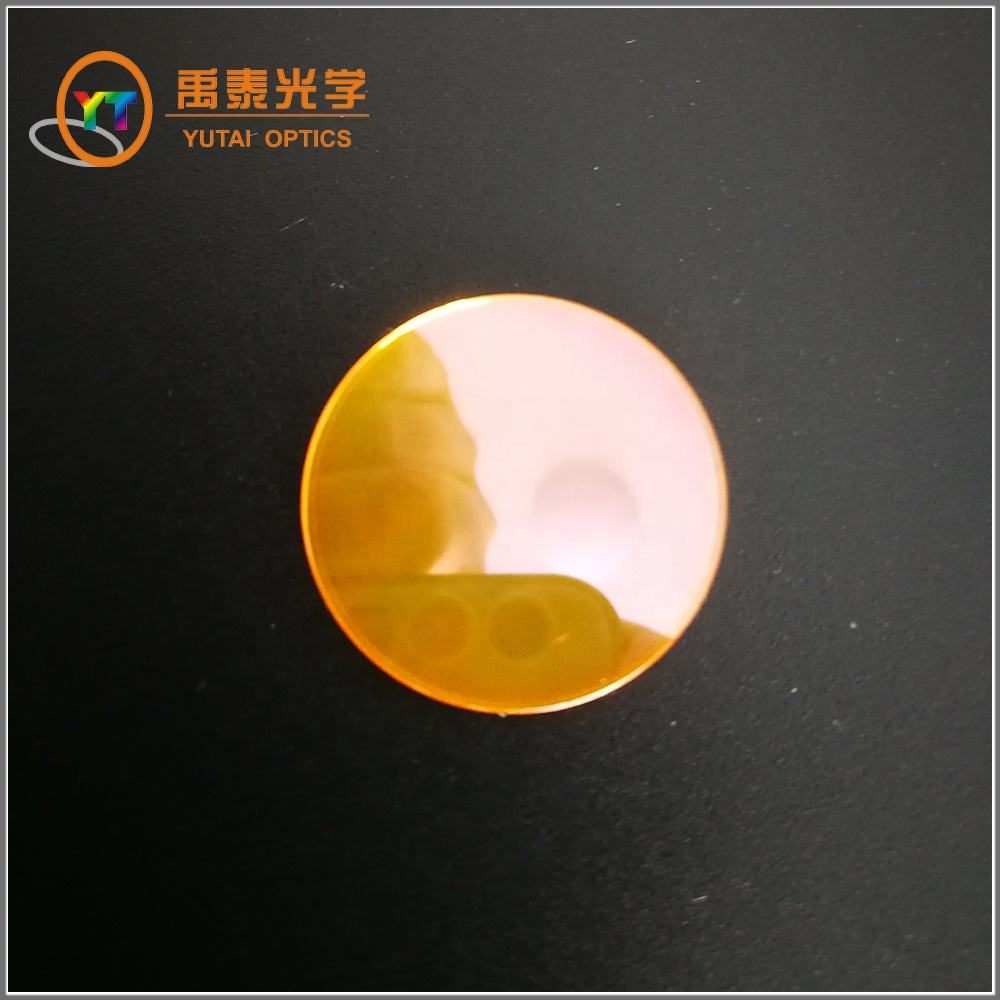

1 mm ZnSe Optical Window

Product description

The ZnSe optical window is designed for applications in the medical field, particularly effective in the 400-700 nm wavelength range. This window serves as a protective barrier for sensitive electronic sensors, ensuring high transmittance and minimal distortion. With a diameter range from 1 mm to 500 mm and a clear aperture greater than 90%, it meets the stringent requirements of various optical systems while maintaining excellent surface quality and flatness.

Key Features

Diameter range from 1 mm to 500 mm for versatile application fit.
Surface quality of 60/40 ensures minimal distortion for high-precision imaging.
Clear aperture greater than 90% maximizes light transmission.
Flatness of λ/4 @ 632.8 nm provides superior optical performance.
Customizable options available to meet specific application needs.

Applications

Medical

Specification Summary

Item	Value
Material	ZnSe
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	3 months
Diameter Tolerance	+/-0.1mm
Clear Aperture	> 90%
Flatness	L/4
Bevel	0.25 mm*45°

FAQ

What is the tolerance for diameter?

The diameter tolerance is +/-0.1 mm.

Is custom sizing available?

Yes, custom sizes can be accommodated.

What is the minimum order quantity (MOQ)?

The MOQ is not specified.
