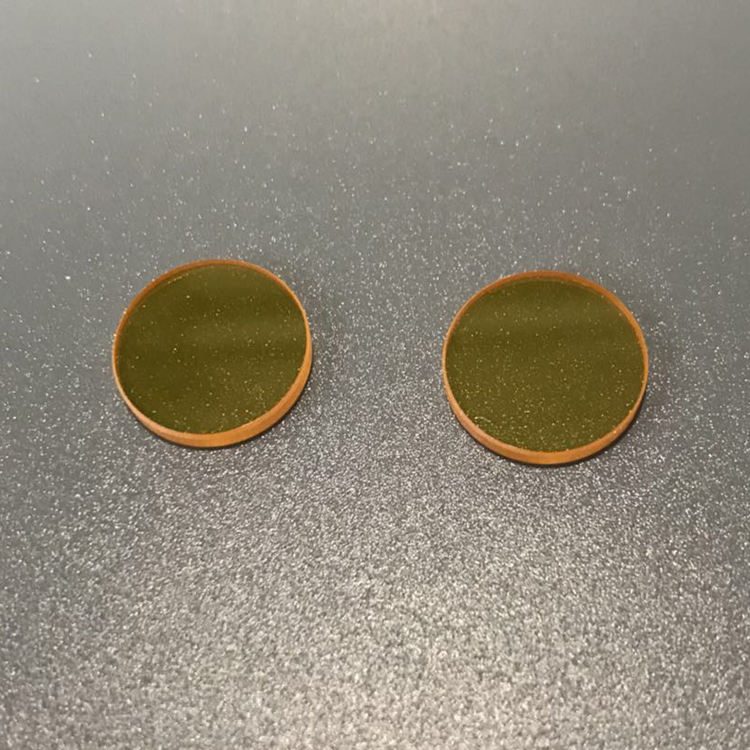

20x2 mm ZnSe Optical Window
ZnSe optical window for thermal imaging, 20mm diameter, 60/40 surface quality, custom sizes available.
Core attributes
- Material
- ZnSe
- Diameter range
- 20 mm
- Thickness
- 2 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 20 mm
- Thickness
- 2 mm
- Coating
- uncoated
Product description
This uncoated ZnSe optical window is designed for thermal imaging applications, effectively transmitting wavelengths from 400 to 700 nm. With a diameter of 20 mm and a thickness of 2 mm, it offers high performance and reliability. The window features a surface quality of 60/40 and a flatness specification of 1/4 at 633 nm, ensuring optimal optical clarity and minimal distortion in imaging systems.
Key Features
- Wavelength range: 400-700 nm for versatile thermal imaging applications.
- Diameter of 20 mm and thickness of 2 mm for compatibility with standard systems.
- Surface quality of 60/40 ensures effective light transmission and clarity.
- Flatness specification of 1/4 at 633 nm minimizes optical distortion.
- Customized support available for OEM and ODM projects.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 20 x 2 |
Applications
Thermal Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 20 mm |
| Thickness | 2 mm |
| Surface Quality | 60/40 |
| Coating | uncoated |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Window |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Parallel | 3' |
| Surface Flatness | 1/4@633nm |
| Diameter Tolerance | 0/-0.1mm |
FAQ
Is custom sizing available?
Yes, customized support for OEM and ODM projects is offered.
What is the diameter tolerance?
The diameter tolerance is ±0.1 mm.
