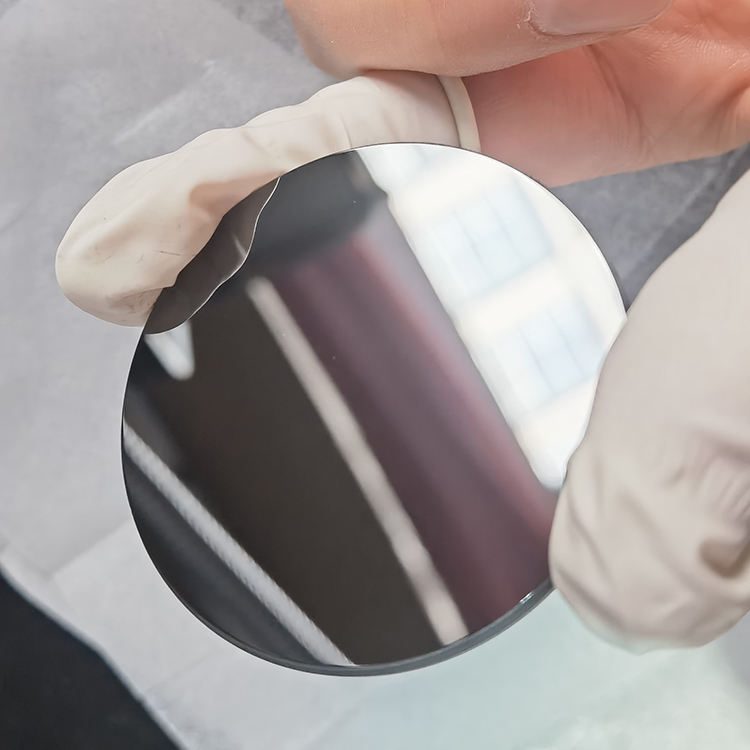

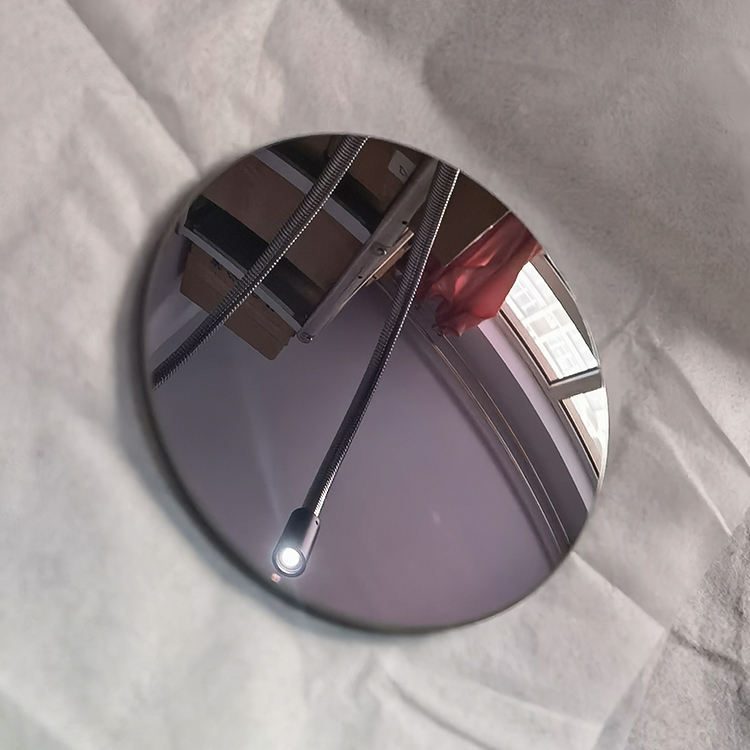

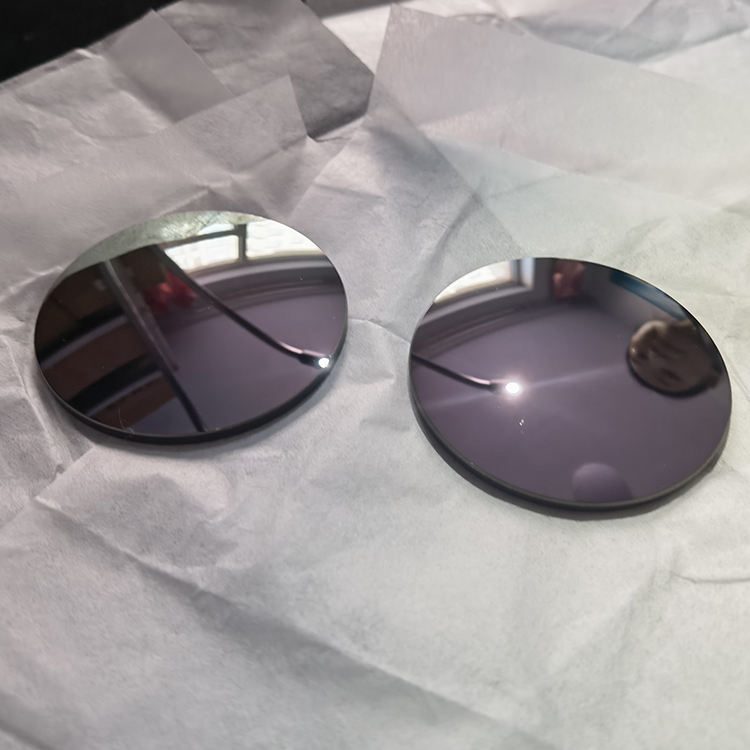

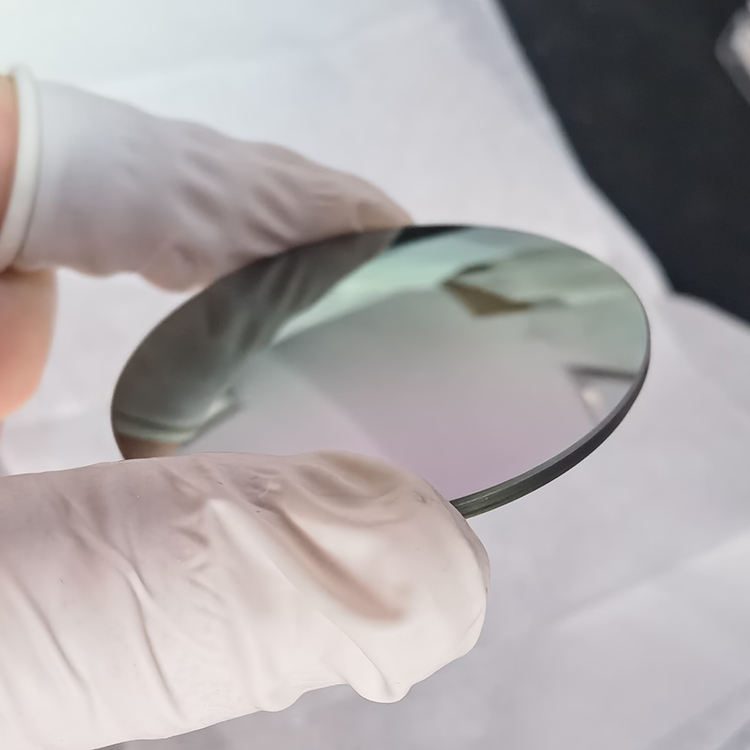

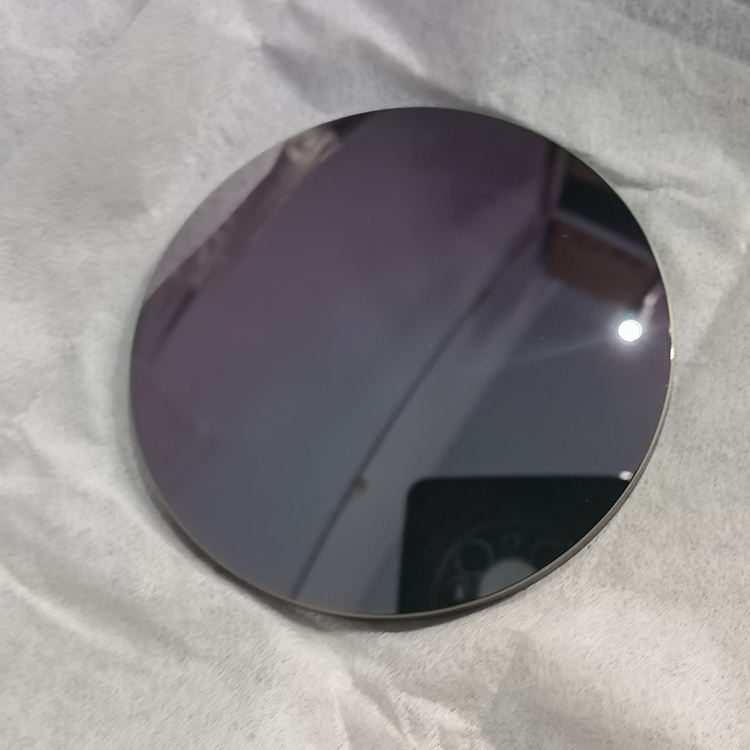

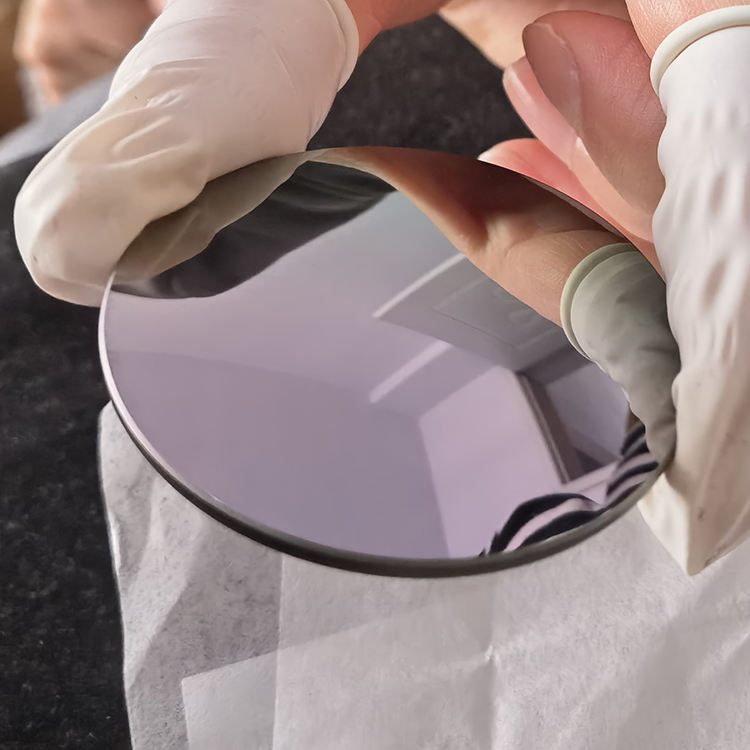

24x3 mm ZnSe Optical Window, AR Coated
ZnSe window for medical applications, 8-14 μm band, 24 mm diameter, AR coating, high parallelism.
Core attributes
- Material
- ZnSe
- Diameter range
- 24 mm
- Thickness
- 3 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 24 mm
- Thickness
- 3 mm
- Coating
- ar
Product description
This ZnSe window is designed for applications in the 8-14 μm infrared band, making it ideal for medical imaging and sensing technologies. With a diameter of 24 mm and a thickness of 3 mm, it offers excellent performance in demanding environments. The anti-reflective (AR) coating enhances transmittance, ensuring optimal light passage for precise imaging and detection. Its high parallelism of 3 arc seconds guarantees accurate alignment in optical systems, making it a reliable choice for R&D and production needs.
Key Features
- Wavelength range: 8-14 μm for effective infrared applications.
- Diameter of 24 mm and thickness of 3 mm for compatibility with standard setups.
- AR coating to improve transmittance and reduce reflections.
- High parallelism of 3 arc seconds for precise optical alignment.
- Central clear aperture of 90% for optimal light utilization.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 24 x 3 |
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 24 mm |
| Thickness | 3 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Warranty | 3 months |
| Customized Support | OEM |
| Parallelism | 3 arc seconds |
| Clear Aperture | Central 90% of diameter |
FAQ
Can custom sizes be ordered?
Yes, custom sizes are available for this ZnSe window.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; inquiries for batch sizes are welcome.
