1 / 6Optical Windows

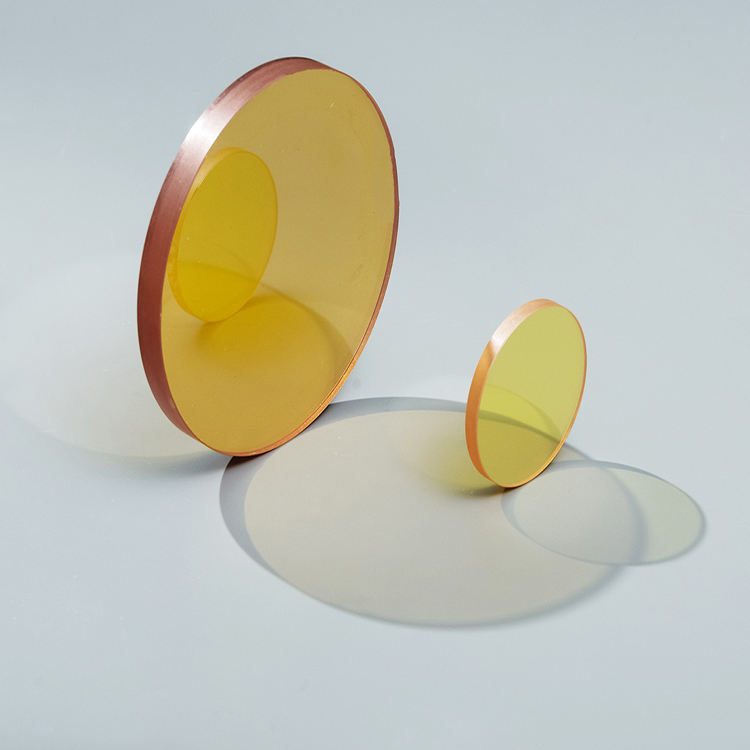

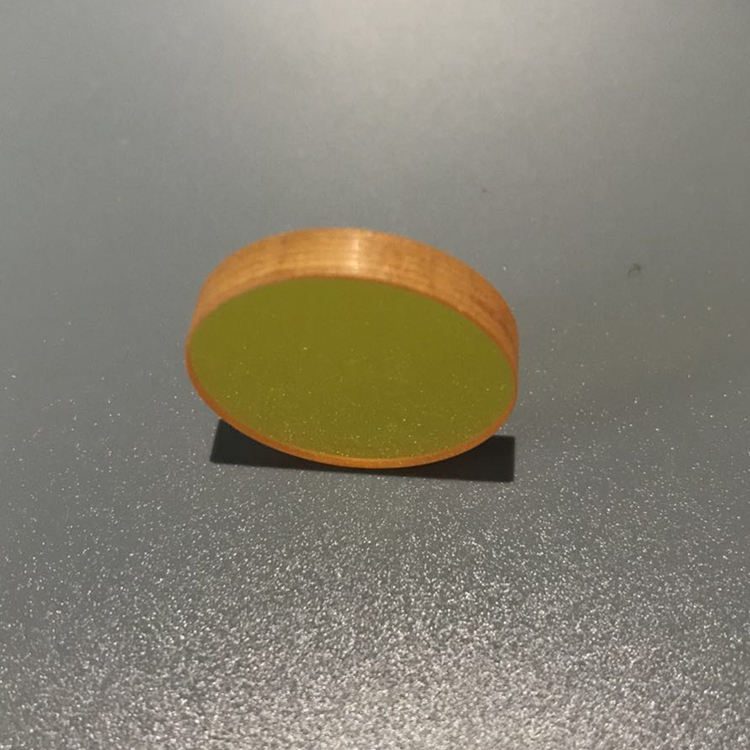

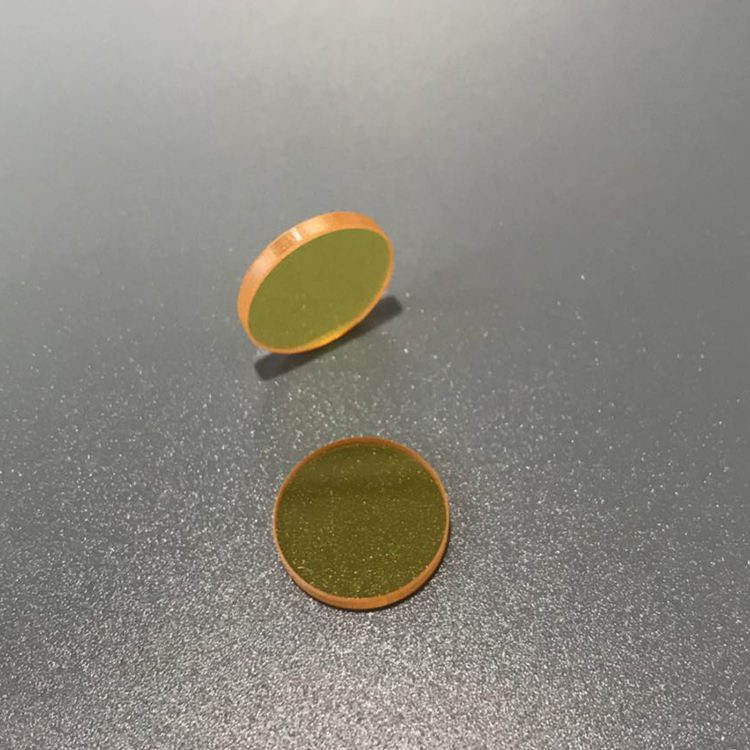

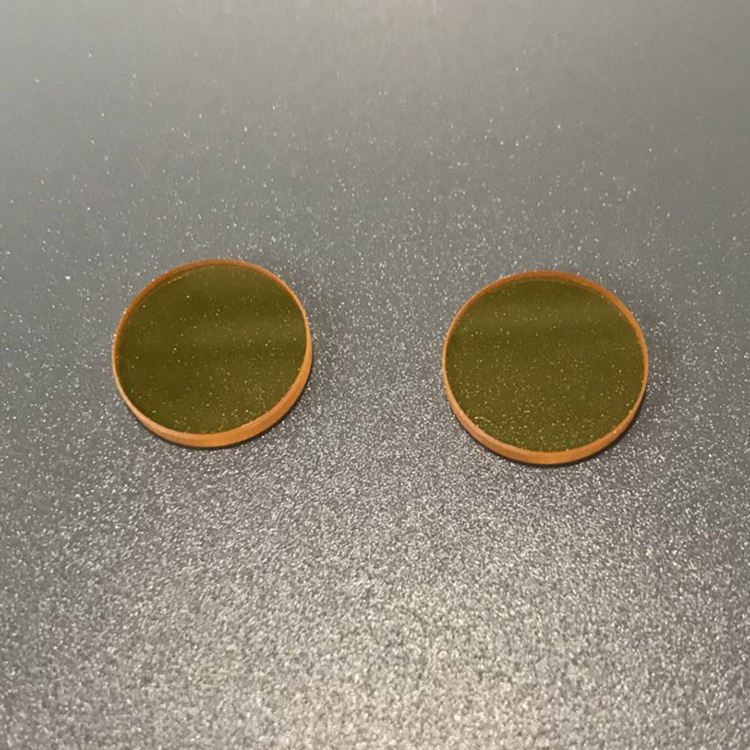

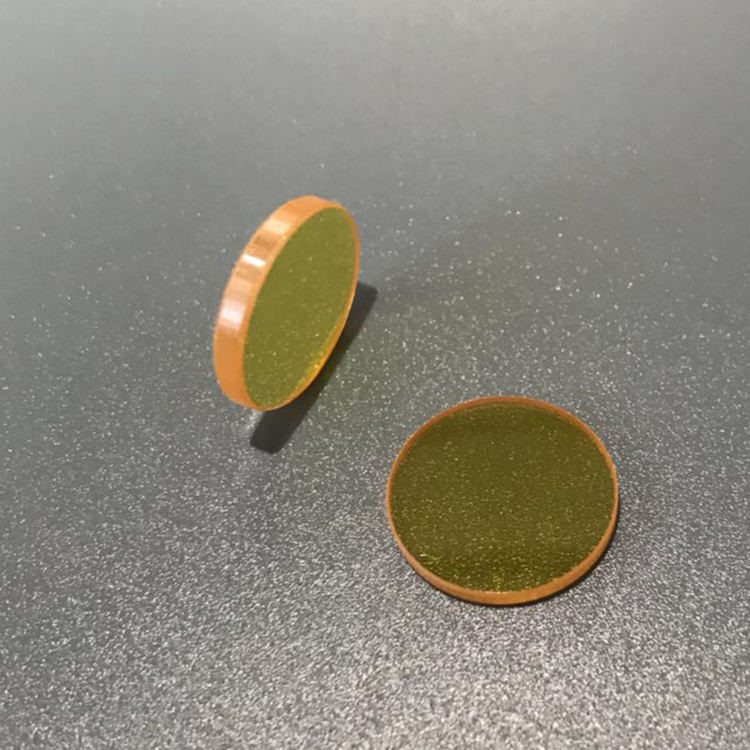

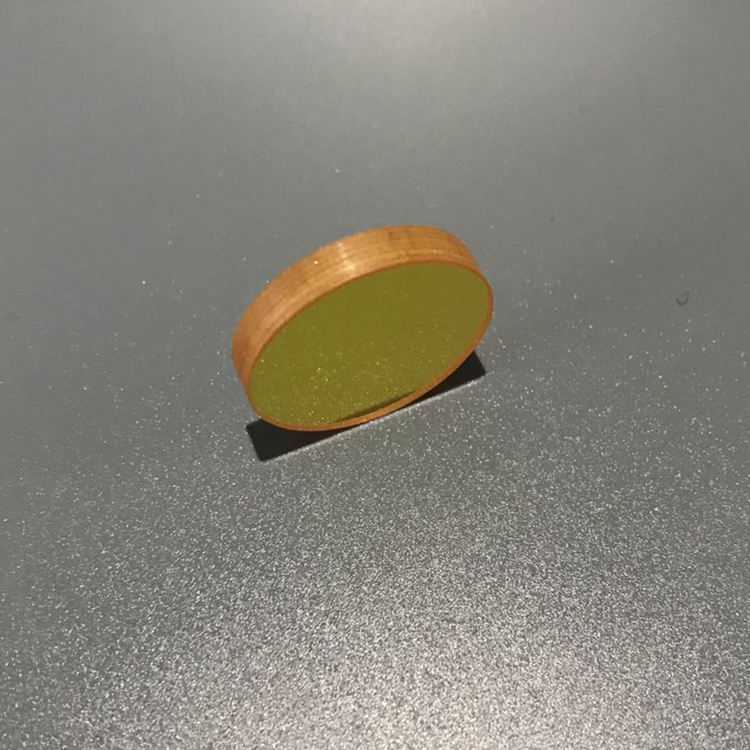

25.4x3 mm ZnSe Optical Window
ZnSe optical window with 25.4 mm diameter, 3.0 mm thickness, and 60/40 surface quality for 400-700 nm applications.
Core attributes
- Material
- ZnSe
- Diameter range
- 25.4 mm
- Thickness
- 3 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 25.4 mm
- Thickness
- 3 mm
- Coating
- uncoated
Product description
This ZnSe optical window is designed for applications requiring high performance in the 400-700 nm wavelength range. With a diameter of 25.4 mm and a thickness of 3.0 mm, it offers excellent surface quality (60/40) and is suitable for various optical systems. Its uncoated design ensures versatility across different applications, making it ideal for R&D and industrial use.
Key Features
- Diameter: 25.4 mm, ensuring compatibility with standard optical setups.
- Thickness: 3.0 mm, providing structural integrity for demanding applications.
- Surface Quality: 60/40, delivering reliable optical performance.
- Centration: <3 arc, ensuring precise alignment in optical systems.
- Customizable support for OEM and ODM projects, catering to specific requirements.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 25.4 x 3 |
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 25.4 mm |
| Thickness | 3 mm |
| Surface Quality | 60/40 |
| Coating | uncoated |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Window |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Logo/Graphic Design | Unsupported |
| Weight | 0.5kg |
| Parallel | 30" |
| Surface Flatness | 1/4@633nm |
| Diameter Tolerance | 0/-0.1mm |
FAQ
Is custom sizing available?
Yes, customizable support for OEM and ODM projects is offered.
What is the diameter tolerance?
The diameter tolerance is ±0.1 mm.
