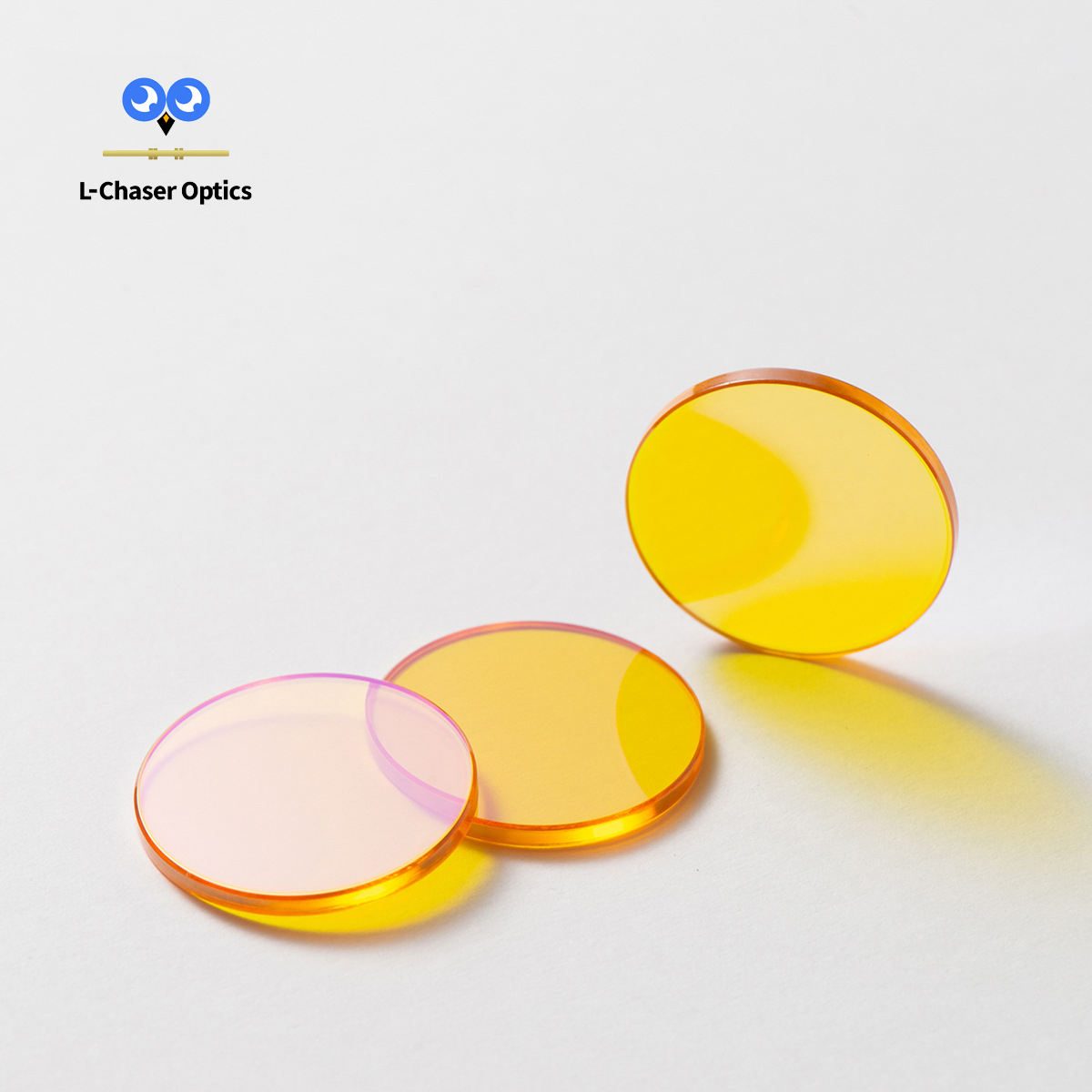

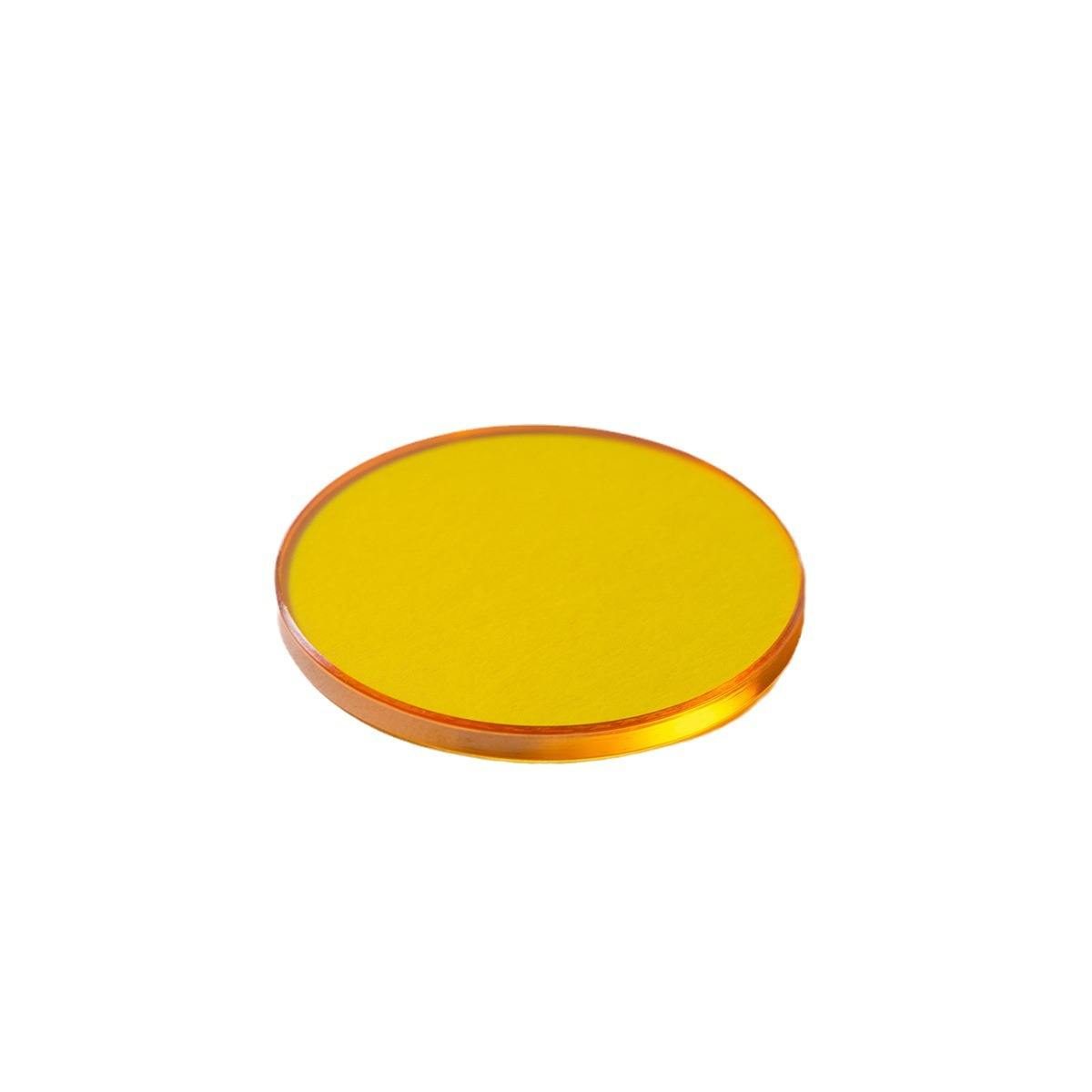

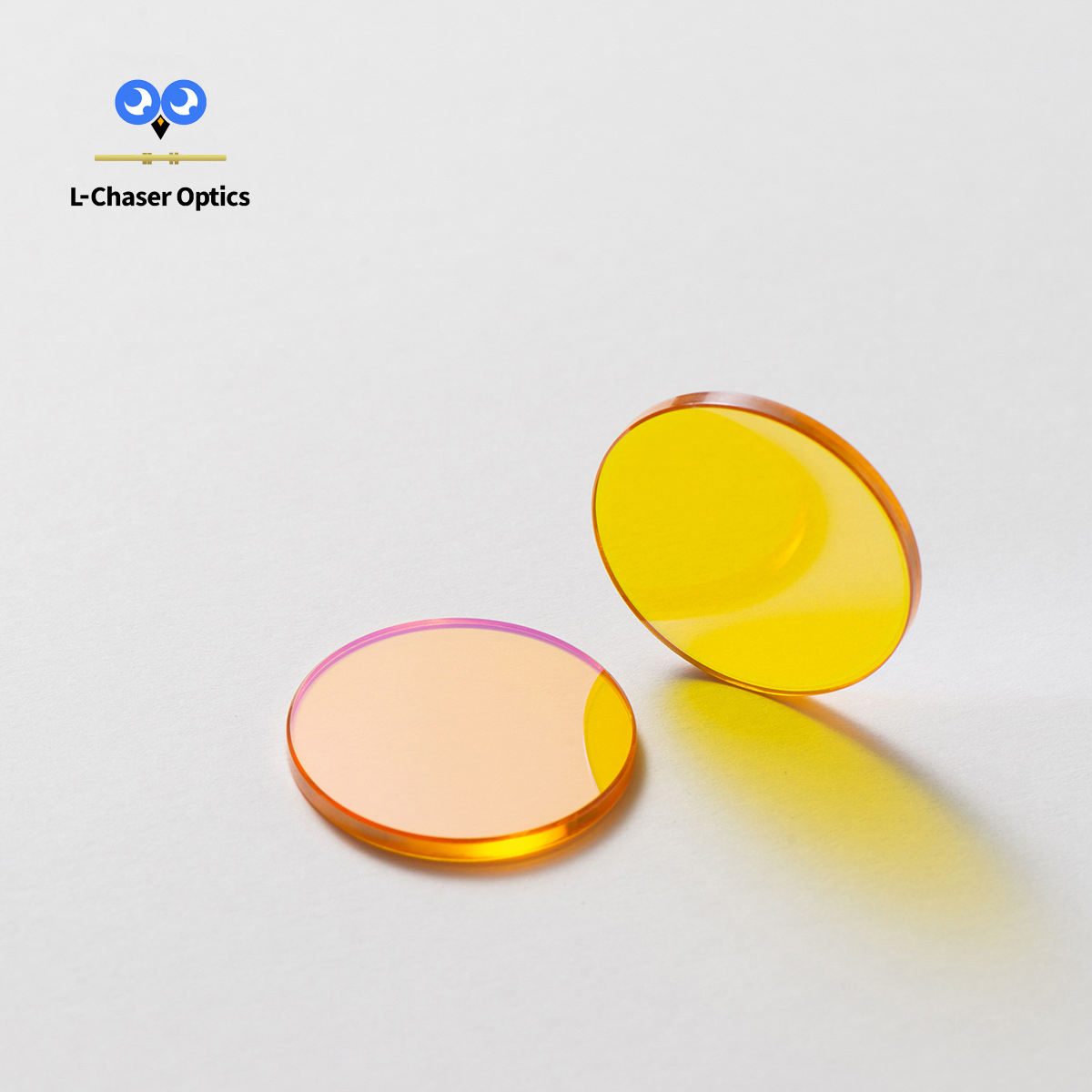

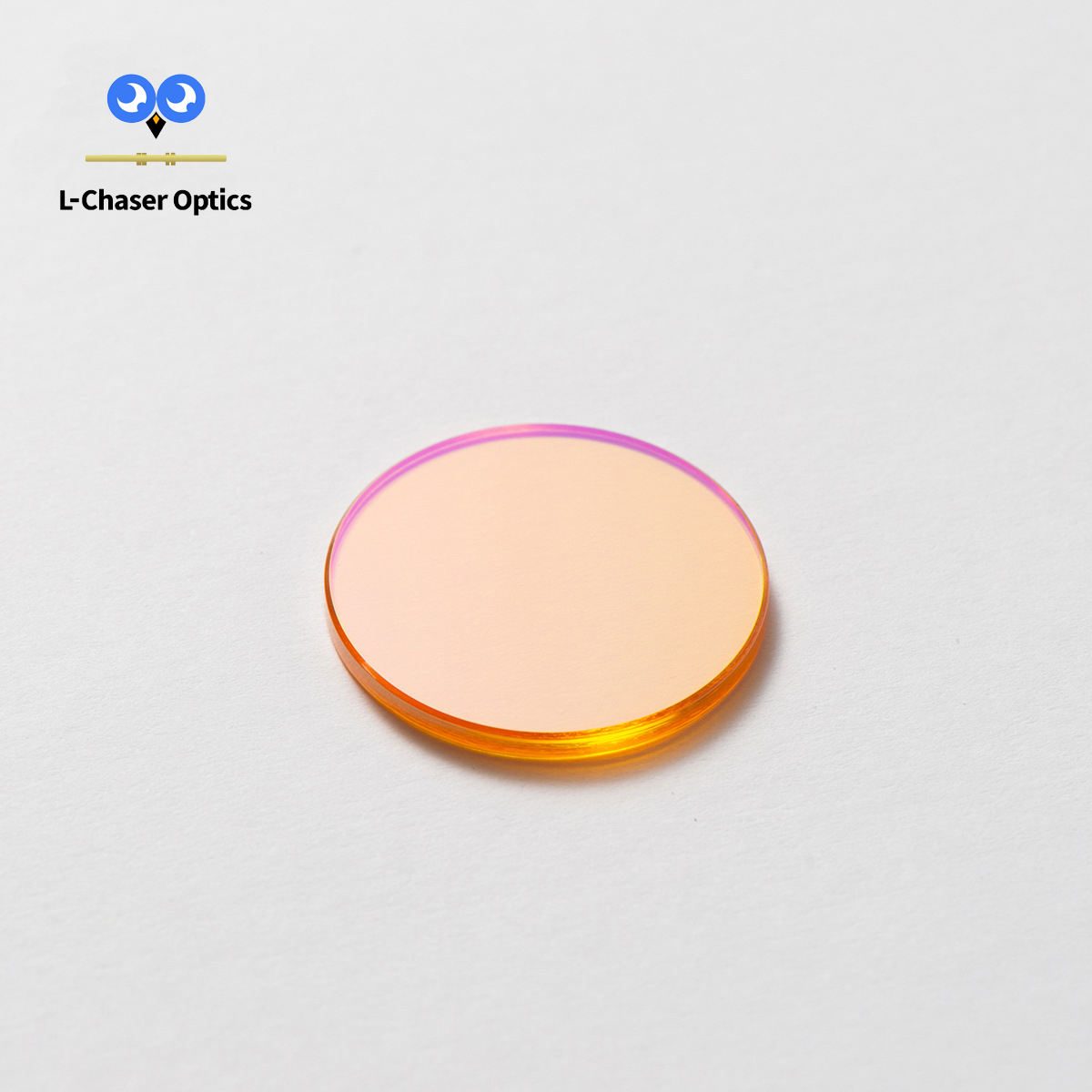

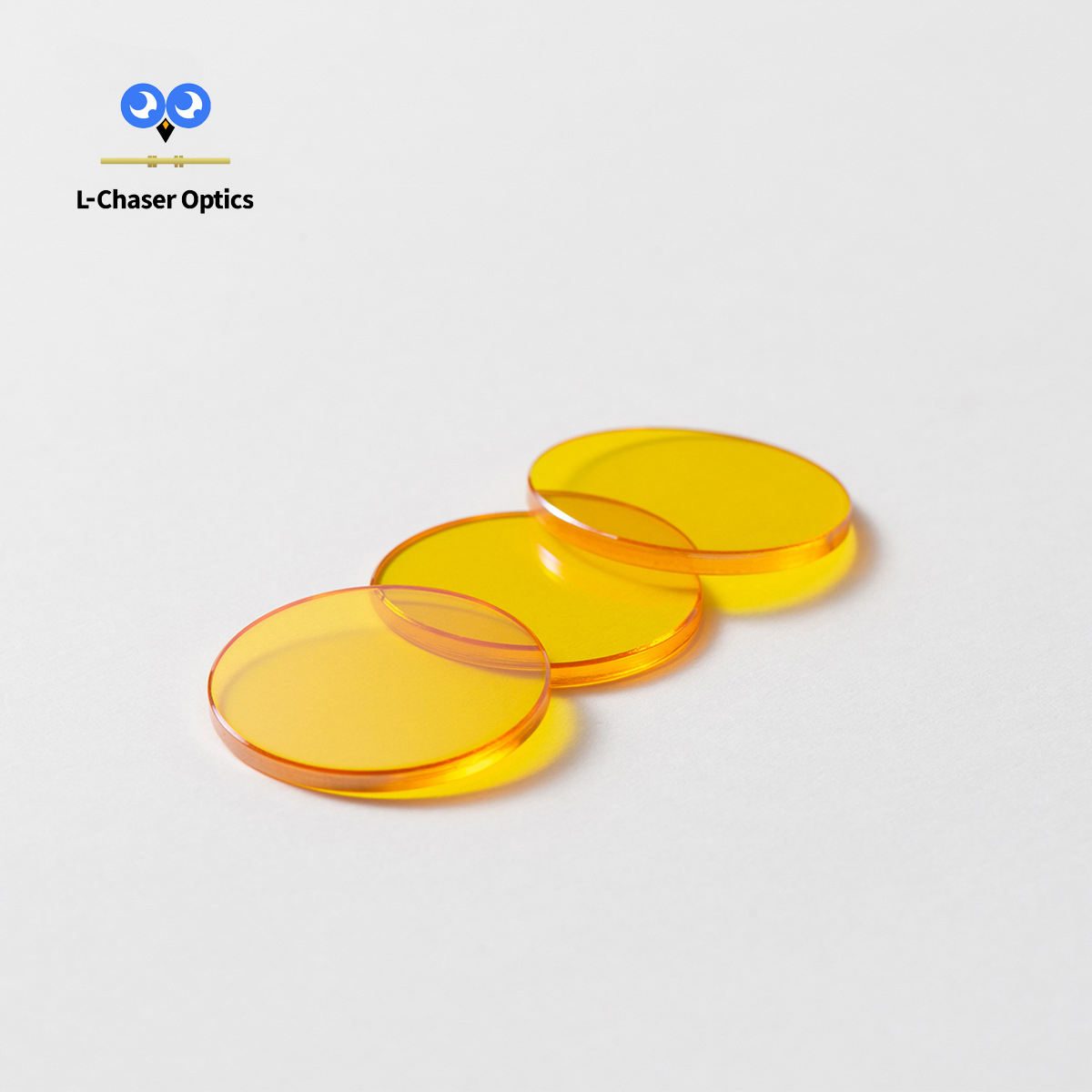

25.4 mm ZnSe Optical Window, AR Coated
ZnSe Infrared window for 8-14 μm applications, customizable sizes, and high surface quality.
Core attributes
- Material
- ZnSe
- Diameter range
- 25.4 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 25.4 mm
- Coating
- ar
Product description
The ZnSe Infrared window is designed for applications in the 8-14 μm wavelength range, making it ideal for infrared imaging and thermal imaging systems. With a diameter of 25.4 mm and a surface quality of 40/20, this window ensures optimal performance in demanding environments. The AR coating enhances transmittance, making it suitable for various infrared applications. Manufactured in Jilin, this window provides reliable performance and can be customized to meet specific requirements.
Key Features
- Diameter of 25.4 mmFits standard optical systems and applications.
- Surface quality of 40/20Ensures minimal distortion and high clarity.

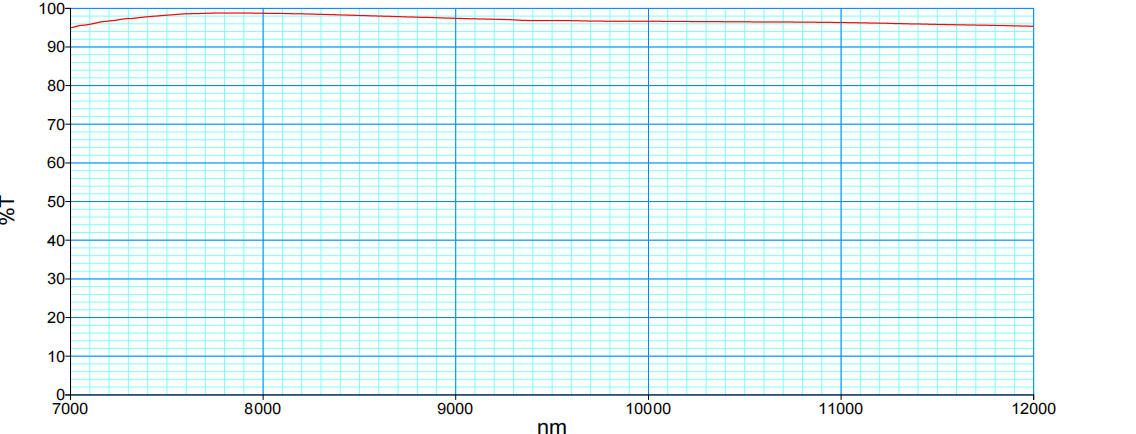

- AR coating for 8-14 μmMaximizes transmittance for infrared applications.
- Dimension tolerance of 0.05 mmSupports precise integration into optical setups.
- Customizable sizes availableMeets specific project requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 25.4 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Weight | customized |
| Structure | plano-convex, Plano-convex |
| Name | ZnSe Infared |
| Dimension Tolerance | 0.05mm/0mm |
| Thickness Tolerance | ± 0.02mm |
| Use | Infrared |
FAQ
Can I get custom sizes?
Yes, custom sizes are available, with a diameter range from 8 mm to 350 mm.
What are the tolerances for dimensions?
Dimension tolerance is -0.03 mm/0 mm, and thickness tolerance is ± 0.02 mm.
