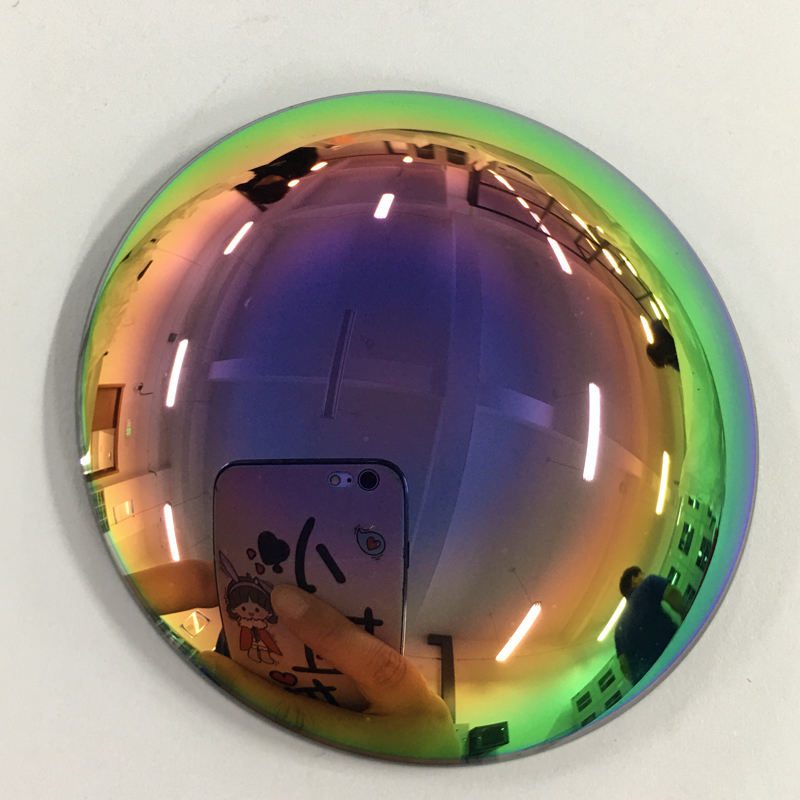

54.5 mm ZnSe Optical Window, AR Coated
ZnSe Infrared Window with 54.5 mm diameter, AR coating, and high surface quality for IR applications.
Core attributes
- Material
- ZnSe
- Diameter range
- 54.5 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 54.5 mm
- Coating
- ar
Product description
The ZnSe Infrared Window is designed for applications requiring high transmittance in the infrared spectrum. With a diameter of 54.5 mm and a surface quality of 40/20, it is ideal for use in IR imaging, LIDAR, and medical devices. This optical component ensures reliable performance with a dimension tolerance of 0.05 mm, making it suitable for precision applications. Its AR coating enhances transmittance, ensuring optimal performance in demanding environments.
Key Features
- Diameter of 54.5 mm for versatile integration in various systems.
- Surface quality of 40/20 ensures minimal distortion for high clarity.
- Dimension tolerance of 0.05 mm allows for precise fitting in applications.
- AR coating enhances performance by improving light transmission.
- Custom sizes available, supporting OEM and ODM requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 54.5 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.1kg |
| Structure | plane/convex |
| Name | ZnSe Infared |
| Dimension Tolerance | 0.05mm/0mm |
| Thickness Tolerance | ± 0.02mm |
FAQ
Can I get custom sizes?
Yes, custom sizes are available, supporting OEM and ODM options.
What are the tolerances for this window?
The dimension tolerance is 0.05 mm, and the thickness tolerance is ± 0.02 mm.
