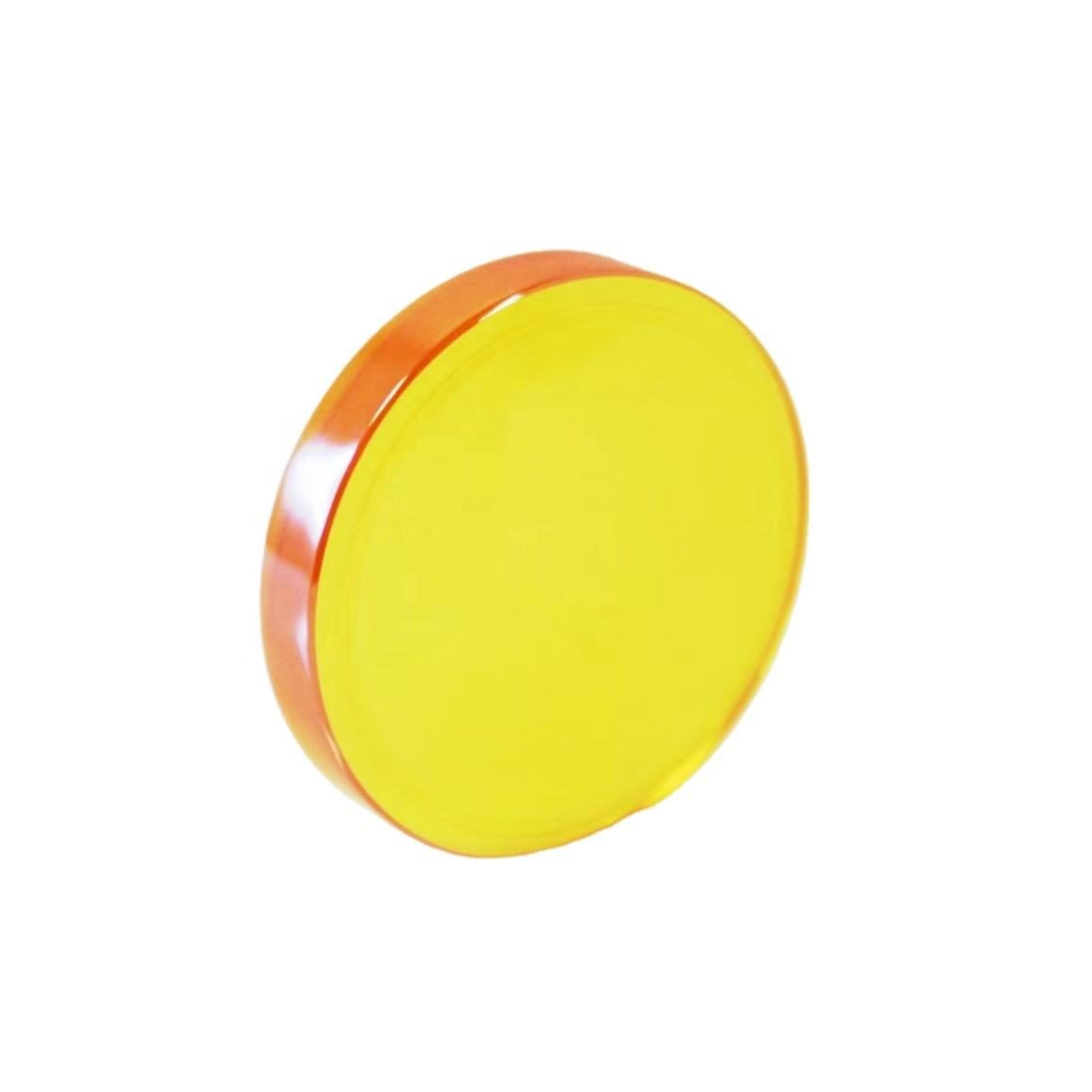

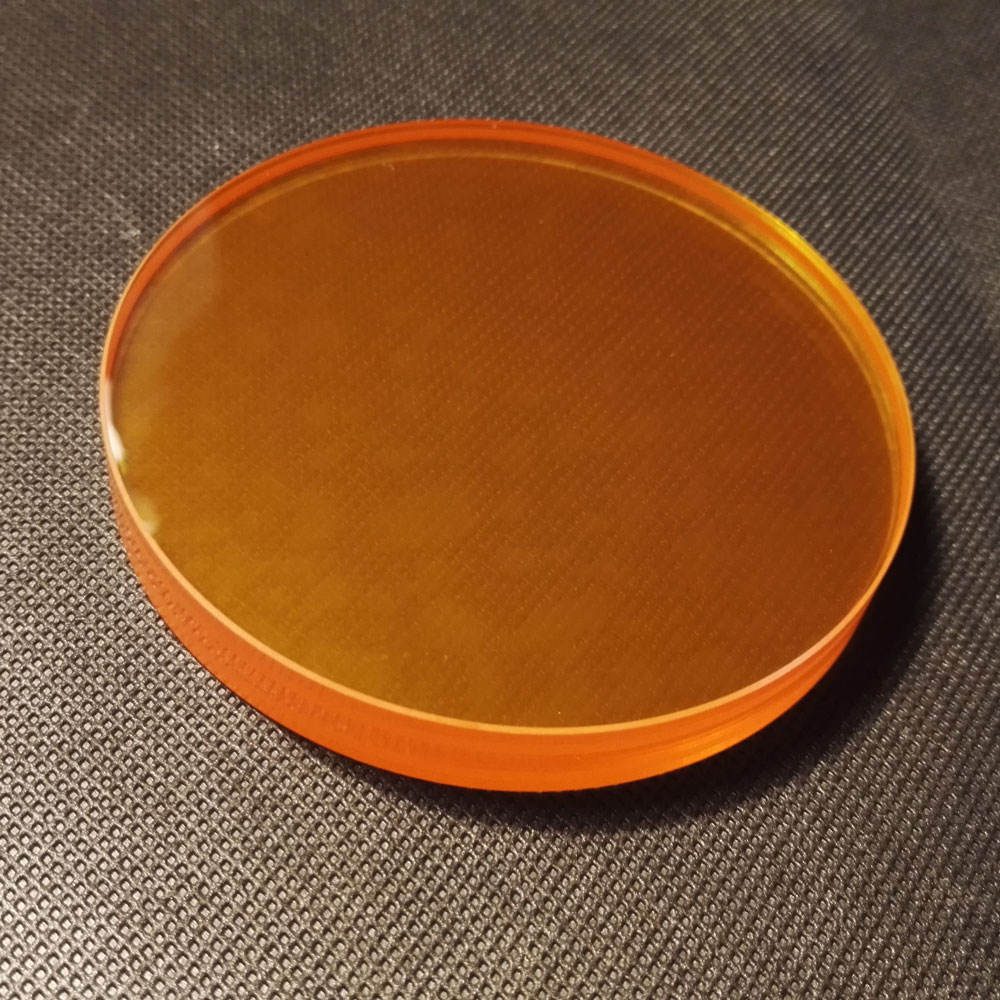

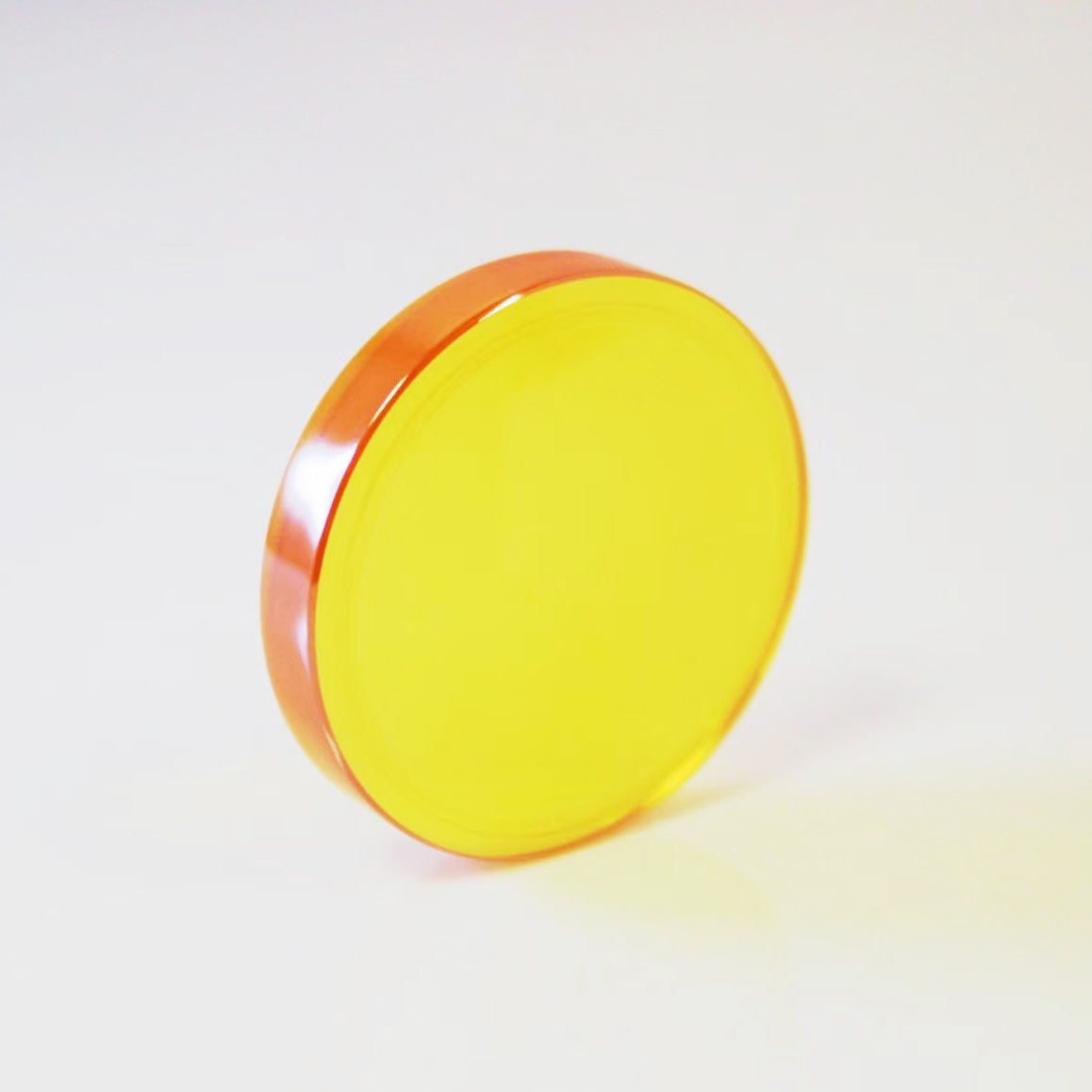

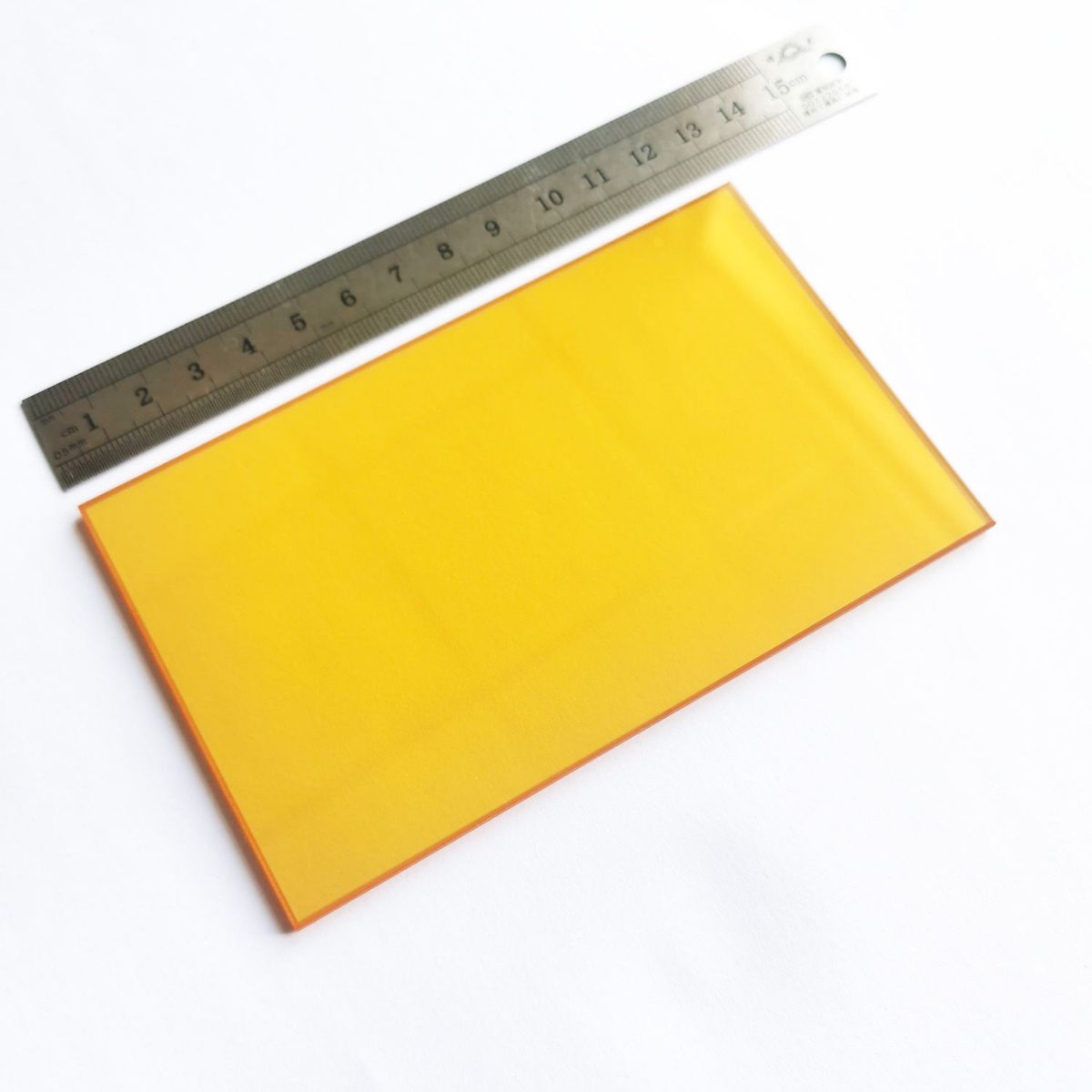

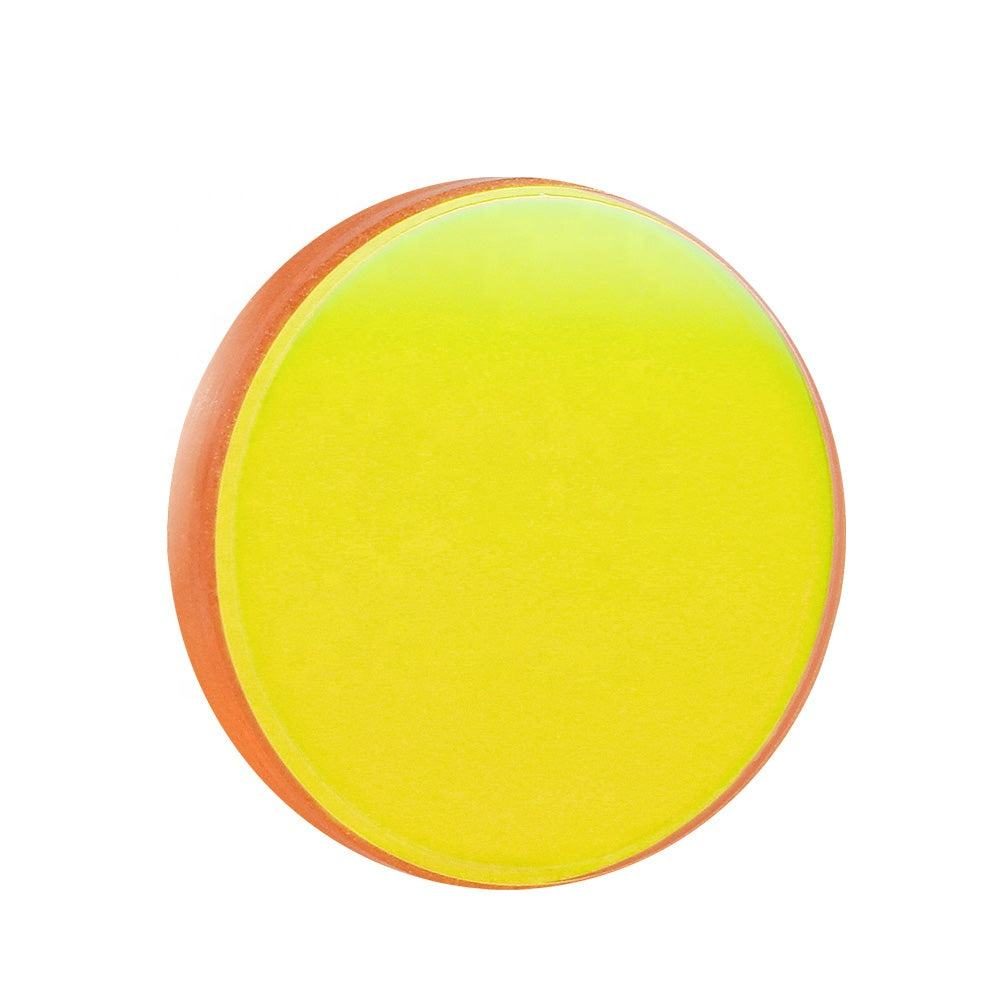

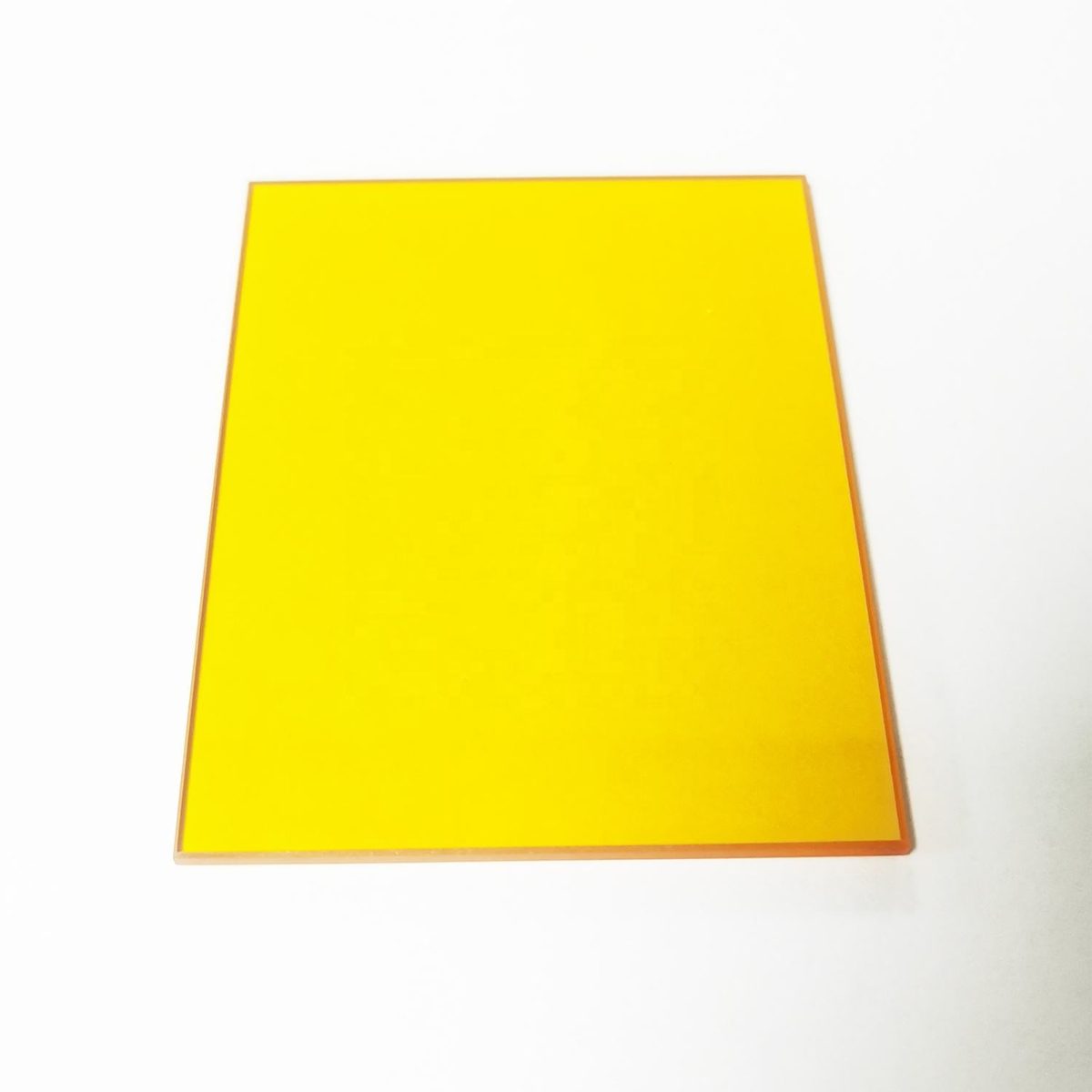

5x1 mm ZnSe Optical Window, AR Coated

Product description

The ZnSe window is designed for thermal imaging applications, effectively minimizing issues like laser instability and mode-hopping caused by unwanted reflections. With a broad spectral transmission range of 400-700 nm, this window features customizable sizes and coatings, ensuring compatibility with various infrared systems. Its wedged design introduces a controlled wedge in the optical path, enhancing performance in demanding environments.

Key Features

Diameter range: 5.0 mm to 500.0 mm for versatile applications.
Thickness options from 1.0 mm to 20.0 mm to fit specific needs.
Dimension tolerance of ± 0.1 mm ensures precision in fit.
Clear aperture greater than 90% for optimal light transmission.
Customizable wedged angle and coatings (AR, uncoated) available.

Available Sizes

Diameter x Thickness (mm)
252.5 x 10.5

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	ZnSe
Diameter	5 mm
Thickness	1 mm
Coating	anti-reflective (AR), uncoated
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	ZnSe window
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.1 kg
Dimension Tolerance	± 0.1mm
Parallelism	< 3 arcmin
Clear Aperture	>90%
Use	Infrared

FAQ

What are the available custom sizes?

Custom sizes range from 5.0 mm to 500.0 mm in diameter and 1.0 mm to 20.0 mm in thickness.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified; please inquire for details.

What tolerances can be achieved?

Dimension tolerance is ± 0.1 mm, and angular tolerance can be as strict as 5 arcsec.
