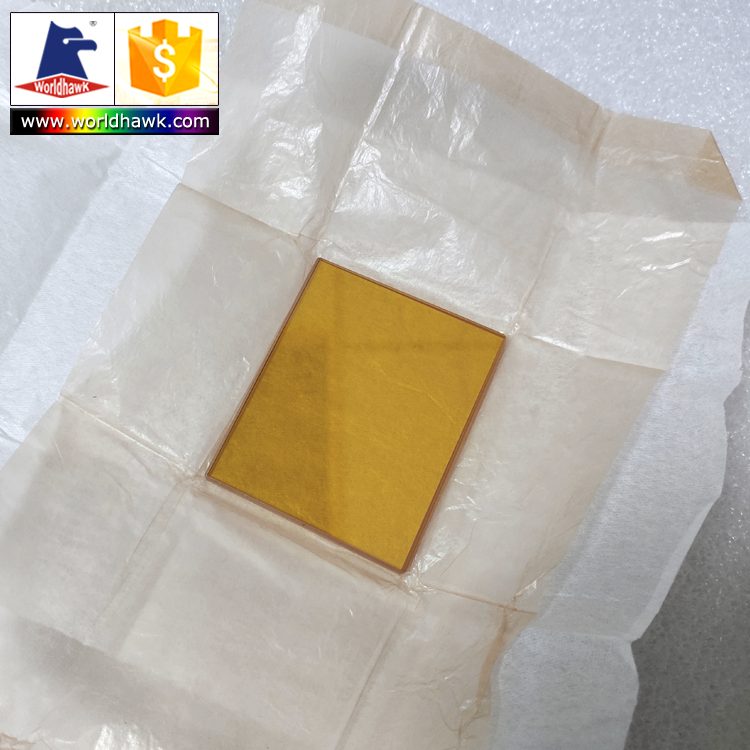

5x0.8 mm ZnSe Optical Window, AR Coated
ZnSe optical windows for infrared applications, customizable sizes, and high transmittance for optimal performance.
Core attributes
- Material
- ZnSe
- Diameter range
- 5–100 mm
- Thickness
- 0.8 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 5–100 mm
- Thickness
- 0.8 mm
- Coating
- ar
Product description
ZnSe optical windows are designed for infrared applications, particularly effective in the 400-700 nm wavelength range. These windows facilitate high-power CO2-laser optics at 10.6 microns while allowing some visible light transmission for easier alignment of optical systems. Their unique properties make them suitable for use in various IR imaging, LIDAR, and laser applications, ensuring optimal performance in demanding environments.
Key Features
- Transmits visible light, enabling easier alignment of optical systems.
- Available in diameters from 5.0 mm to 100.0 mm for versatile applications.
- Custom sizes available, including a variant size of 52.5 mm diameter and 0.8 mm thickness.
- Clear aperture greater than 90% for enhanced optical performance.
- Parallelism of 3’ ensures precision in optical setups.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 52.5 x 0.8 |
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 5 mm |
| Thickness | 0.8 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.01kg(0.02lb) |
| Clear Aperture | >90% |
| Parallelism | 3' |
| Bevel | <0.5mm @ 45 degree |
FAQ
Can I get custom sizes?
Yes, custom sizes are available, including a variant size of 52.5 mm diameter.
What is the minimum order quantity?
The minimum order quantity is not specified.
