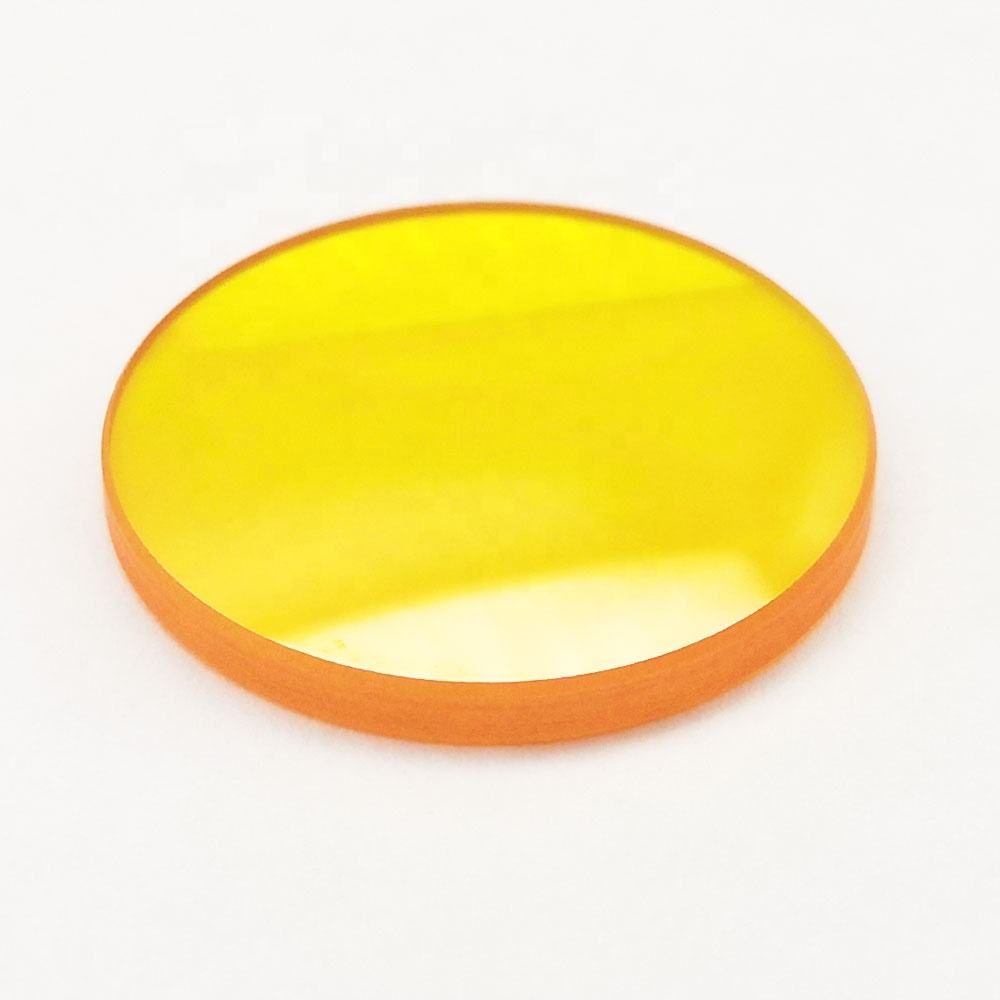

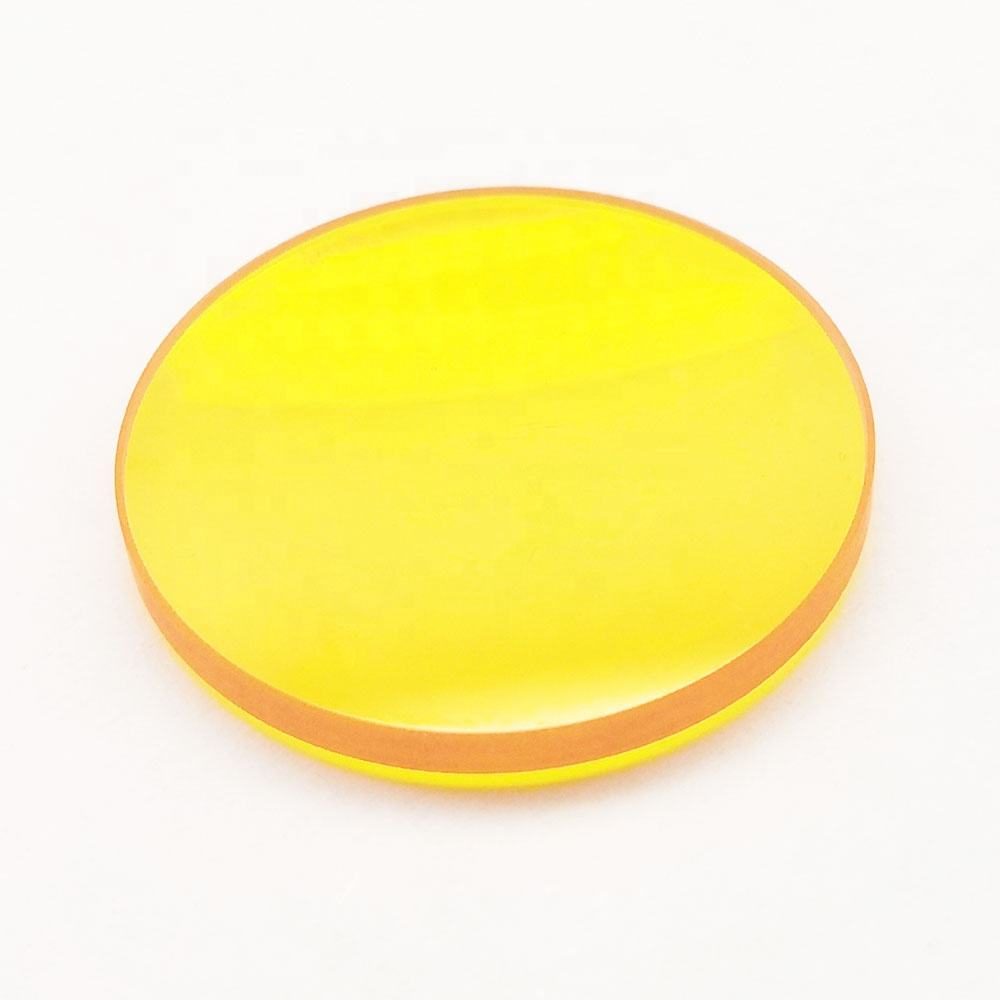

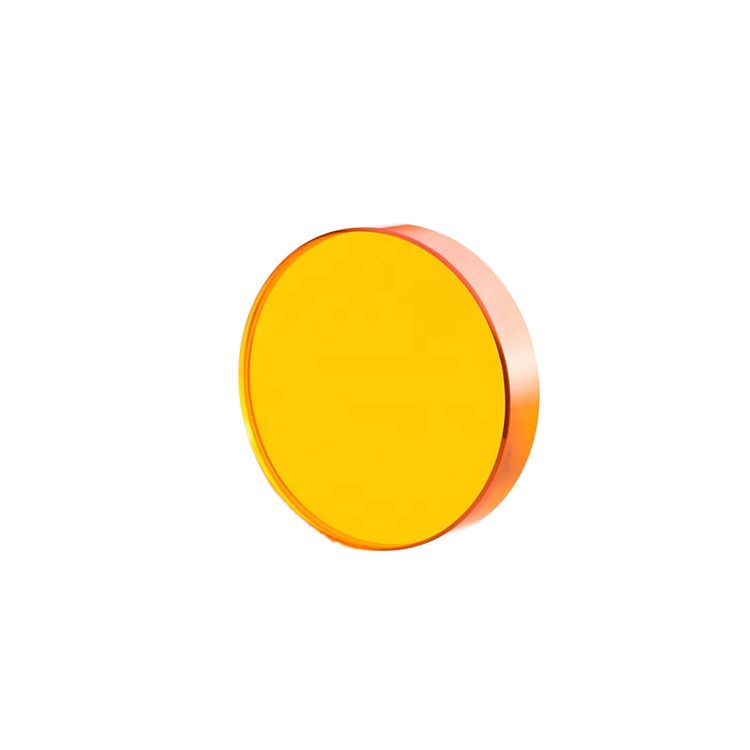

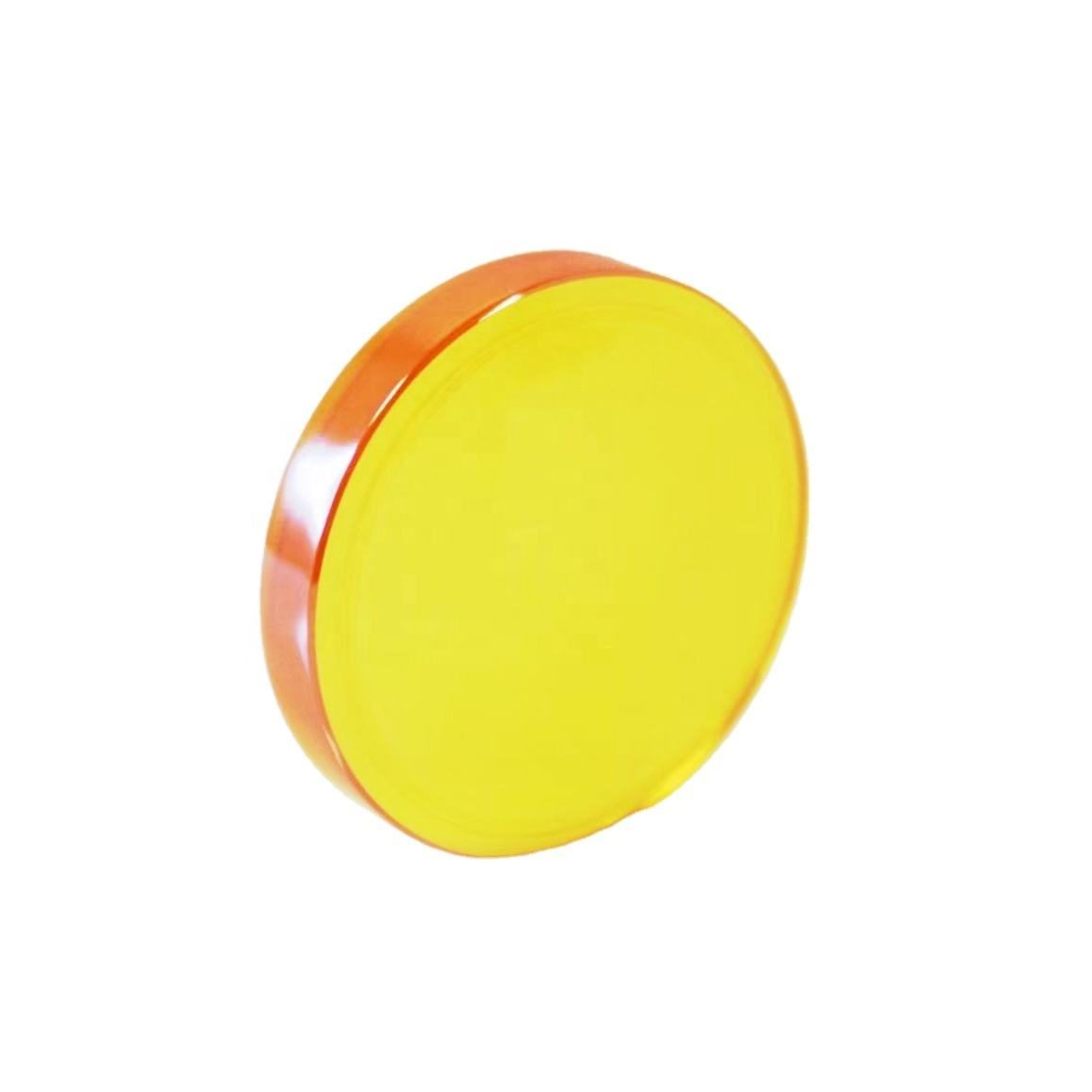

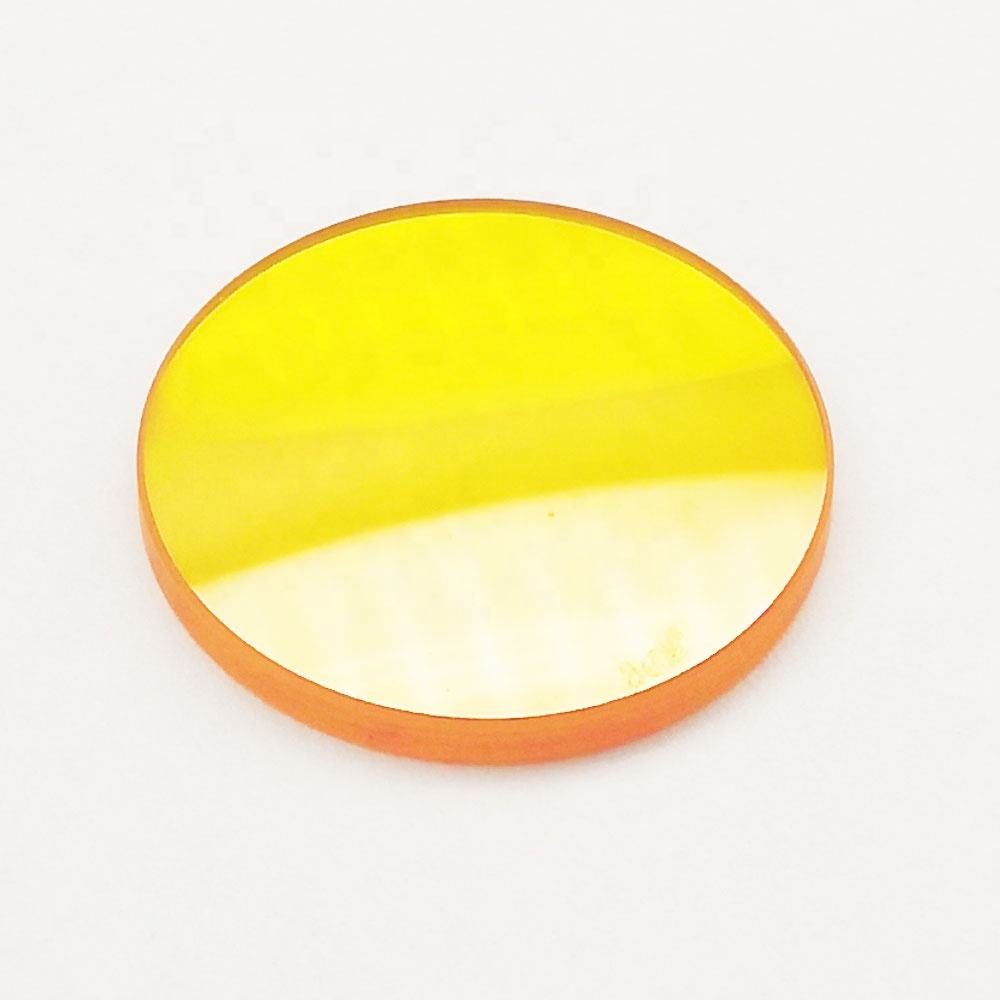

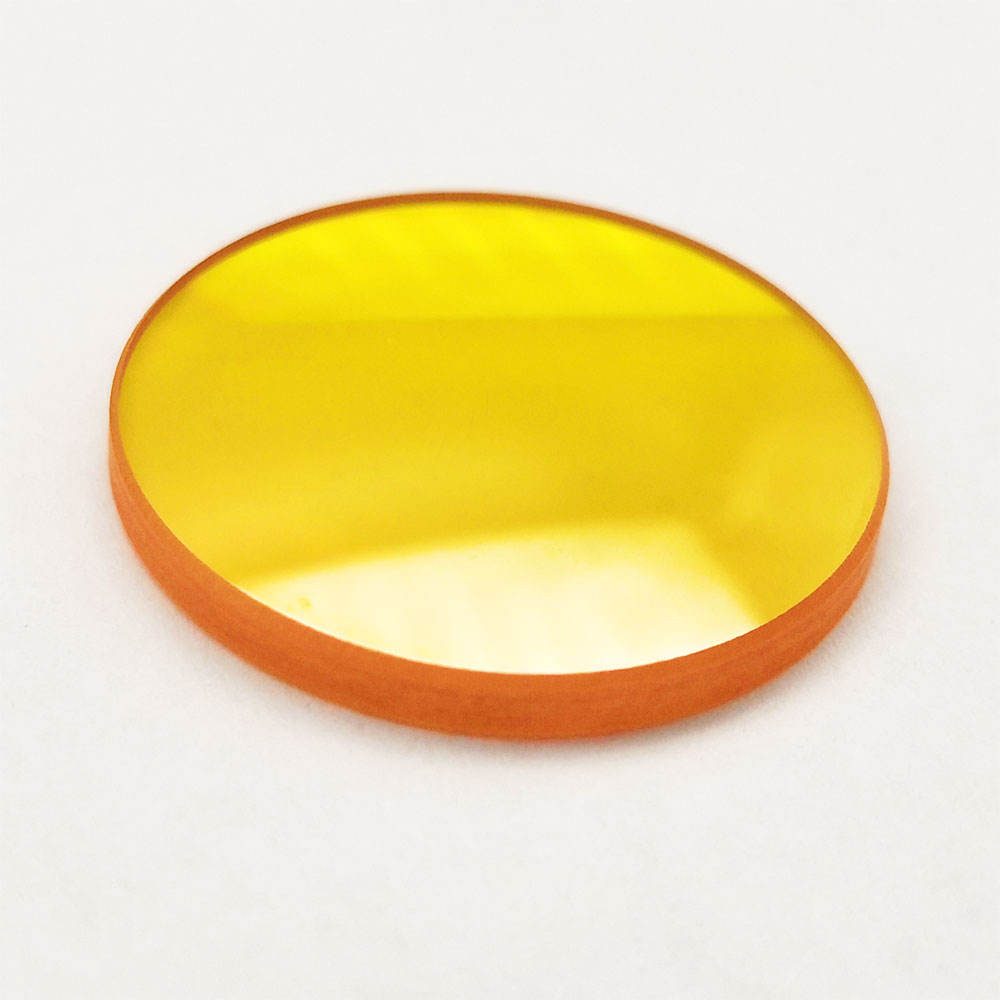

5x1 mm ZnSe Optical Window, AR Coated

Product description

The ZnSe Convex Lens is designed for applications requiring high transmittance and minimal reflection. With a diameter range from 5.0 mm to 500.0 mm and thickness options between 1.0 mm and 50.0 mm, this lens is suitable for various optical applications. The lens features a surface quality of 60/40 and is coated with an anti-reflective (AR) layer, enhancing visibility and performance. Custom sizes are available, making it adaptable for specific project needs.

Key Features

High TransmittanceEnsures maximum light transmission for optimal performance.
Affordable AR CoatingProtects against reflection and enhances visibility.
Customizable DimensionsTailored to meet specific needs and applications.
Dimension Tolerance+/-0.1 mm for precise fitting.
Clear Aperture90% to maximize effective light passage.

Available Sizes

Diameter x Thickness (mm)
252.5 x 25.5

Specification Summary

Item	Value
Material	ZnSe
Diameter	5 mm
Thickness	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.1
Dimension Tolerance	+/-0.1mm
Flatness	1/2 1/4 Lambda
Bevel	0.3mmx45°
Clear Aperture	90%

FAQ

What custom sizes are available?

Custom sizes can be tailored within the diameter range of 5.0 mm to 500.0 mm and thickness from 1.0 mm to 50.0 mm.

What is the dimension tolerance for this lens?

The dimension tolerance is +/-0.1 mm, ensuring precise fitting for various applications.
