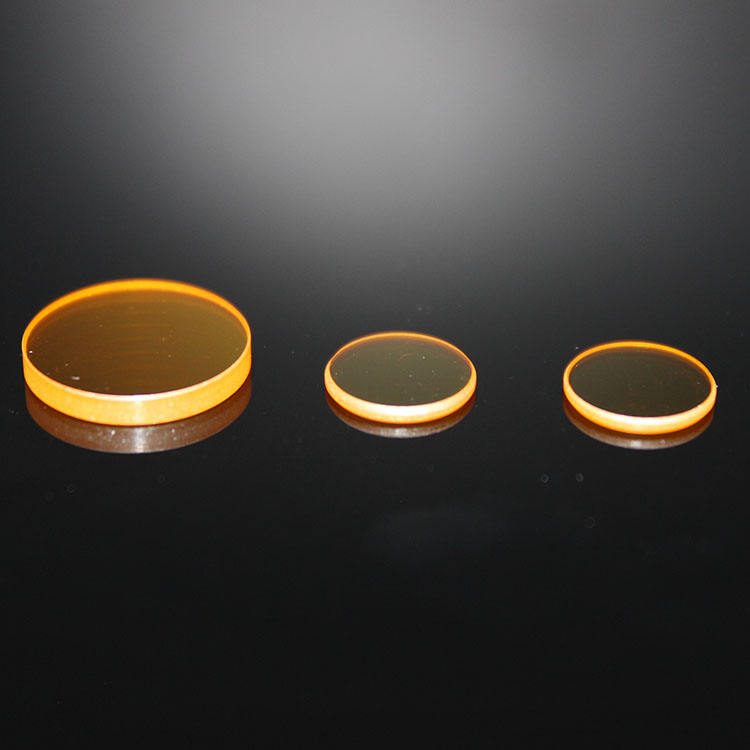

5 mm ZnSe Optical Window, AR Coated
ZnSe optical window for 3-5 μm and 8-14 μm applications, custom sizes available, high surface quality, ISO9001 certified.
Core attributes
- Material
- ZnSe
- Diameter range
- 5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 5–300 mm
- Coating
- ar
Product description
This ZnSe optical window is designed for applications in the 3-5 μm and 8-14 μm spectral bands, making it ideal for IR imaging and LIDAR systems. With a diameter range of 5 to 300 mm and high surface quality of 60/40, it ensures optimal performance in demanding environments. The window features anti-reflective coatings to enhance transmittance and is manufactured under ISO9001 certification, ensuring reliability and consistency in batch production.
Key Features
- Diameter range: 5 to 300 mm for versatile application fit.
- Surface quality of 60/40 ensures minimal distortion and high clarity.
- AR coating enhances transmittance for improved optical performance.
- Customized support available for OEM and ODM projects.
- Manufactured under ISO9001 certification for reliable quality assurance.
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |

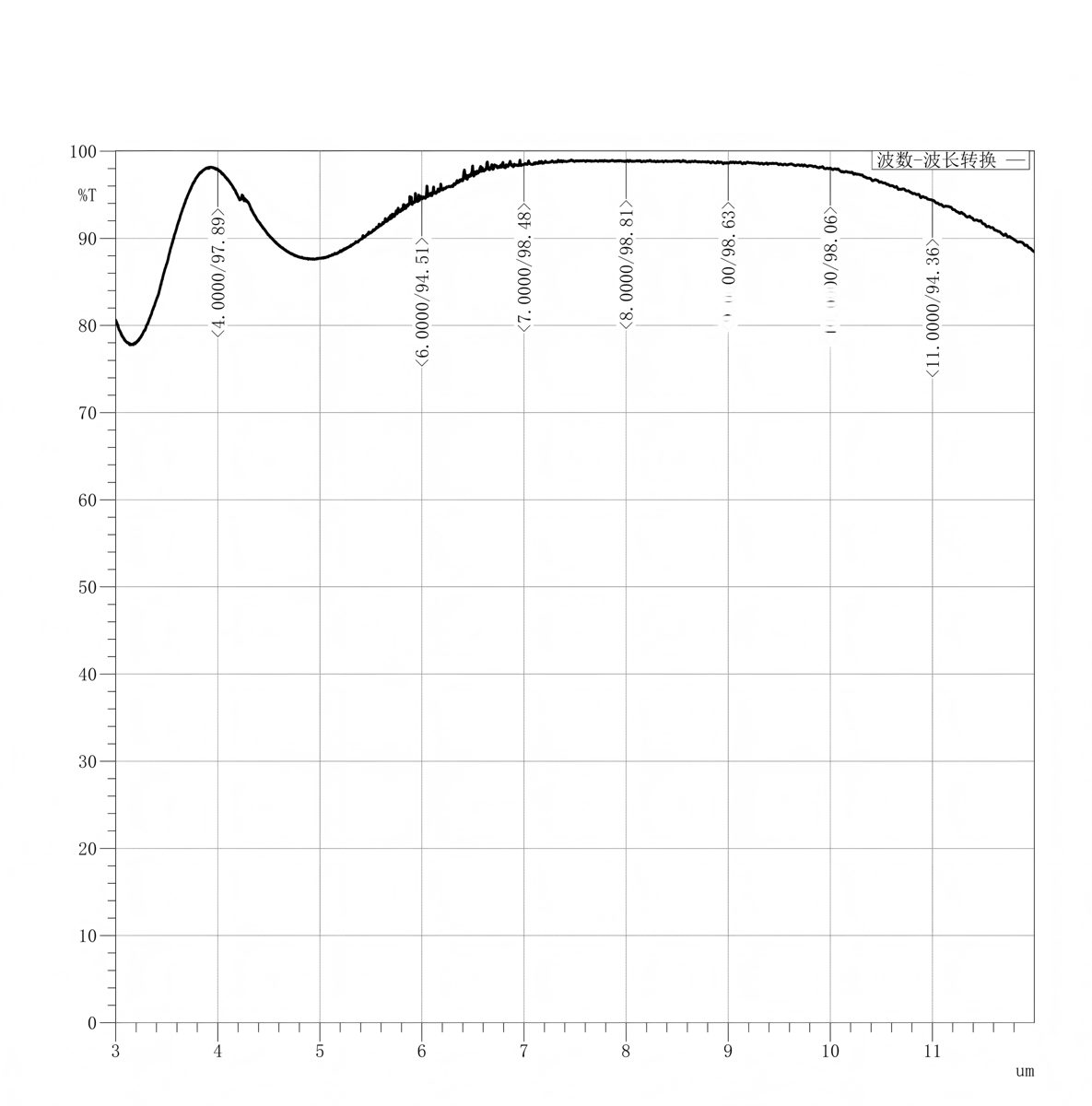

| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Window |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Parallel | 30" |
| Surface Flatness | 1/10@633nm |
| Certificate | ISO9001 |
FAQ
What is the tolerance for diameter?
The diameter tolerance is +/-0.01 mm.
Can I get custom sizes?
Yes, the optical window is available in custom diameters ranging from 5 to 300 mm.
