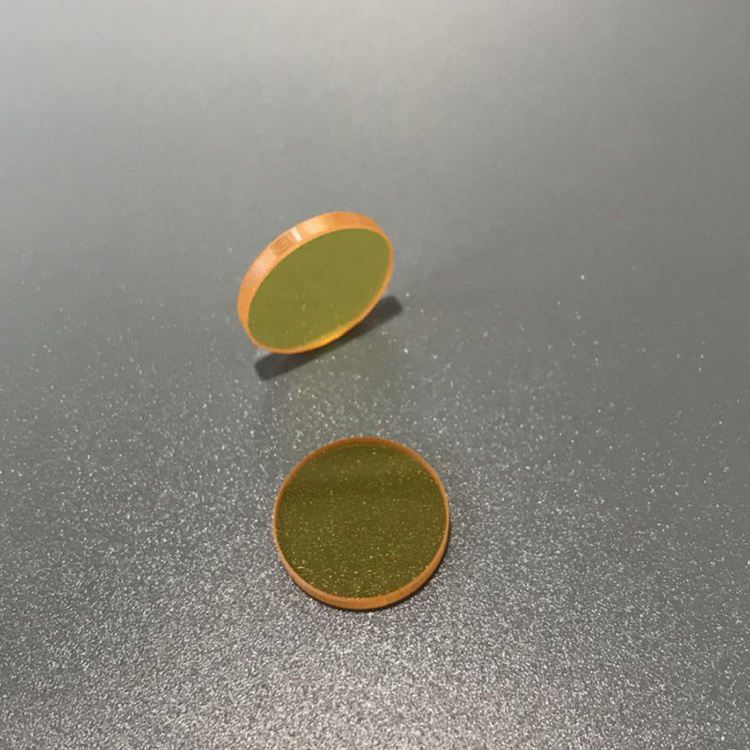

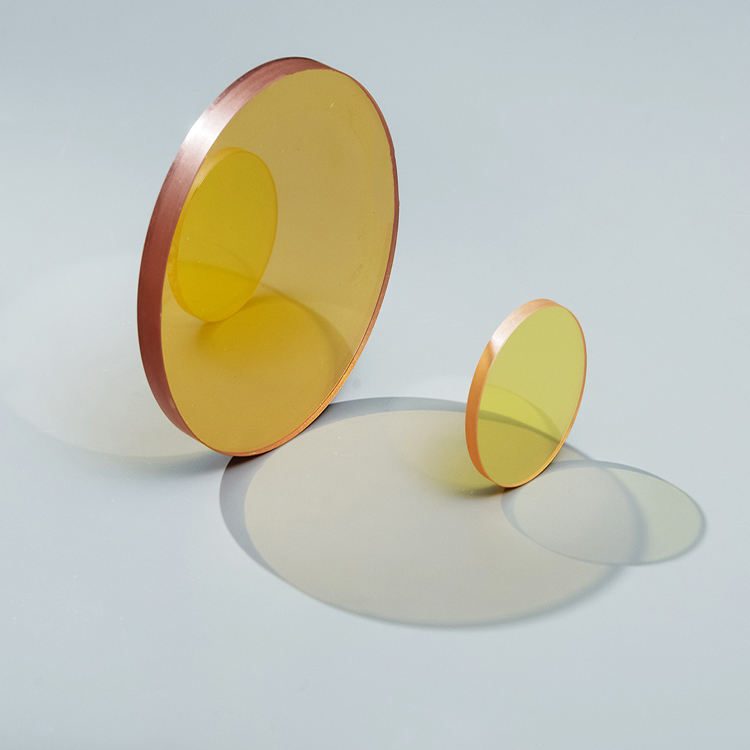

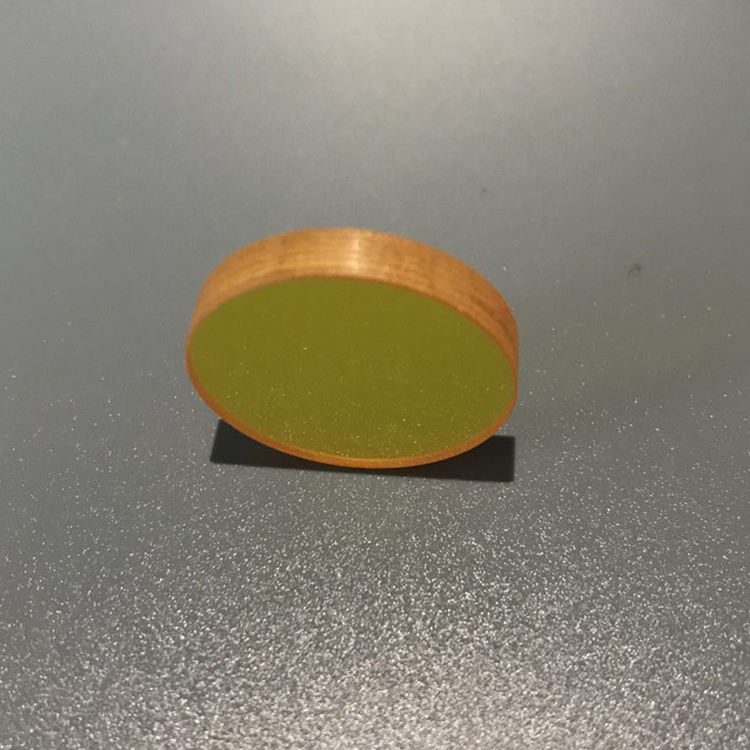

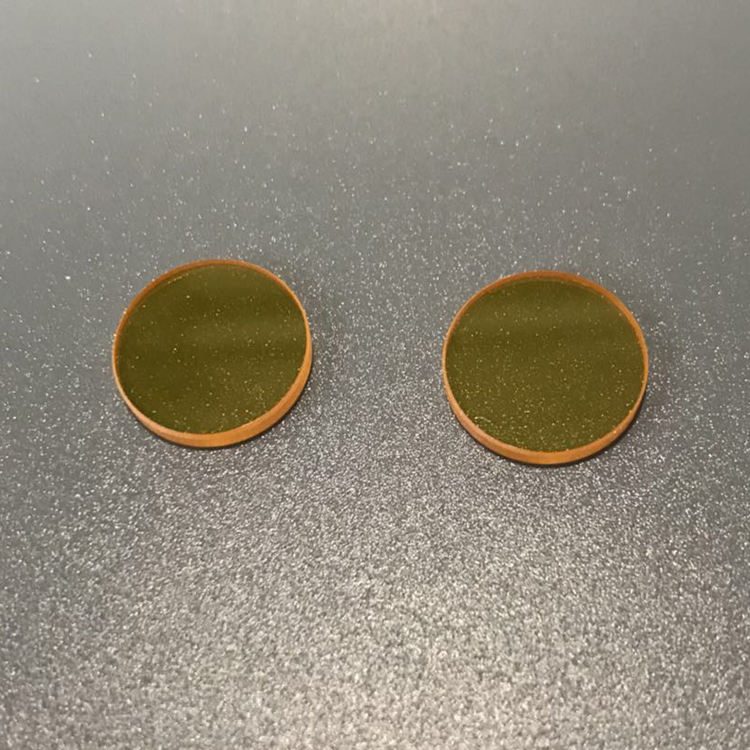

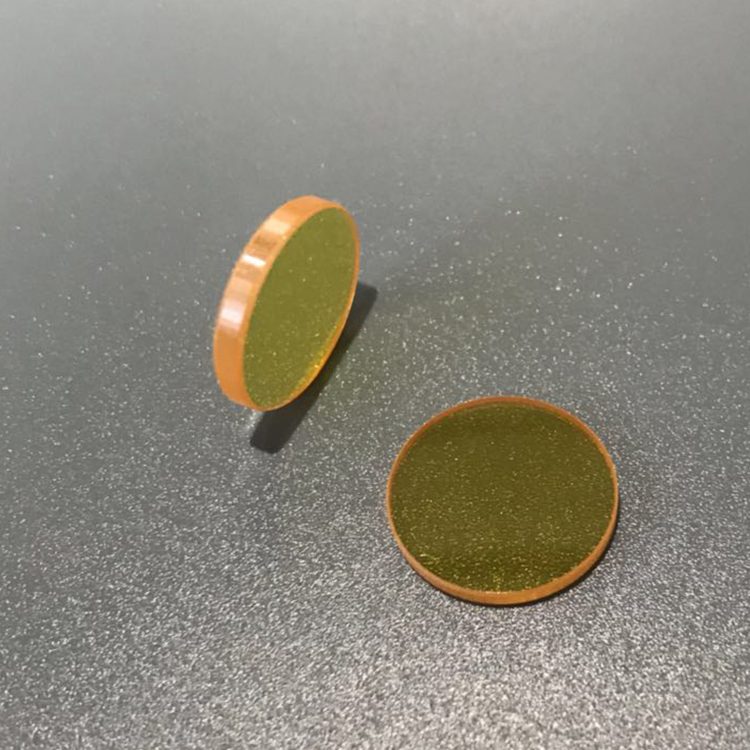

9x1 mm ZnSe Optical Window
ZnSe optical window for thermal imaging with 9 mm diameter, 1 mm thickness, and 1/4 lambda surface quality.
Core attributes
- Material
- ZnSe
- Diameter range
- 9 mm
- Thickness
- 1 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- ZnSe
- Diameter range
- 9 mm
- Thickness
- 1 mm
- Coating
- uncoated
Product description
This ZnSe optical window is specifically designed for thermal imaging applications, providing excellent performance in the infrared spectrum. With a diameter of 9.0 mm and a thickness of 1.0 mm, it offers a surface quality of 1/4 lambda, ensuring minimal distortion and high clarity for critical imaging tasks. Its uncoated surface allows for maximum transmittance in thermal applications.
Key Features
- Diameter of 9.0 mm with a tolerance of ±0.05 mm for precise fitting.
- Thickness of 1.0 mm, ideal for thermal imaging applications.
- Surface quality of 1/4 lambda ensures minimal distortion.
- Parallelism of 30 arc seconds for consistent optical performance.
- OEM support available for customized optical path design.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 9 x 1 |
Applications
Thermal Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Diameter | 9 mm |
| Thickness | 1 mm |
| Surface Quality | 1/4 |
| Coating | uncoated |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM |
| Warranty | 1 years |
| Weight | 0.5kg |
| Diameter Tolerance | 0.1mm |
| Parallel | 30 Arc Sec |
FAQ
Can I get custom sizes?
Yes, the product supports OEM customization for specific requirements.
What is the diameter tolerance?
The diameter tolerance is ±0.05 mm.
