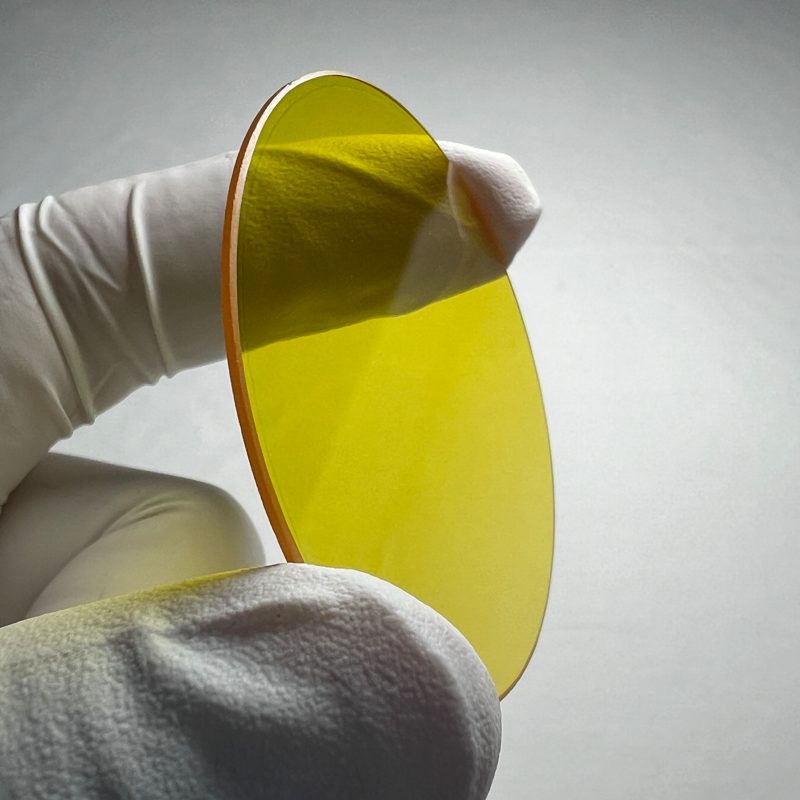

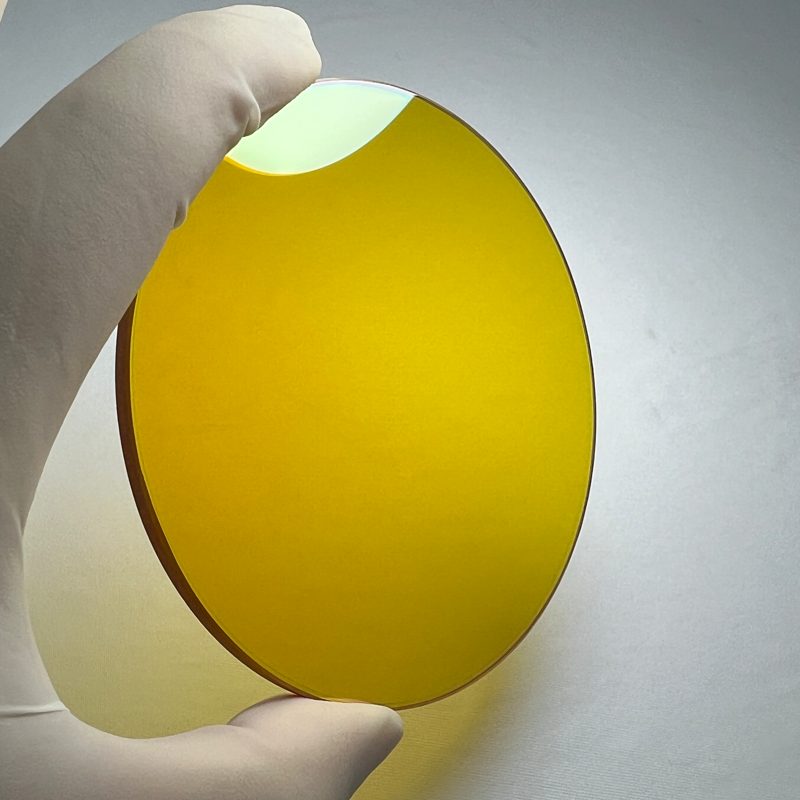

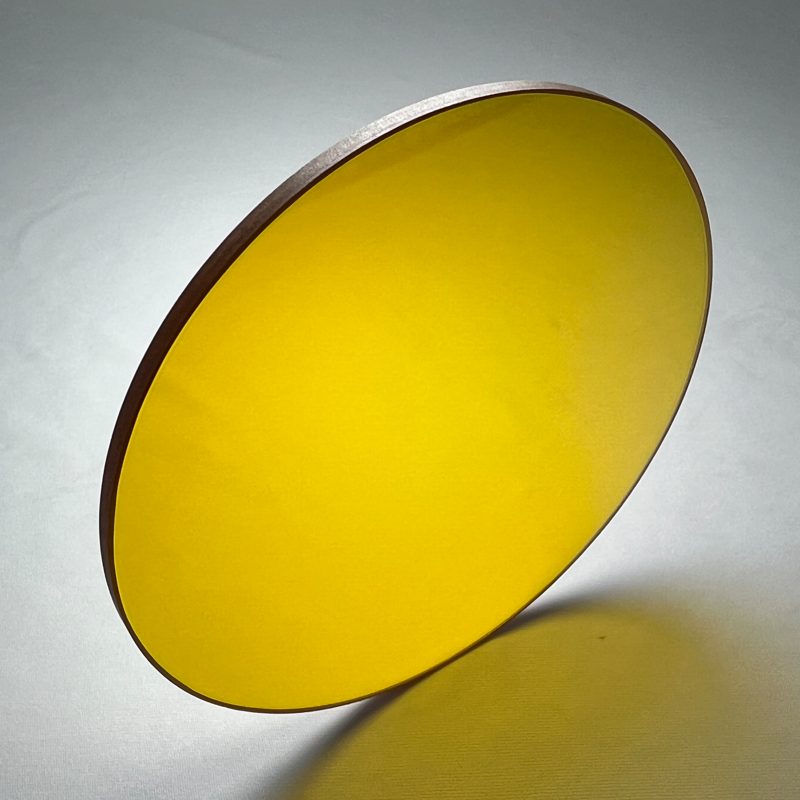

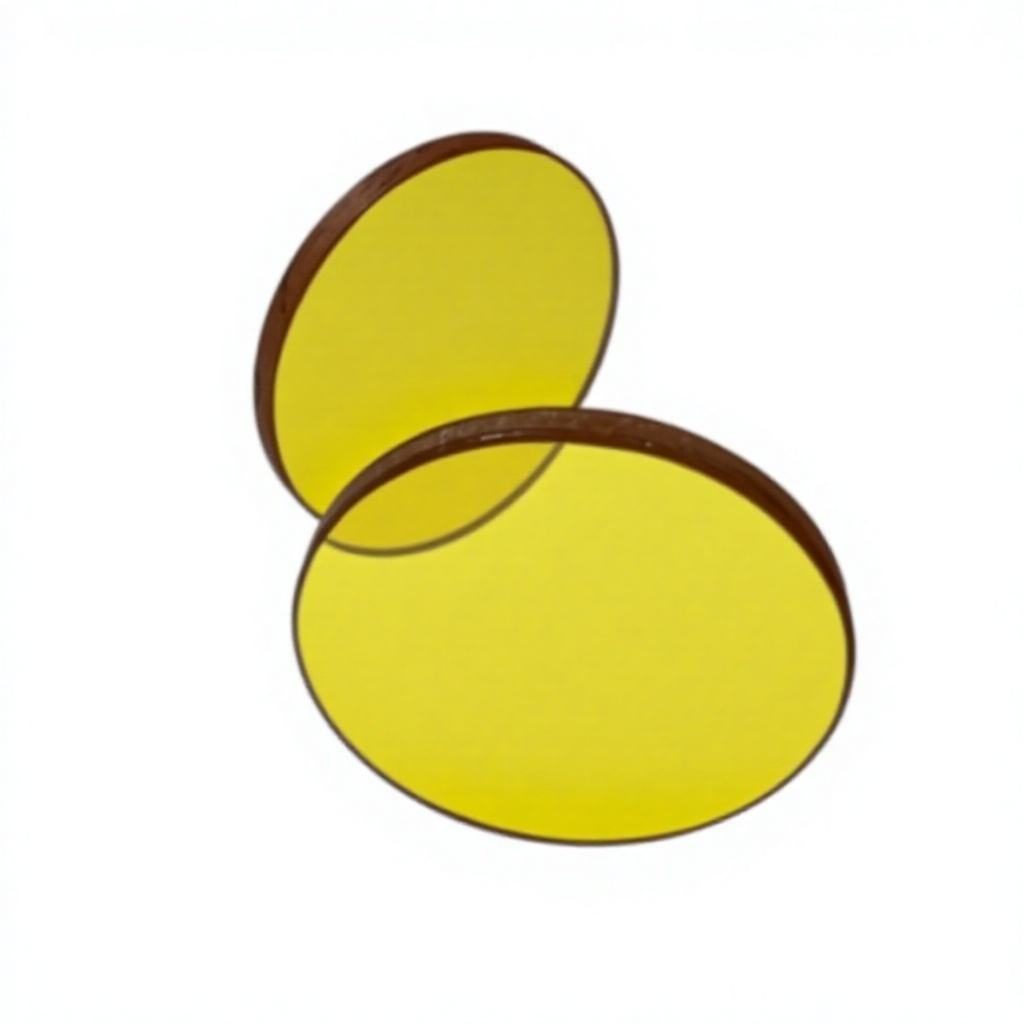

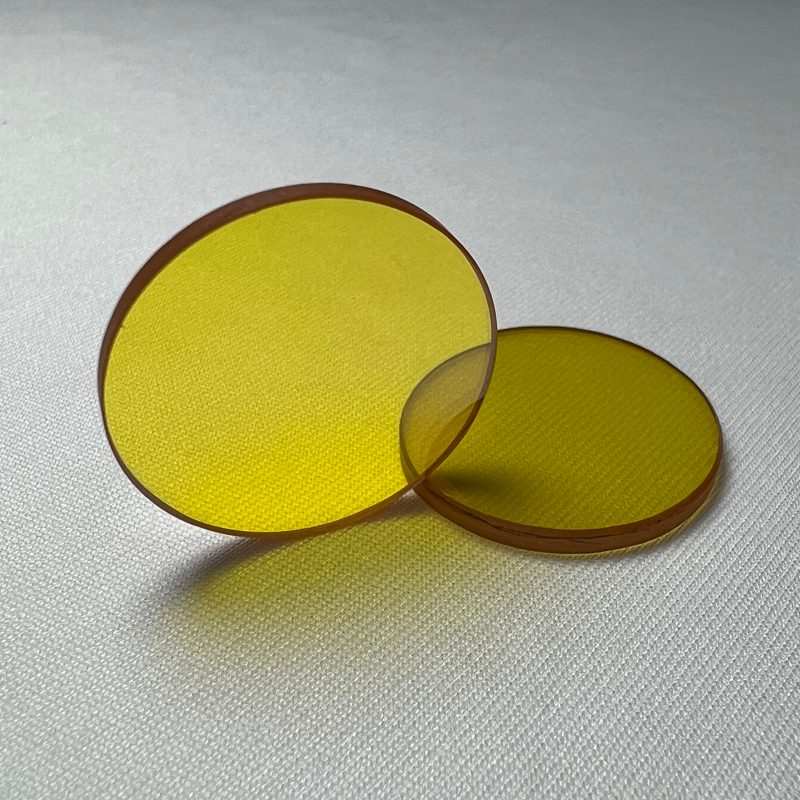

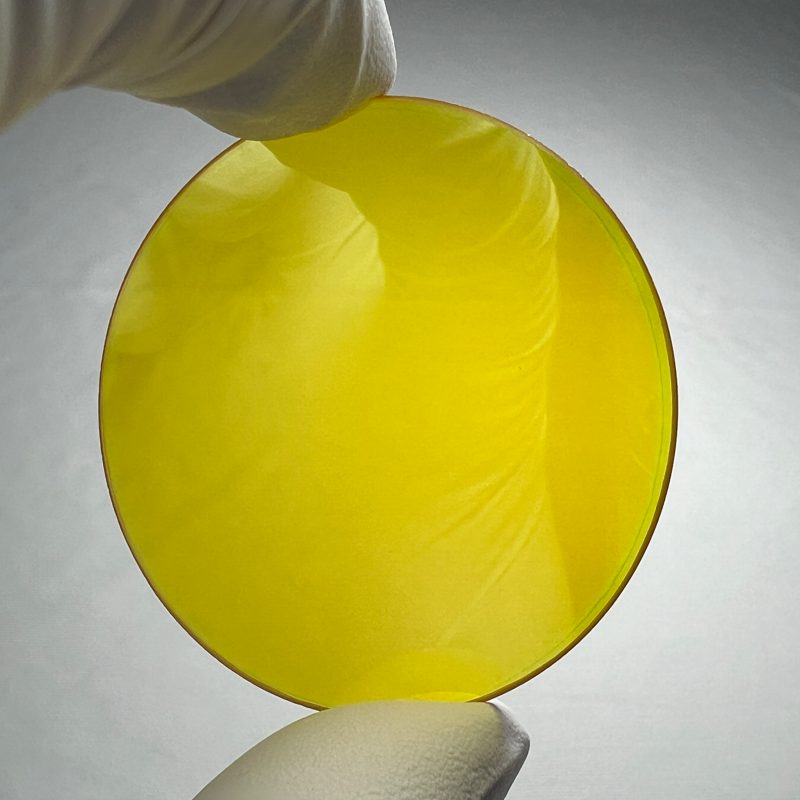

Custom Size ZnSe Optical Window, AR Coated

Product description

The ZnSe optical window is designed for a wide range of applications including CO2 laser equipment and infrared detection. With a transmittance range of 10%-60% and a broad wavelength coverage from 0.5 to 20 μm, this window effectively minimizes infrared reflection loss while resisting thermal shock. Its high-purity CVD substrate ensures low impurity content, making it ideal for critical optical applications.

Key Features

Transmittance of 10%-60%; >90% at specific wavelengths for optimal performance.
Customizable dimensions, thickness, and tolerances to fit specific application needs.
Clear aperture of ≥95% ensures minimal loss of transmitted light.
Surface quality rated at 60/40 for reliable optical clarity.
Broad wavelength range of 0.5-20 μm suitable for various infrared applications.

Specification Summary

Item	Value
Material	ZnSe
Diameter	Custom
Thickness	3 mm
Surface Quality	60/40
Transmittance	10%
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Transmittance	10%-60%; >90%
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Clear Aperture	≥95%
Wavelength	0.5-20μm
Surface Flatness	Lambda 4 or Better

FAQ

Can I get custom sizes or thicknesses?

Yes, the ZnSe window supports OEM and ODM services for customized dimensions and thickness.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexibility in ordering.
