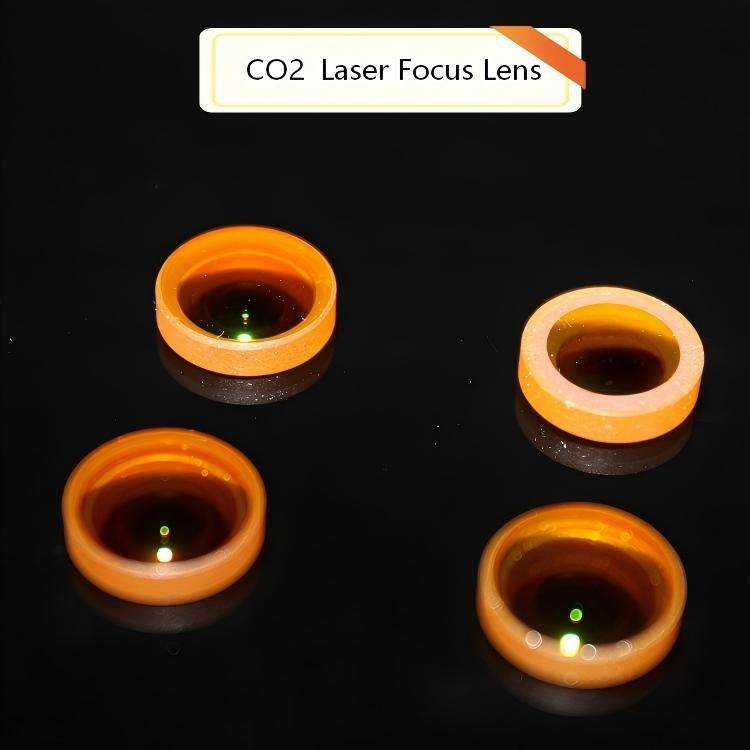

5 mm ZnSe Plano-convex Lens, AR Coated

Product description

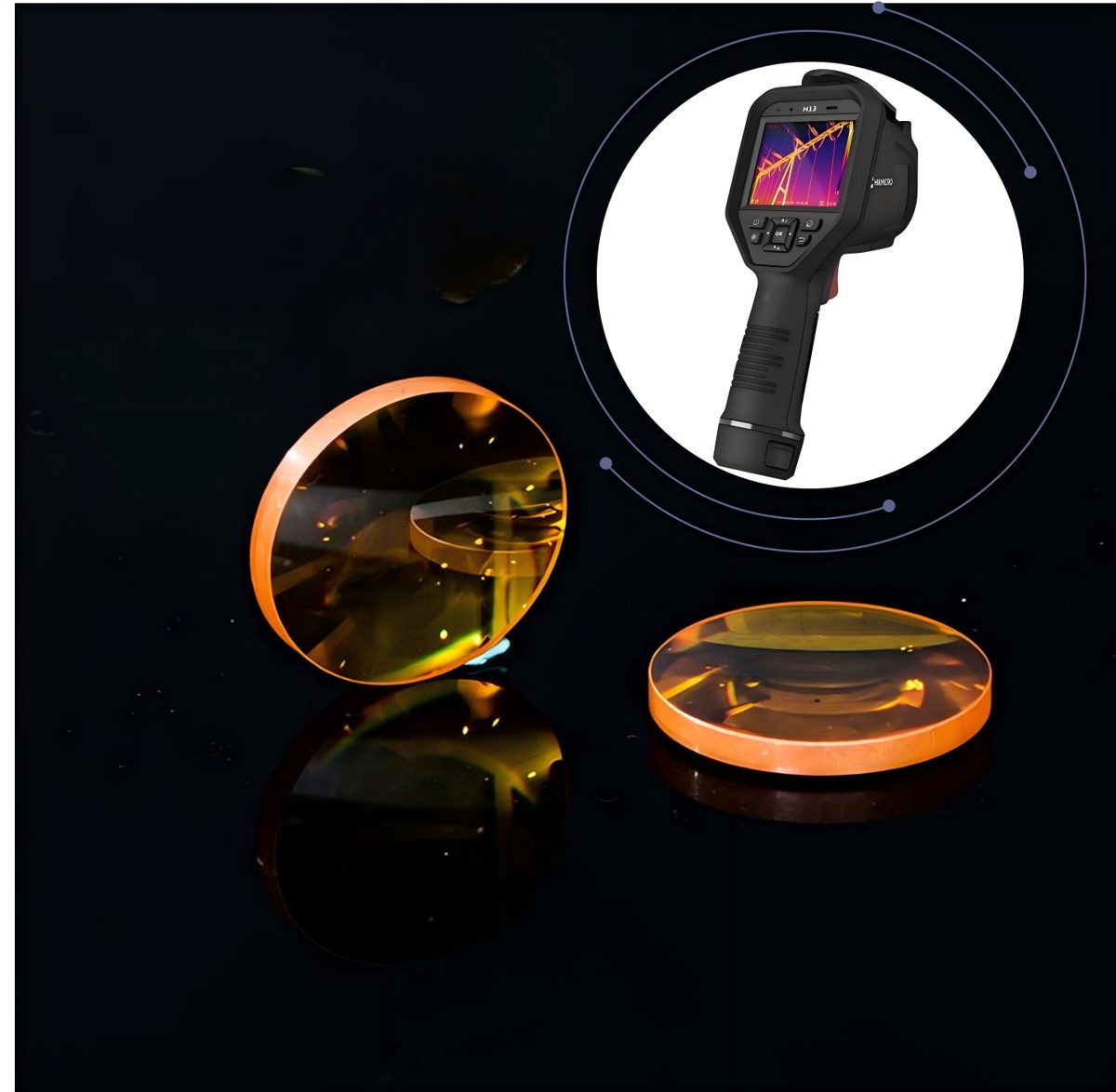

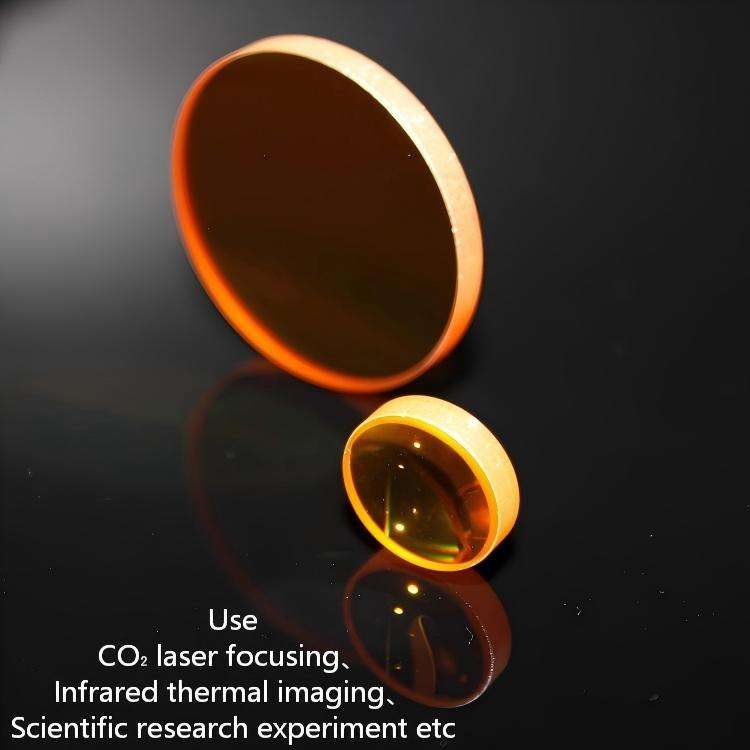

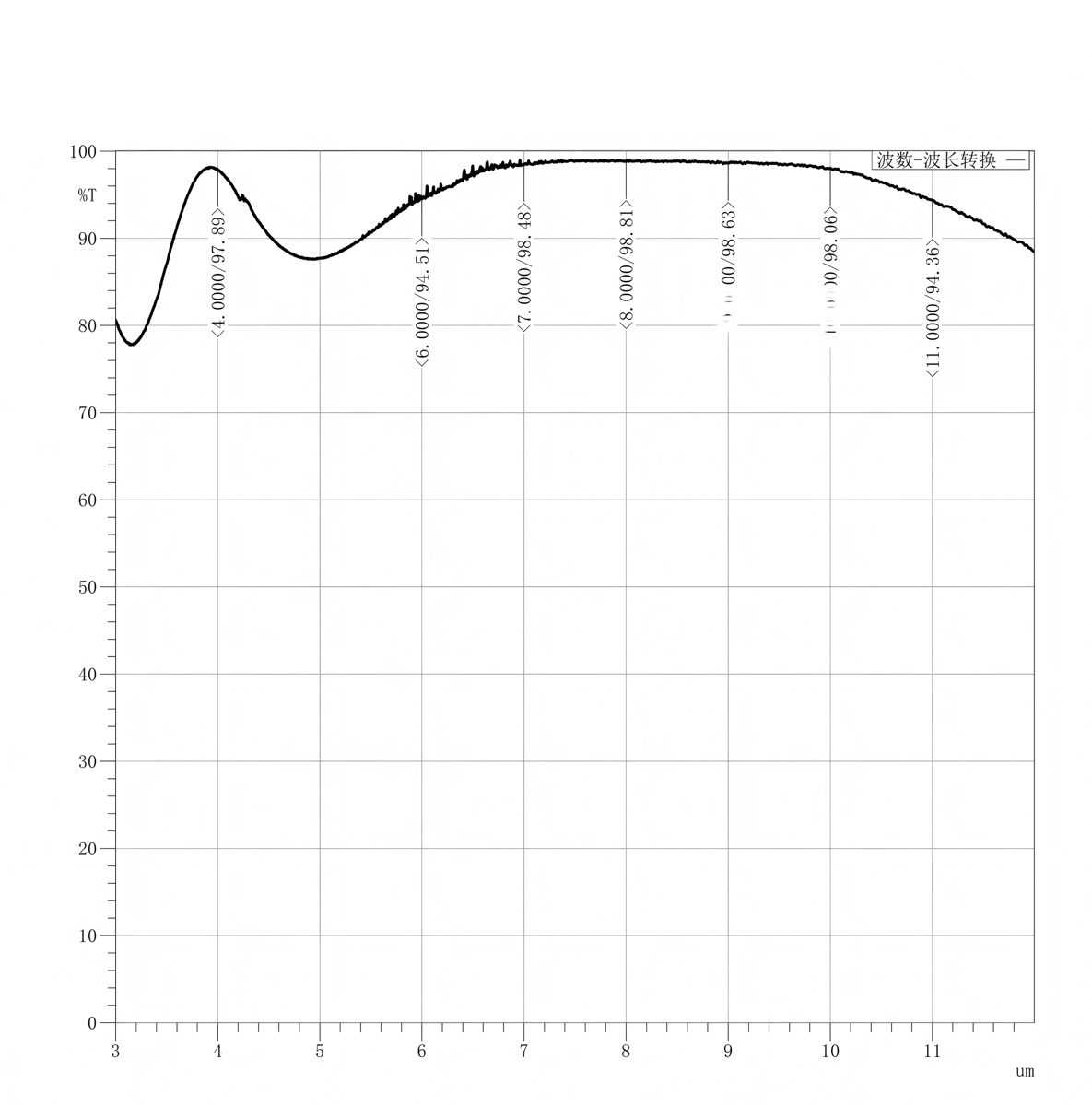

The ZnSe plano-convex lens is designed for applications in the 8-14 μm wavelength range, ideal for IR imaging, LIDAR, and other thermal applications. With a diameter range from 5.0 mm to 300.0 mm, it offers versatility for various setups. The lens features AR coatings to enhance transmittance and minimize reflections, making it suitable for precision optical systems. Its high-quality surface flatness of 1/10 @ 633 nm ensures optimal performance in demanding environments.

Key Features

Diameter range: 5.0 mm to 300.0 mm for versatile application fit.
Surface flatness of 1/10 @ 633 nm ensures high optical performance.
Clear aperture of 95% maximizes light transmission.
Diameter tolerance of ±0.05 mm for precise integration.
Customized support available for OEM and ODM projects.

Specification Summary

Item	Value
Material	ZnSe
Shape	Plano-convex
Diameter	5 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm)

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.5kg(1.10lb)
Surface Flatness	1/10@633nm
Clear Aperture	95%
Parallel	30 Arc Sec
Diameter Tolerance	±0.05mm

FAQ

Can I get custom sizes for the ZnSe lens?

Yes, the lens is available in a diameter range from 5.0 mm to 300.0 mm and can be customized.

What is the surface flatness specification?

The lens features a surface flatness of 1/10 @ 633 nm, ensuring high optical quality.
