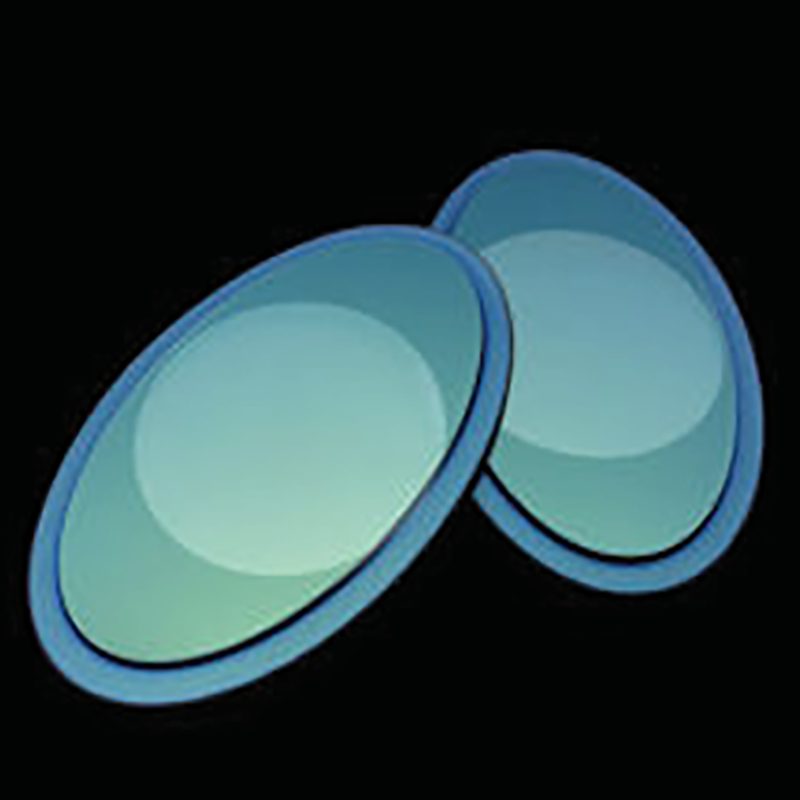

Custom Size ZnSe Plano-convex Lens, AR Coated

ZnSe plano-convex lens for thermal imaging and medical applications, featuring a broad transmission range and customizable options.

Core attributes

Material: ZnSe
Shape: Plano-convex
Focal Length: 9 mm
Coating: anti-reflective (AR)
Transmission bands: LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Product description

The ZnSe plano-convex lens is designed for applications in thermal imaging, security, medical devices, and projection systems. With a broad transmission range from 0.7 to 14 μm, it effectively meets the needs of infrared applications. The lens features high-efficiency anti-reflective coatings and a fixed focus mechanism, ensuring optimal performance in demanding environments. Its robust construction and IP67 sealing make it suitable for various conditions, providing reliability for R&D and procurement engineers seeking high-quality optical components.

Key Features

Broad transmission range: 0.7-14 μm, suitable for multiple applications.
Average transmission of >=86% in the 8-12 μm range, enhancing imaging quality.
Fixed focus design simplifies integration into systems.
IP67 sealing for protection against moisture and dust.
OEM customization available for specific project needs.

Applications

Thermal Imaging, Security, Medical, Projection, Imaging

Specification Summary

Item	Value
Material	ZnSe
Shape	Plano-convex
Focal Length	9 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	OEM
Warranty	1 year
Weight	180G(6.35oz)
Average Transmission(8~12Μm)	>=86%
Focus Mechanism	Fixed focus
Back Focal Length	21.01mm
Sealing	IP67-Front lens only
External Coating	High Efficiency AR
Storage Temperature	50°C ~ +80°C
Mechanical Interface	M34 x 0.5
Use	Infrared

FAQ

Can I get custom sizes for this lens?

OEM customization is available, allowing for tailored solutions to fit specific project requirements.

What is the minimum order quantity (MOQ)?

The MOQ is not specified; please inquire for details based on your needs.
