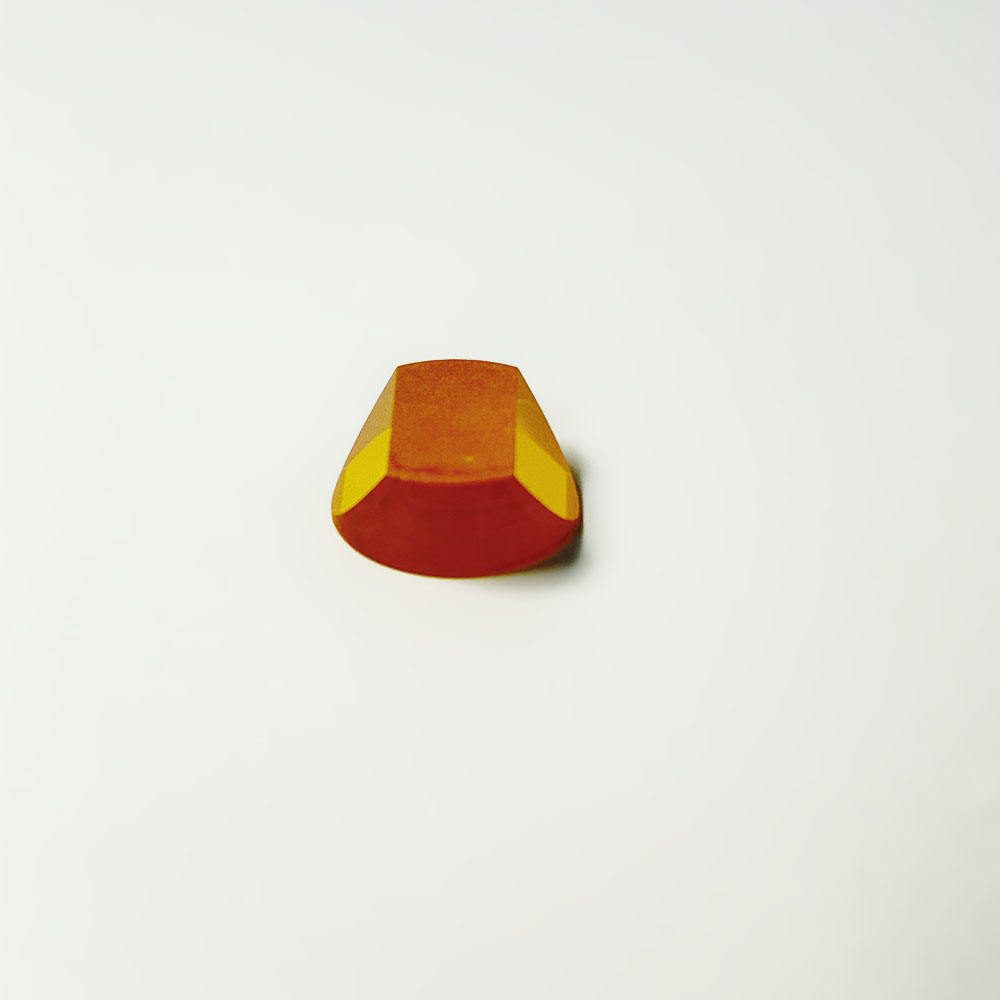

5x1 mm ZnSe Roof Optical Prism, AR Coated

Product description

The ZnSe roof prism is designed for precision applications requiring high angle accuracy and minimal beam deviation. With a tolerance of less than 3 arcseconds, it ensures reliable performance in optical paths. Custom sizes are available, making it suitable for various configurations in laser and imaging systems, particularly in the infrared spectrum.

Key Features

Angle tolerance of <3 arcsec ensures precise alignment in optical systems.
Dimension tolerance of ±0.1mm provides consistency across batches.
Flatness specification of L/2 - L/8 @ 633nm supports wavefront integrity.
Clear aperture of ≥90% maximizes light transmission for enhanced performance.
Custom sizes available (5.0 mm to 100.0 mm) for tailored solutions.

Available Sizes

Size x Thickness (mm)
52.5 x 5.5

Specification Summary

Item	Value
Material	ZnSe
Shape	Roof
Size	5 mm
Thickness	1 mm
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	Triangular Prism
Customized Support	OEM, ODM, OBM
Warranty	1 month
Angle Tolerance	<3 arcsec
Dimension Tolerance	±0.1mm
Flatness	L/2- L/8 @633nm
Clear Aperture	≥90%
Bevel	0.2-0.5mmx45°

FAQ

What is the minimum order quantity (MOQ) for this prism?

The MOQ for this prism is not specified.

Can I get a custom size for the ZnSe roof prism?

Yes, custom sizes are available to fit specific applications.
