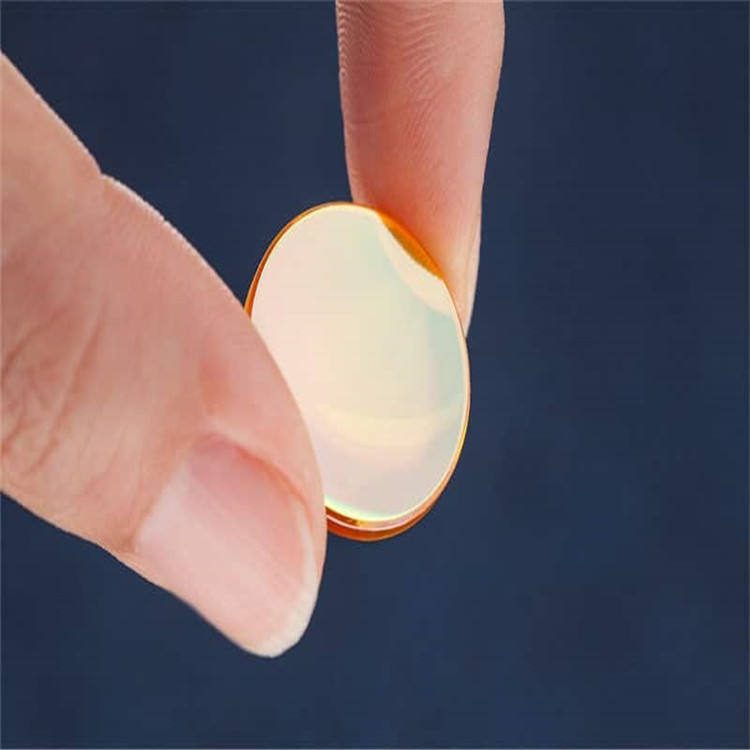

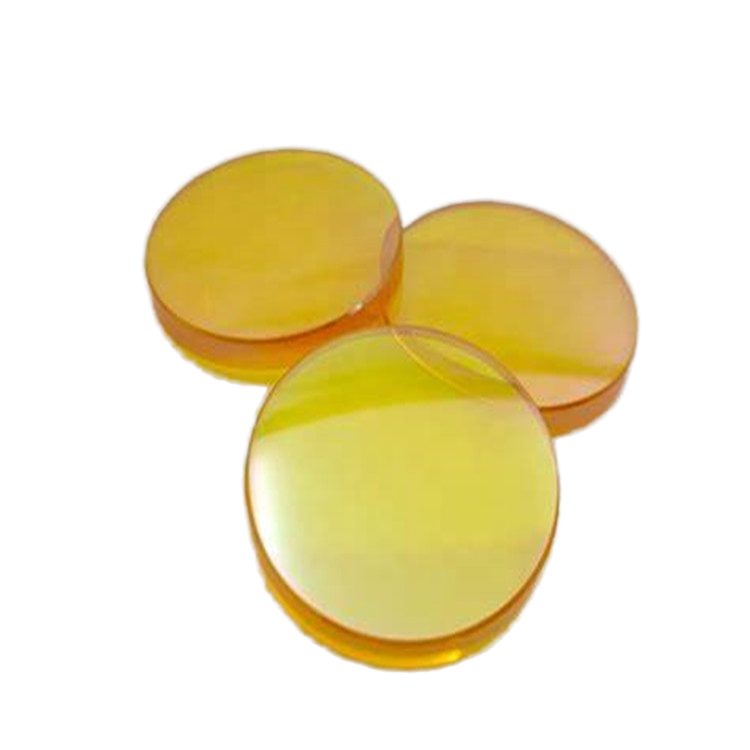

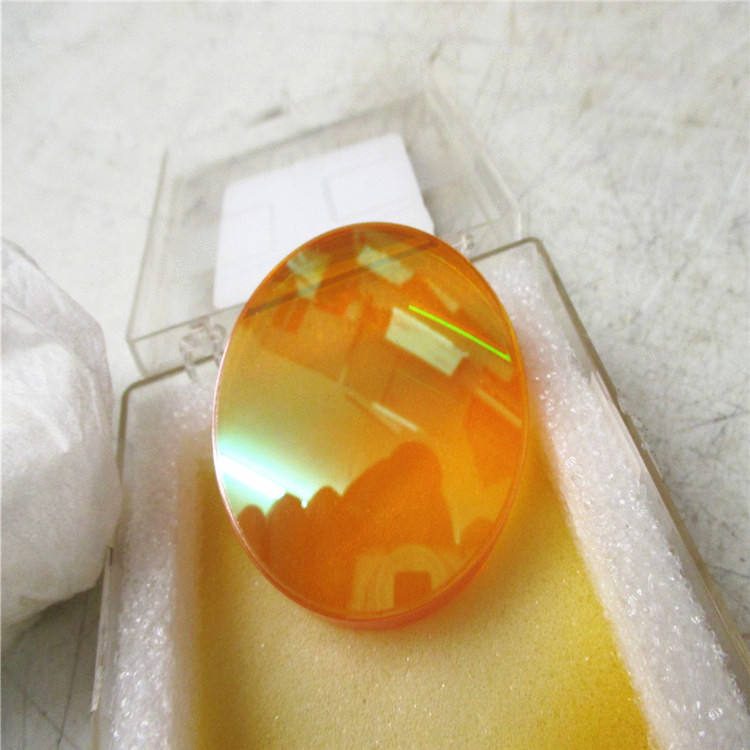

10 mm ZnSe Round Optical Window, AR Coated
ZnSe round lens for thermal imaging and medical applications, customizable sizes, high clear aperture, and OEM/ODM support.
Core attributes
- Material
- ZnSe
- Shape
- round
- Diameter range
- 10–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnSe
- Shape
- round
- Diameter range
- 10–300 mm
- Coating
- ar
Product description
The ZnSe round lens is designed for infrared applications, particularly in thermal imaging and medical systems. Its broad transmission range of 8-14 μm and 0.7-1.7 μm makes it suitable for high-power CO2 laser systems, offering low absorption and high thermal shock resistance. Customizable in diameter from 10.0 mm to 300.0 mm, this lens meets diverse application needs.
Key Features
- Wavelength compatibility: 1064 nm and 10.6 μm for versatile application in thermal imaging and medical systems.
- High clear aperture: >98% ensures minimal light loss for improved imaging performance.
- Customizable dimensions allow for tailored solutions to fit specific project requirements.
- OEM, ODM, and OBM support available for enhanced sourcing flexibility.
- Protective chamfer can be added to meet design specifications.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Shape | Round |
| Diameter | 10 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |

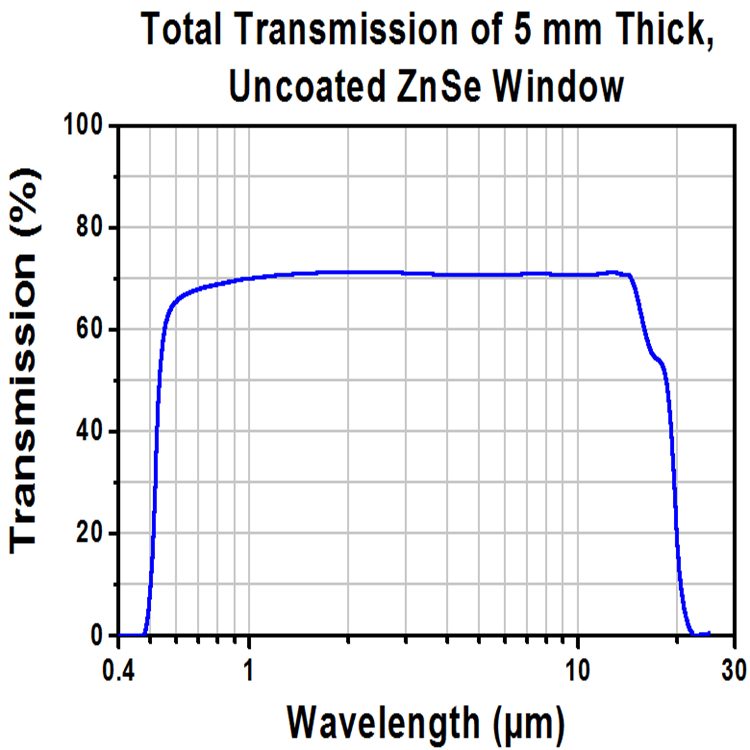

| Transmission bands | LWIR (8-14 μm), NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens, Convex Lens, Plano |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 years |
| Weight | as design |
| Sample | standard size in stock |
| Chamfer | protective chamfer as needed |
| Dimension | can be customized |
| Clear Aperture | >98% |
| Wavelength | 1064nm/10.6um |
FAQ
Can I get custom sizes?
Yes, the diameter can be customized from 10.0 mm to 300.0 mm.
What is the minimum order quantity?
The minimum order quantity is not specified; please inquire for details.
