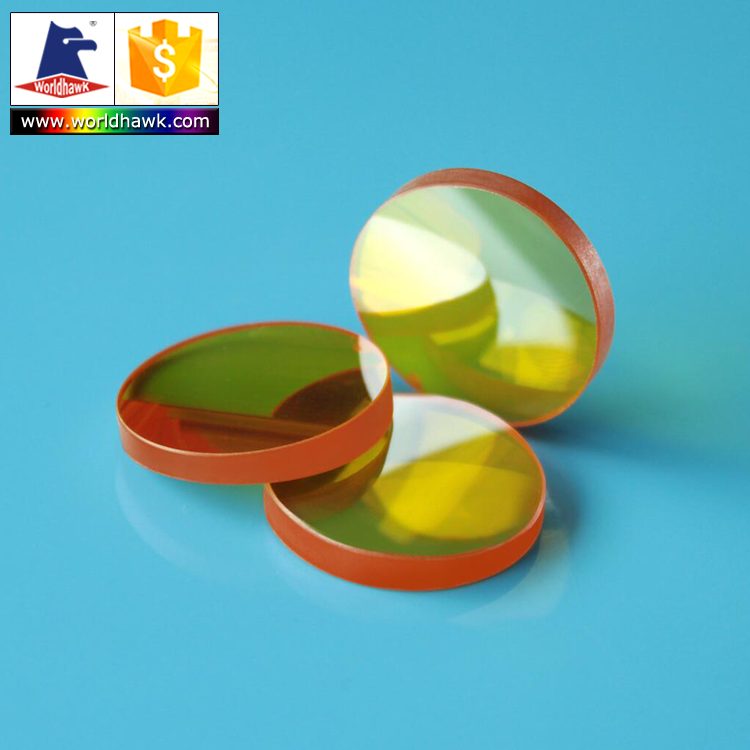

300x0.1 mm ZnSe Round Optical Window, AR Coated

Product description

This round ZnSe optical window is designed for applications in laser technology, IR detection, and imaging. With a diameter of 300 mm and thickness options ranging from 0.1 mm to 100 mm, it provides effective isolation while allowing light transmission. The anti-reflection coating enhances performance, making it suitable for various optical environments. Its customizable features ensure compatibility with specific project requirements.

Key Features

Diameter of 300 mm, suitable for large-scale applications.
Thickness options from 0.1 mm to 100 mm, allowing flexibility in design.
AR coating improves transmittance, enhancing optical performance.
High clear aperture (>85%, >90%) ensures minimal light loss.
Parallelism of +/-3’, +/-30’’ for precise optical alignment.

Available Sizes

Diameter x Thickness (mm)
300 x 50

Specification Summary

Item	Value
Material	ZnSe
Shape	Round
Diameter	300 mm
Thickness	0.1 mm
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM, ODM
Warranty	3 month
Thickness Tolerance	± 0.1mm or +/-0.02mm
Clear Aperture	>85%, >90%
Parallelism	+/-3’,+/-30''
Bevel	0.1~0.3mm x 45 degree

FAQ

Can I get custom sizes?

Yes, custom sizes are available, with diameter options ranging from 0.2 mm to 300 mm.

What are the thickness tolerances?

The thickness tolerance is ±0.1 mm or +/-0.02 mm.
