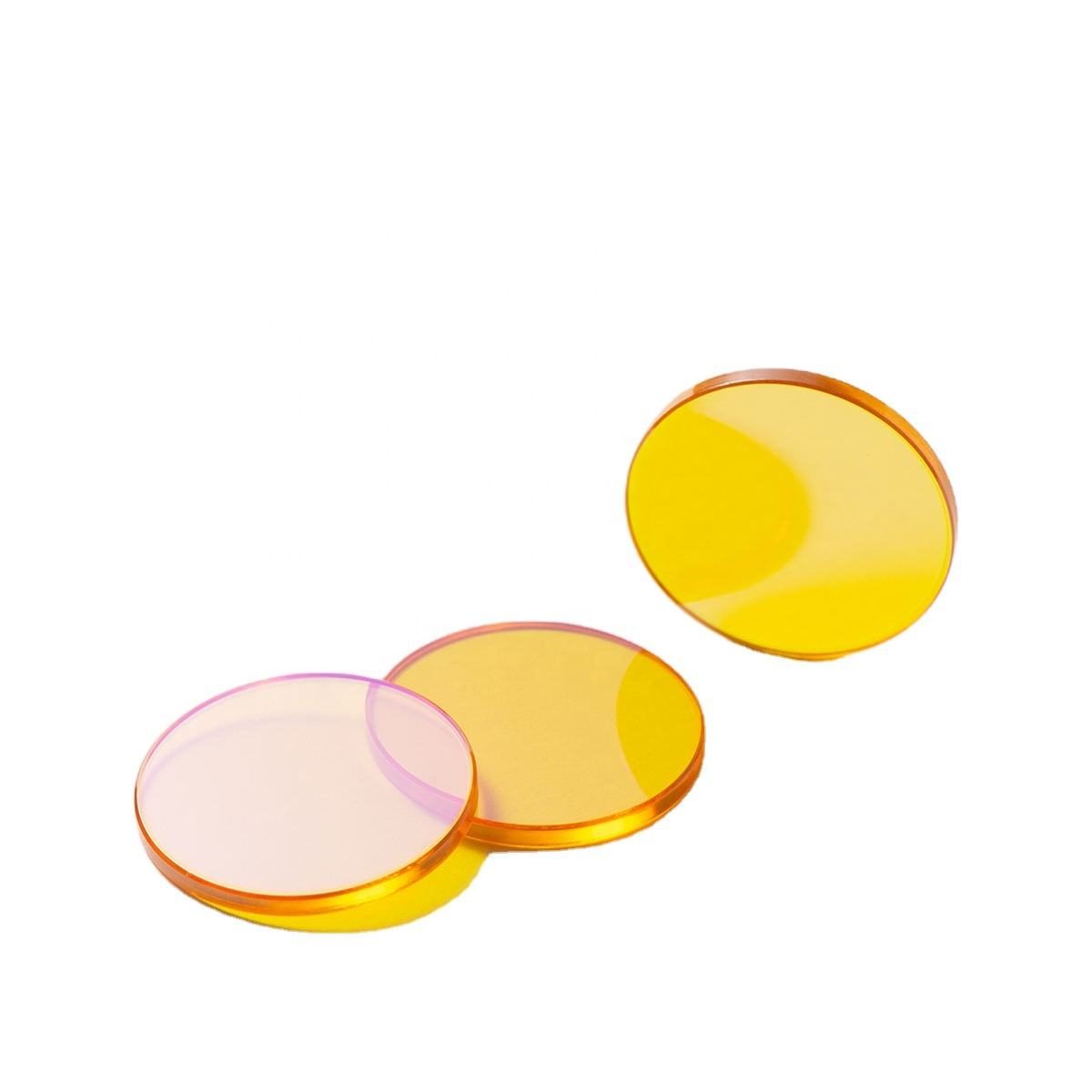

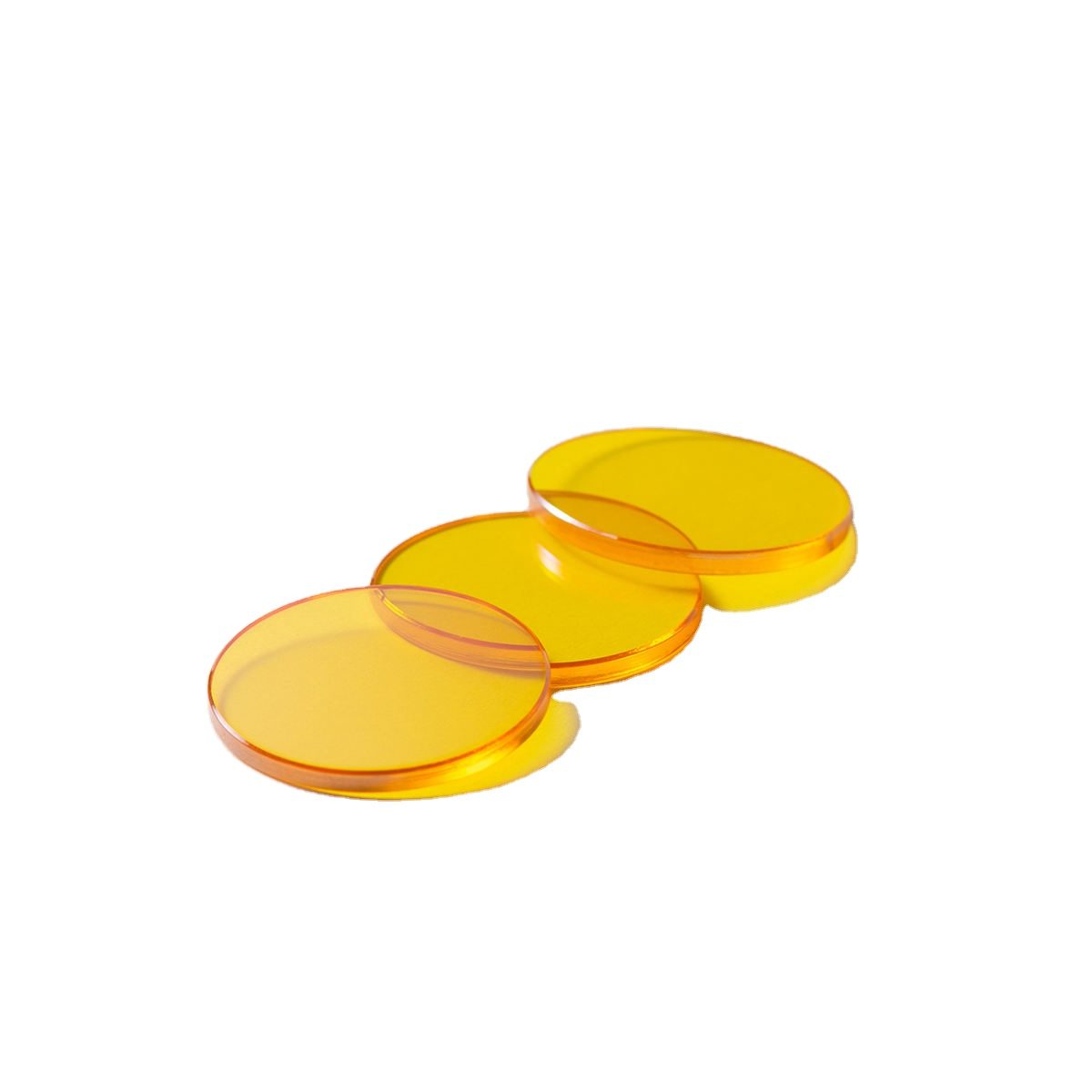

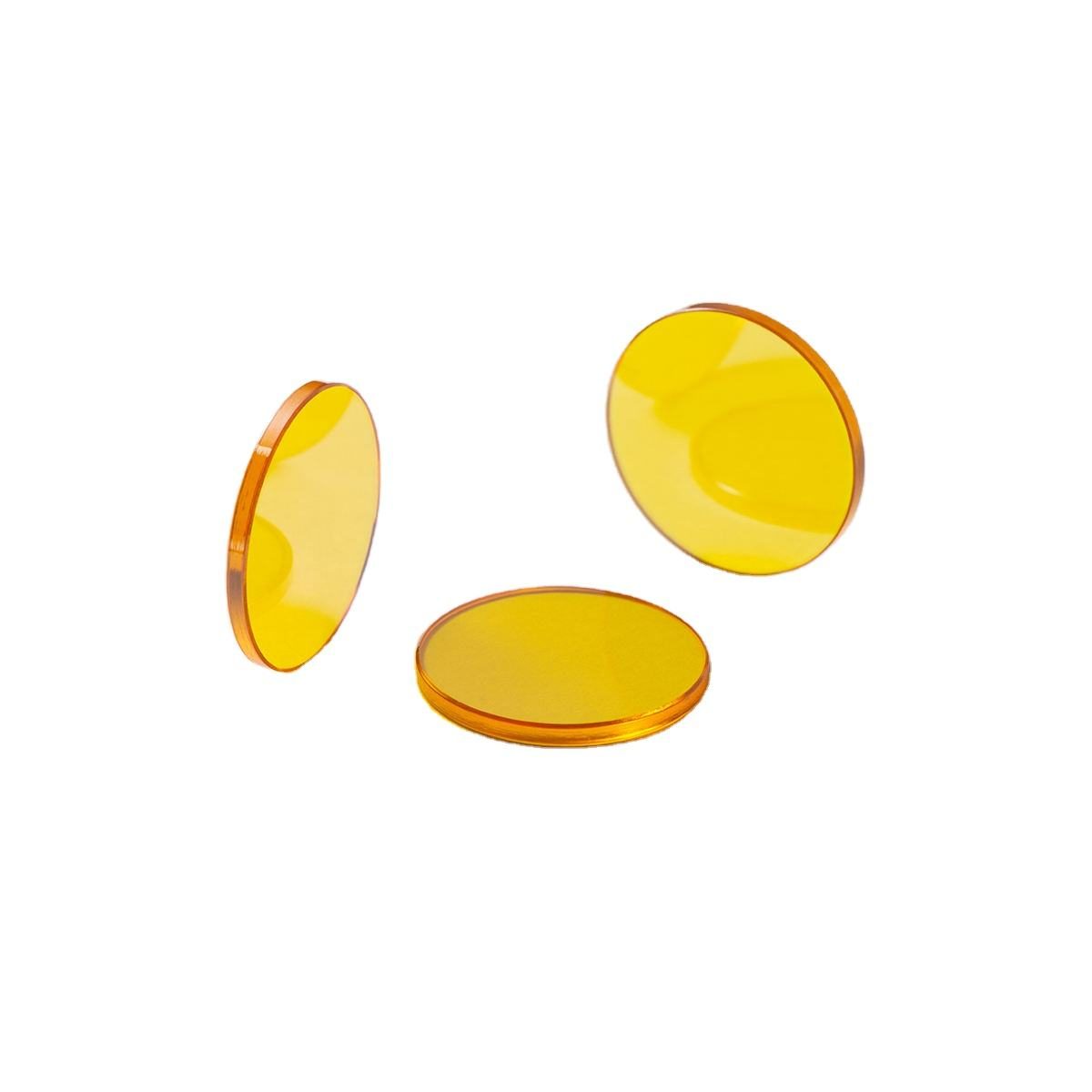

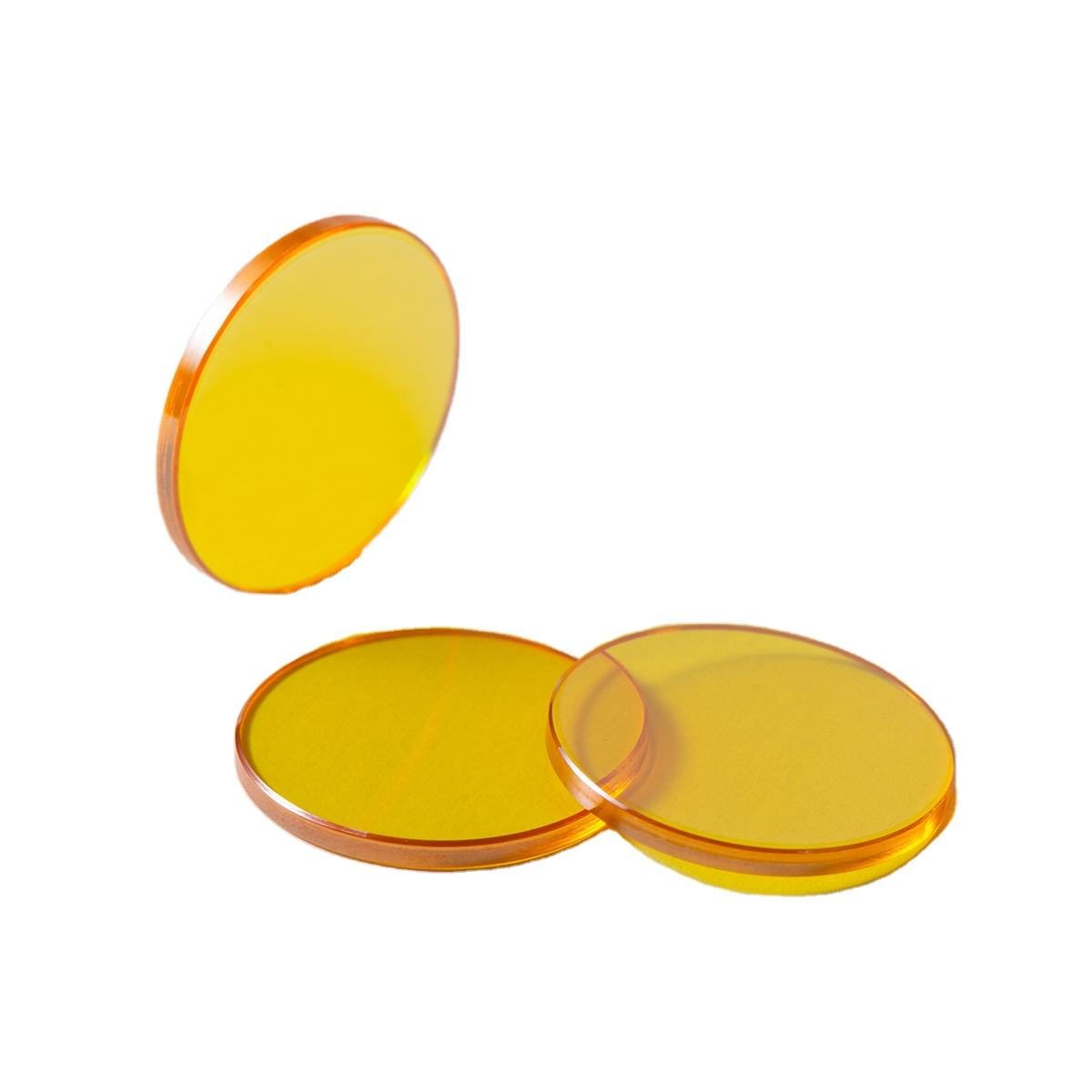

5x1 mm ZnSe Round Optical Window, AR Coated

Product description

Zinc Selenide (ZnSe) round windows are essential for medical applications, particularly in infrared imaging and LIDAR systems. With high transmittance across multiple bands (0.7-1.7 μm, 1.7-3 μm, 3-5 μm, and 8-14 μm), these windows ensure optimal performance in various spectral ranges. The customizable dimensions and coatings enhance their adaptability for specific project requirements, making them a reliable choice for R&D and procurement engineers.

Key Features

Diameter options from 5.0 mm to 500.0 mm cater to diverse application needs.
Thickness ranges from 1.0 mm to 50.0 mm for tailored optical performance.
High precision tolerances of ±0.1 mm ensure consistent quality and fit.
Clear aperture greater than 90% maximizes light transmission efficiency.
Available OEM, ODM, and OBM support for custom designs and prototypes.

Available Sizes

Diameter x Thickness (mm)
252.5 x 25.5

Applications

Medical

Specification Summary

Item	Value
Material	ZnSe
Shape	Round
Diameter	5 mm
Thickness	1 mm
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	OEM, ODM, OBM; OBM OEM ODM
Warranty	3 Years
Weight	0.05kg(0.11lb)
Dimension Tolerance	±0.1mm
Clear Aperture	>90%

FAQ

What are the available custom sizes?

Custom sizes are available with diameter options ranging from 5.0 mm to 500.0 mm and thickness from 1.0 mm to 50.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified, allowing flexibility in ordering.
